Product name:Titanium anode basket
Material:Titanium Gr1 Gr2
Surface:Sand blasting, pickled
Dimension:According to customer's request or drawings
MOQ:3 pcs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium baskets manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium anode basket

Titanium basket is a kind of hanger used to install anode on electroplating equipment, such as electroplating nickel, the titanium basket is filled with nickel cake as anode, and the cathode is plated. If copper is plated, then the titanium basket is placed with copper balls as anode and cathode After placing the plated parts and applying direct current, the anode in the titanium basket will dissolve, but titanium is very stable and will not be dissolved, so titanium is often used as the anode hanger.

Product name	Titanium anode baskets,Titanium baskets for anodizing,Titanium baskets electroplating,titanium baskets for plating,Titanium anodizing baskets,Titanium anode baskets
Material	Pure titanium
Grade	Gr1,Gr2
Common Size	Length x Width x Thickness
	400x120x50mm,500x130x55mm,600x150x55mm,
	700x175x60mm, 800x195x60mm,900x215x65mm,
	1000x250x65mm,1400x300x50mm,etc.
Production Method	Cutting, welding, bending
Features	Toughness, light weight,Stability dimension
	Lower electricity consumption, high catalytic
	Strong corrosion resistance, long working life
	High property of acid and alkali resistance,
	Bear high & low temperature, etc.
Applications	Electroplating industry, such as
	(1)Precious metal plating(Ag, Au, Rh, Pd)
	(2)Hard chrome plating(Cr6+)
	(3)Base metal plating(Cu, Zn, Ni)
	(4)Precious metal recovery, etc.

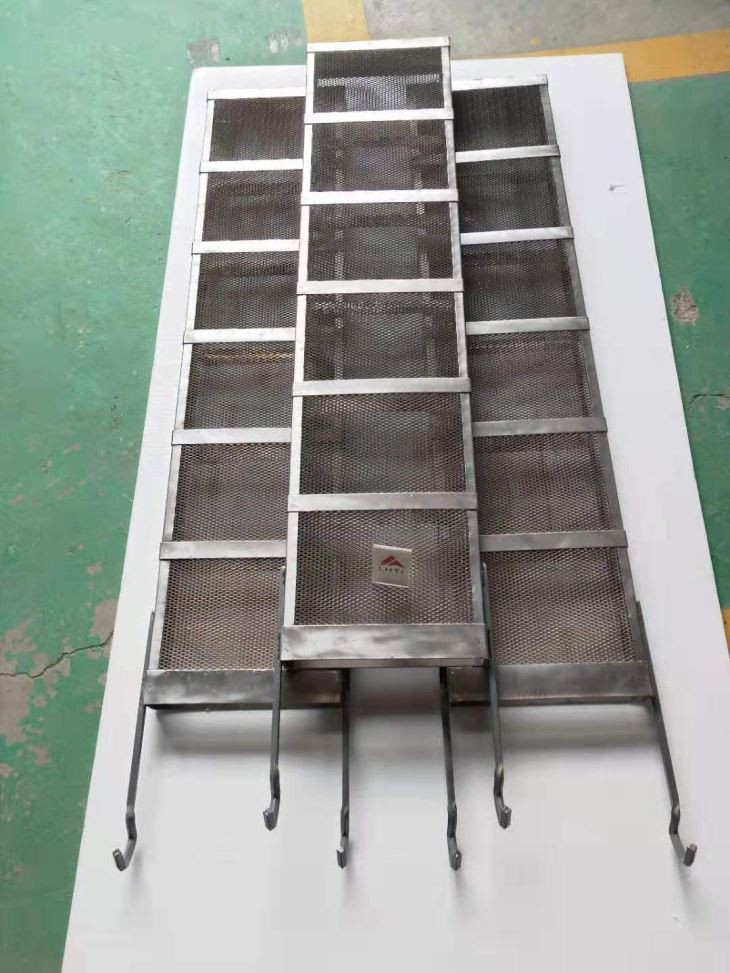

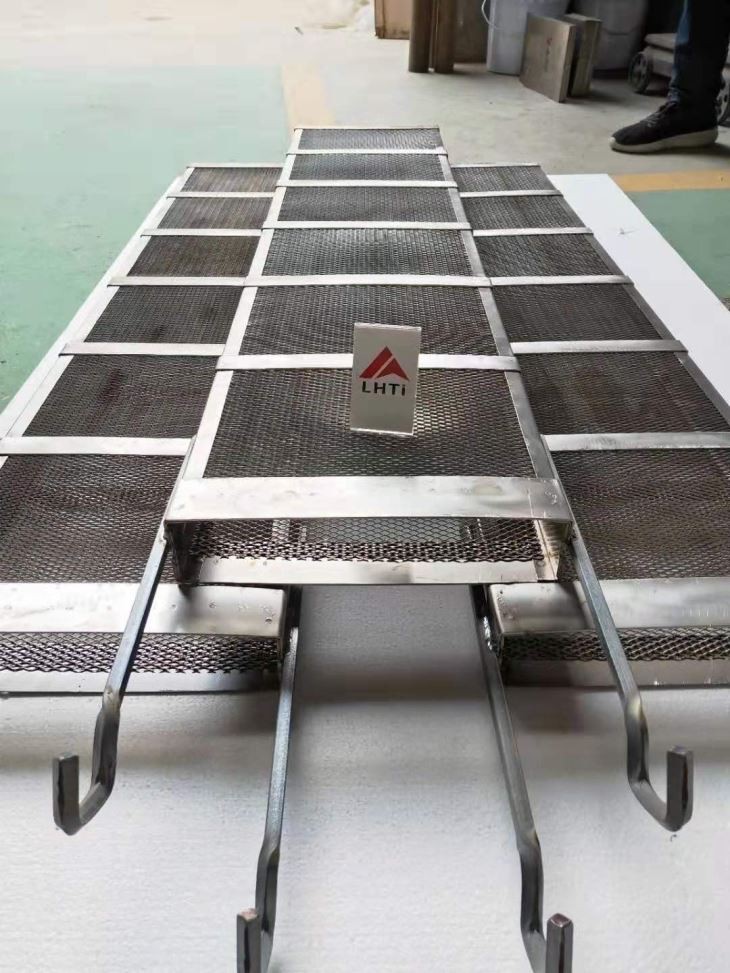

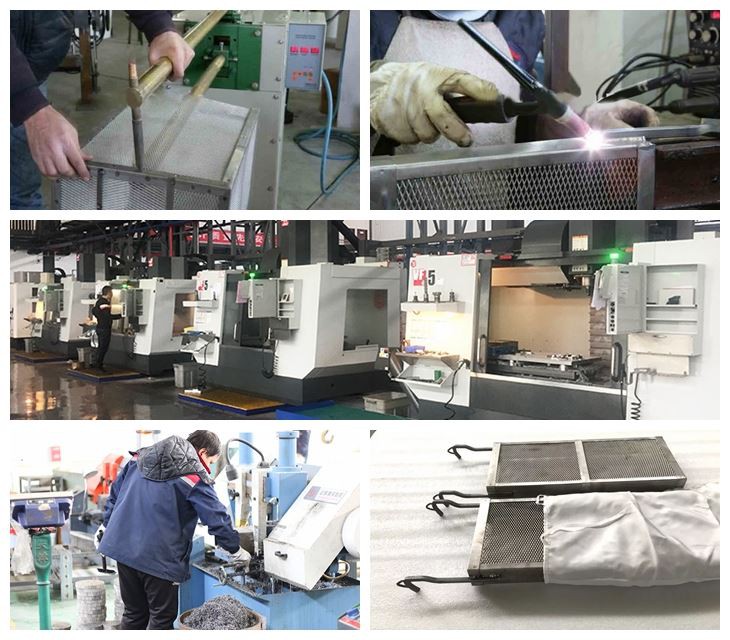

Detailed images:

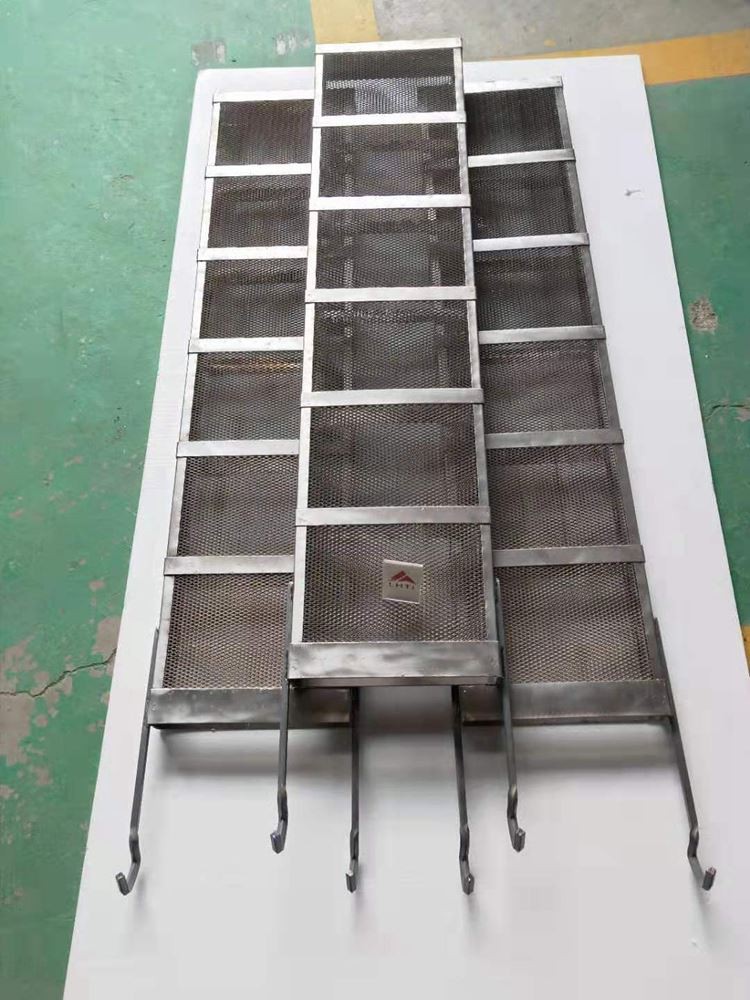

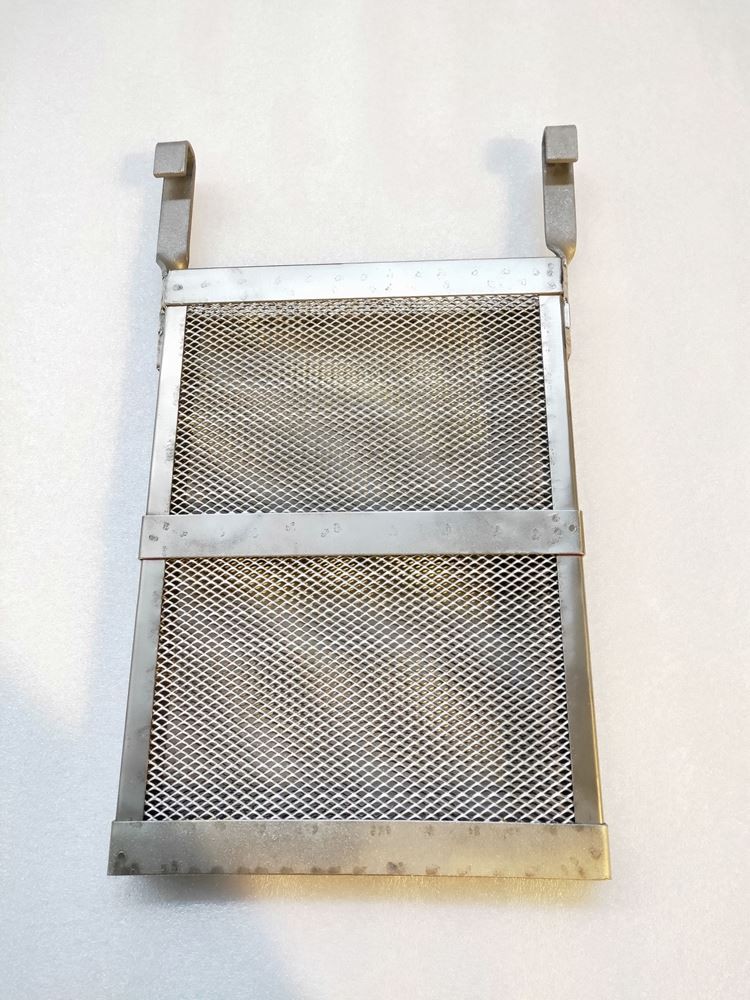

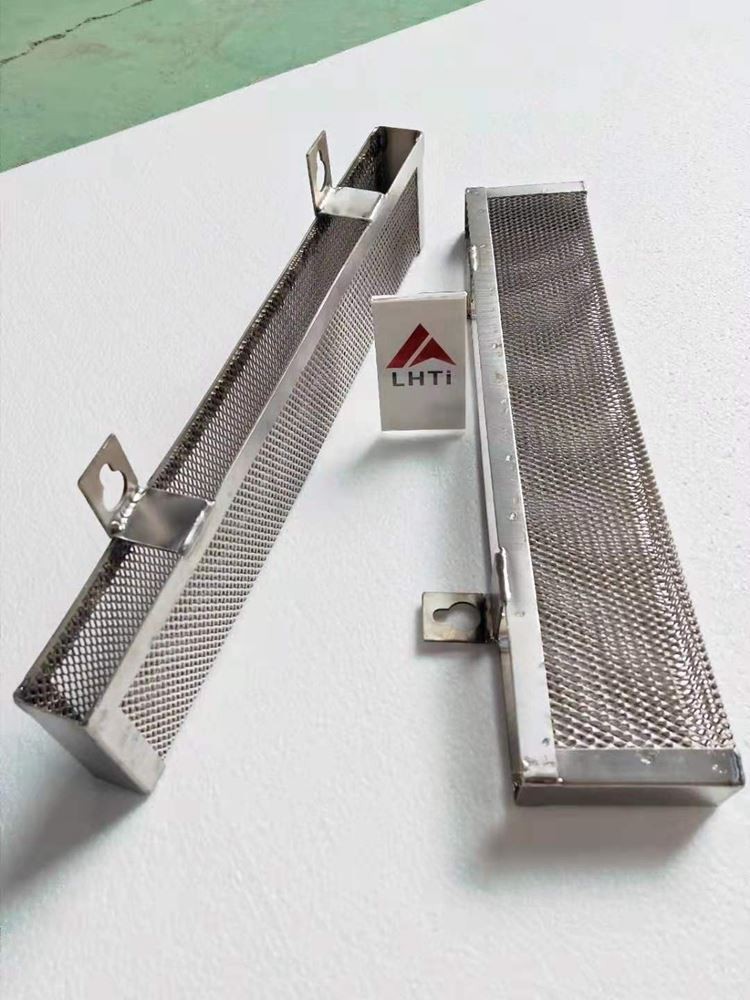

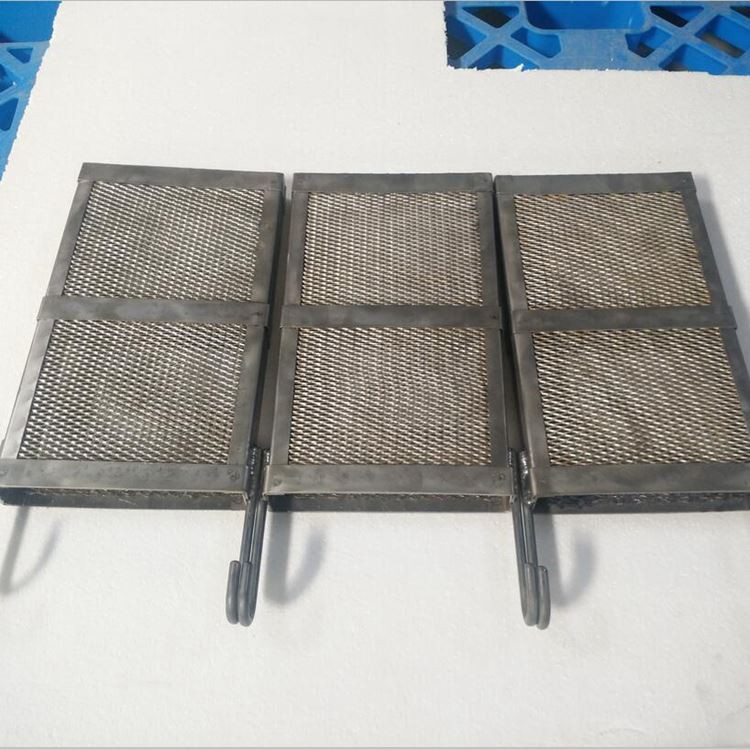

titanium anode baskets titanium basket plating 6 titanium anodizing baskets titanium baskets for plating

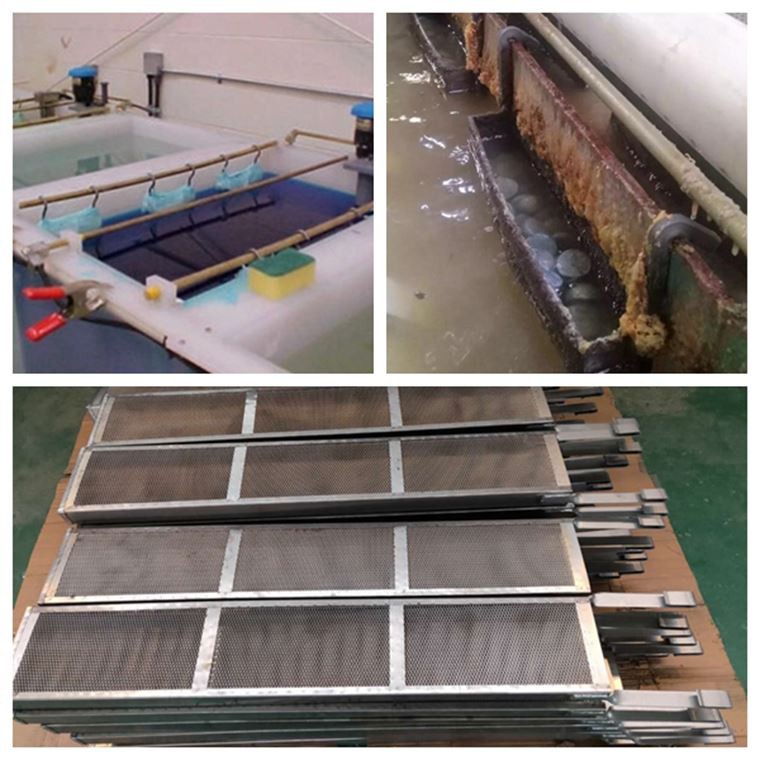

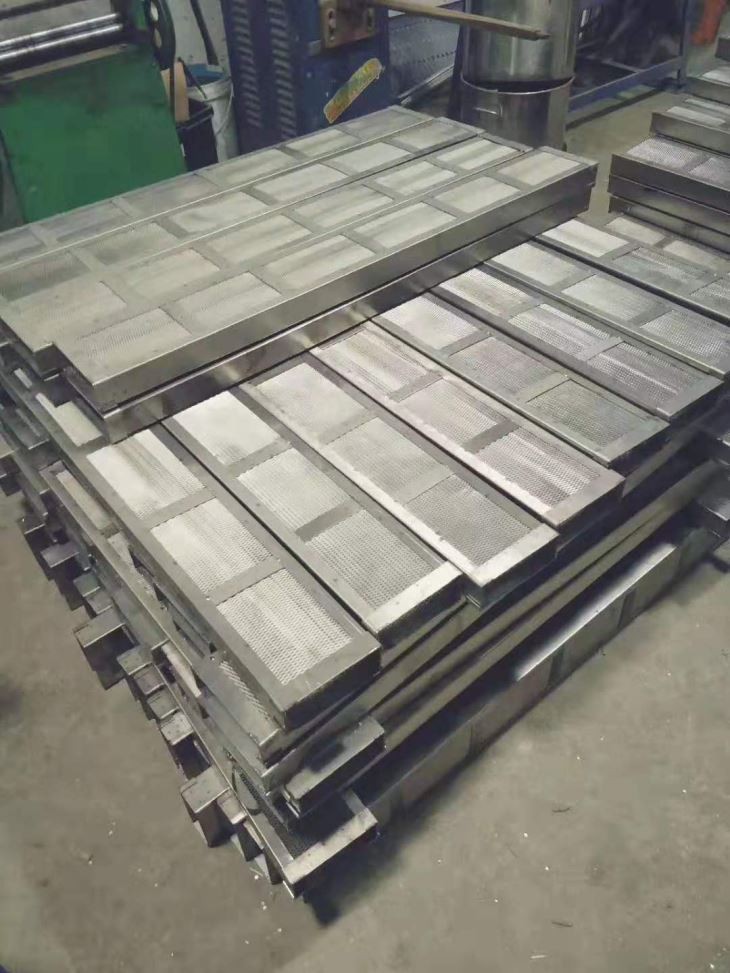

Titanium baskets in actual application:

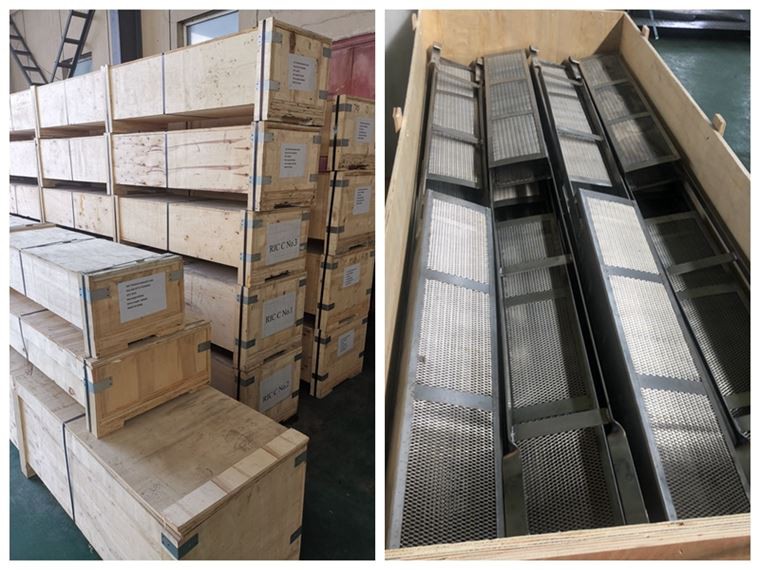

Packaging and shipping:

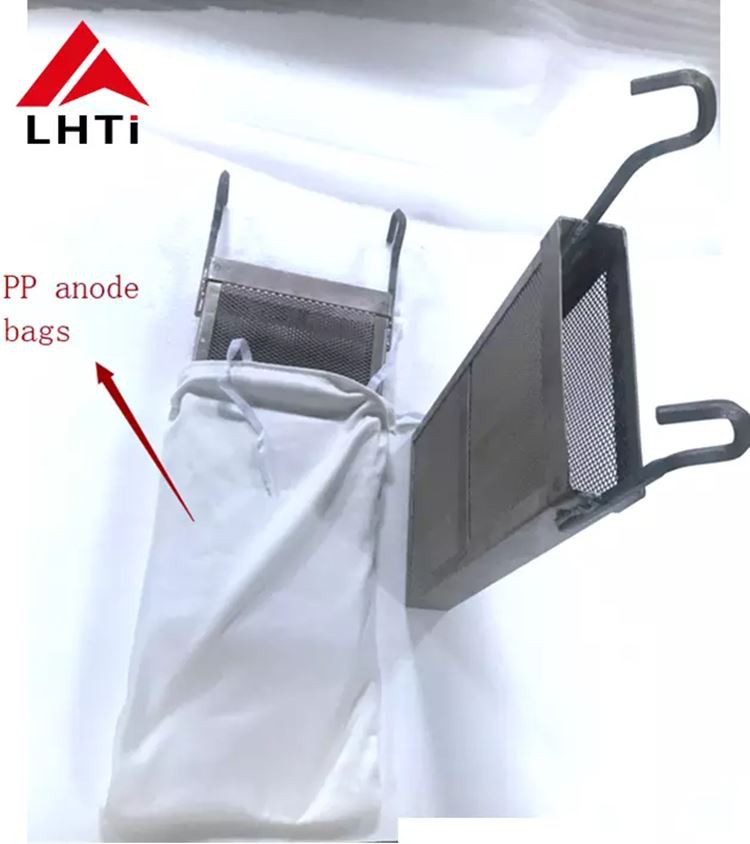

PP anode bags is available

Titanium basket 16_ Titanium anode basket3
