Titanium Alloy Hemispherical Head

 Titanium Alloy Hemispherical Head

Hemispherical Head, also known as pipe cap, plug, dish cap, dish head etc.It is a pipe fitting welded on the pipe end or installed on the external thread of the pipe end to cover and block the pipe. It is used to close the pipeline and has the same function as the pipe plug.The fittings matching the Hemispherical Head are pressure vessel, pipe, flange, elbow, tee, tee and so on

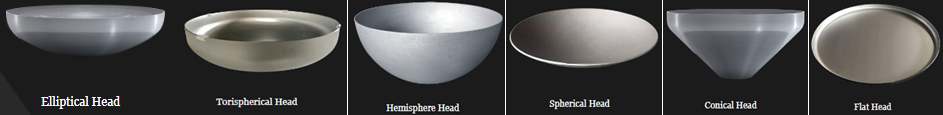

The form of the dish head is similar to that of the blind flange.But the blind flange can be removed, while the dish head can not be removed. The head includes the design of convex head, conical shell, variable diameter section, flat cover and tight mouth. Convex pipe head includes hemispherical head, elliptical head, dished head and spherical cap head. From the point of view of stress, the hemispherical head in the convex head is gradually bad, but from the point of view of manufacturing difficulty, it is gradually good to manufacture.

(Titanium dish head )DIN28013:

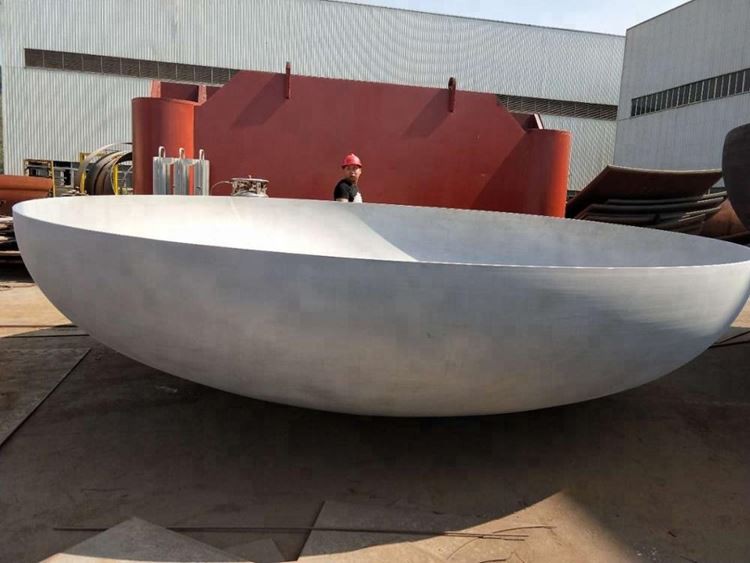

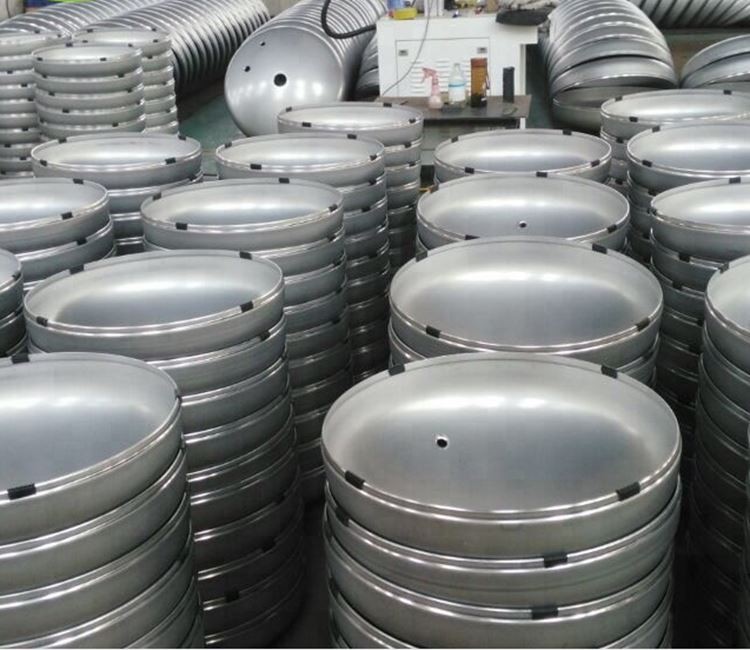

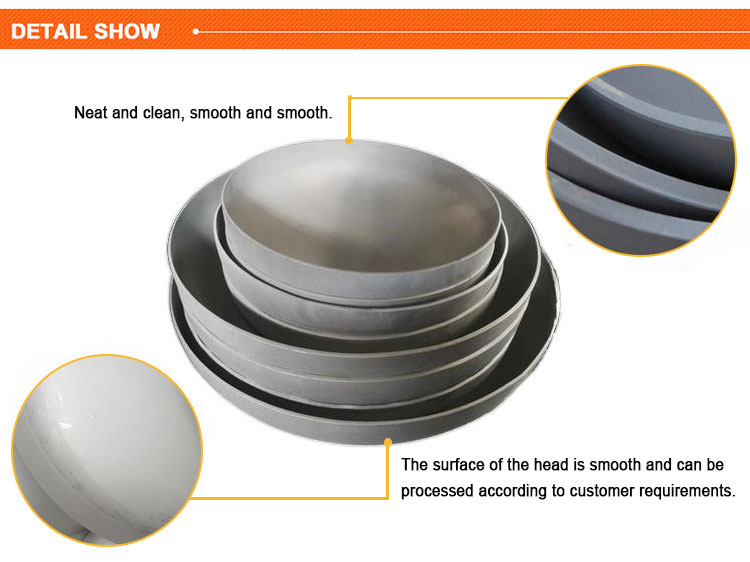

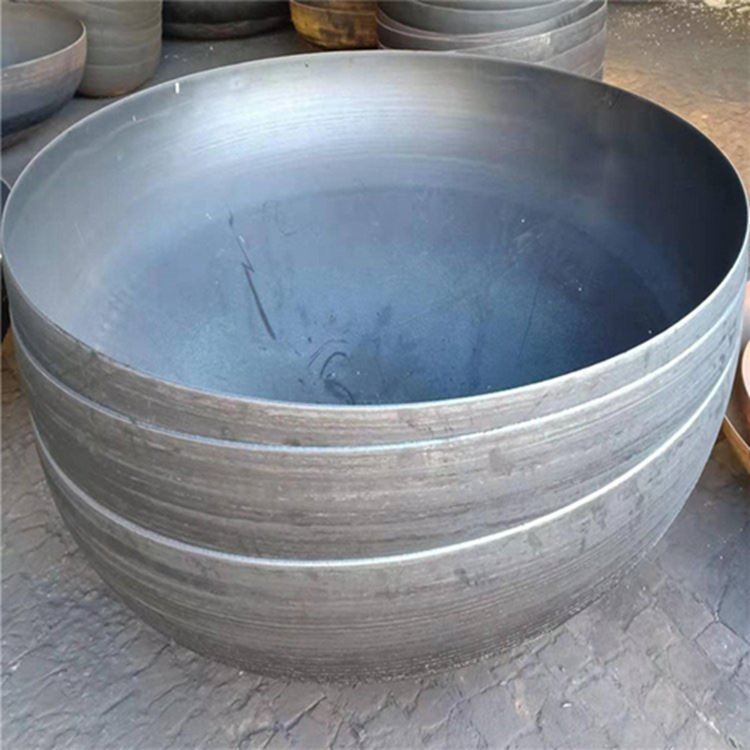

Detailed Images:

Applications of titanium Elliptical Heads:

The materials of Elliptical Heads:  The dish head can be made of various materials according to the material of the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium, copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.

We are specialized in titanium hemispherical Heads.

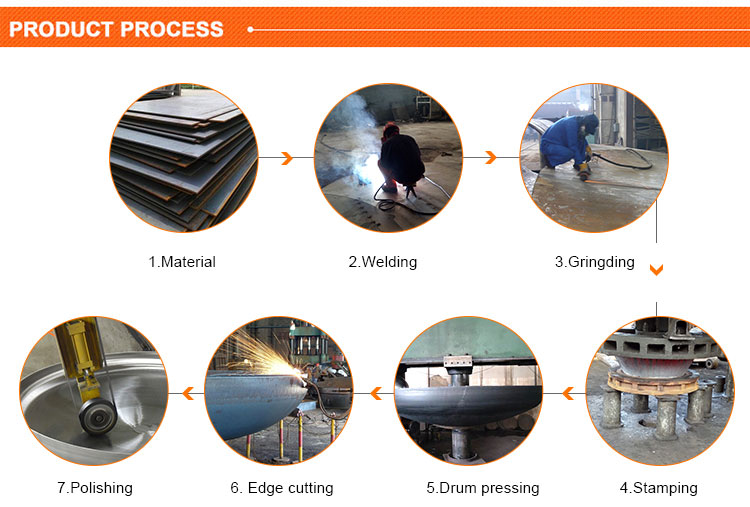

Product processing:

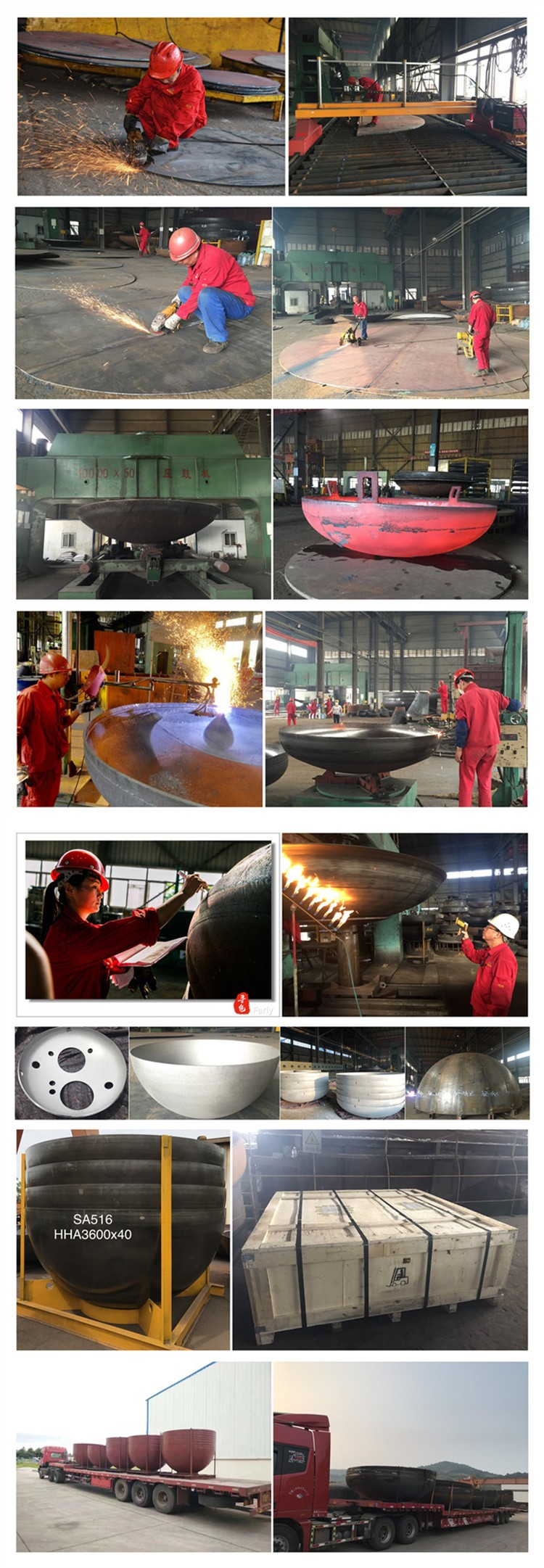

Our factory display:

Exhibitions and customer visits:

Welcome to contact and visit us in any time!
