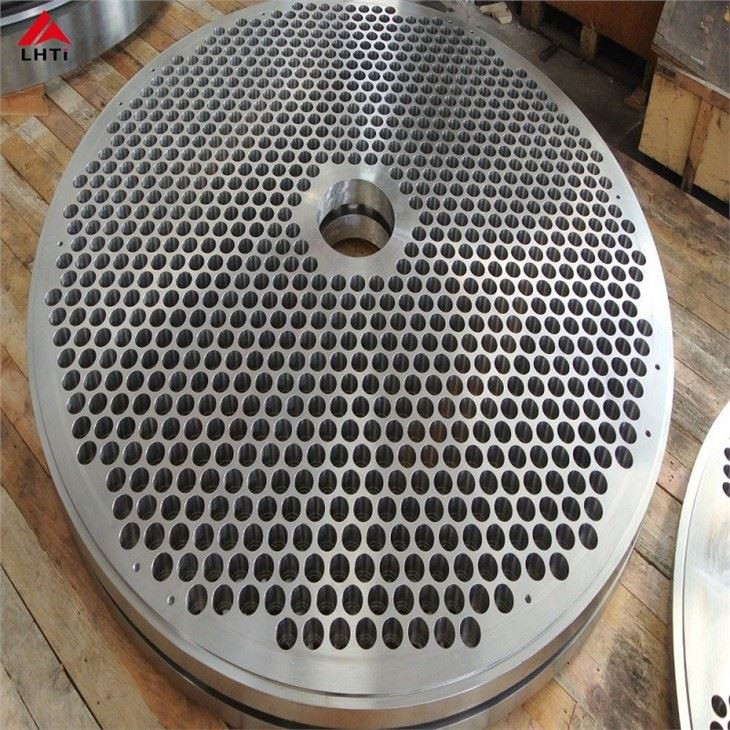

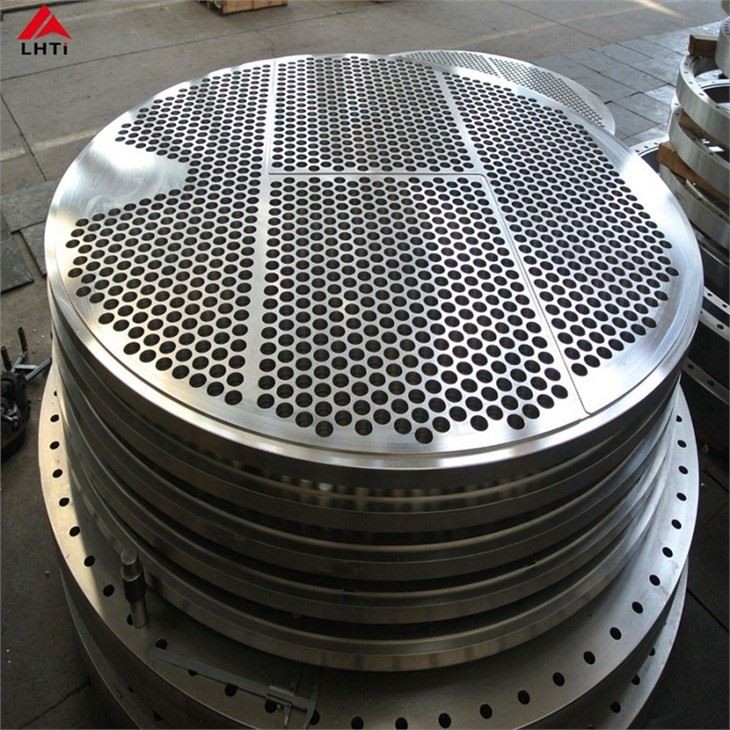

Titanium Steel Composite Tube Sheet

 Titanium steel composite tube sheet

Titanium and stainless steel have good corrosion resistance in many corresponding media. Like Ni-Ti and Ni-stainless steel composite plates, composite plates made from them can also be used as structural materials for chemical equipment containing different corrosive media, which is a valuable new metal material. In addition, transition joints made from these two materials can be cleverly and firmly connected with titanium and stainless steel and their components, respectively, to form heterogeneous metal composites or equipment systems. In chemical equipment, the use of titanium-steel/stainless steel tube plate will be more advantageous, its compressive strength to the middle of the steel, the two sides of the material only bear the task of corrosion resistance. In this way, while meeting technical requirements, more scarce and valuable materials can be saved, thus reducing costs.

Product features: strong corrosion resistance, good sealing. Application: Titanium composite stainless steel tube plate used in large cold rolling mill, liquid nitrogen, liquid oxygen pipeline, ships, low temperature equipment, etc.

Model: LH001

Bimetallic materials: titanium + steel; Stainless steel + steel; Copper + steel; Etc.

Coating metal thickness: 0.5~50mm

Base material thickness: 0.5~500mm

Size: limited only by material availability

Product type: Flat (square/rectangular) disc

Application: petrochemical, food, liquor, etc

Standard: ASTM, ASME, AMS, Mil, JIS, DIN

Interlayer metal: titanium

Technology: Explosive bonding

Trademark: LHTi

Shipping packing: standard export packing

Specifications: Customized

Origin: China

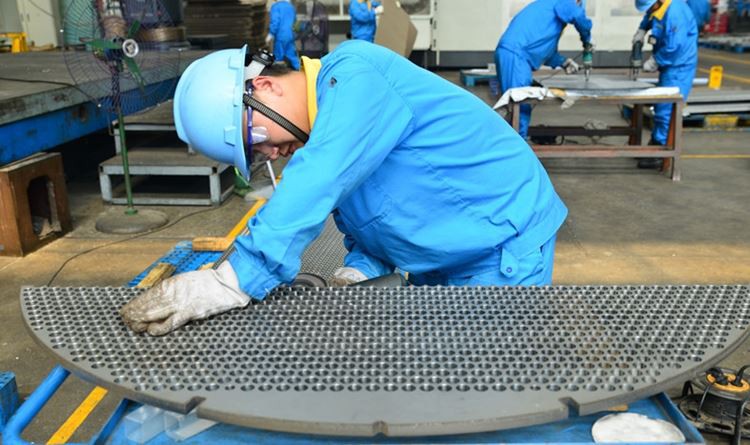

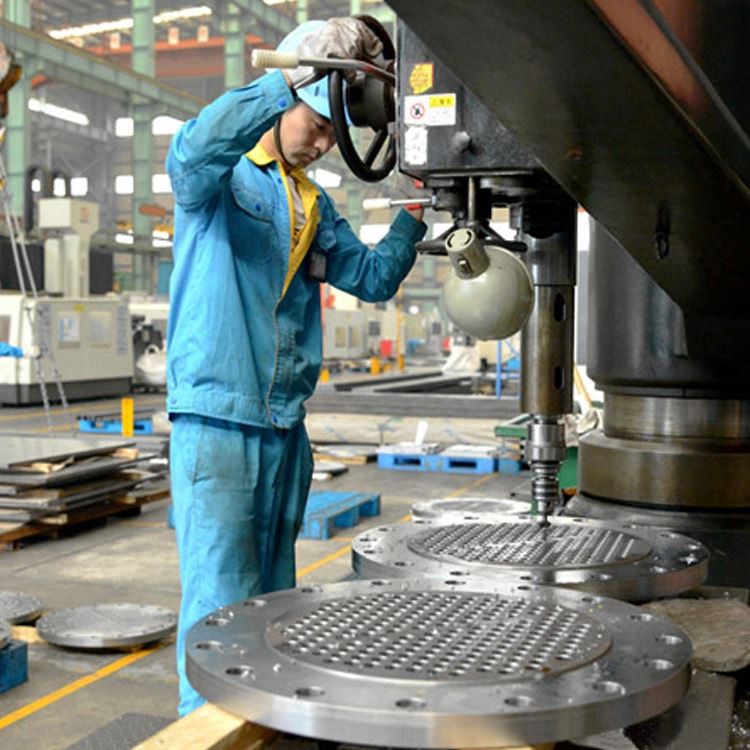

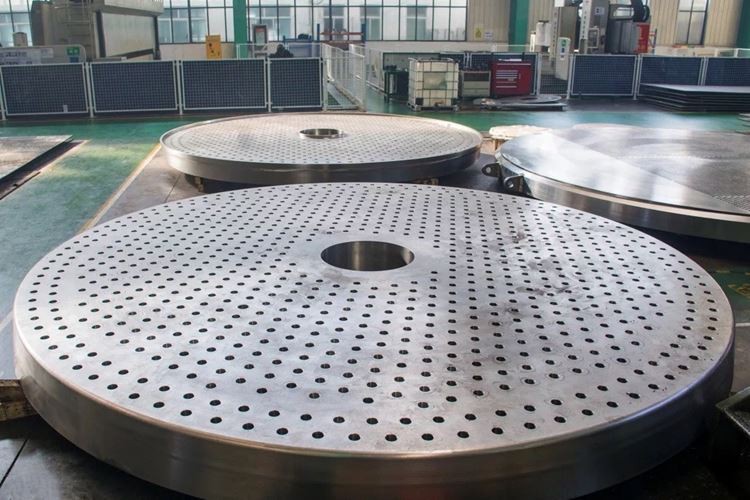

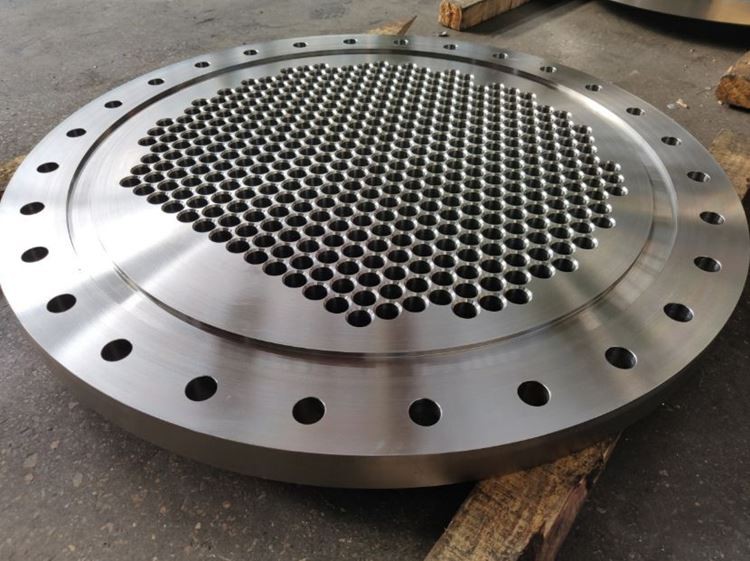

Detailed images:

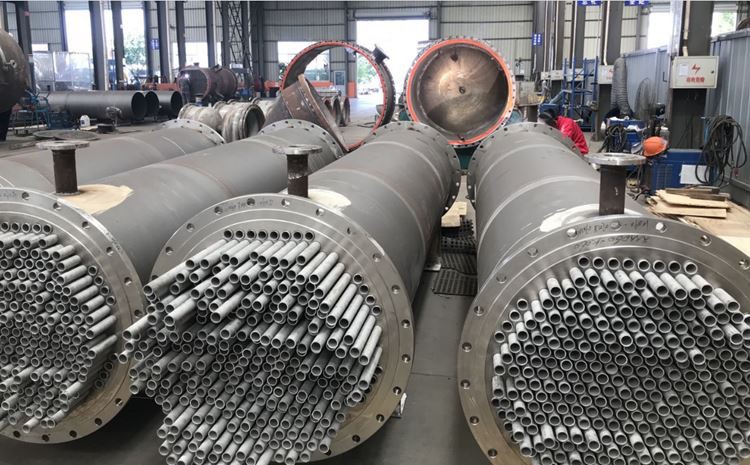

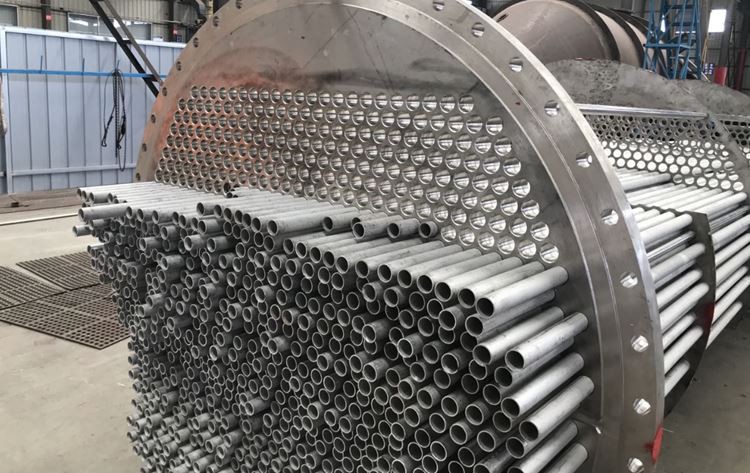

Titanium tubesheet used in heat exchanger:

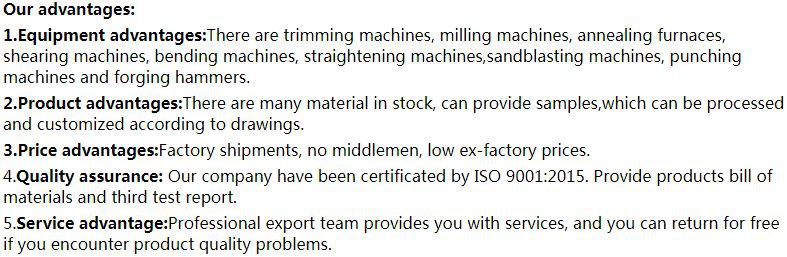

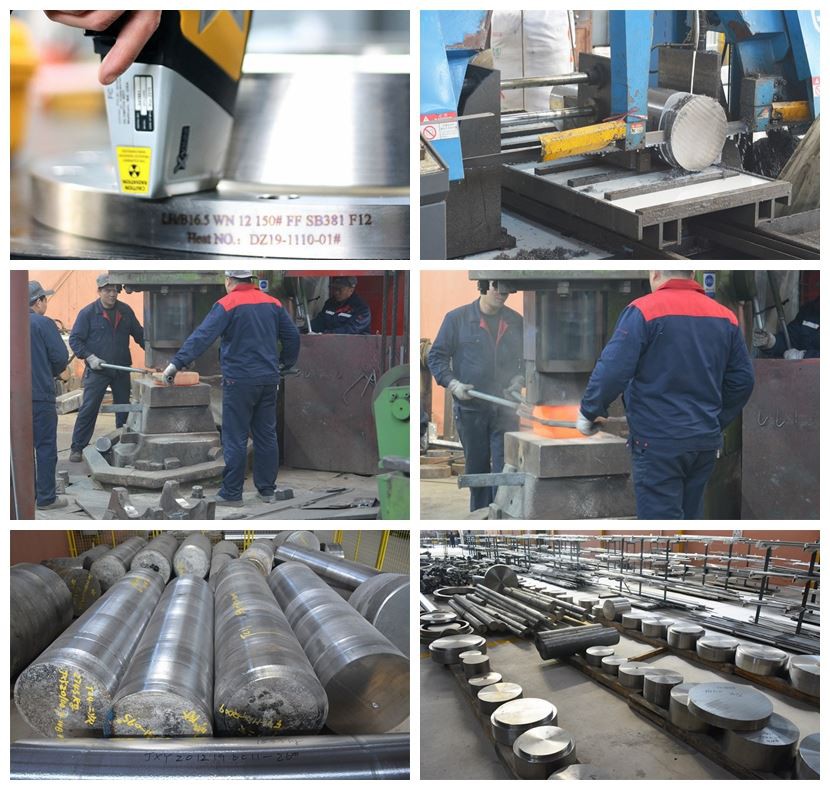

About our company:

Packing and shipping:

Welcome to contact!
