Titanium Clad Stainless Steel Tube Plate
Material: Titanium +steel,Titanium+stainless steel etc.
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.
Titanium clad stainless steel tube plate
Titanium steel clad tube sheet is widely used in petrochemical industry and pressure vessels. Using this kind of structural material can not only reduce the cost of equipment, but also overcome many disadvantages of single titanium equipment and titanium lining structure in this field.
The equipment is made of titanium composite steel plate and tubesheet with corrosion-resistant inner layer and high strength outer layer. The combination has good thermal conductivity, as well as the ability to overcome loads such as thermal stress, thermal fatigue and differential pressure, and can work in more severe conditions. Therefore, titanium composite steel tubesheet has become an indispensable structural material in modern chemical industry and pressure vessel industry.
| Base materials | Gr1,Gr2,Gr3,Gr7,Gr12 |
| Cladding materails | AISI 405,410,410S,429,430,304,309,316 ,321,06Cr13,06Cr13A1, 022Cr17Ti, 06Cr19Ni10, 06Cr18Ni11Ti etc. |
| Cladding plate thickness | Max100mm |
| Base plate thickness | Max500mm |

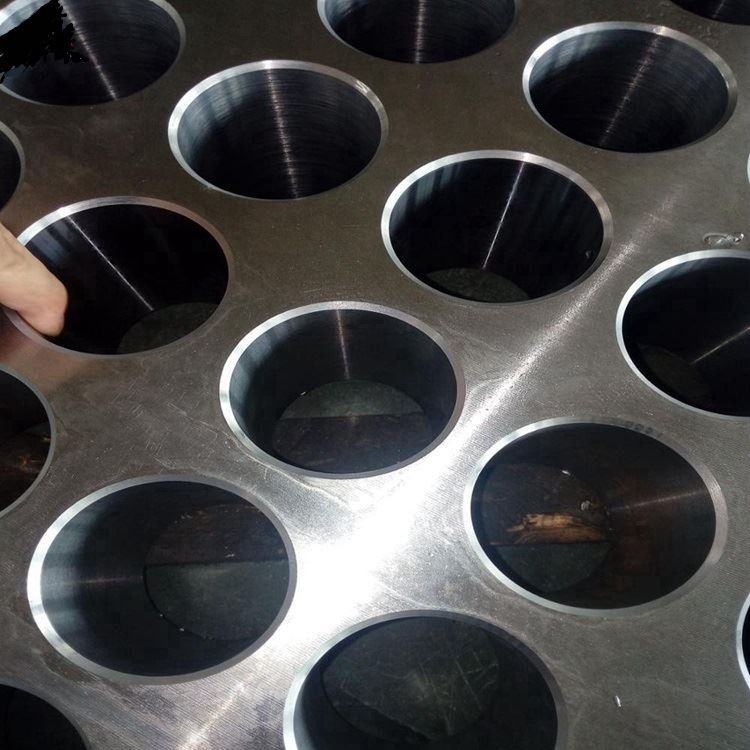

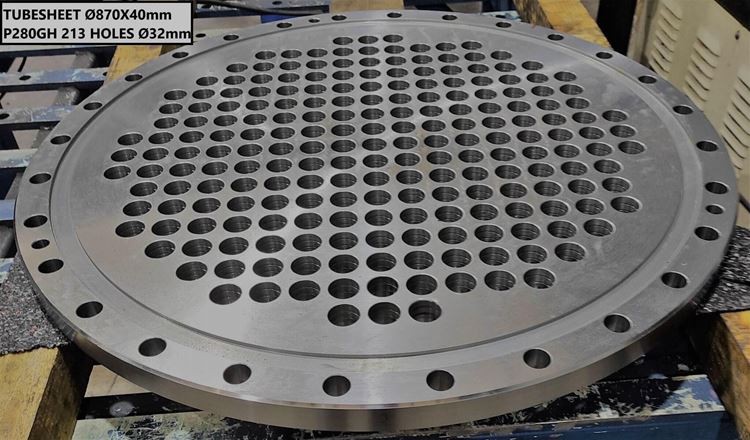

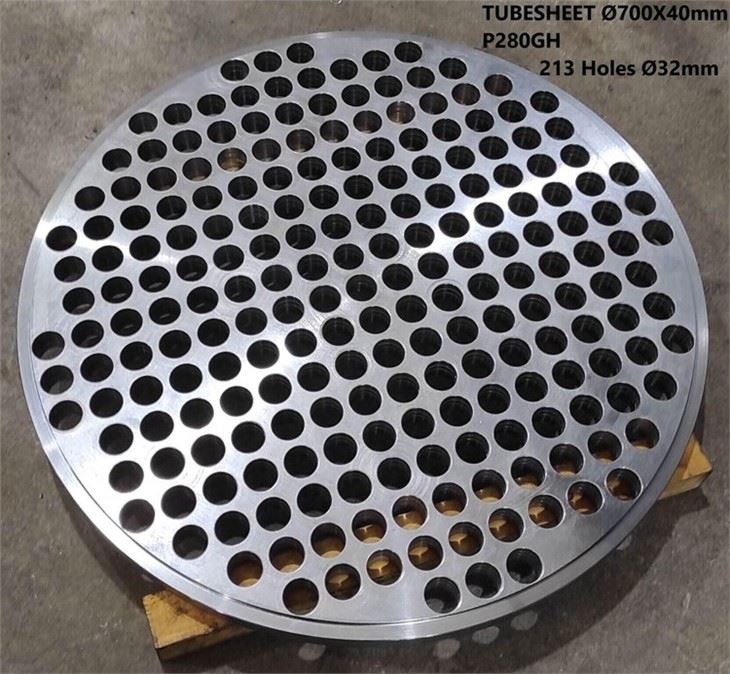

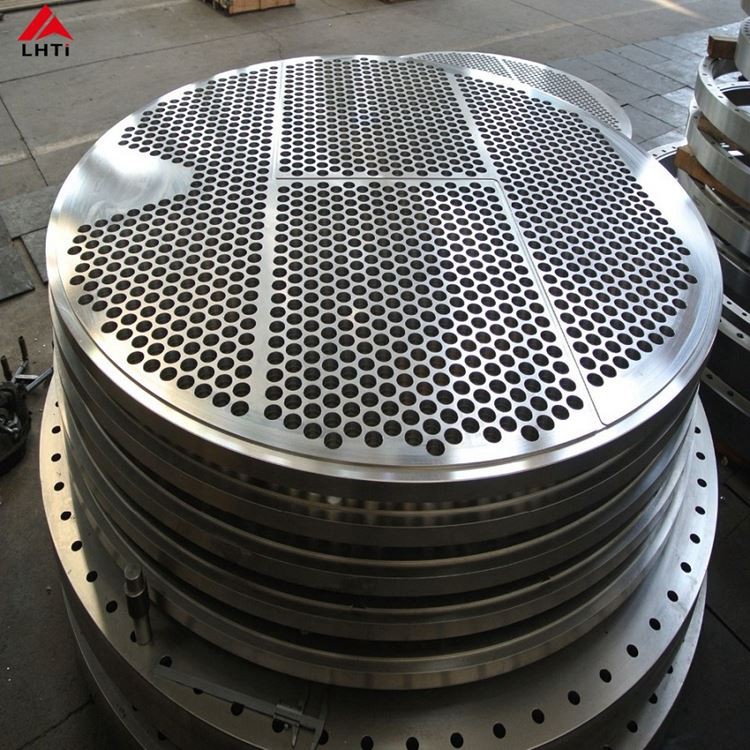

Detailed images:

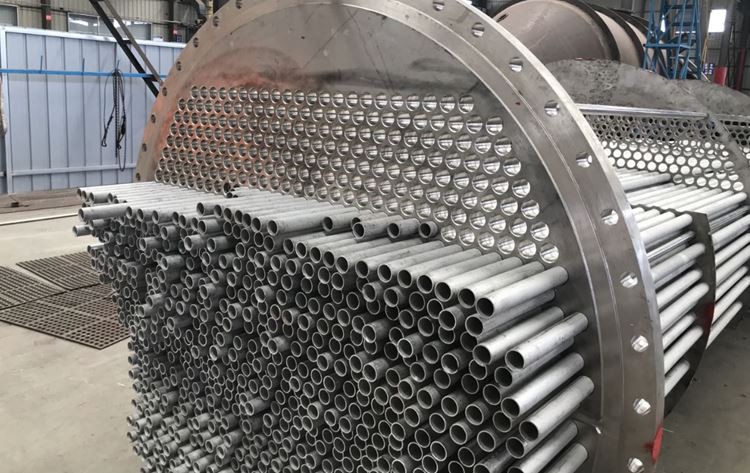

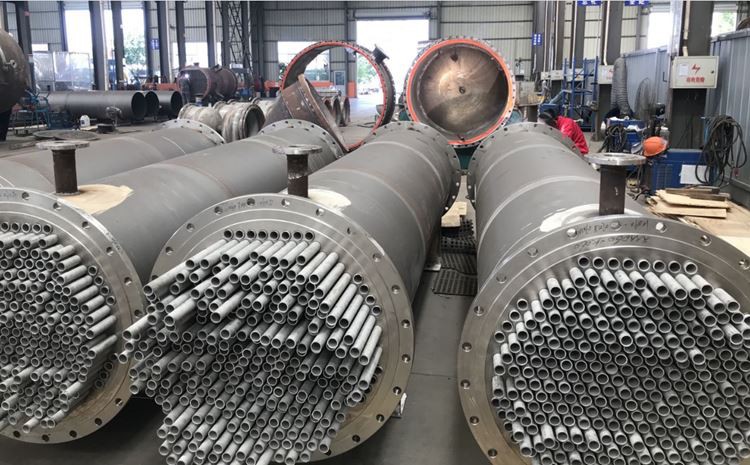

Titanium tubesheet used in heat exchanger:

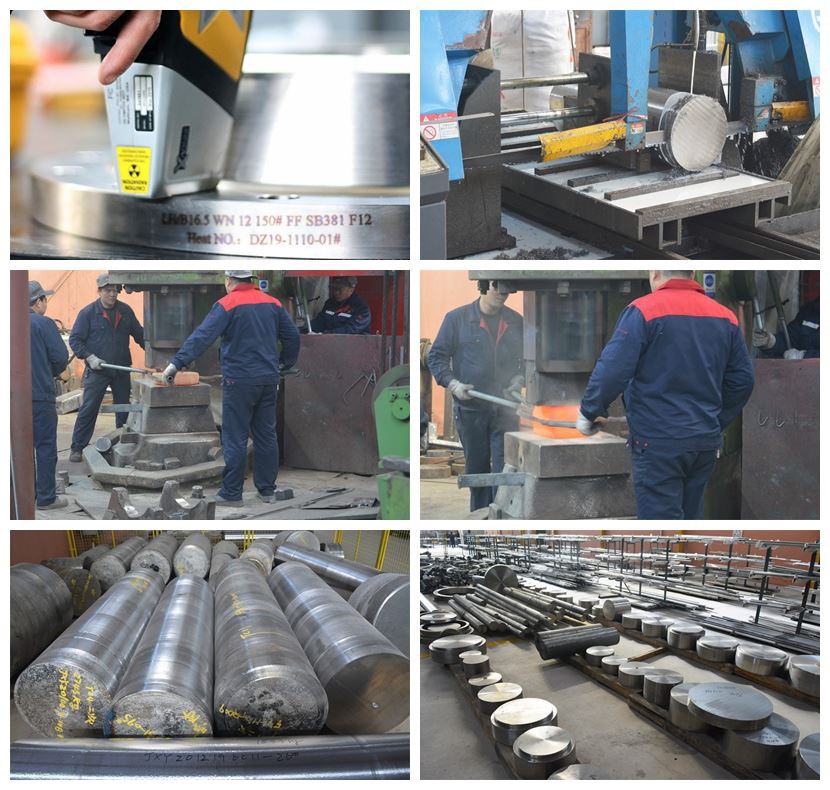

About our company:
Packing and shipping:
Welcome to contact!
