Titanium U-tube Heat Exchanger

Titanium U-tube Heat Exchanger

Product Name: Titanium U-tube heat exchanger
Material:Gr1 Gr2 Gr7 Gr12 titanium
Structure: Tube heat exchanger
Types: Straight tubes, U-tube, kettle, coils etc.
Size: Customized
Tests: X ray, DP, UT, MT, PMI, helium leak etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium heat exchanger manufacturer

Send Inquiry

Chat Now

Product Introduction

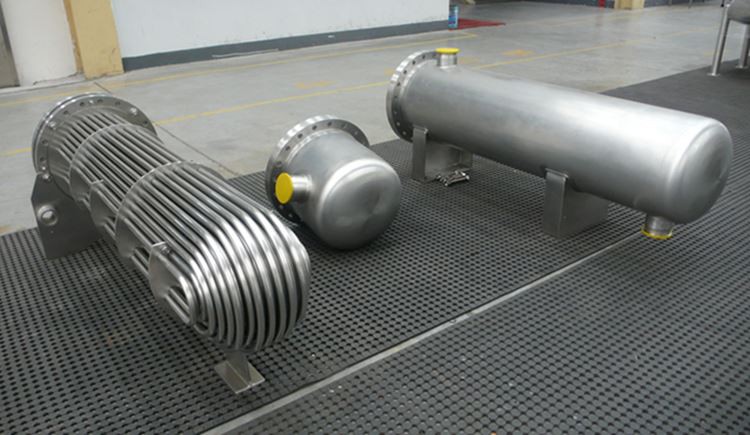

Titanium U-tube heat exchanger

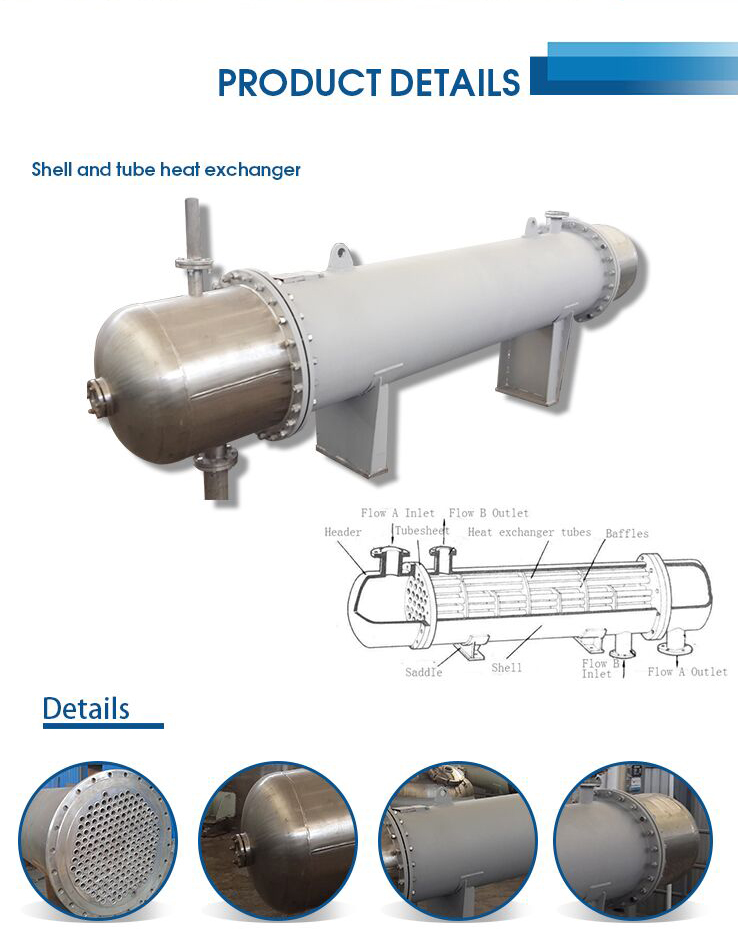

U-shaped tube heat exchanger, is a shell and tube heat exchanger, it is composed of tube-plate, shell, tube bundle and other parts.

Under the same diameter, the heat transfer area of u-tube heat exchanger is the largest. It has the advantages of simple structure, compact, high sealing performance, easy maintenance and cleaning, minimum metal consumption and lowest cost under high temperature and high pressure; U-tube heat exchanger has only one tube plate, good thermal compensation performance, strong bearing capacity, suitable for high temperature and high pressure operating conditions.

Name: Titanium U-tube heat exchanger

Material: Gr1 Gr2 Gr7 Gr12 titanium

Structure: tube box, barrel, head, heat exchange tube, etc

Advantages: simple structure, low cost

Disadvantages: High rejection rate

Application: Suitable for high temperature and high pressure corrosive fluid

Grade	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Σb (Mpa)	σr0.2 (Mpa)
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	240	140
Grade 2	0.3	0.25	0.03	0.1	0.015						20	400	275
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	400	275
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	18	460	300
