Titanium Steel Clad Tube Sheet For Hear Exchanger

 Titanium steel clad tube sheet for hear exchanger

Porduct name : Gr2 titanium tube plate

Material:  Gr2 Titanium +steel,Gr2 Titanium+stainless steel  etc.

Size &Standard: As per client drawing

Production Method: Forging,annealing and machining

Advantage: Excellent corrosion resistance ability

Packing: Plywood case

Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

Tube plate material: according to the need to use different environment, the use of different materials, carbon steel material generally use Q345R container plate, such as first and second pressure vessels, no corrosive medium flow, the use of carbon steel composite plate. In the case of strong acid, high pressure and high temperature, nuclear energy and other environments, stainless steel, 16 manganese, titanium alloy and other corrosion-resistant materials are needed. The application of new synthetic materials brings new vitality to tube-sheet products. With high pressure environment, but also to the case of corrosion resistance, considering the use of cost, generally choose high strength steel and corrosion resistant materials of composite material structure.

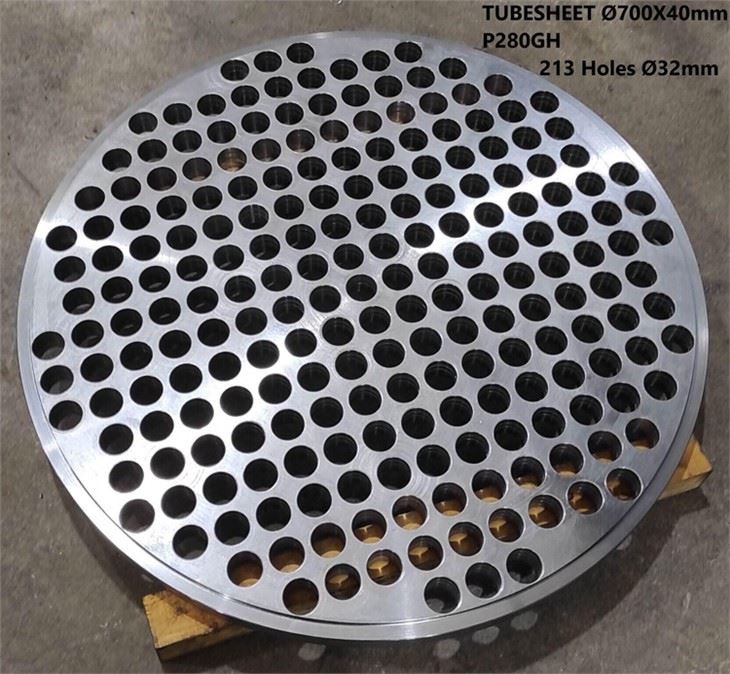

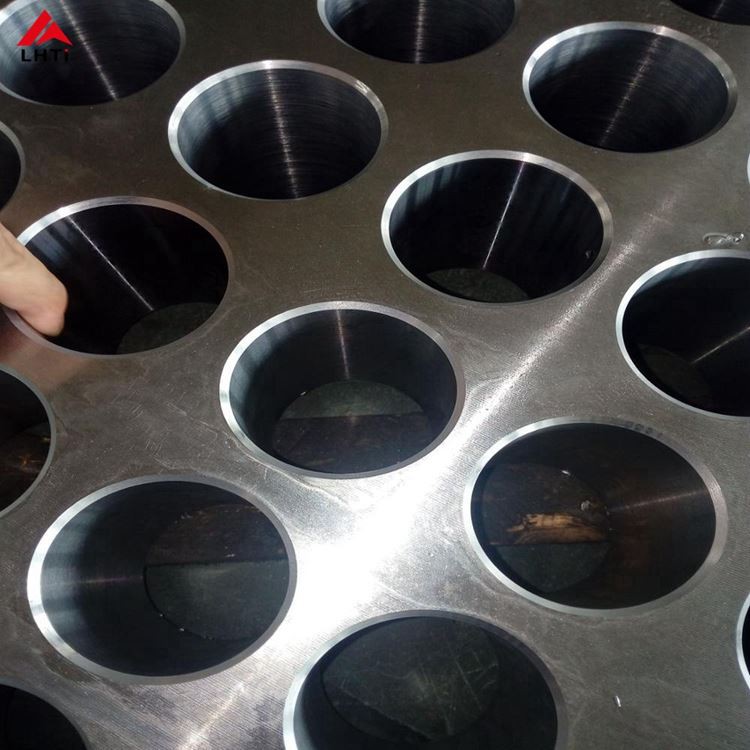

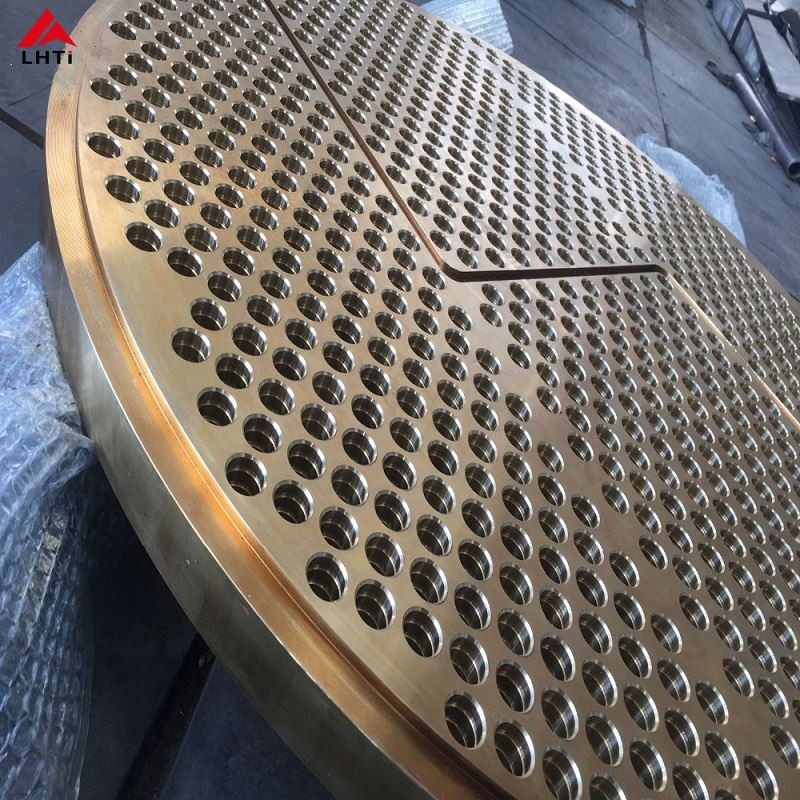

Detailed images:

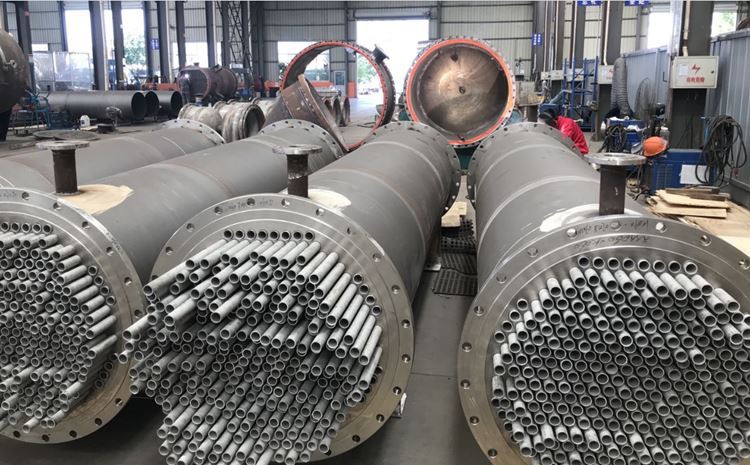

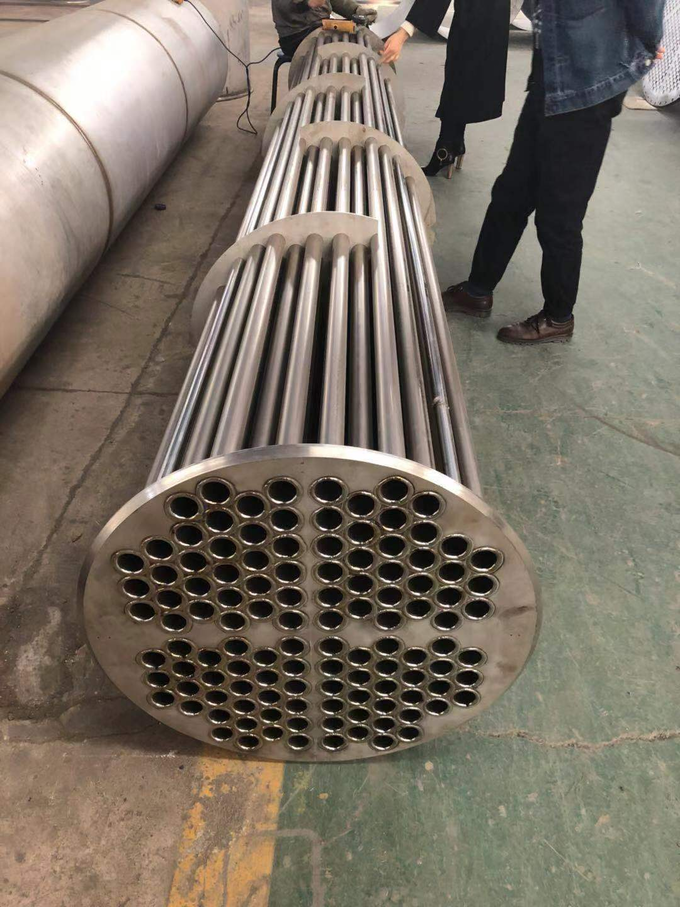

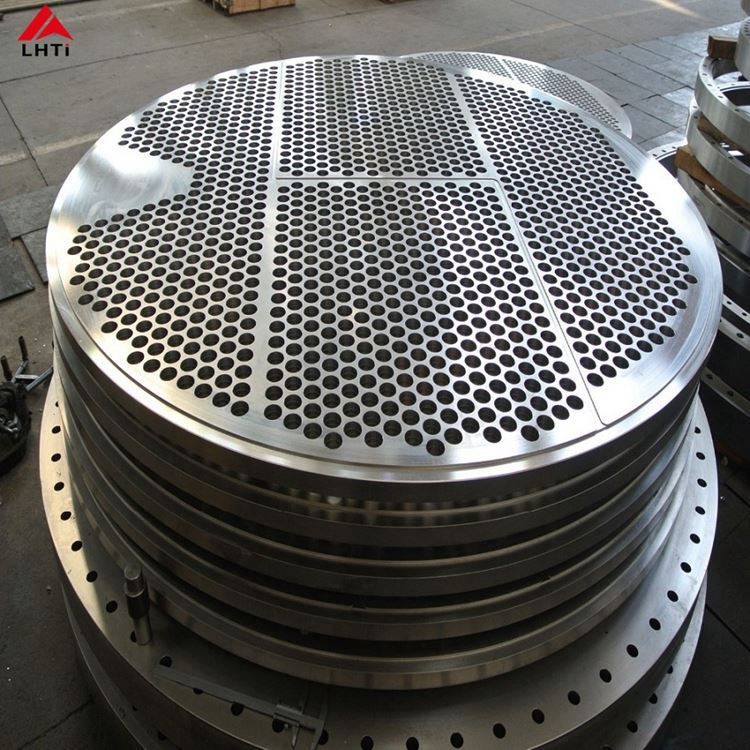

Titanium tubesheet used in heat exchanger:

About our company:

Packing and shipping:

Welcome to contact!
