Gr7 Titanium Tubesheet
OD: 150-2500mm
Thickness: 30-250mm
Production Methods: Forging,annealing and machining
Packing: Plywood box
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Tubesheet Manufacturer
Gr7 Titanium Tubesheet
Product Description
In the shell-and-tube heat exchanger, the heat exchange tube and the tubesheet are the only barrier between the tube side and the shell side of the heat exchanger. The connection structure and connection quality between the heat exchange tube and the tubesheet determine the quality of the heat exchanger Pros and cons and service life are a crucial link in the manufacturing process of heat exchangers.
Most of the damage and failure of heat exchangers occur at the connection part between the heat exchange tube and the tubesheet. The quality of the connection joint also directly affects the safety and reliability of chemical equipment and equipment. Therefore, for the shell and tube heat exchanger, the connection process between the heat pipe and the tubesheet has become the most critical control link in the heat exchanger manufacturing quality assurance system. At present, in the heat exchanger manufacturing process, the connection between the heat exchange tube and the tubesheet mainly includes welding, expansion, expansion and welding, and gluing and expansion.
Grade: GR1, GR2, GR5, GR7, GR12 etc.
OD: 150-2500mm
Thickness: 30-250mm
Technology: Forging, Annealing, Machining.
Applications: shell and tube heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, seawater desalination, etc.
Chemical compositions(weight%,<=) | ||||
Pd | Al | V | Fe | C |
0.12-0.25 | ---- | ---- | 0.30 | 0.08 |
N | H | O | Other(total) | Ti |
0.05 | 0.015 | 0.2 | 0.4 | Remainder |
Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) | |
400 | 275 | 20 | 25 | |

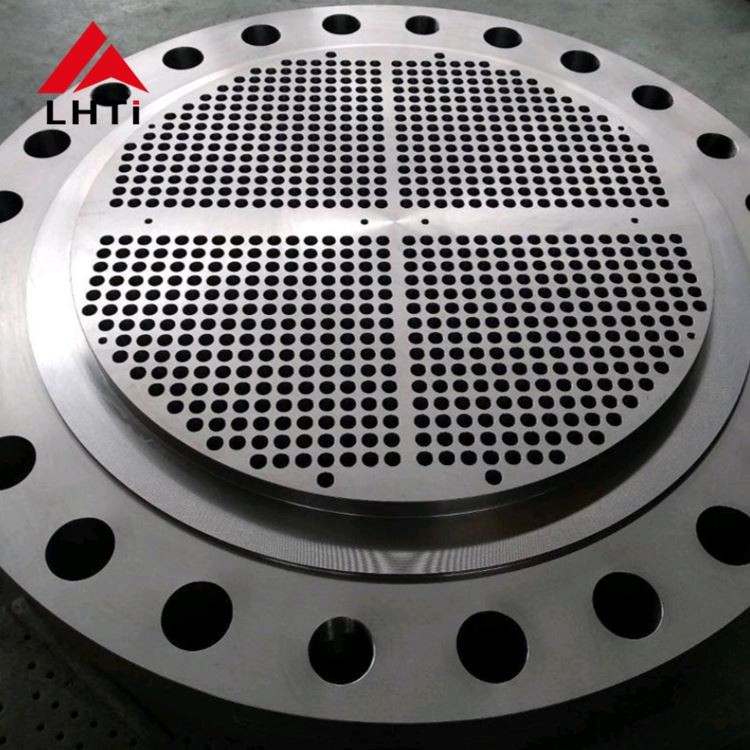

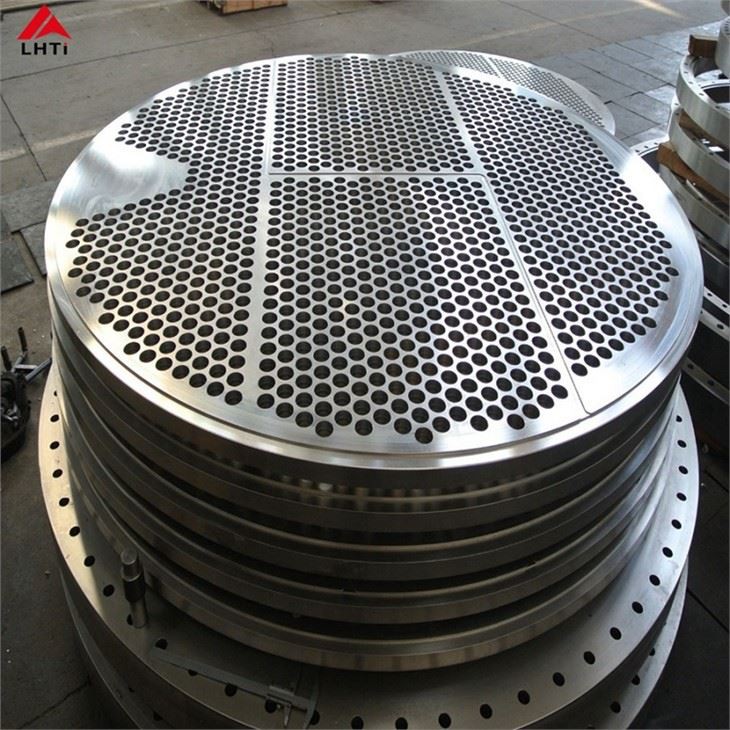

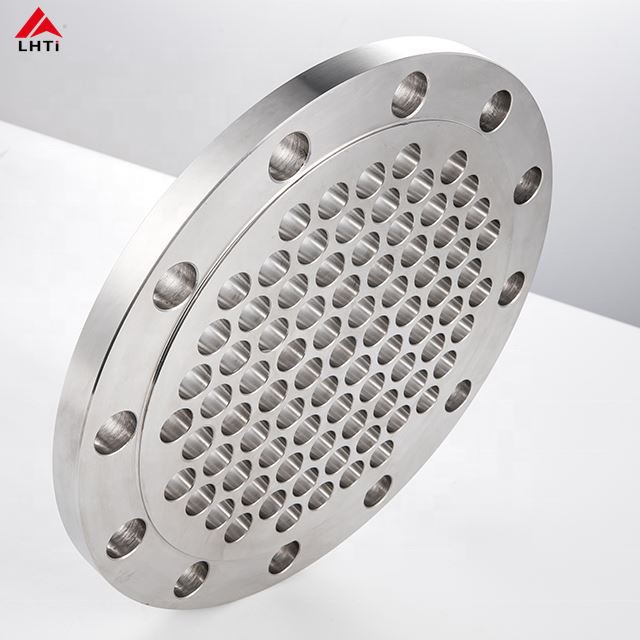

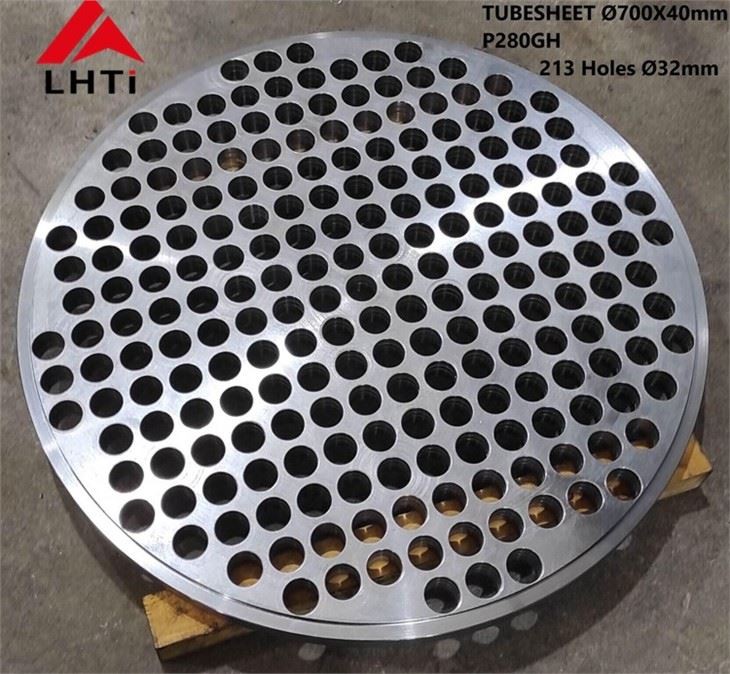

Product Images

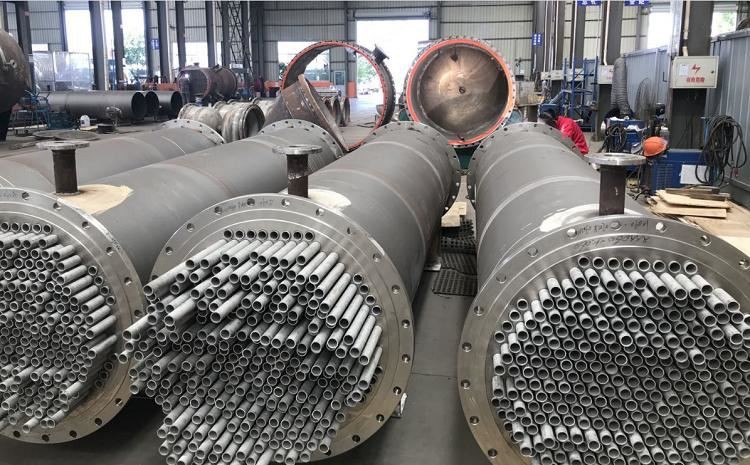

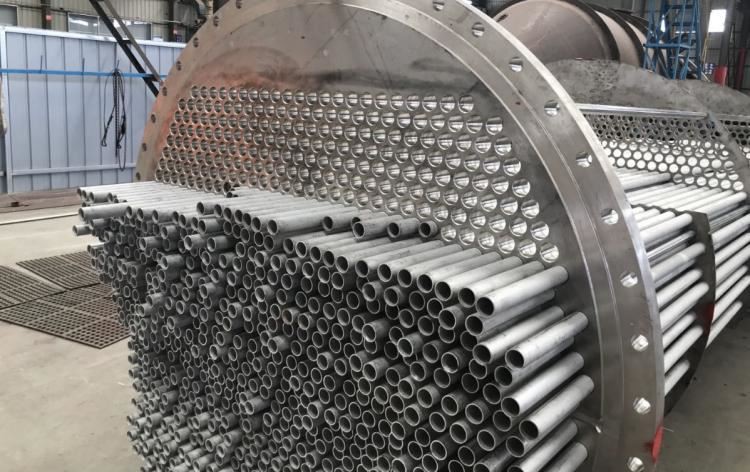

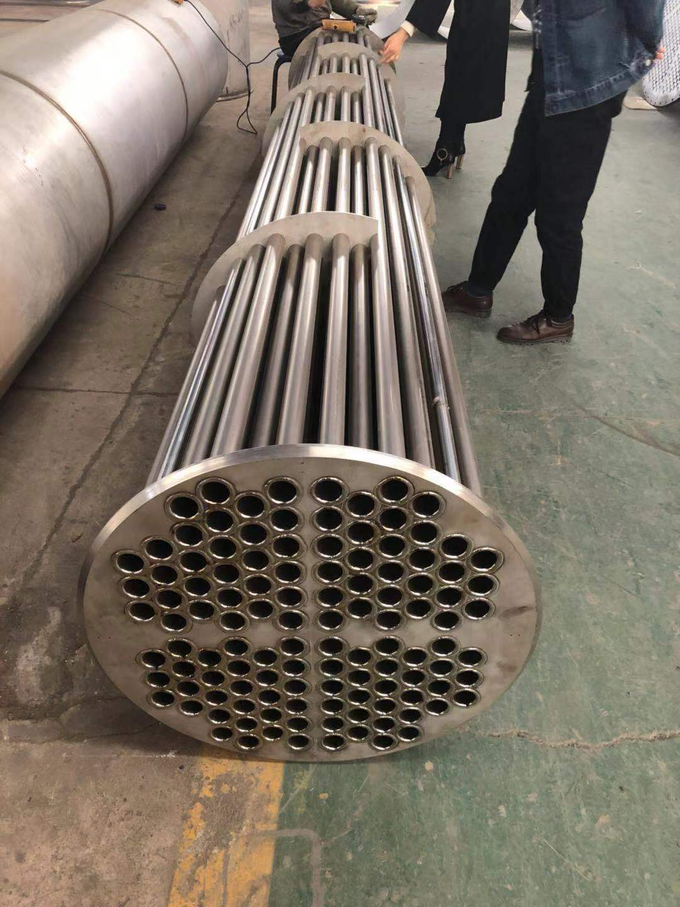

Application
Our Company
As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium tubesheet to many countries. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
