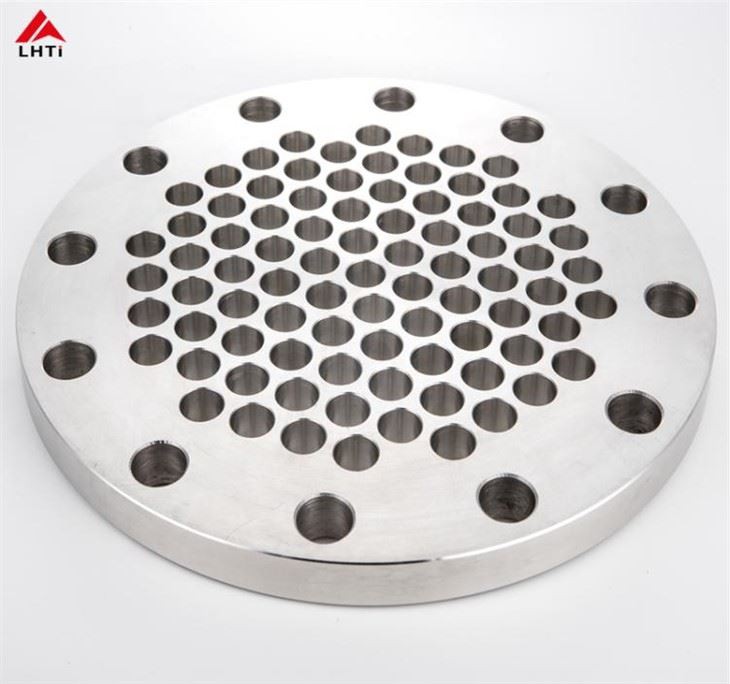

Gr1 Titanium Tubesheet

Gr1 Titanium Tubesheet

Product Description

The precision of titanium tubesheet processing, especially the tube hole spacing and tube diameter tolerance, verticality, and smoothness greatly affect the assembly and use performance of the chemical equipment listed above. With the enlargement of chemical equipment and power stations, titanium tubesheet diameter has become larger and larger, and titanium tubesheets with a diameter of 4m-5m are very common. The characteristics of the large-scale tubesheet are the large number of tube holes, denseness, small diameter, deepness, high precision and smoothness requirements.

Grade: GR1, GR2, GR5, GR7, GR12 etc.

OD: 150-2500mm

Thickness: 30-250mm

Technology: Forging, Annealing, Machining.

Applications: shell and tube heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, seawater desalination, etc.

Chemical Composition (Wt%)

Physical Properties(Min)

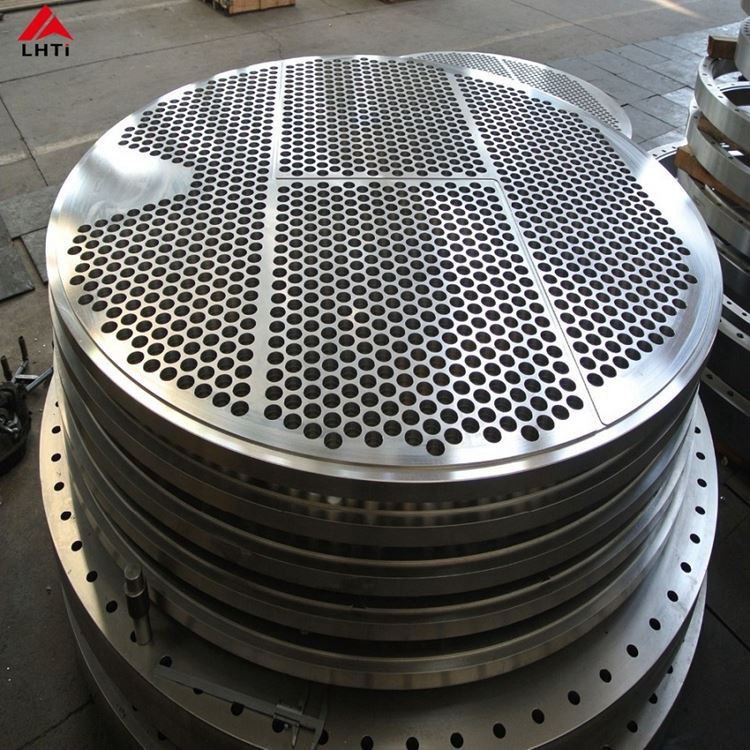

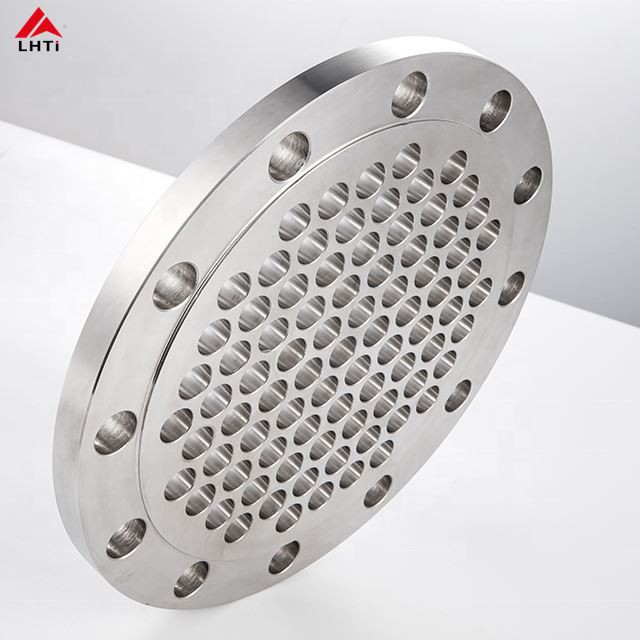

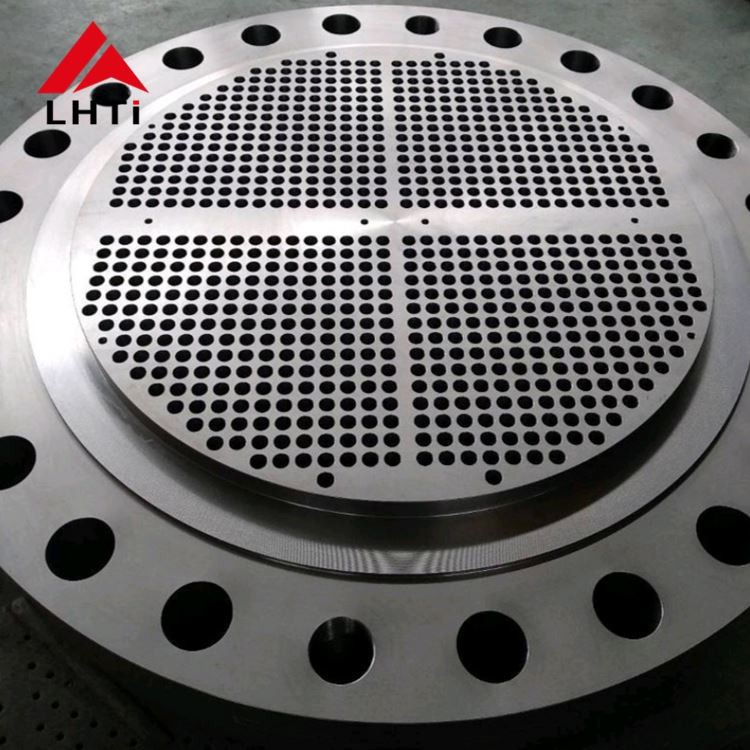

Product Images

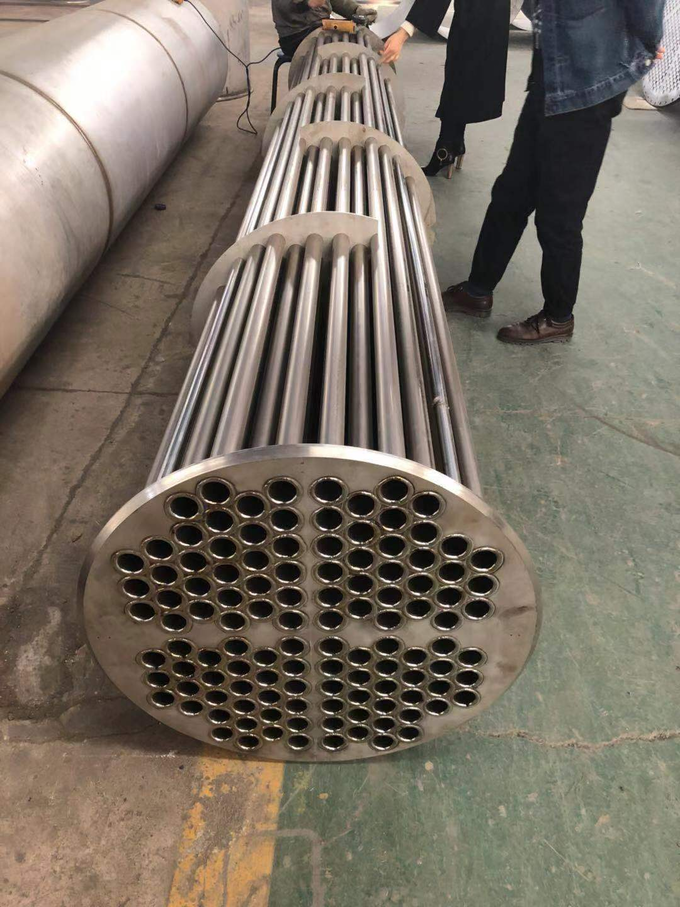

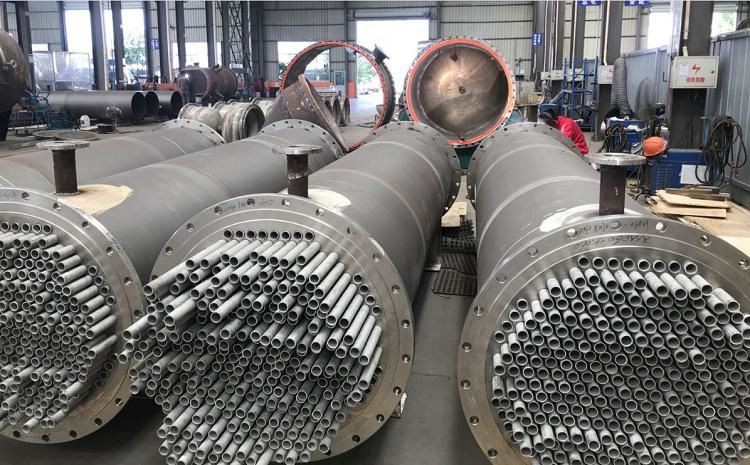

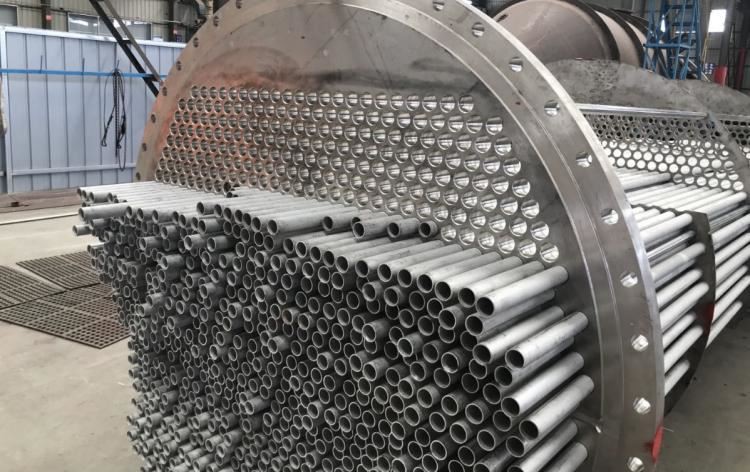

Application

Tests

Chemical composition test

Physical properties test

Appearance defect inspection

Ultrasonic flaw detection

Our Company

As a leading manufacturer & trader of titanium products, Baoji Lihua mainly focus on titanium tube, titanium flange, titanium dish head and titanium sheet etc., with a history of 16 years. The quality of our products is widely recognized.
