Gr2 Titanium Tubesheet
OD: 150-2500mm
Thickness: 30-250mm
Production Methods: Forging,annealing and machining
Packing: Plywood box
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Tubesheet Manufacturer
Gr2 Titanium Tubesheet
Product Description
In the process of titanium tubesheet inspection, the main inspection indicators are hole position, hole diameter tolerance, hole finish, presence or absence of burrs, and groove position. For double tubesheets, more attention should be paid to the location of the holes during the inspection process, and the degree of coordination of the holes is very important. Usually, it can be guaranteed with a CNC drilling machine. Compared with thick plates, the verticality of holes above 300mm is very important. These large-diameter thick plates require more sophisticated tools and equipment.
Grade: GR1, GR2, GR5, GR7, GR12 etc.
OD: 150-2500mm
Thickness: 30-250mm
Technology: Forging, Annealing, Machining.
Chemical Composition
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
Mechanical Properties
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |

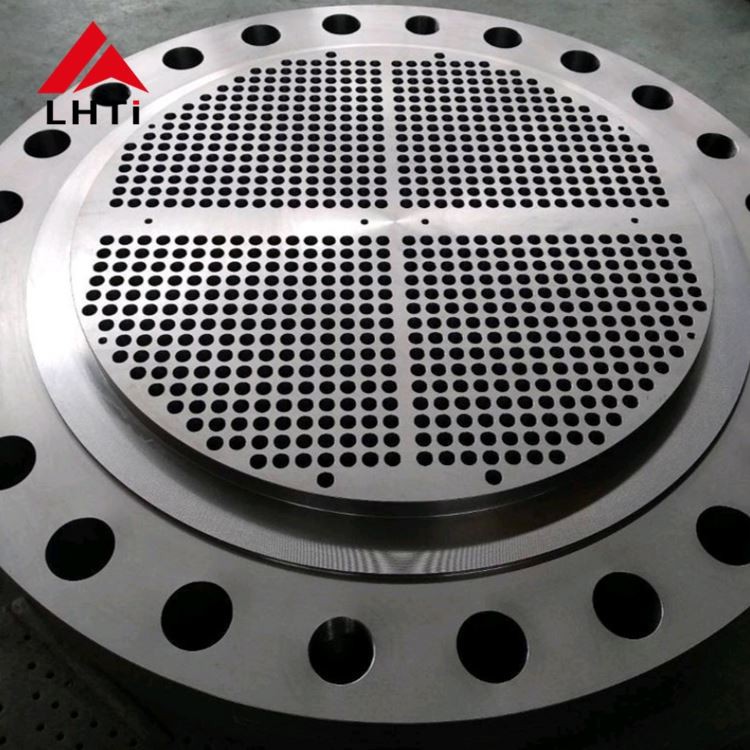

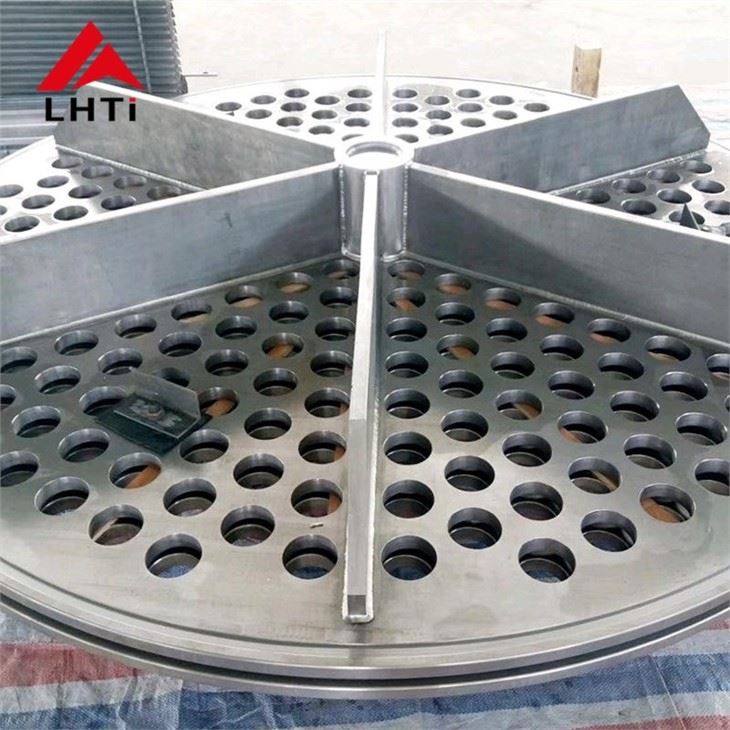

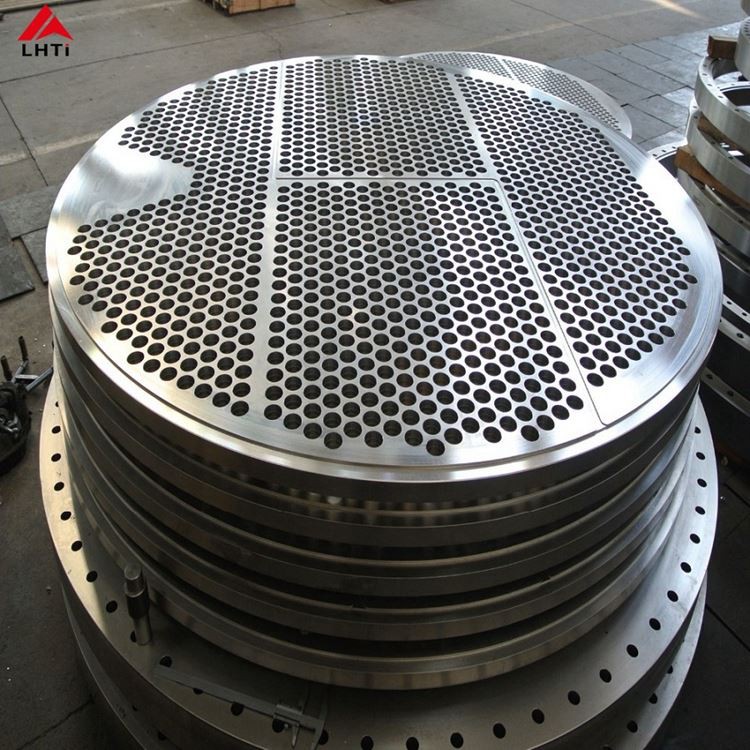

Product Images

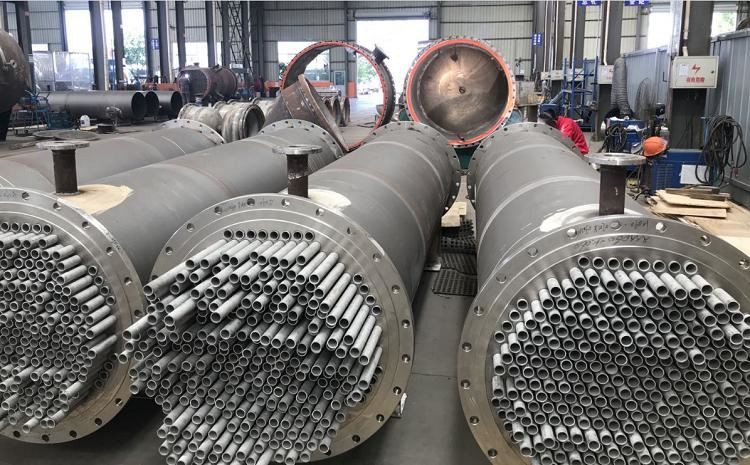

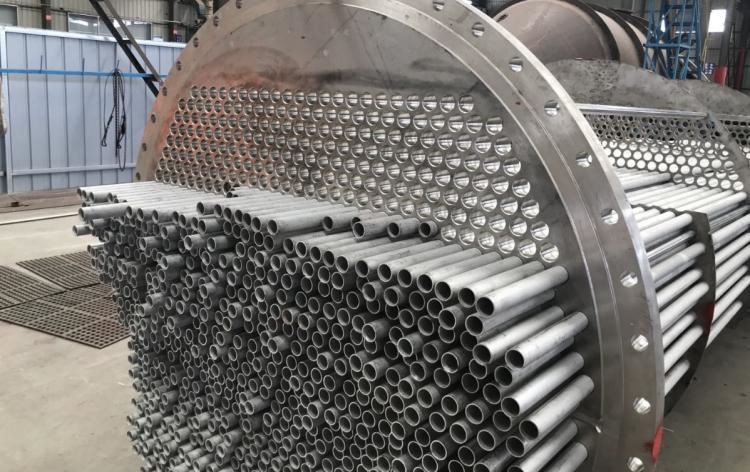

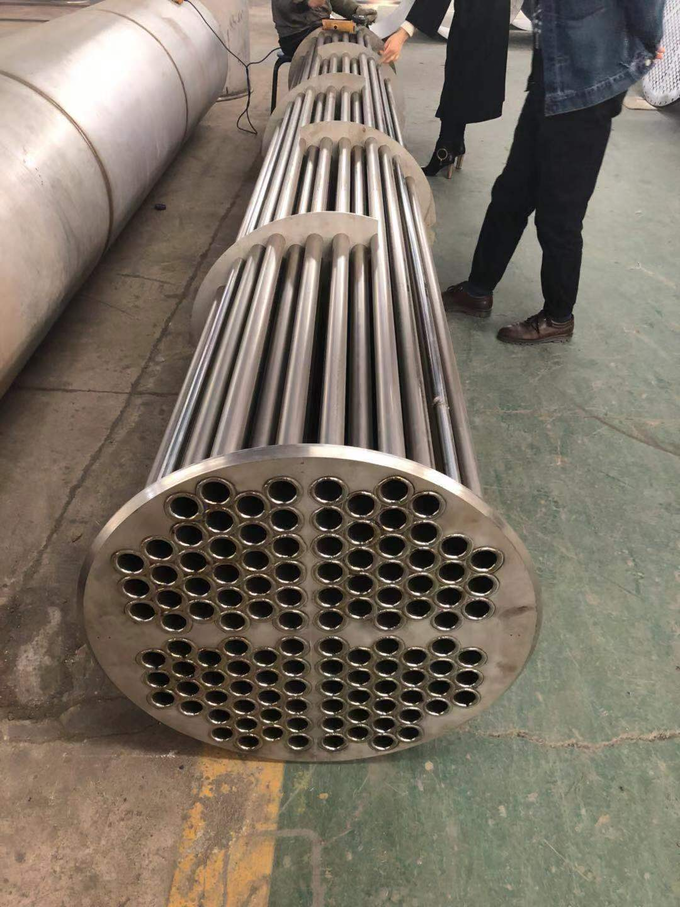

Application
Our Company
As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium tubesheet to many countries. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
