Gr12 Titanium Tubesheet
OD: 150-2500mm
Thickness: 30-250mm
Production Methods: Forging,annealing and machining
Packing: Plywood box
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Tubesheet Manufacturer

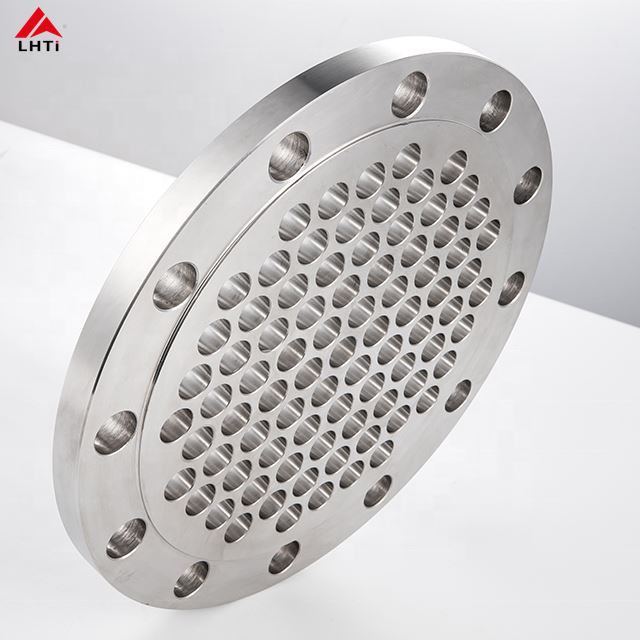

Gr12 Titanium Tubesheet
Product Description
Titanium tubesheet is an accessory that is drilled on a circular titanium plate. The diameter of titanium tubesheet is slightly larger than the outer diameter of the tubes, and then the tubes are penetrated and welded to fix the tubes.
Titanium tubesheet is mainly used for chemical containers, such as tube and tube heat exchangers, pressure vessels, boilers, condensers, central air conditioners, evaporators, seawater desalination, to support fixed tubes. Titanium is not only very rigid, but also has very good thermal conductivity.
Grade: GR1, GR2, GR5, GR7, GR12 etc.
OD: 150-2500mm
Thickness: 30-250mm
Technology: Forging, Annealing, Machining.
Chemical Composition
Chemical compositions(weight%,<=) | ||||
Mo | Ni | Fe | C | N |
0.2-0.4 | 0.6-0.9 | 0.30 | 0.08 | 0.03 |
H | O | Ti | Others | Total |
0.015 | 0.25 | Remainder | 0.10 | 0.40 |
Physical Properties
Physical properties(>=) | |||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) |
485 | 345 | 18 | 25 |

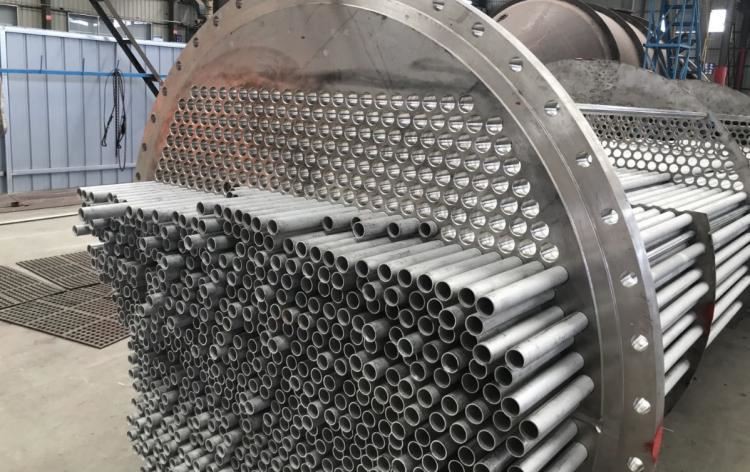

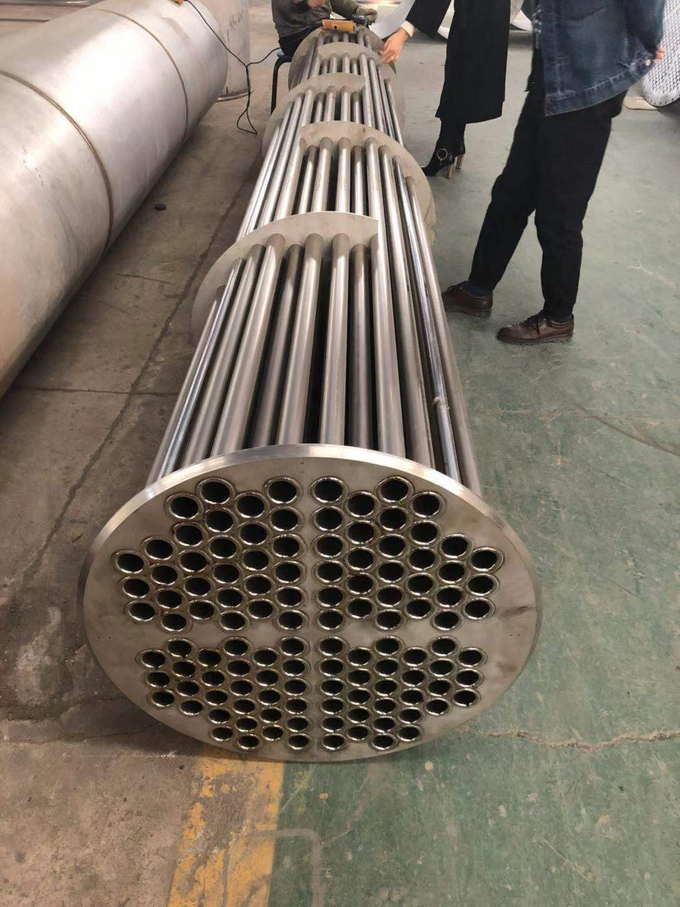

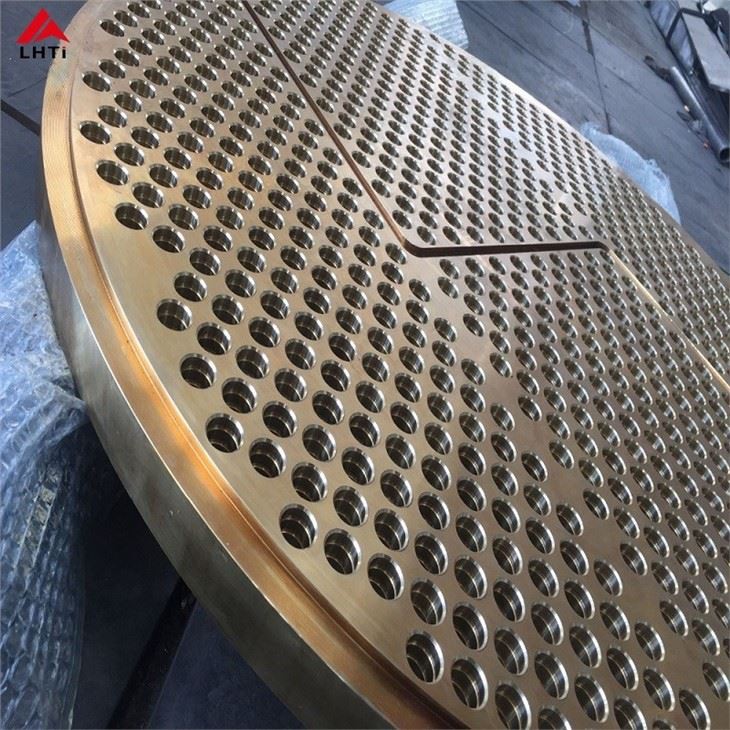

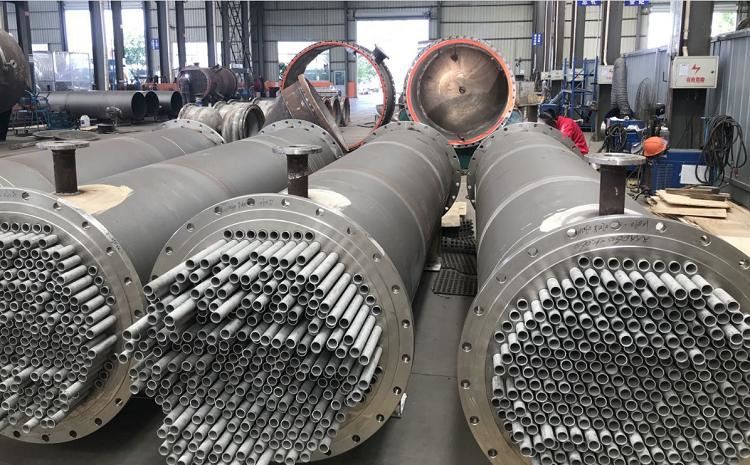

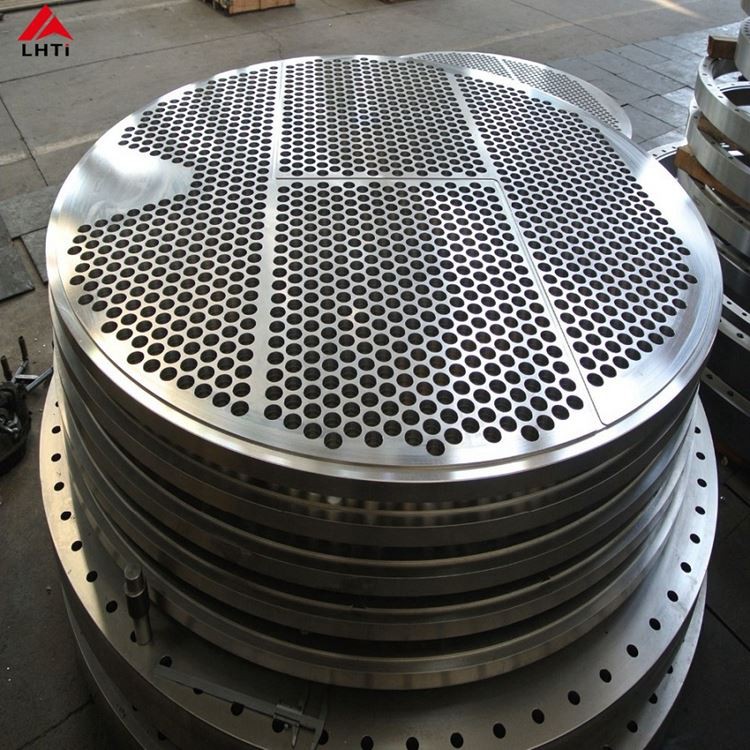

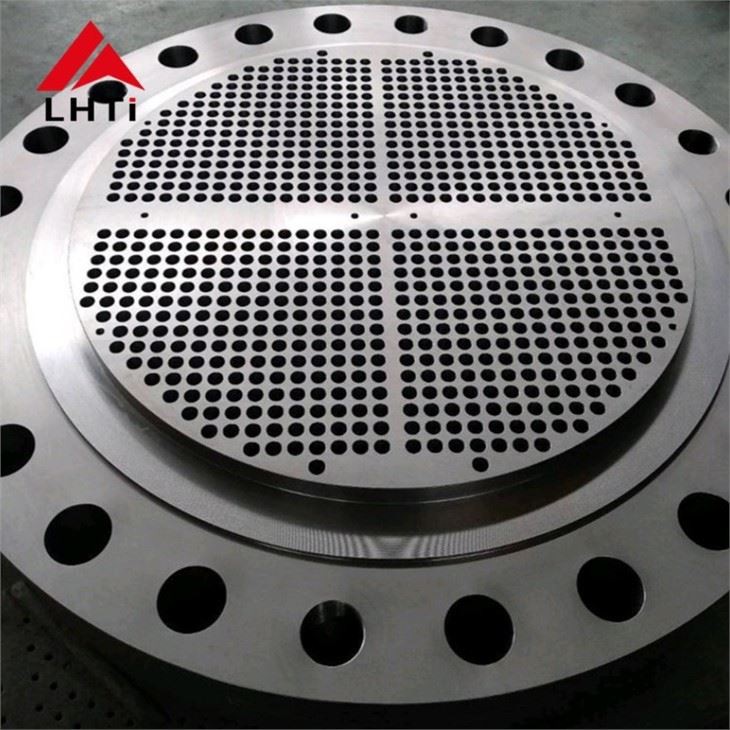

Product Images
Application
Our Company
As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium tubesheet to many countries. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
