Product Name: Titanium Heat Exchanger for Sulfuric Acid
Material:Titanium Gr1
Structure: Tube heat exchanger
Types: Straight tubes, U-tube, kettle, coils etc.
Size: Customized
Tests: X ray, DP, UT, MT, PMI, helium leak etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium heat exchanger manufacturer

Send Inquiry

Chat Now

Product Introduction

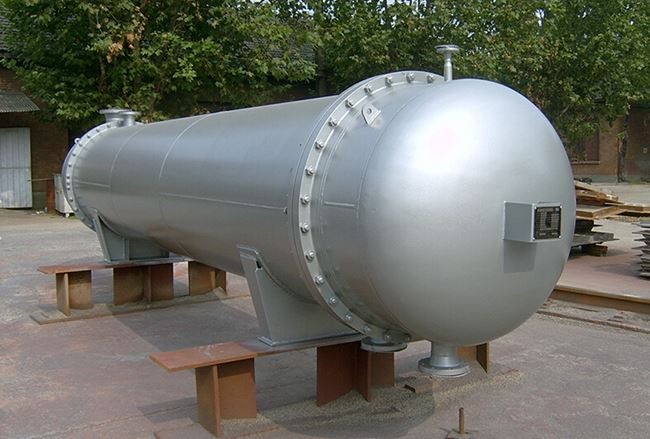

Gr1 Titanium Shell & Tube Heat Exchangers

Titanium heat exchanger is a device made of high-quality titanium tubes that transfers part of the heat of the hot fluid to the cold fluid. Relying on the many advantages of industrial pure gr1 gr2 titanium, some field also need gr7 gr12 industrial alloy titanium , titanium heat exchanger is a general equipment in chemical, petroleum, power, food and many other industrial sectors, and it occupies an important position in production.

Titanium heat exchanger is not easy to lose metal ions, so it can be used as heat exchanger for preparation and food. Due to the strong corrosion resistance of titanium, the service life of heat exchanger is longer and the maintenance cost is less in use. In addition, because it has the advantages of small volume and large heat exchange, the investment and operation cost of relevant equipment (such as pumps) can be reduced accordingly.

Structure: Tube heat exchanger

Size:Customized

Tube Types: Straight tubes, U-tube, kettle, coils etc. Main material: Titanium Grade 12

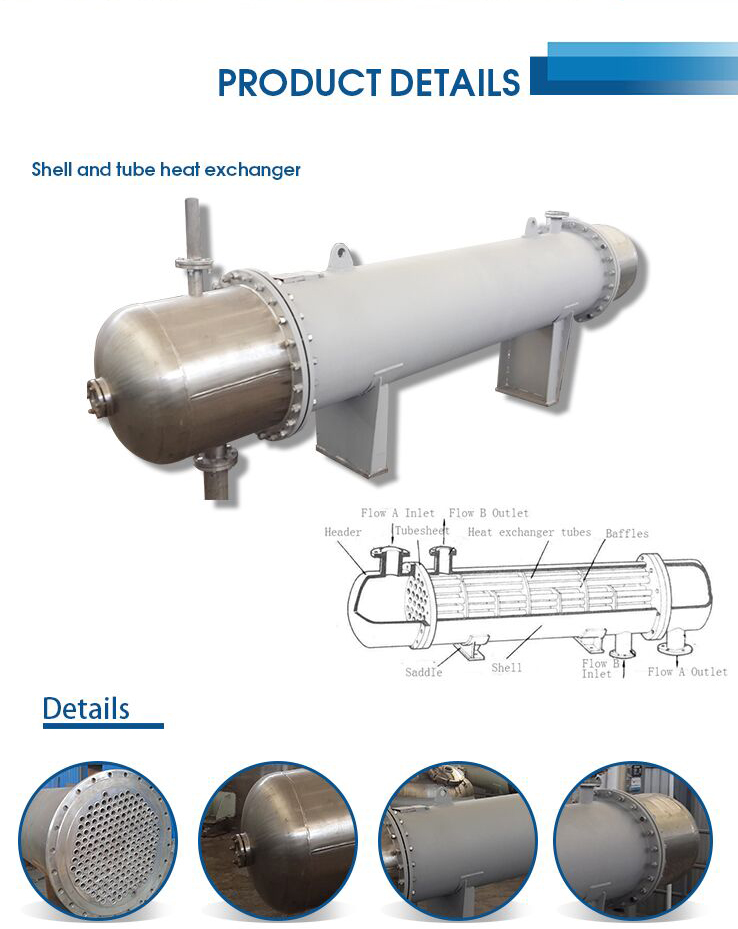

Structure:Shell and Tube Heat Exchanger

Working Temperature Range:-196℃~200℃

Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni)
Chemical compositions(weight%,<=)
Mo	Ni	Fe	C	N
0.2-0.4	0.6-0.9	0.30	0.08	0.03
H	O	Ti	Others	Total
0.015	0.25	Remainder	0.10	0.40
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
440	345	18	-------
