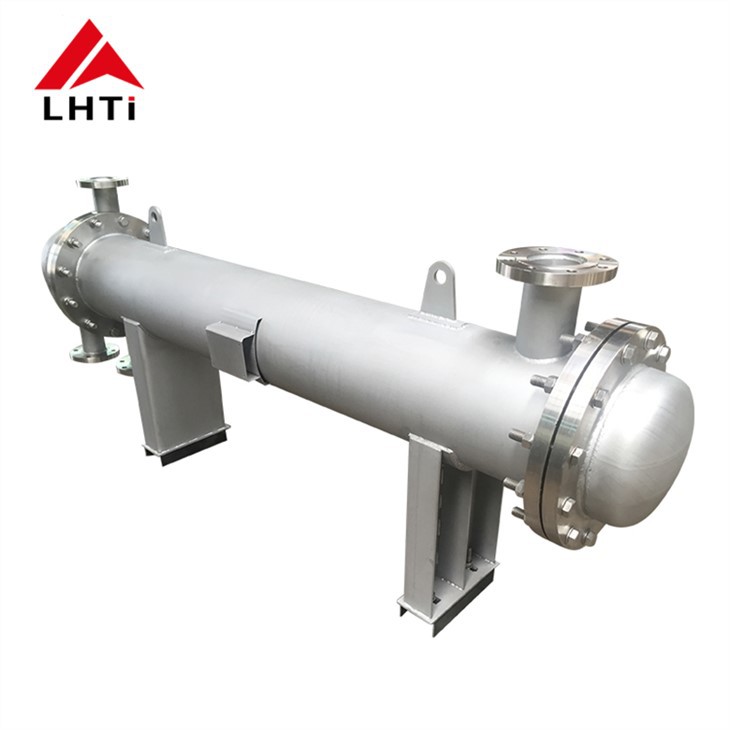

Titanium Condenser/ Heat Exchanger Equipment
Material:Titanium Gr1 Gr2 Gr7 Gr12
Structure: Tube heat exchanger
Types: Straight tubes, U-tube, kettle, coils etc.
Size: Customized
Tests: X ray, DP, UT, MT, PMI, helium leak etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium heat exchanger manufacturer

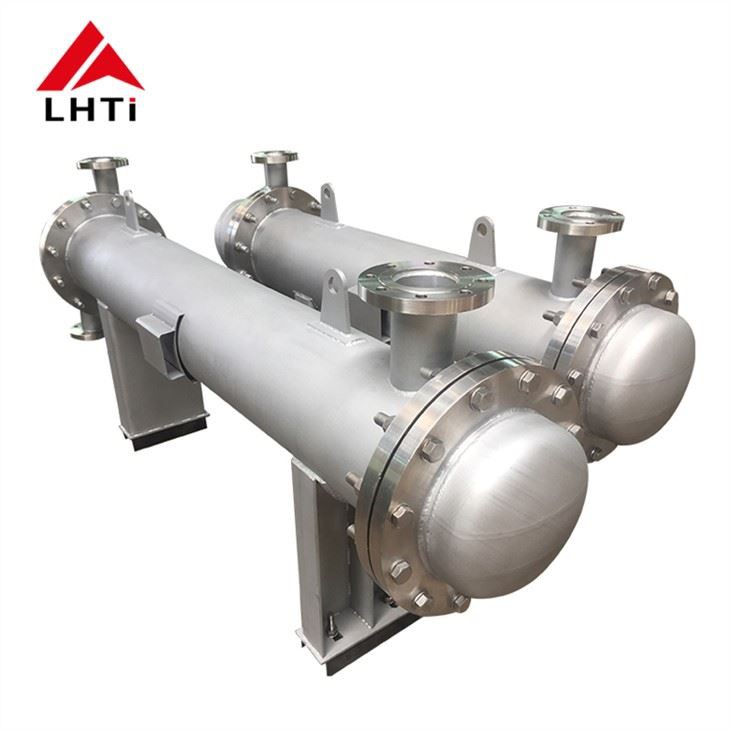

Titanium condenser/ heat exchanger equipment
In terms of chemical characteristics, the titanium in the heat exchanger shows good stability and corrosion resistance in various industrial solutions. Industrial pure titanium is a good material for refrigeration equipment accessories.
| Product Name | Gr2 titanium shell tube heat exchanger |
| Material | Titanium Gr1 Gr2 Gr7 Gr12 |
| Structure | Tube heat exchanger |
| Types | Straight tubes, U-tube, kettle, coils etc. |
| Size | Customized |
| Tests: | X ray, DP, UT, MT, PMI, helium leak etc |
| Applications | Oil, chemical, pharmacy, food, electricity, paper… |
Grade | Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Σb (Mpa) | σr0.2 (Mpa) |
No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 240 | 140 | |||||
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 400 | 275 | |||||
Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 400 | 275 | ||||
Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 18 | 460 | 300 |
Industrial pure titanium can be used in hydrocarbon, alkali solution, salt solution and other media. It is not easy to react with it and has good corrosion resistance. Pure titanium has good corrosion resistance to low concentration inorganic acids such as hydrochloric acid, sulfuric acid and nitric acid at room temperature.
However, with the increase of medium concentration and working temperature, industrial pure titanium is easy to react with the above inorganic acids, which reduces the corrosion resistance of titanium. Therefore, attention should be paid to the medium concentration and working temperature in the heat transfer process. Industrial pure titanium has good corrosion resistance to formic acid, oxalic acid, lactic acid and other acids at room temperature. Therefore, the heat exchanger has wide application area and long service time.
The above is an introduction to the performance of titanium heat exchanger. It is mostly used in aquaculture, seawater heat exchange, brine heat exchange, chemical industry, food, metallurgy, refrigeration, light industry, electroplating, aluminum oxidation tank, salt making, papermaking, electronic communication, central heating and other industries and fields.

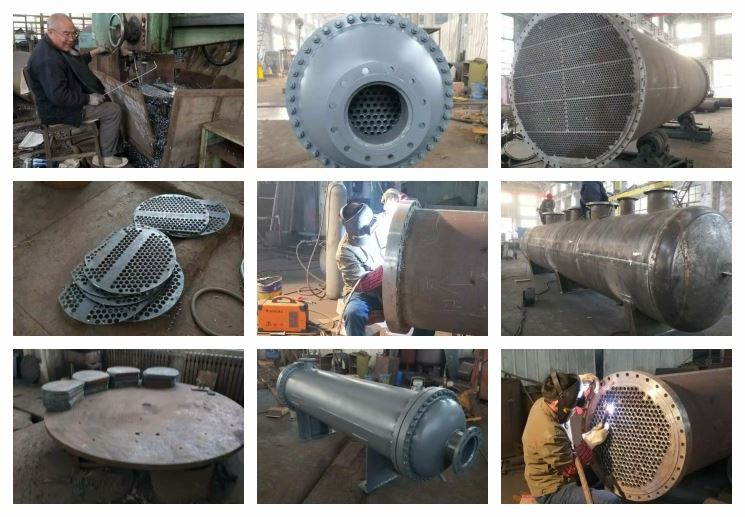

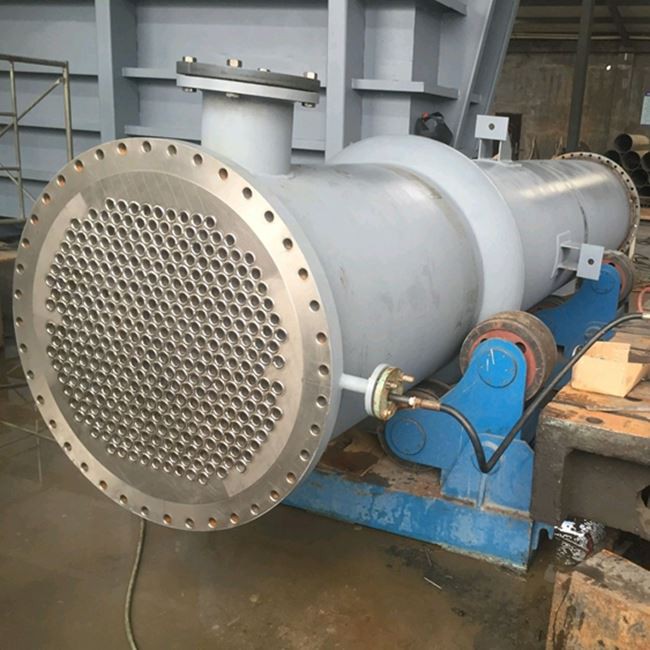

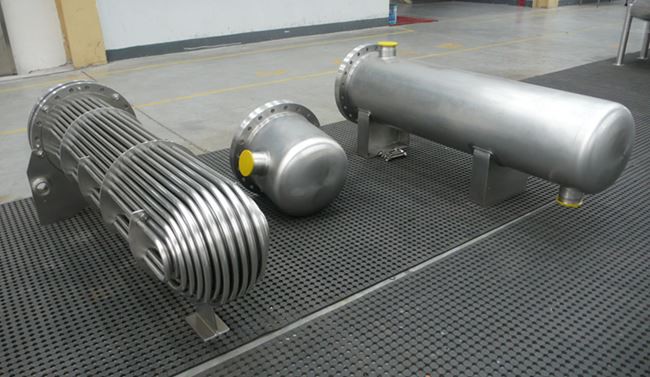

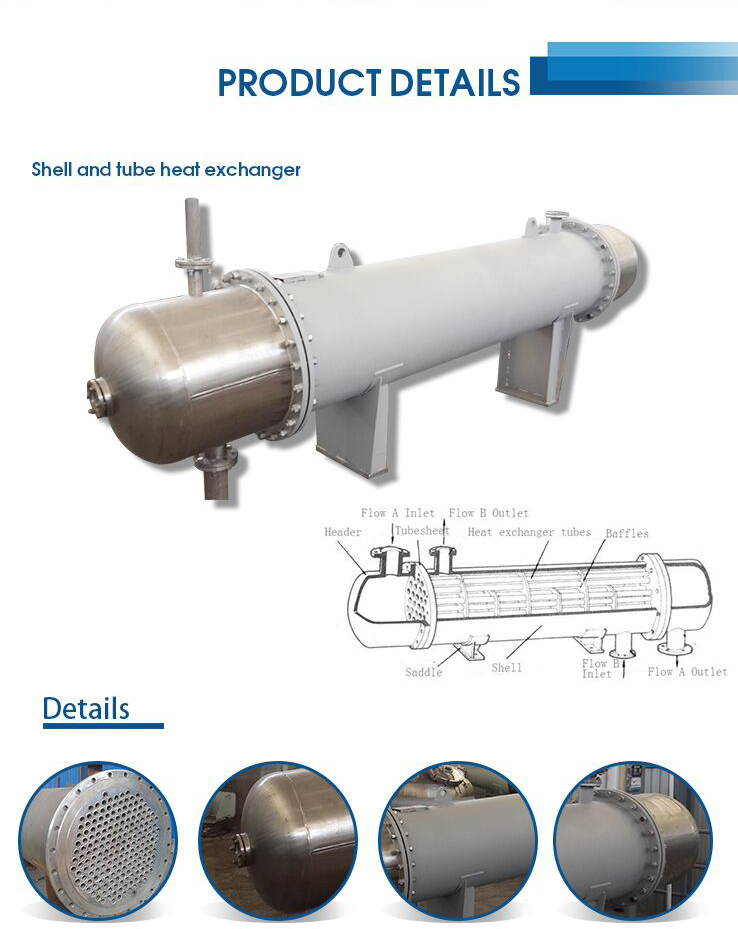

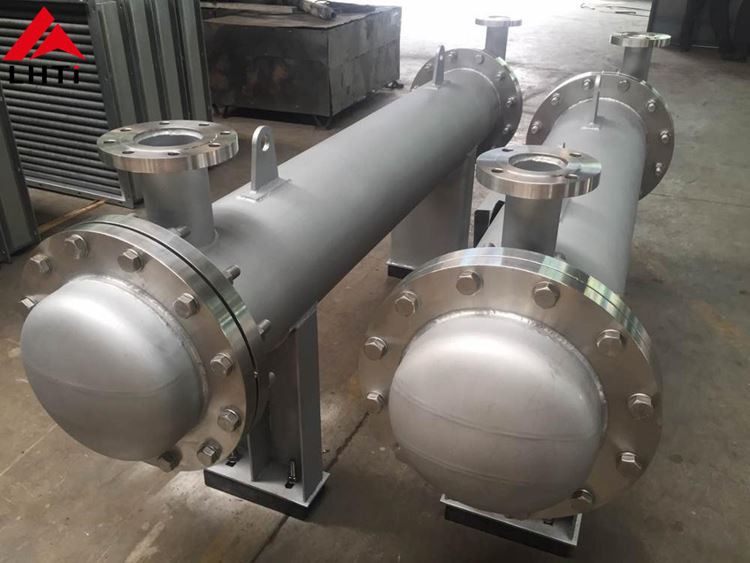

Detailed images:
The other products we can manufacture:
Packaging and shipping:
About our company:
