Gr7 Titanium Dish Head

Gr7 Titanium Dish Head

Standard: ASME VIII-I, DIN28013
Material: GR1, GR2, GR5, GR7, GR12
Size: Customized
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium dish head manufacturer

Send Inquiry

Chat Now

Product Introduction

Gr7 Titanium Dish Head

Product Information

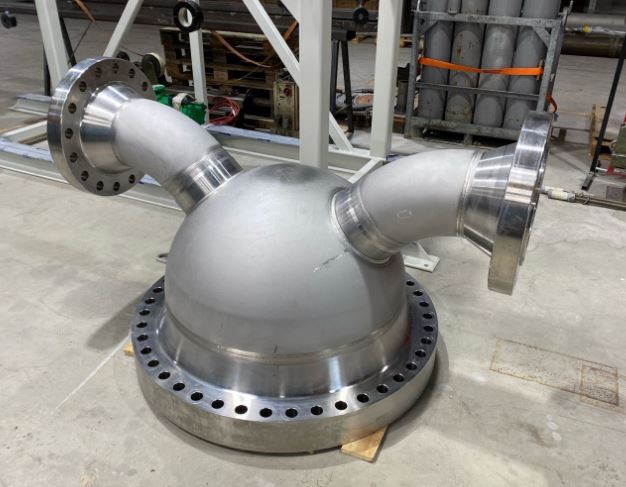

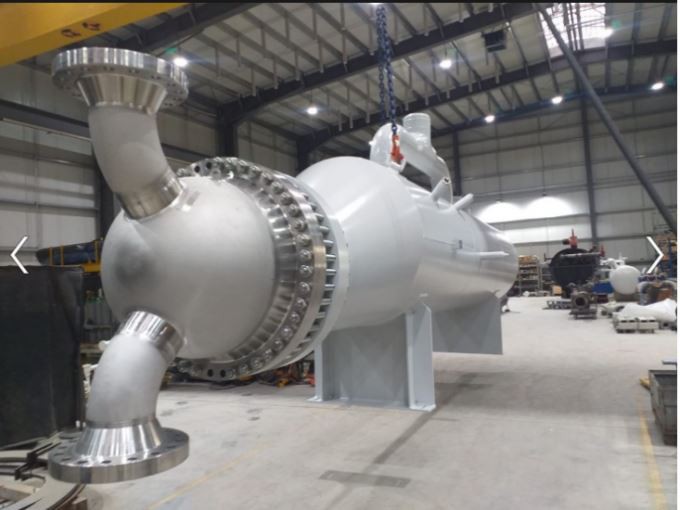

According to the different geometric shapes, titanium dish head can be divided into spherical, elliptical, dish, spherical crown, cone and flat cover, etc., among which spherical, elliptical, dish, spherical crown heads are collectively called convex heads . Titanium dish head is used in various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment, etc.

Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc.

Grade: GR1, GR2, GR5, GR7, GR12

OD: 300-2500mm

Thickness: 2-300mm

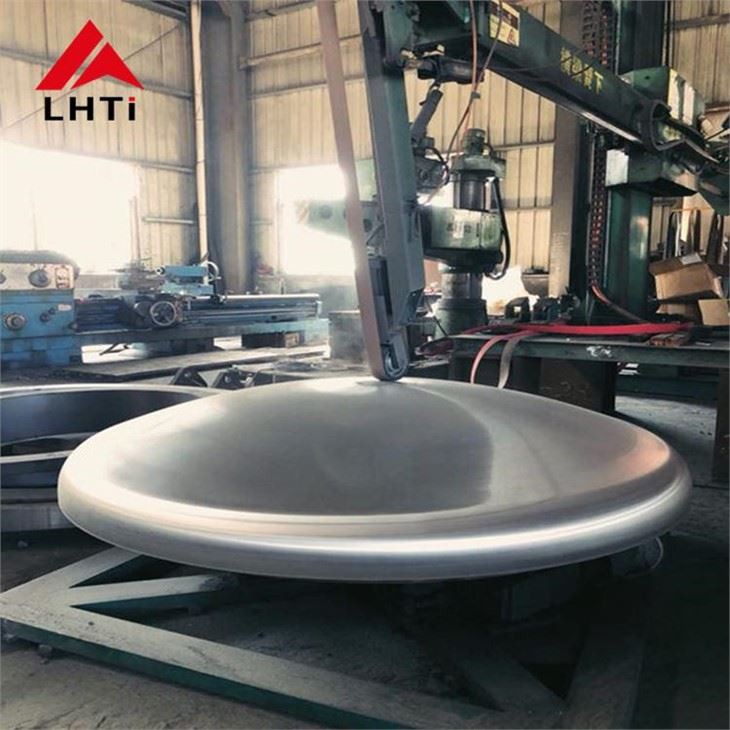

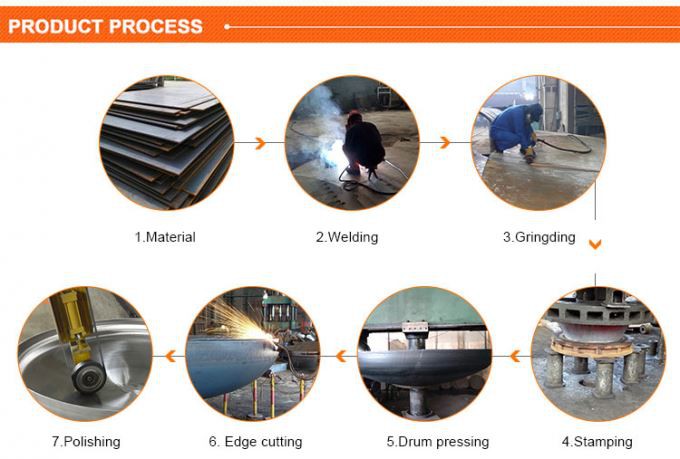

Production Process: Cold Forming, Hot Forming

Surface Treatment: Sand Blasting, Pickling, Coating etc.

Chemical compositions(weight%,<=)
Pd	Al	V	Fe	C
0.12-0.25	----	----	0.30	0.08
N	H	O	Other(total)	Ti
0.05	0.015	0.2	0.4	Remainder
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
400	275	20	25
