Gr5 Titanium Dish Head
Material: GR1, GR2, GR5, GR7, GR12
Size: Customized
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium dish head manufacturer
Gr5 Titanium Dish Head
Product Information
Titanium dish head refers to the element used to close the end of the container to isolate the internal and external media, also known as end caps.
Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc.
Grade: GR1, GR2, GR5, GR7, GR12
OD: 300-2500mm
Thickness: 2-300mm
Production Process: Cold Forming, Hot Forming
Surface Treatment: Sand Blasting, Pickling, Coating etc.
Applications: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc.
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | |
| 0.05 | 0.015 | 0.2 | 0.4 | |
| Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | σr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | ψ Reduction of area (%) | |
| 895 | 825 | 10 | 25 | |

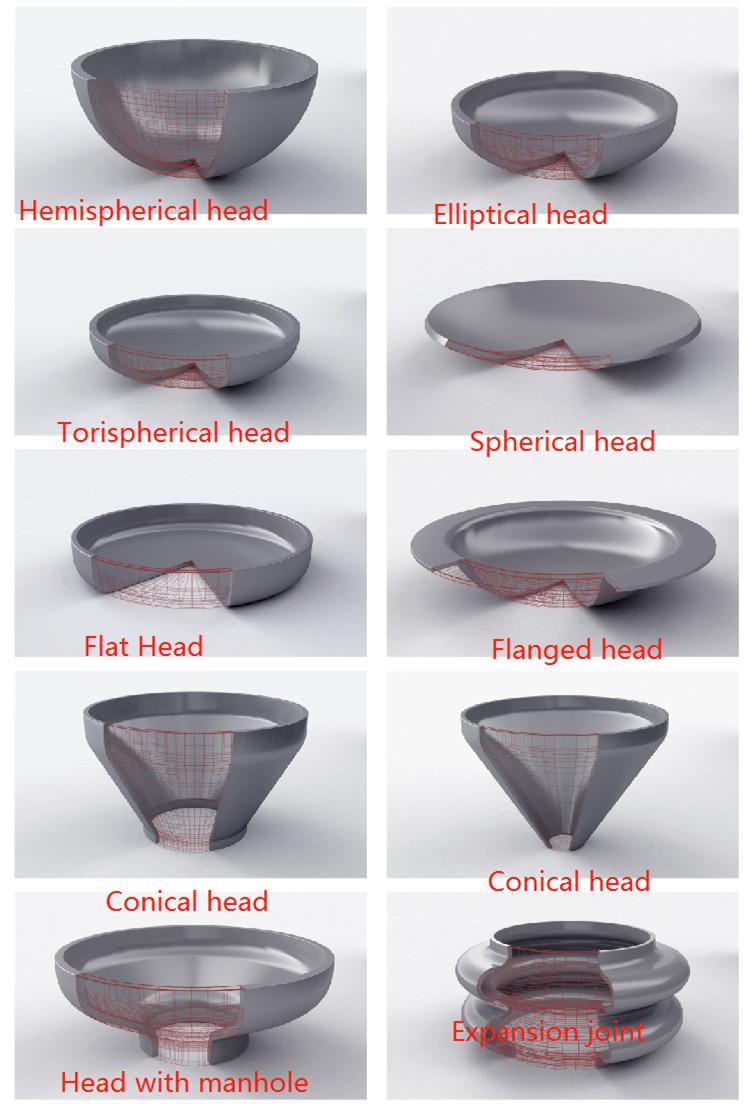

Types of Titanium Dish Head

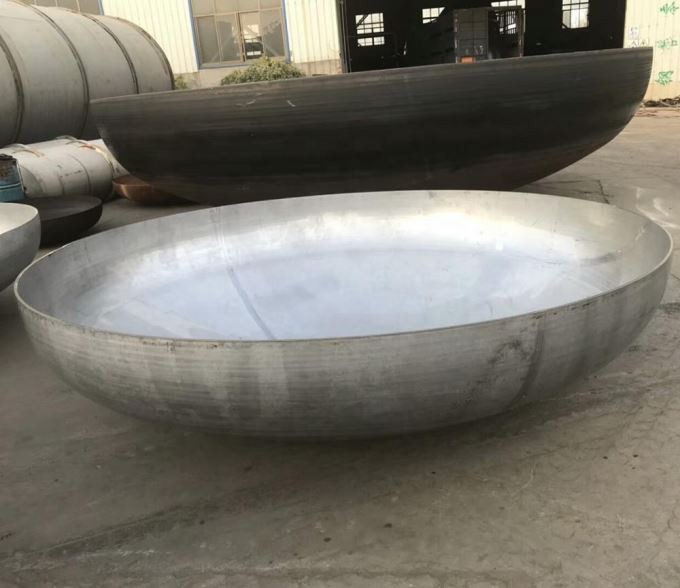

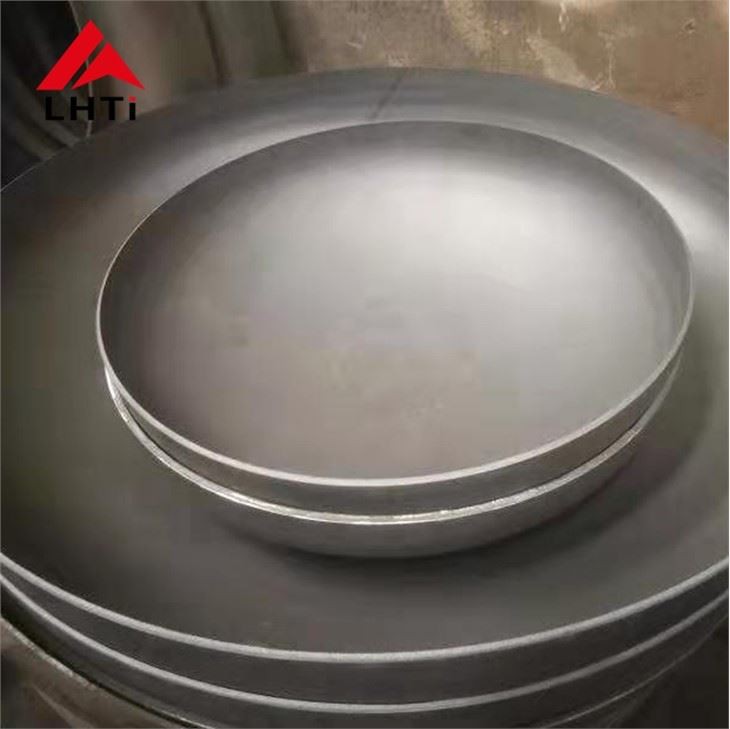

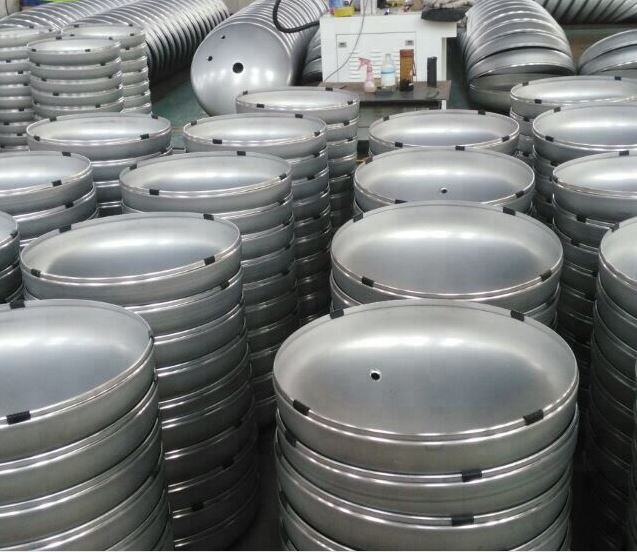

Detailed Images

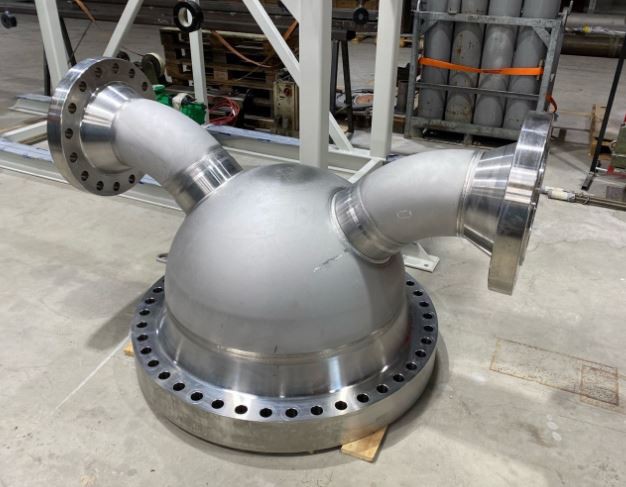

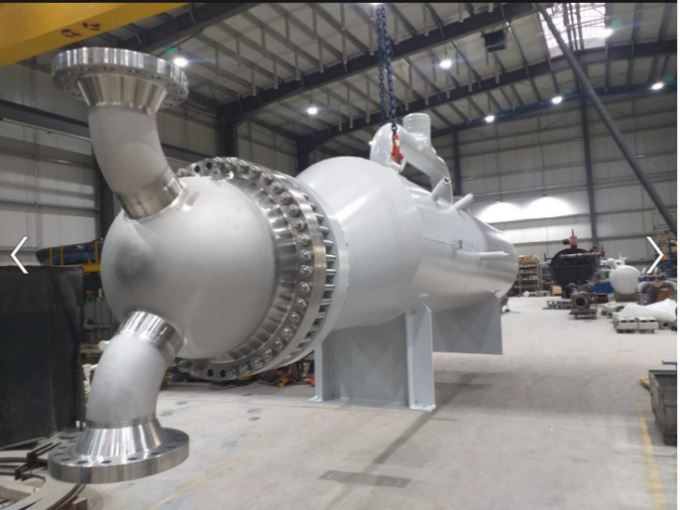

Application

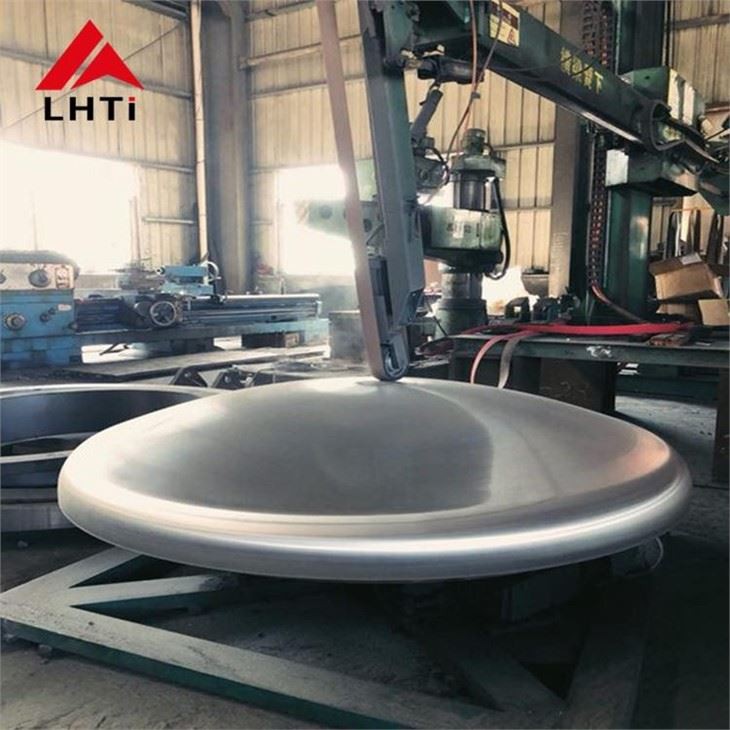

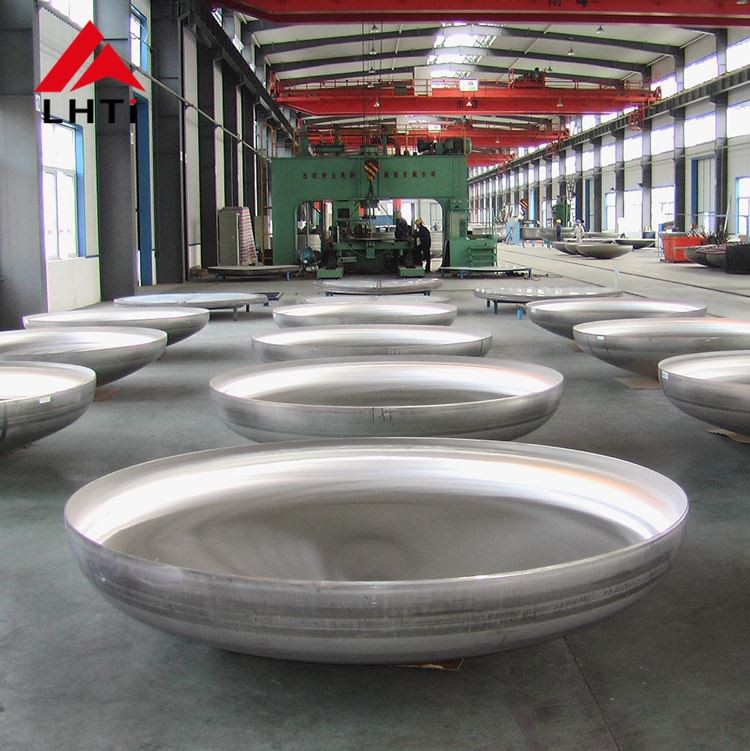

Factory
Our Advantges
1. Use high-quality materials
2. Ensure the thickness of the design requirements
3. Meet the design requirements of the shape
4. Process control

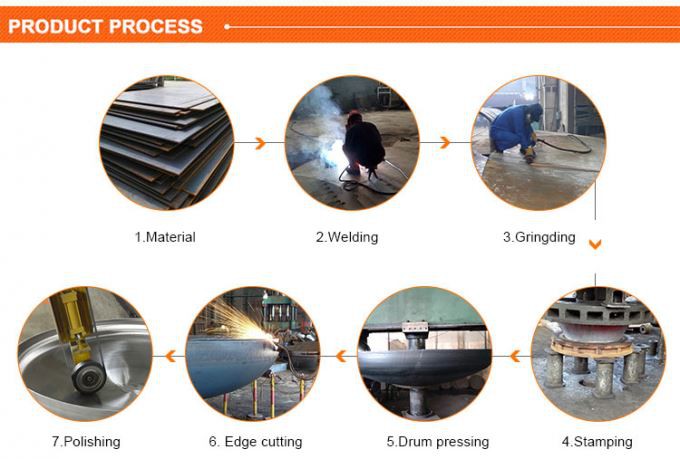

Production Process
Our Company
As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium dish head to many countries. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
