Gr2 Titanium Dish Head

Gr2 Titanium Dish Head

Standard: ASME VIII-I, DIN28013
Material: GR1, GR2, GR5, GR7, GR12
Size: Customized
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium dish head manufacturer

Send Inquiry

Chat Now

Product Introduction

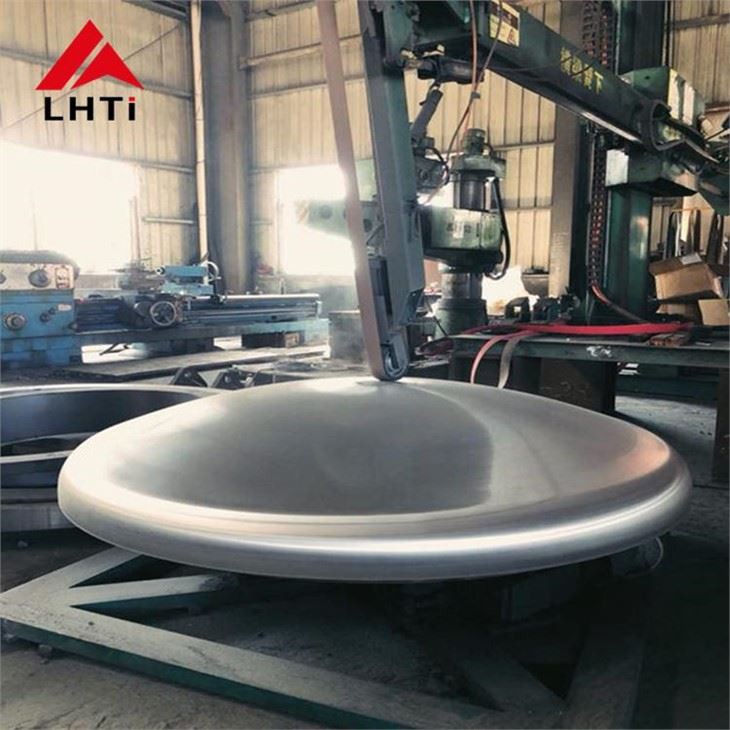

Gr2 Titanium Dish Head

Product Information

Titanium dish head is the end cap on the pressure vessel and is a main pressure-bearing part of the pressure vessel. The role played is the sealing effect. First, the upper and lower bottoms of the tank-shaped pressure vessel are made, and the second is that the pipe is at the end and is not going to extend forward. Then a titanium dish head is used to seal the pipe in the form of welding. There are blind plates and caps that are similar to the functions of titanium dish head, but those two products can be disassembled. After titanium dish head is welded, it cannot be disassembled. So the quality of titanium dish head is directly related to the long-term safe and reliable operation of the pressure vessel.

Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc.

Grade: GR1, GR2, GR5, GR7, GR12

OD: 300-2500mm

Thickness: 2-300mm

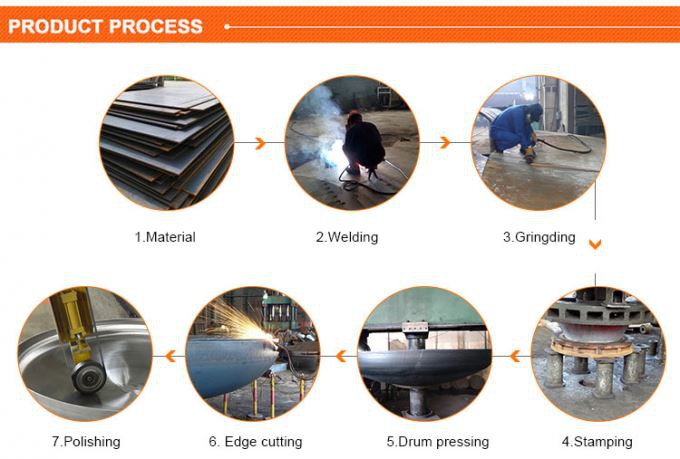

Production Process: Cold Forming, Hot Forming

Surface Treatment: Sand Blasting, Pickling, Coating etc.

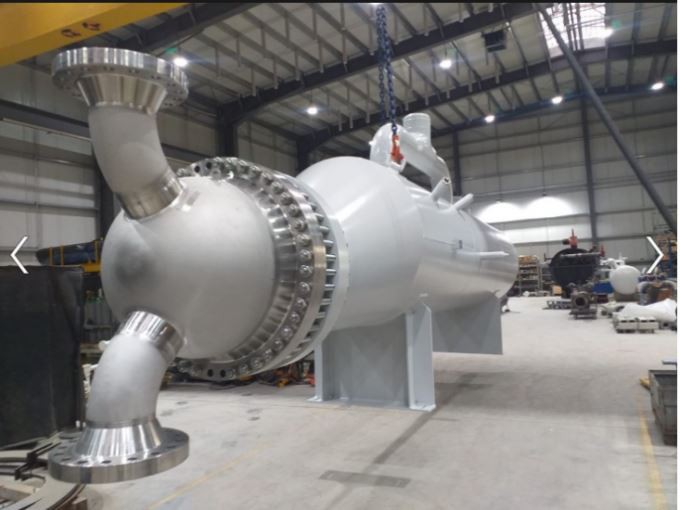

Applications: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc.

Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–

Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 2	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

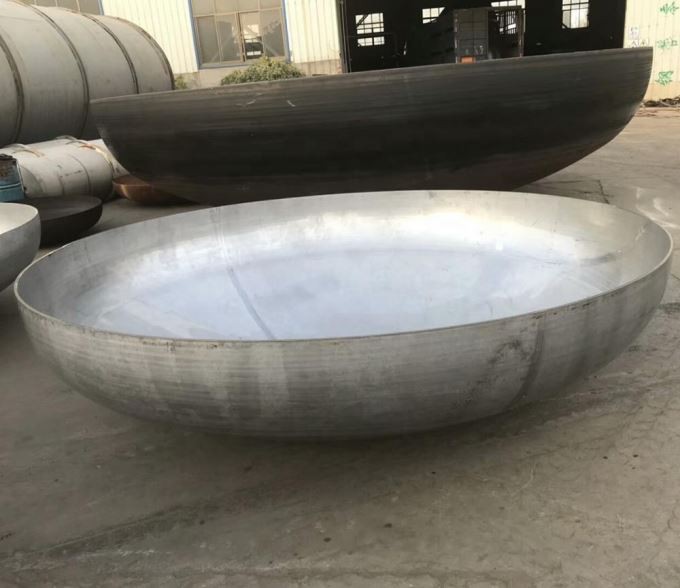

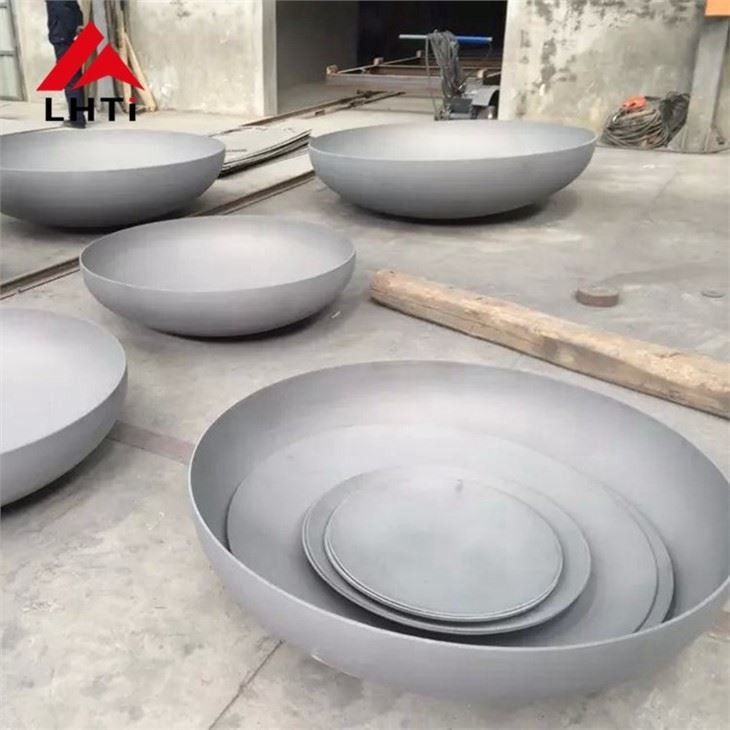

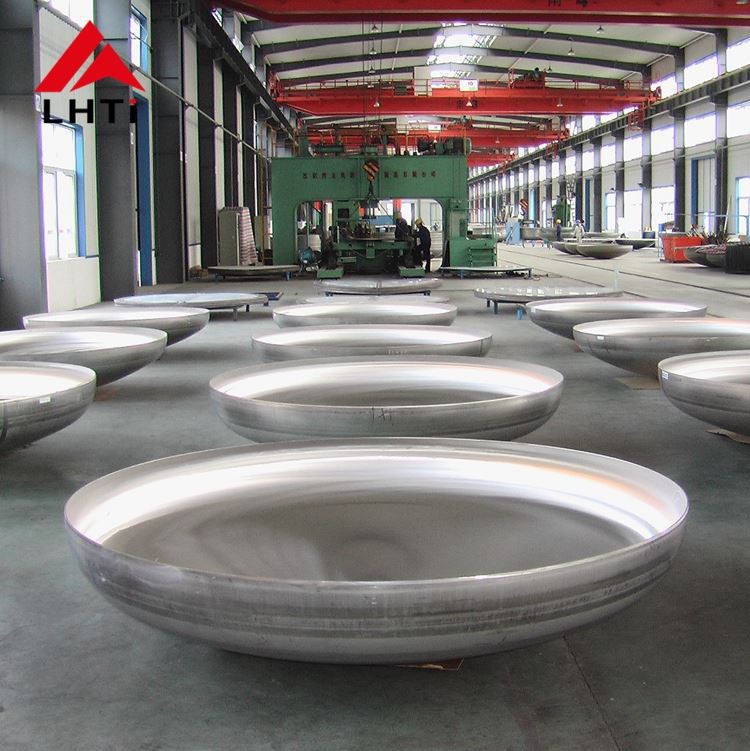

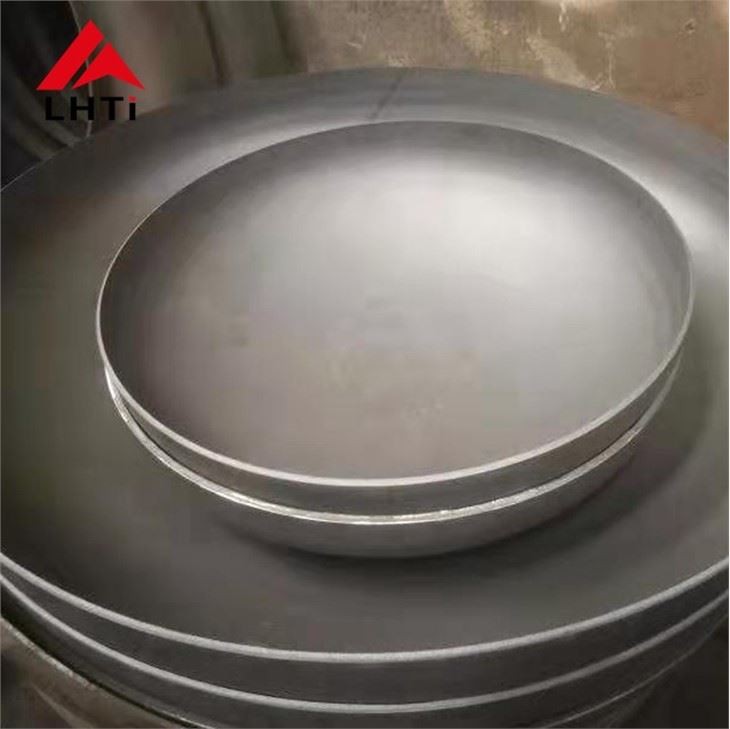

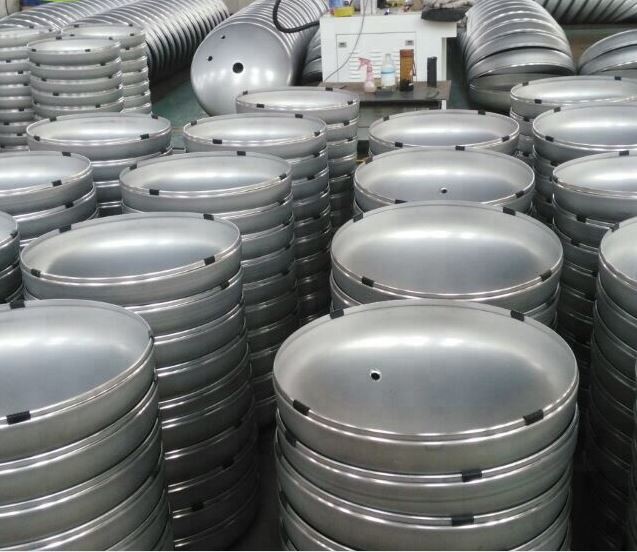

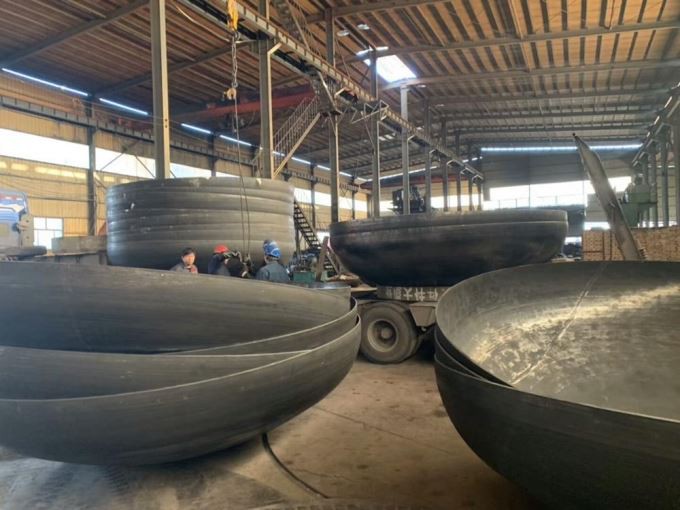

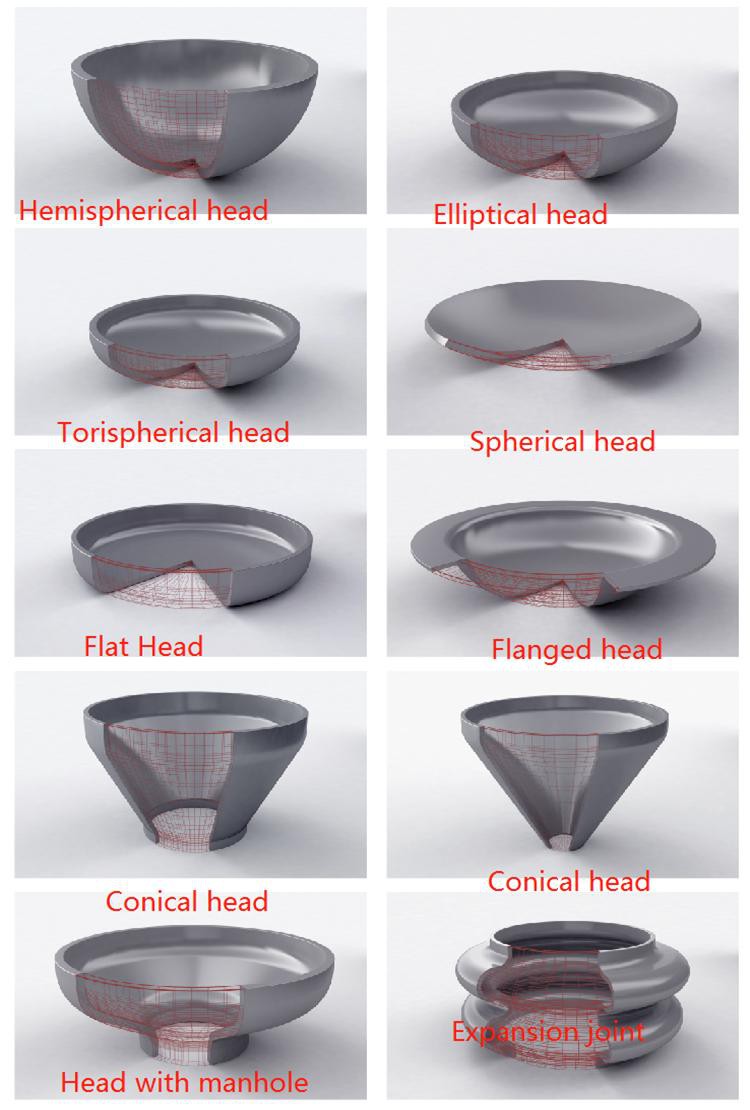

Types of Titanium Dish Head

titanium dish head
