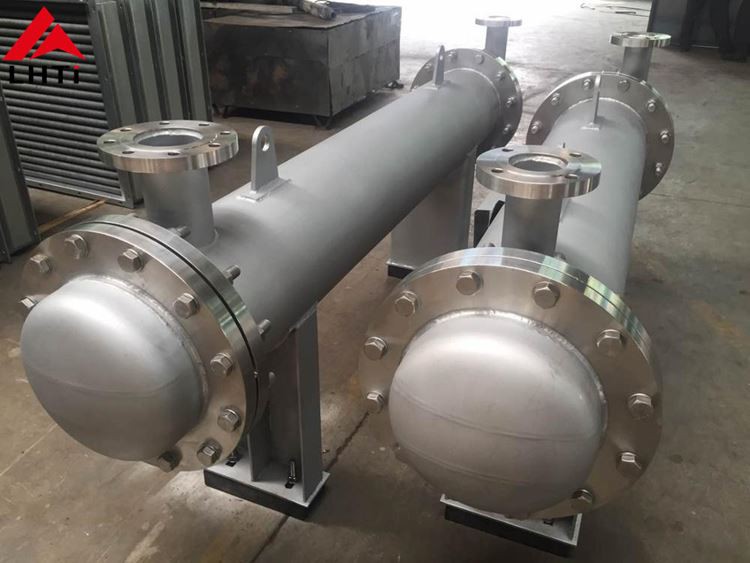

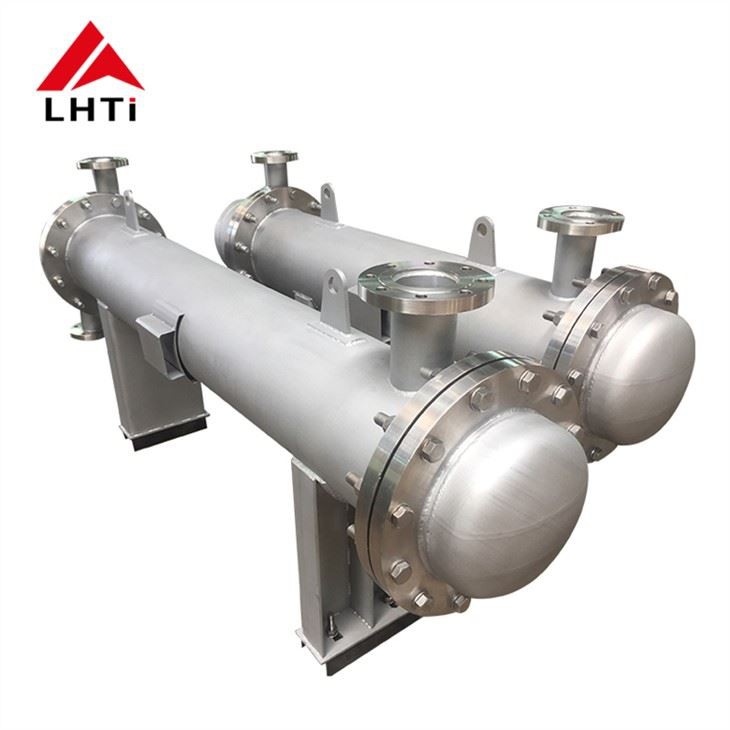

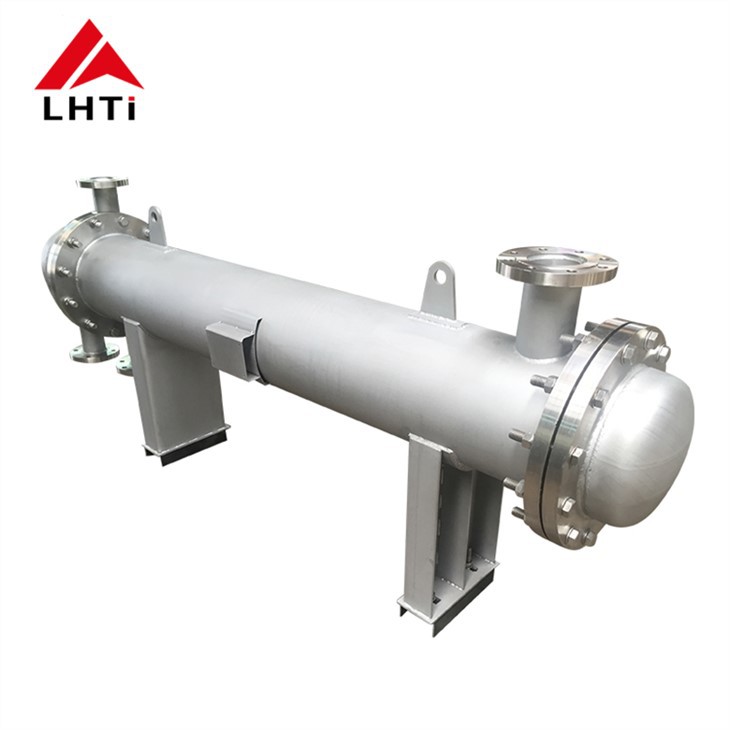

Titanium Shell Tube Air To Air Fins Heat Exchangers

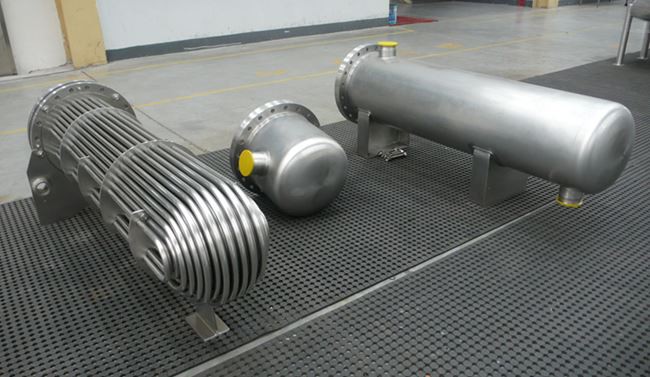

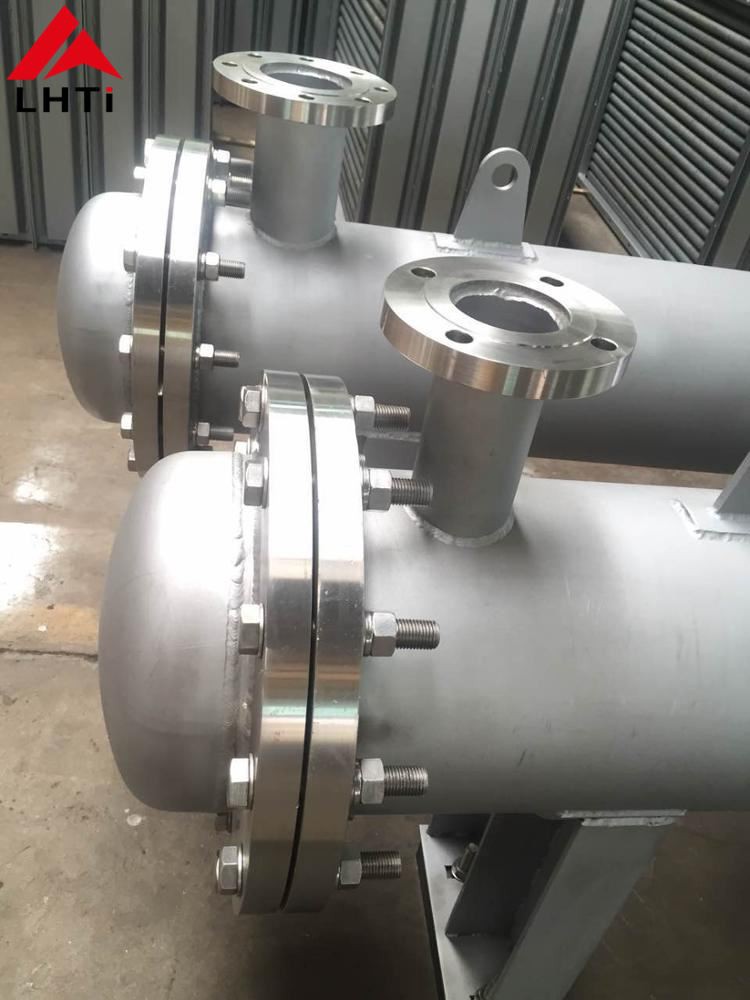

The shell and tube heat exchanger is currently the most commonly utilized type of heat exchanger. It features a tube bundle encased within a shell, with the tube walls serving as the heat transfer surfaces. This design is favored for its simplicity of operation and its ability to function efficiently under high temperatures and pressures. Jiangsu Rudy's range of shell and tube heat exchangers includes fixed plate heat exchangers, U-tube heat exchangers, and floating head heat exchangers, each offering distinct advantages to meet various industrial needs.

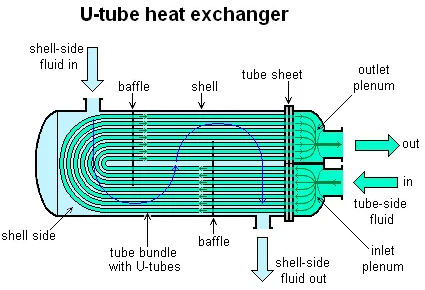

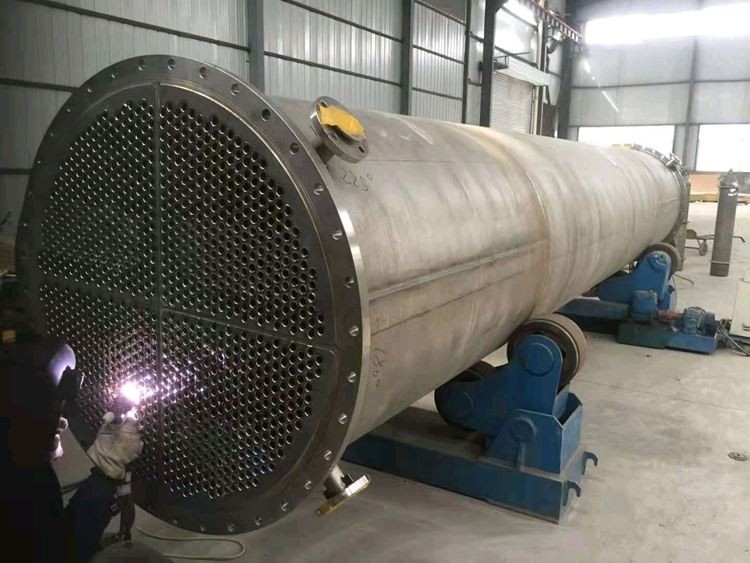

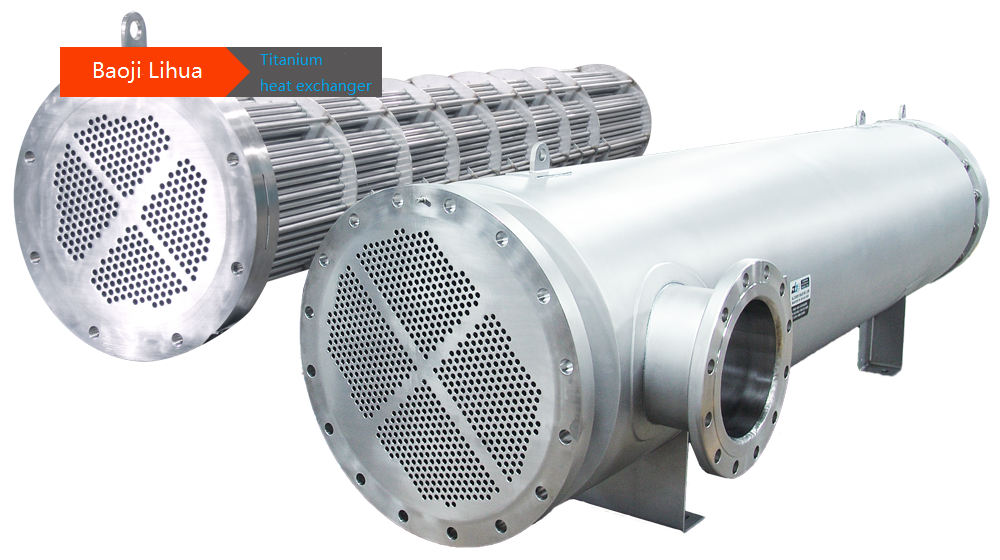

A shell-and-tube heat exchanger consists of several key components: the shell, the heat transfer tube bundle, the tube sheets, the baffles, and the tube box. It operates by creating two distinct fluid channels: the tube side, where fluid flows through the heat exchange tubes, and the shell side, where fluid flows around the tubes within the shell. When fluids at different temperatures pass through these channels, heat is transferred from the hotter fluid to the cooler one via the tube walls. This process results in the cooling of the higher-temperature fluid and the heating of the lower-temperature fluid, thereby facilitating effective thermal exchange between the two fluids.
