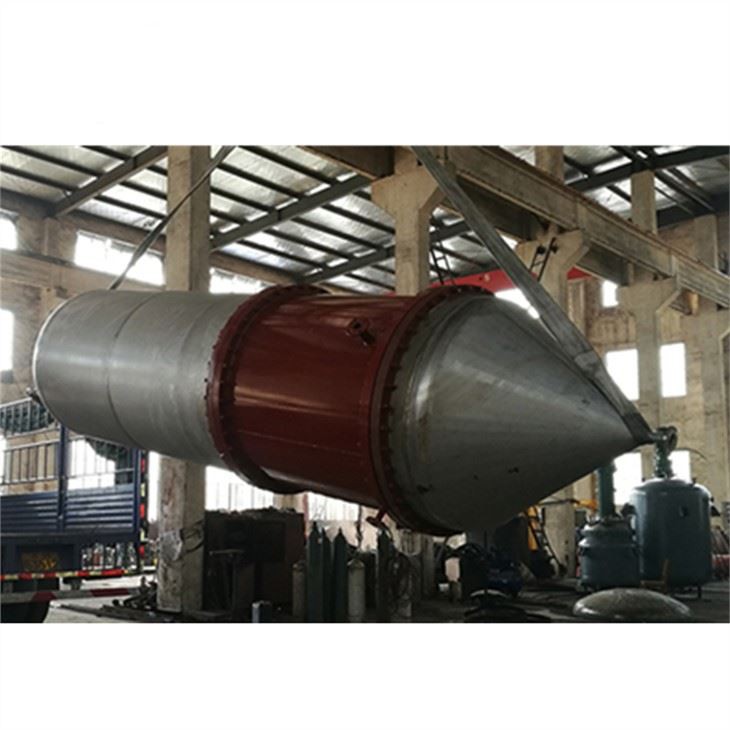

Gr2 Titanium Shell Tube Heat Exchanger

Gr2 Titanium Shell Tube Heat Exchanger

Product Name: Gr2 titanium shell tube heat exchanger
Material:Titanium Gr1 Gr2 Gr9 Gr12
Structure: Tube heat exchanger
Types: Straight tubes, U-tube, kettle, coils etc.
Size: Customized

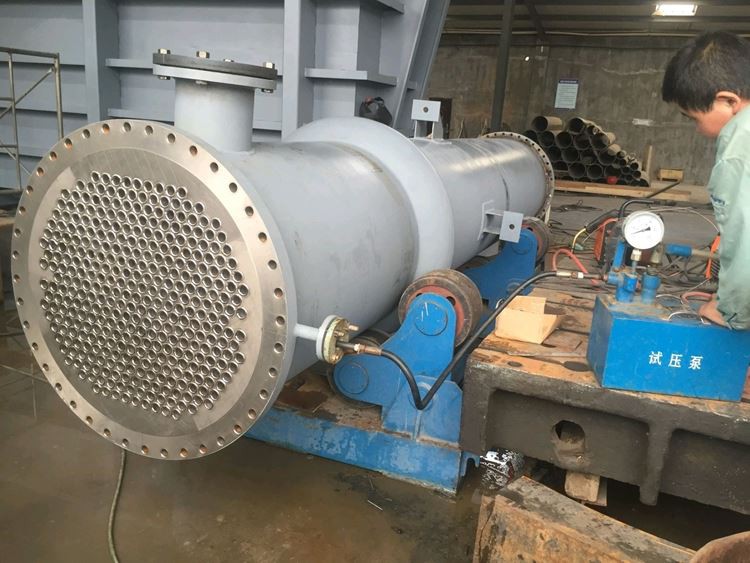

Tests: X ray, DP, UT, MT, PMI, helium leak etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium heat exchanger manufacturer

Send Inquiry

Chat Now

Product Introduction

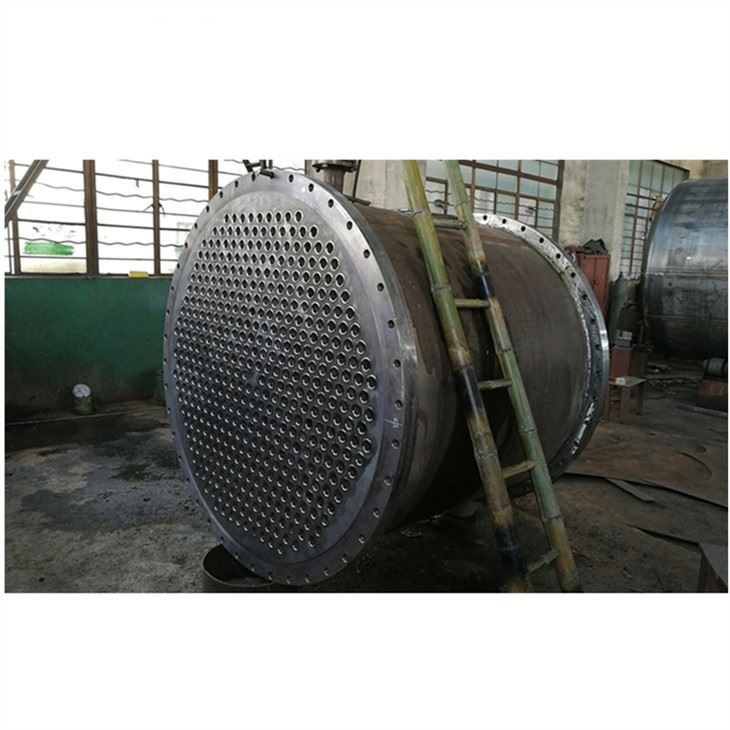

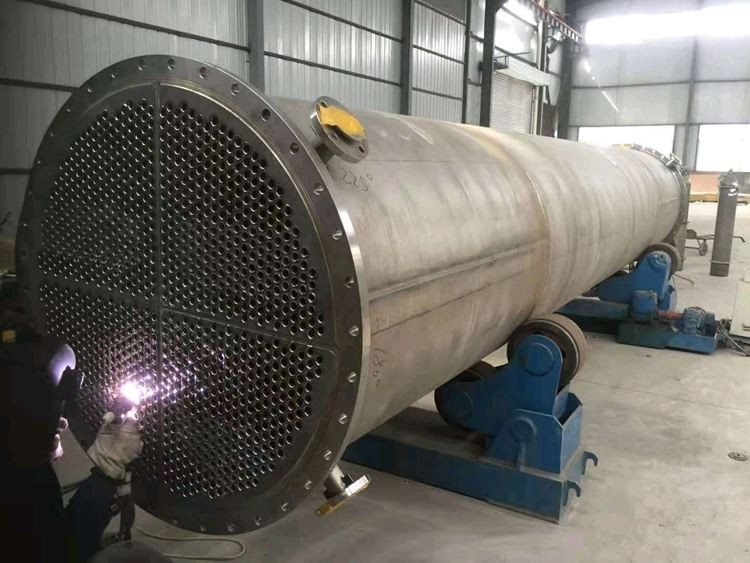

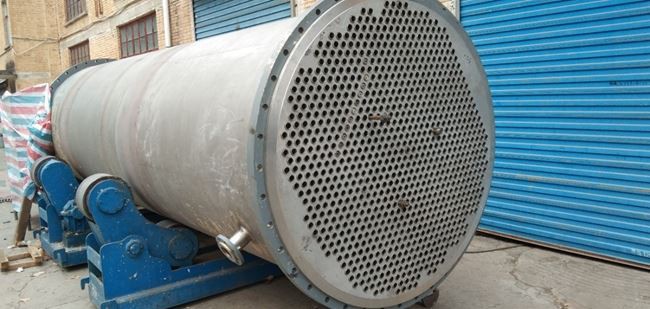

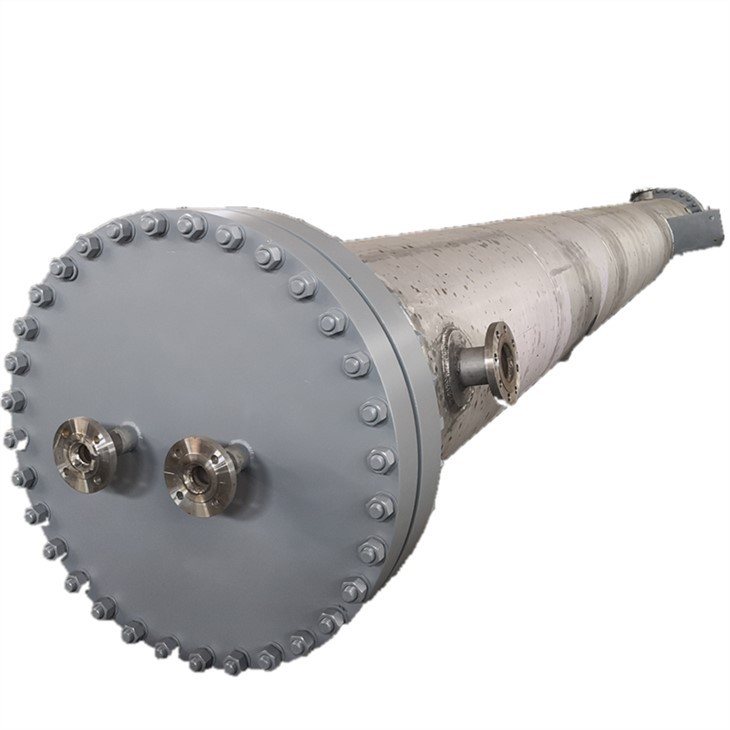

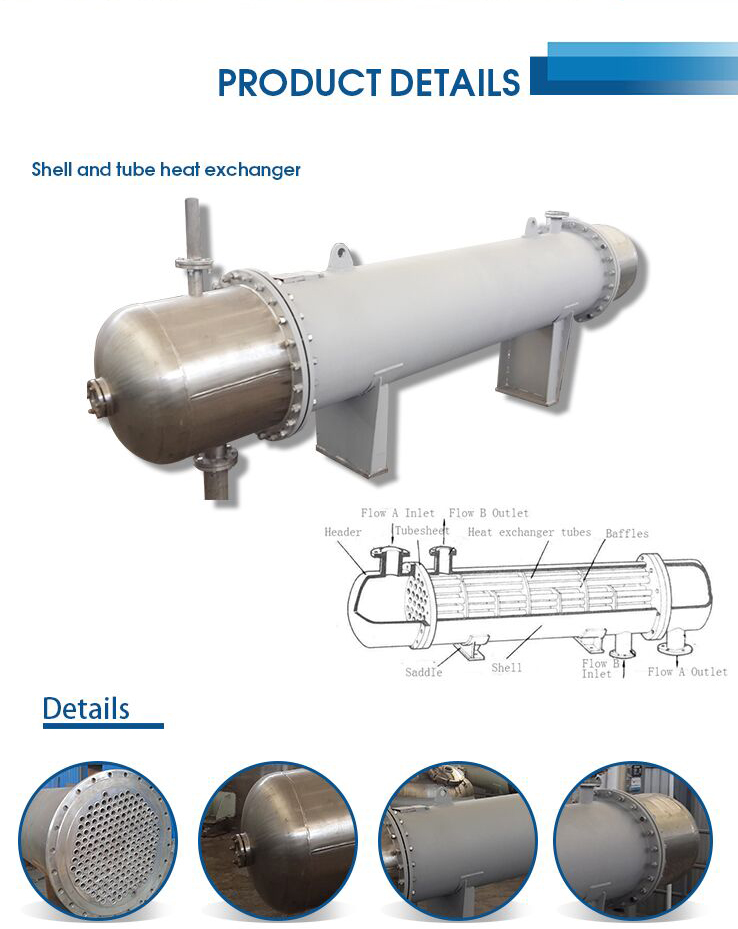

Gr2 titanium shell tube heat exchanger

Heat exchanger is a device that transfers part of the heat of hot fluid to cold fluid, also known as heat exchanger. Heat exchanger plays an important role in chemical industry, petroleum, power, food and many other industrial production. In chemical production, heat exchanger can be widely used as heater, cooler, condenser, evaporator and reboiler.

Material	Gr2 Titanium
Heat exchanger area	according to working conditions
Working/Design temperature	according to the design optional
Pressure	according to the design optional
Application	oil, chemical, pharmacy, food, electricity, paper…

Common using heat exchange tubes size
Item	OD（mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	WT(mm)	Form
1	10--15	0.5	0.6	0.8	1	1.25	1.5	2	2	2.5	3	3.5	4	4.5	Cold rolled or cold drawn seamless pipe
2	15-20	0.6	0.8	1	1.25	1.5	2	2	2.5
3	20-30	0.8	1	1.25	1.5	2	2	2.5
4	30-40	1.25	1.5	2	2	2.5
	40-50	1.5	2	2	2.5	3
	50-60	1.5	2	2	2.5	3	3.5
	60-80	2	2.5	3	3.5	4
5	16	0.5	0.6	0.8	1										Welded pipe
6	19	0.5	0.6	0.8	1	1.25
7	25,27	0.5	0.6	0.8	1	1.25	1.5
8	31.32.33	0.8	1	1.25	1.5	2
9	38	1.5	2	2.5
10	50	2	2.5
11	63	2	2.5
12	6-10	0.5	0.6	0.8	1	1.25									Welded (seamed) or rolled (seamless)
13	10-15	0.5	0.6	0.8	1	1.25	1.5
14	15-20	0.5	0.6	0.8	1	1.25	1.5
15	20-25	0.5	0.6	0.8	1	1.25	1.5
16	25-30	0.5	0.6	0.8	1	1.25	1.5	2
