Product Name: Titanium Shell & Tube Heat Exchangers
Material:Titanium Gr1 Gr2 Gr9 Gr12
Structure: Tube heat exchanger
Types: Straight tubes, U-tube, kettle, coils etc.
Size: Customized
Tests: X ray, DP, UT, MT, PMI, helium leak etc.
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium heat exchanger manufacturer

Send Inquiry

Chat Now

Product Introduction

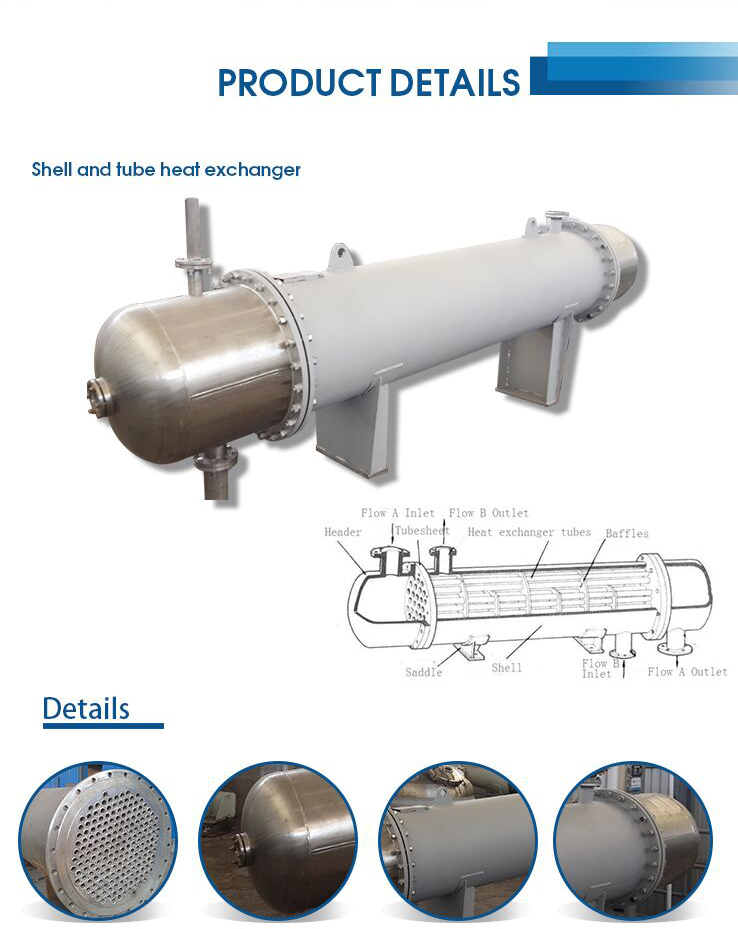

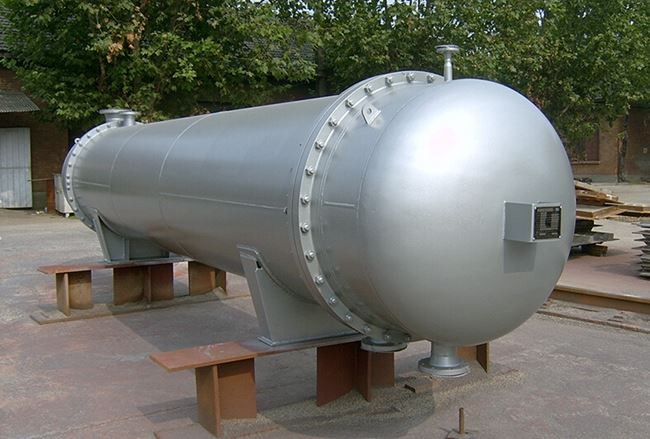

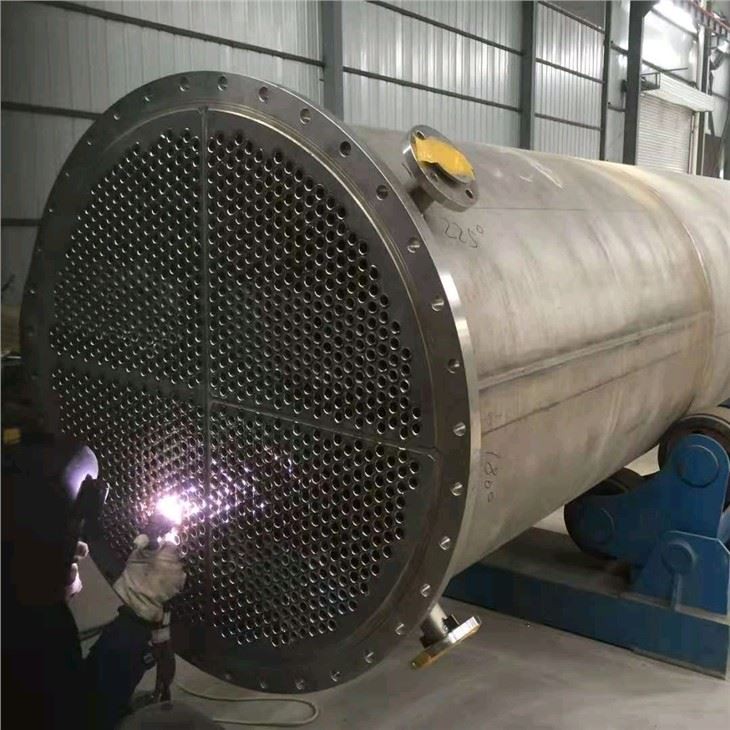

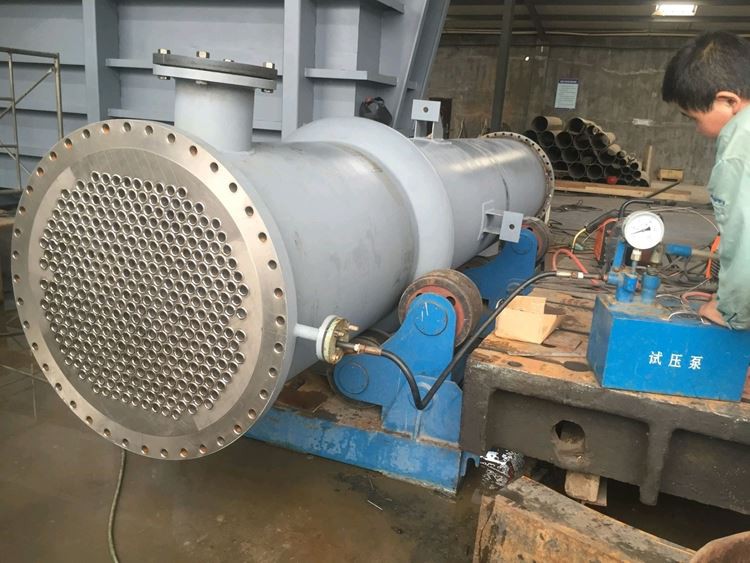

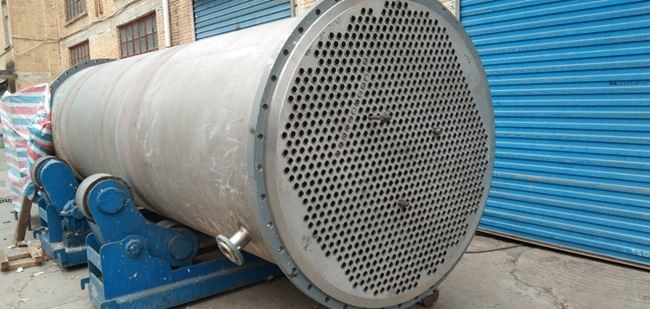

Titanium Shell & Tube Heat Exchangers

Heat exchanger is a special equipment that uses heat conduction principle to transfer part of heat from hot fluid to cold fluid, also known as heat exchanger. Heat exchanger adopts heat medium steam, hot water, heat conduction oil and steam, etc. Heat exchangers are widely used, especially in chemical, petroleum, food and power industries. Heat exchanger is not only a unit equipment, such as heater, cooler and condenser; It can also be part of a process equipment, such as the heat exchanger in an ammonia synthesis tower. Heat exchanger is an important unit equipment in chemical production. According to previous statistics, the tonnage of heat exchanger accounts for about 20% of the whole process equipment and some even as high as 30%. Heat exchangers are not only widely used, but also many kinds. According to the working principle of heat exchange of cold and hot fluids, all heat exchangers can be roughly divided into wall heat exchangers, mixed heat exchangers and regenerative heat exchangers.

Material	Titanium
Heat exchanger area	according to working conditions
Working/Design temperature	according to the design optional
Pressure	according to the design optional
Application	oil, chemical, pharmacy, food, electricity, paper…

Grade	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Σb (Mpa)	σr0.2 (Mpa)
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	240	140
Grade 2	0.3	0.25	0.03	0.1	0.015						20	400	275
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	400	275
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	18	460	300
