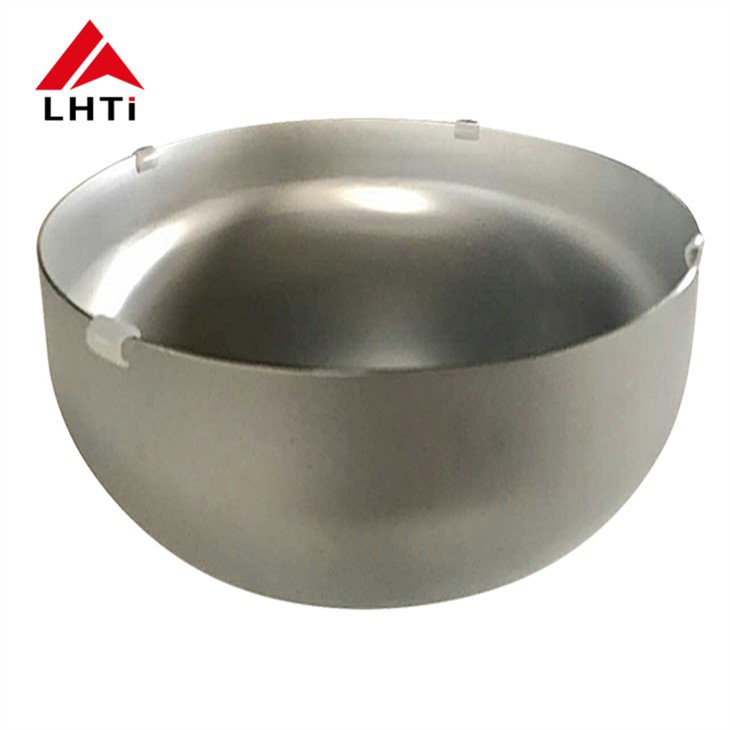

Gr2 Titanium Hemispherical Heads

Gr2 Titanium Hemispherical heads

The dish head refers to the element used to close the end of the container so that the internal and external media are isolated, also known as hemispherical heads/dish end/ Elliptical Dish End. The head of a cylindrical container is usually a revolving case. According to the shape of the head surface, it can be divided into convex shape, conical shape, flat shape and combination shape. Convex heads refer to heads with convex outer surface shape, such as hemispherical, oval, disc and unflanged spherical heads. Some gas cylinders use convex inward combined bottom head, which can not only ensure strength, but also meet the needs of safe use.

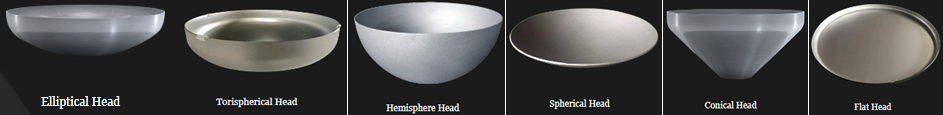

A head is a part of a container that is welded to the cylinder. (As shown below) According to different geometric shapes, it can be divided into spherical, oval, disc, spherical crown, cone shell and cap, among which spherical, oval, disc and spherical crown heads are collectively referred to as convex heads. In the welding is divided into butt welding head, socket welding head. Used for all kinds of container equipment, such as storage tank, heat exchanger, tower, reactor, boiler and separation equipment, etc.

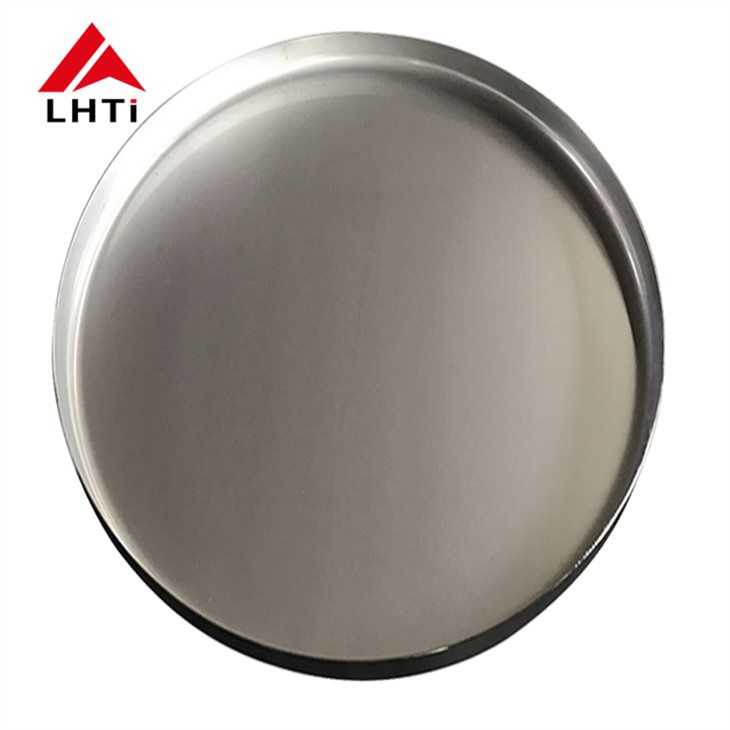

Product name:Gr2 Titanium Hemispherical Heads

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.

Thickness: 2mm--300mm Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA

Material:  Grade 2

Application: mainly for pressure vesselsin diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military

(Titanium dish head )DIN28013:

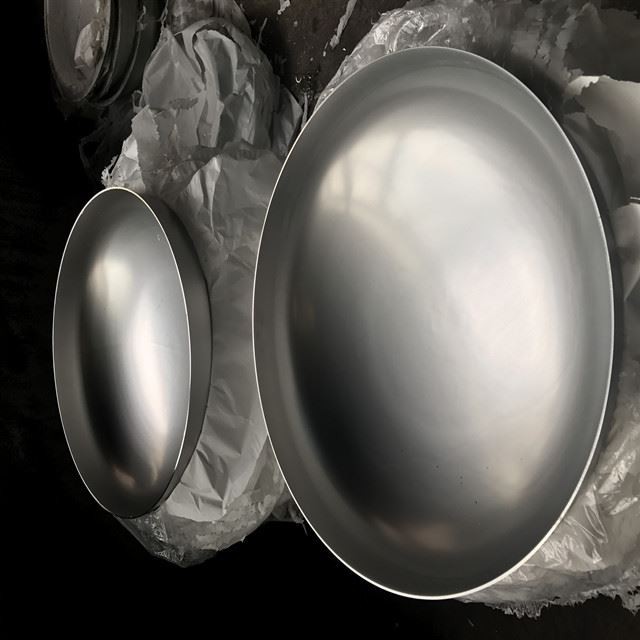

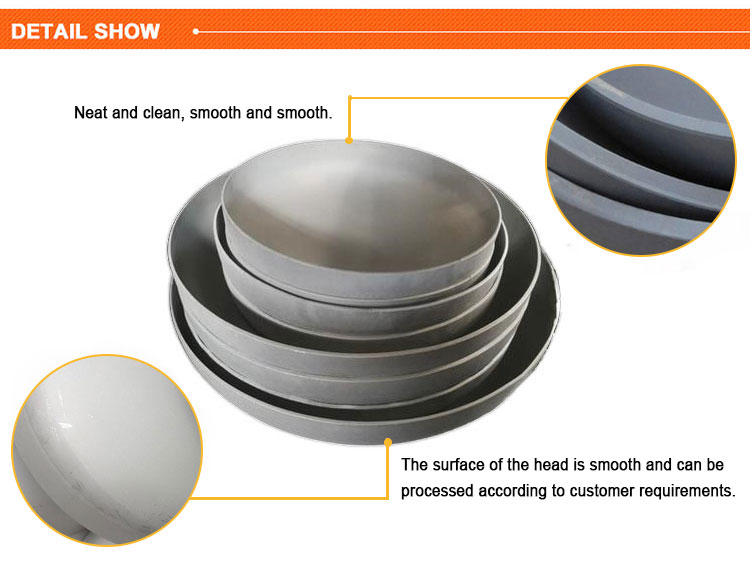

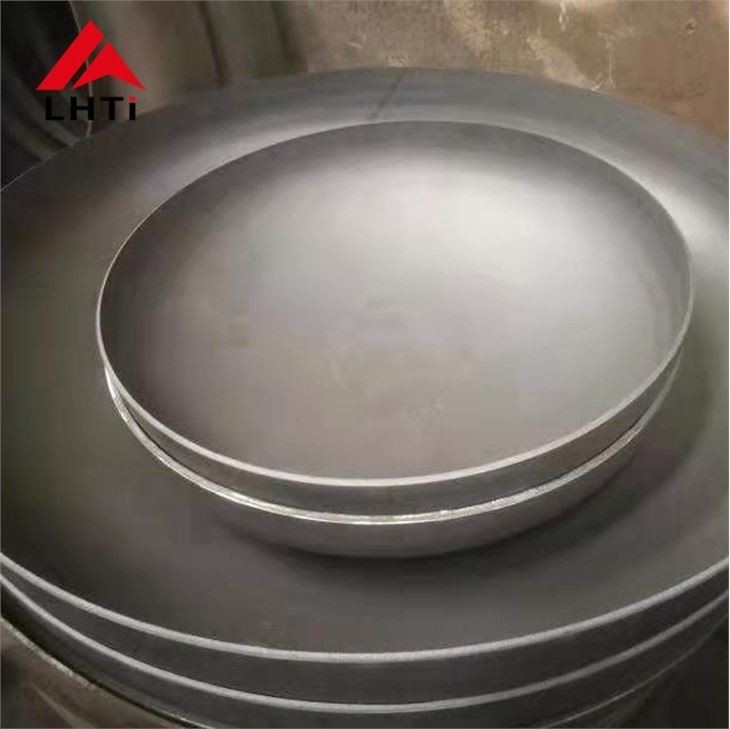

Detailed Images:

Applications of titanium Elliptical Heads:

The materials of Elliptical Heads:  The dish head can be made of various materials according to the material of the equipment body. For example, carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV 45CrMo), non-ferrous metals (aluminum, titanium, copper, nickel and nickel alloy, etc.). The material must be the same as that of the device.

We are specialized in titanium hemispherical Heads.

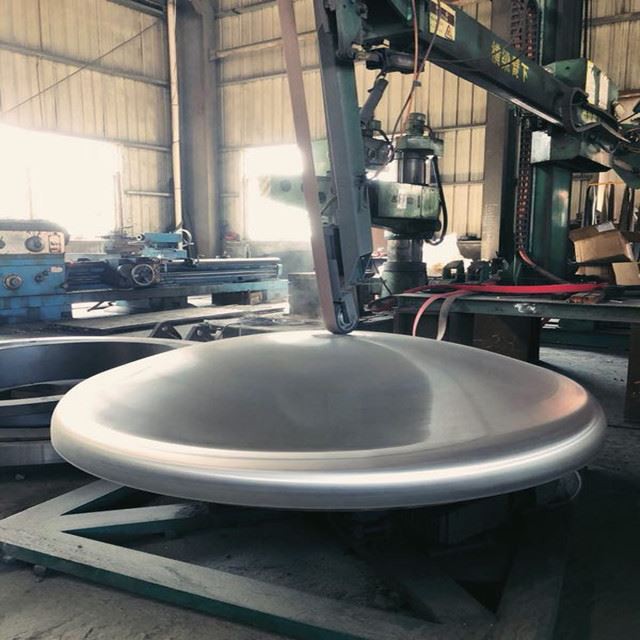

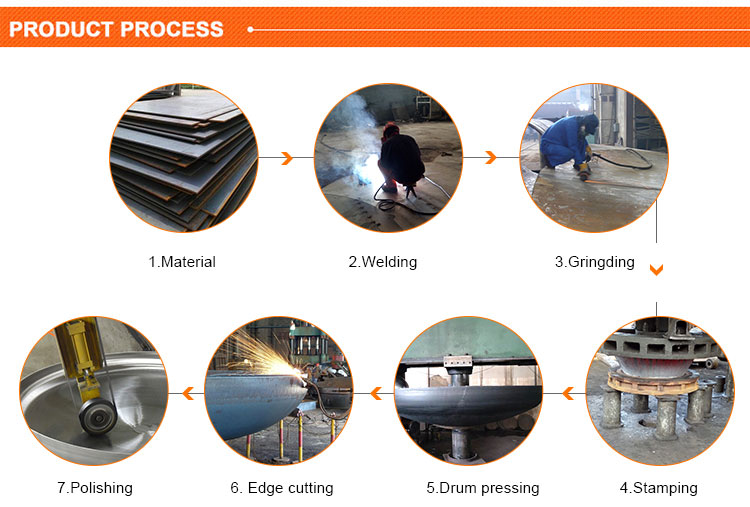

Product processing:

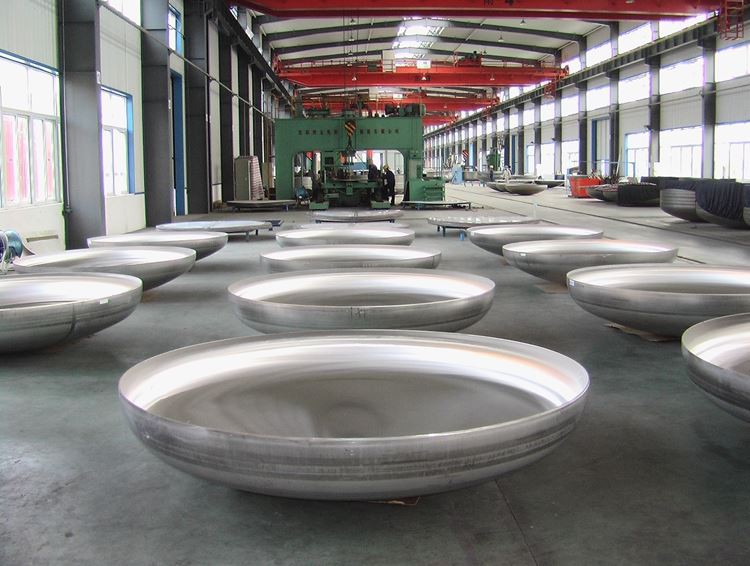

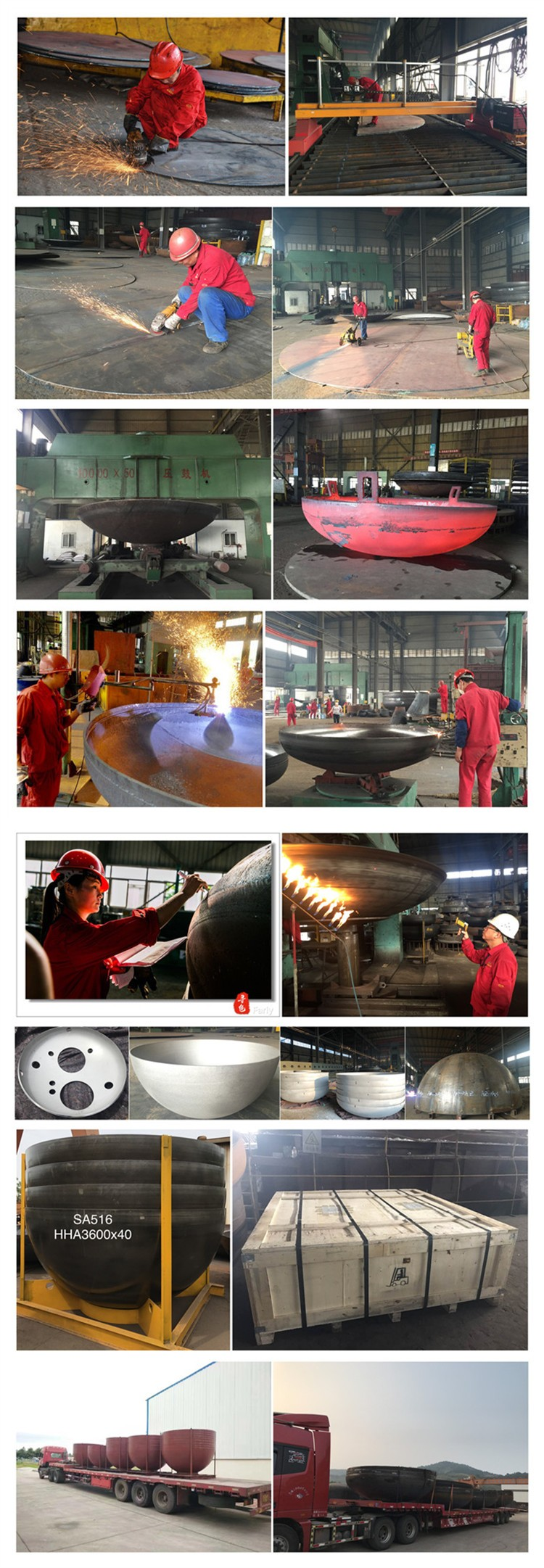

Our factory display:

Exhibitions and customer visits:

Welcome to contact and visit us in any time!
