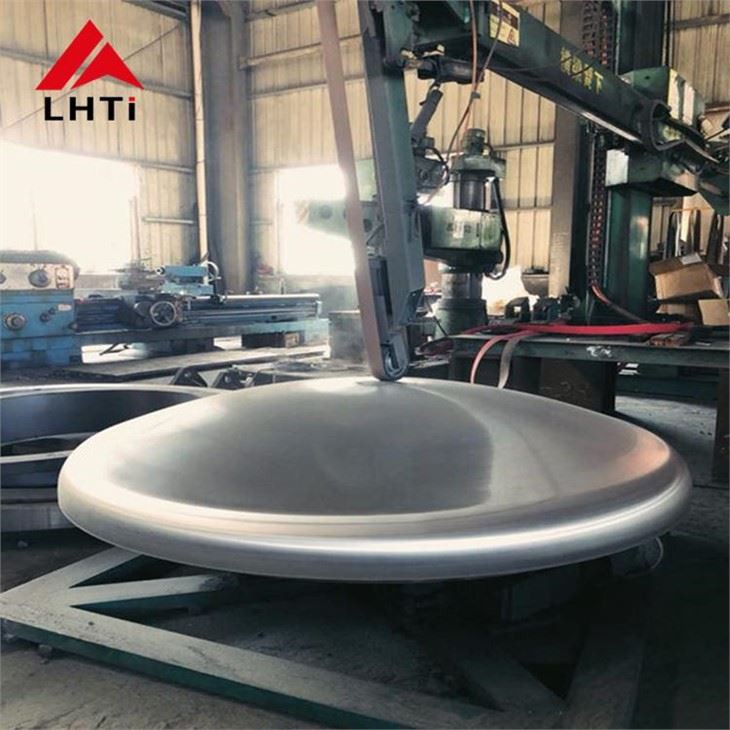

Titanium Dish End

Titanium Dish End

Standard: ASME VIII-I, DIN28013
Material: GR1, GR2, GR5, GR7, GR12
Size: Customized
MOQ:1PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium dish head manufacturer

Send Inquiry

Chat Now

Product Introduction

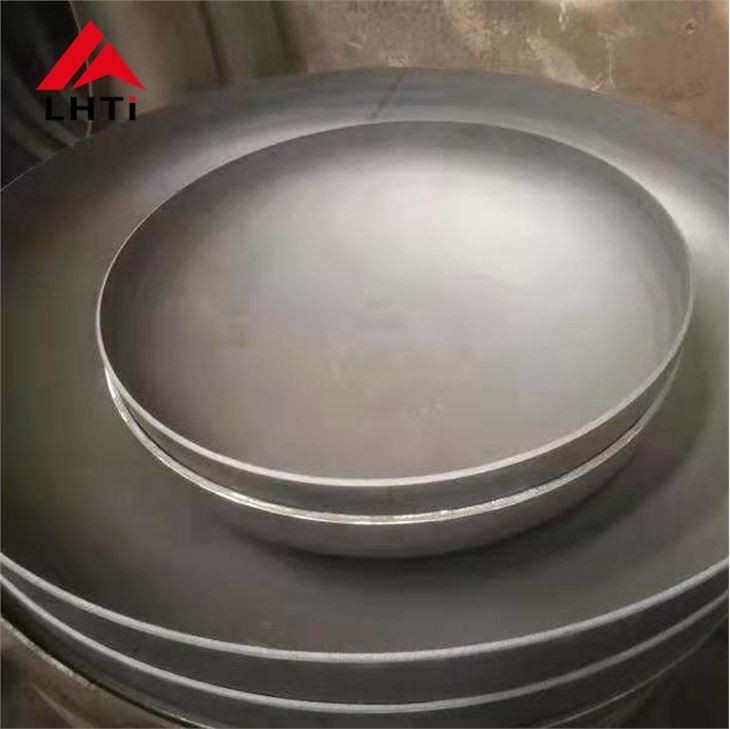

Titanium Dish End

Product Information

Standard: ANSI/ASME, DIN, GB, EN, JIS, MSS, API, BS, AWWA, GOST etc.

Grade: GR1, GR2, GR5, GR7, GR12

OD: 300-2500mm

Thickness: 2-300mm

Production Process: Cold Forming, Hot Forming

Surface Treatment: Sand Blasting, Pickling, Coating etc.

Applications: Heat Exchanger, Condenser, Pressure Vessel, Reactor, Storage Tank, Boiler, Absorber etc.

Mechanical Properties

ASTM Grade	Tensile Strength		Yield Strength		Elongation %
ASTM Grade	ksi	Mpa	ksi	Mpa	Elongation %
Gr1	35	240	25	170	24
Gr2	50	345	40	275	20
Gr5	130	895	120	828	10E
Gr7	50	345	40	275	20
Gr12	70	485	50	345	18

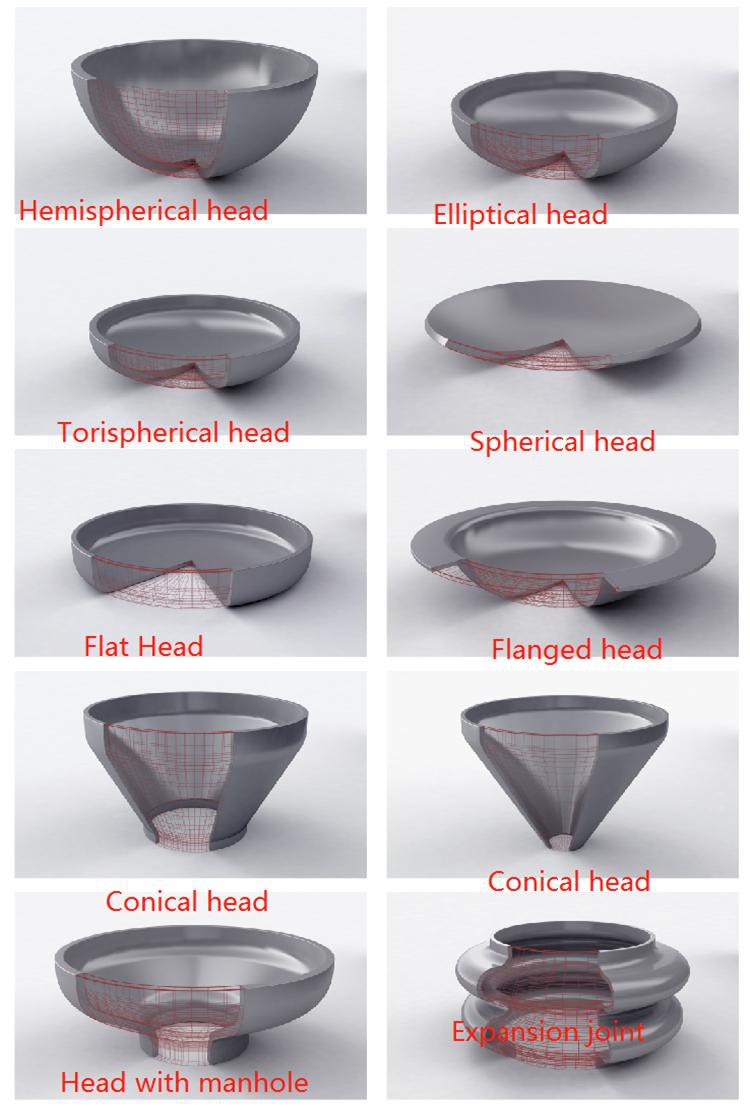

Types of Titanium Dish Head

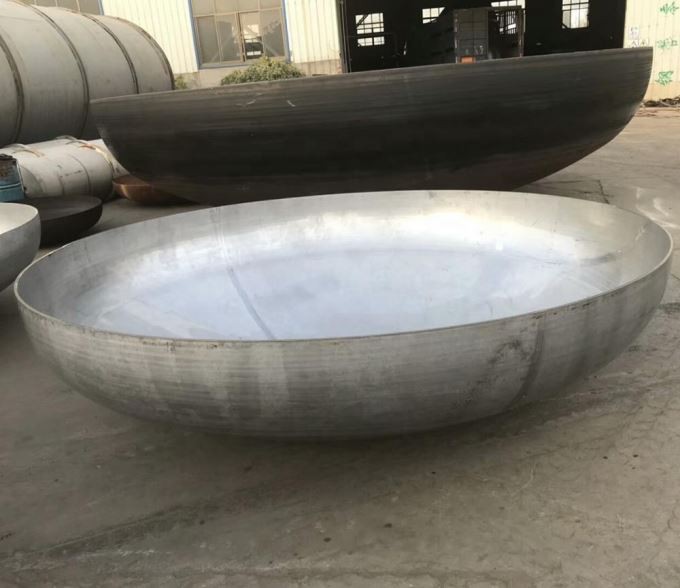

titanium dish head

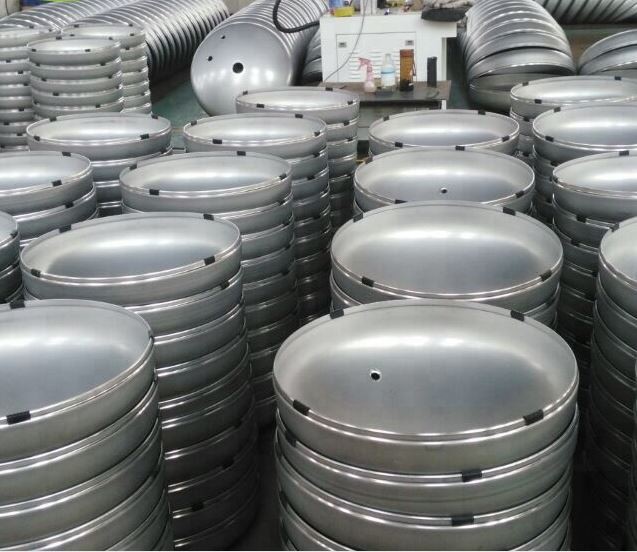

Detailed Images

Application

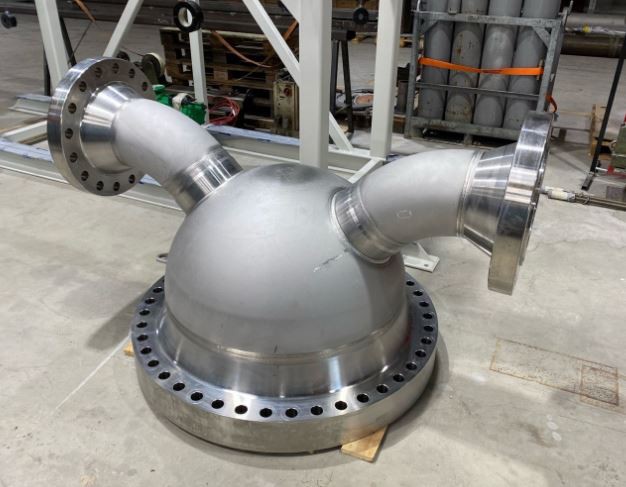

titanium dish head(5)

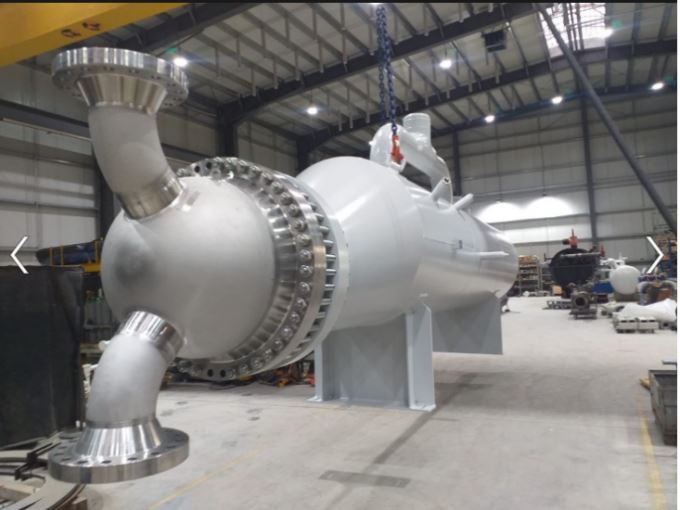

titanium dish head(6)

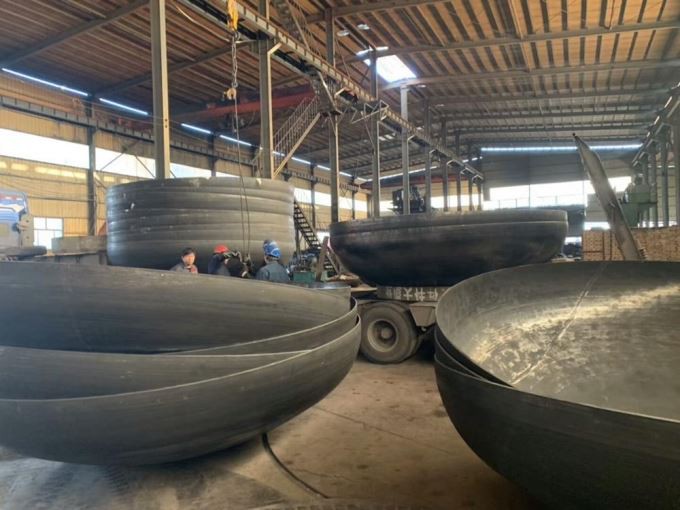

Factory

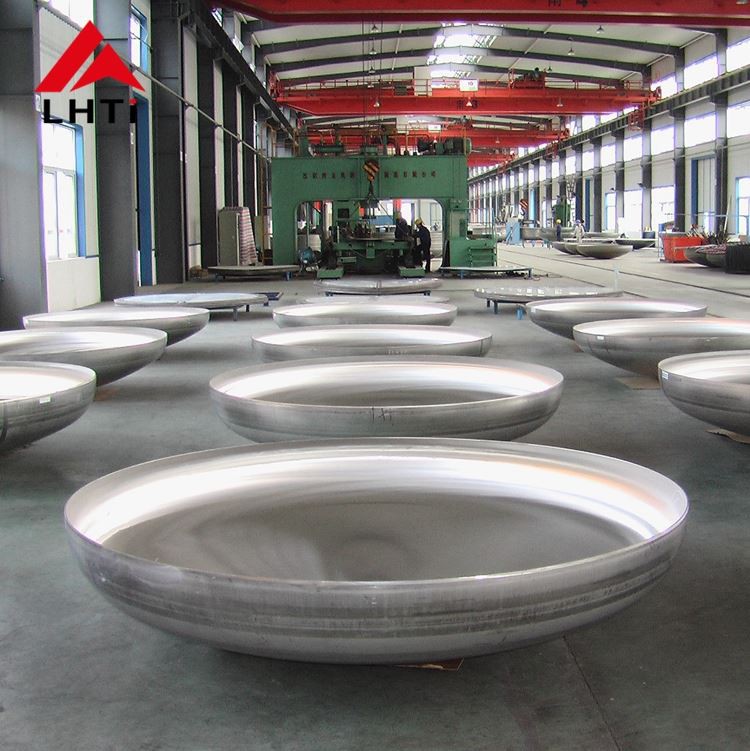

Titanium Spherical Heads 32

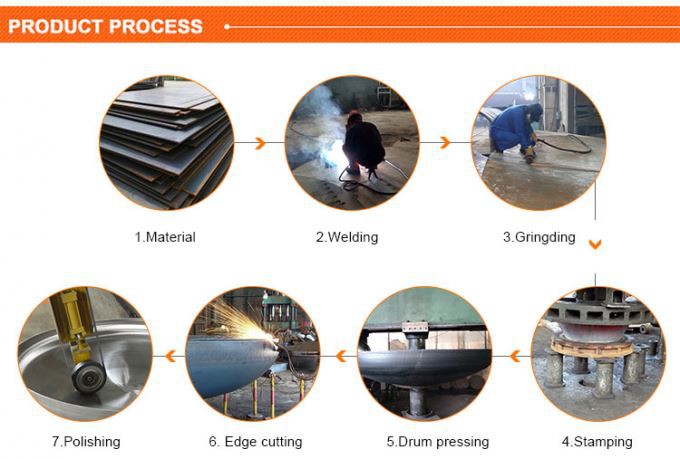

Production Process

titanium dish head(9)

Our Company

As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium tubesheet to many countries. The quality of our products is widely recognized.

Customized products are always welcomed.

We know the market very well so our price will make you more competitive.

We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
