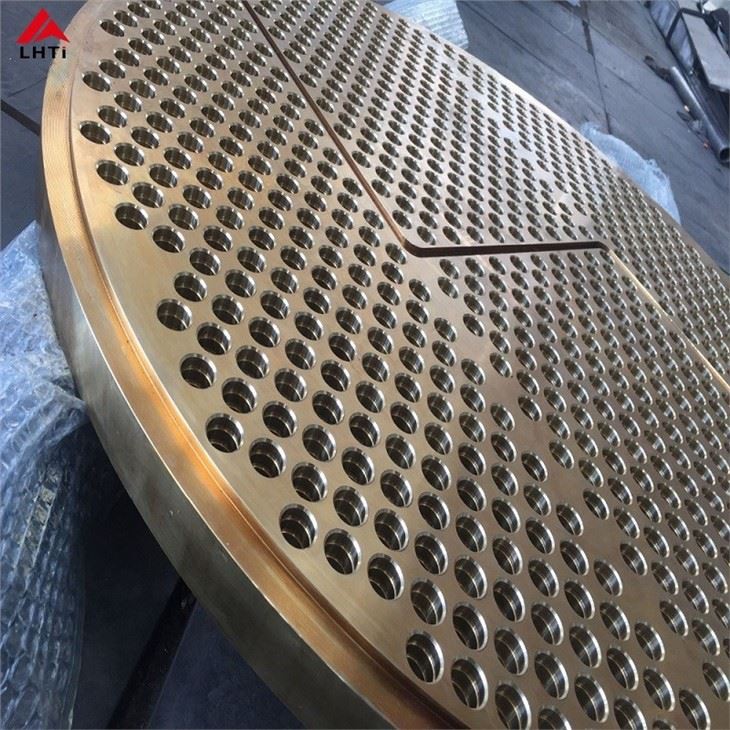

Titanium Tubesheet for Heat Exchanger

Product Information

Tubesheet is a circular plate drilled with holes of the same diameter as the pipe. It is used for the heat exchanger to fix the pipe. An accessory that accomplishes this by passing a pipe through and welding it in place.

The precision of tubesheet processing, especially the tolerance of tube hole spacing and diameter, verticality and finish, have a great impact on the assembly and performance of the above-mentioned chemical equipment.

With the enlargement of chemical equipment and power stations, the diameter of tubesheets has become larger and larger. Tubesheet with a diameter of 4m-5m is very common. The characteristics of large tubesheet are many tube holes, compactness, small hole diameter, deepness, high precision, and high finish requirements.

Grade: GR1, GR2, GR5, GR7, GR12 etc.

OD: 150-2500mm

Thickness: 30-250mm

Technology: Forging, Annealing, Machining.

Applications: shell and tube heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, seawater desalination, etc.

Mechanical Properties

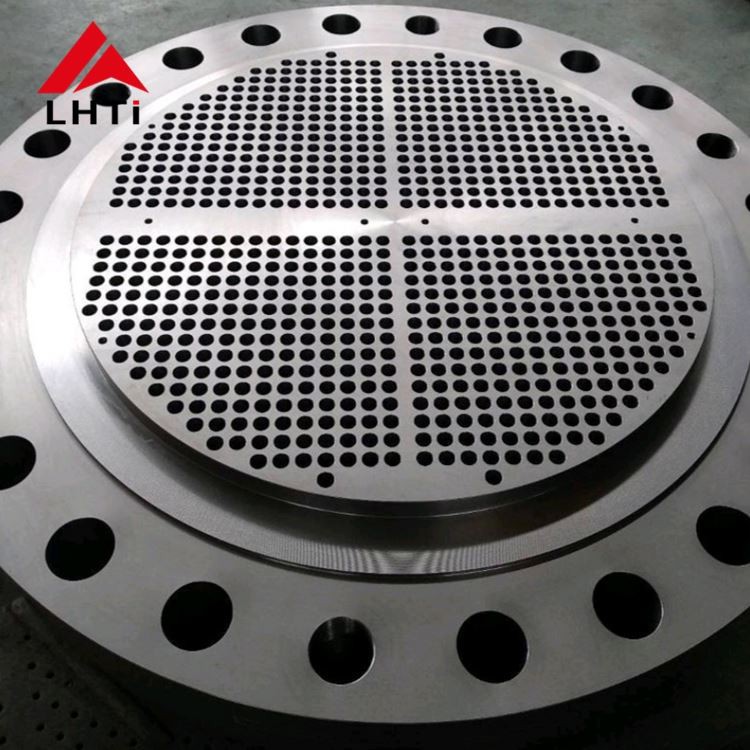

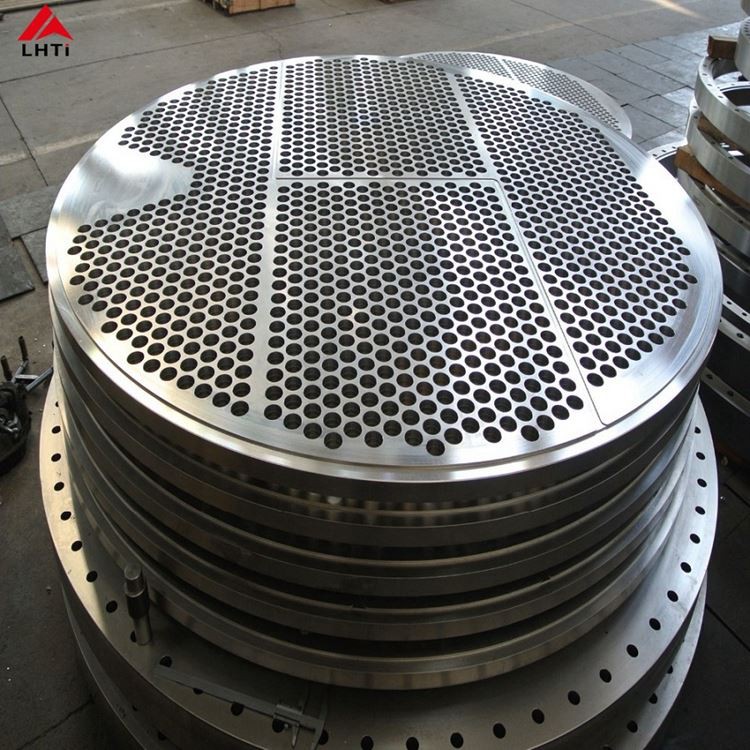

Detailed Images

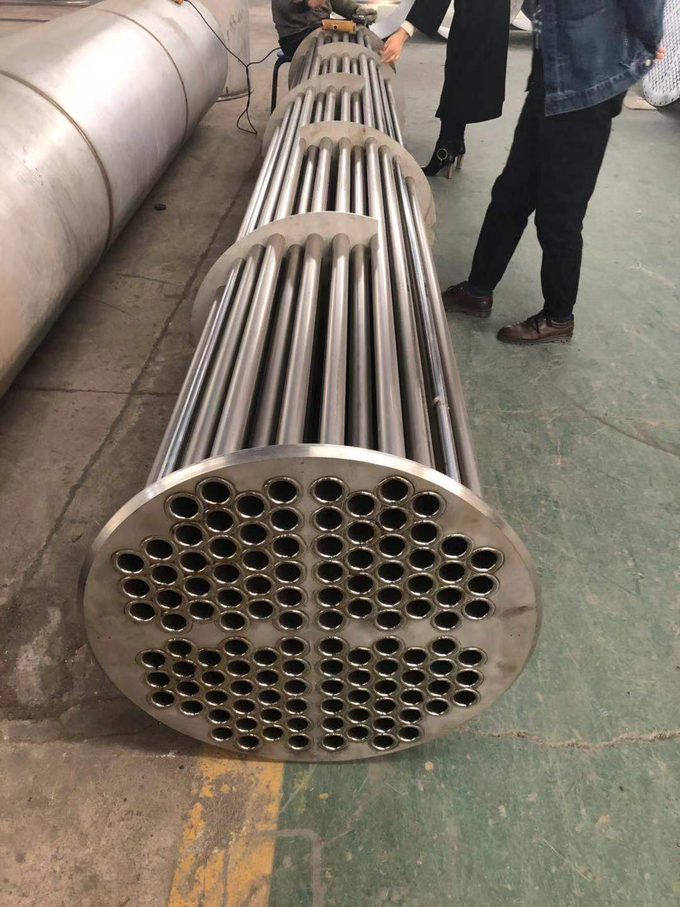

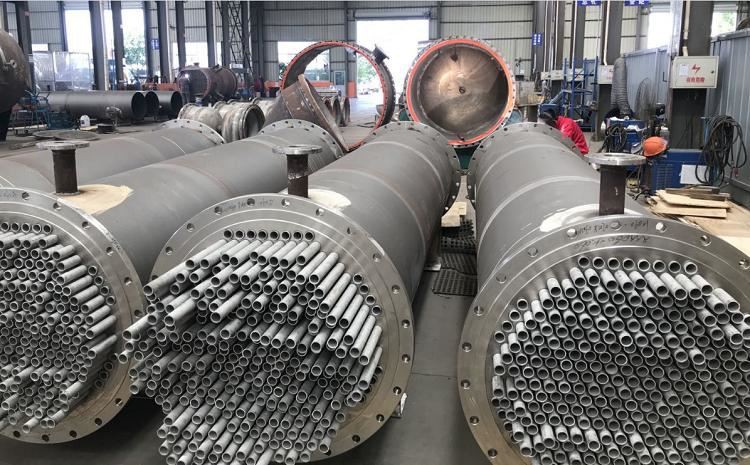

Application

Our Company

As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium tubesheet to many countries. The quality of our products is widely recognized.

Customized products are always welcomed.

We know the market very well so our price will make you more competitive.

We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
