Titanium Tubesheet
OD: 150-2500mm
Thickness: 30-250mm
Production Methods: Forging,annealing and machining
Packing: Plywood box
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Tubesheet Manufacturer
Product Information
Titanium tube sheet is a main part of heat exchanger. It is mainly used for supporting column tubes of chemical containers. Titanium tubesheet is widely used in high-end chemical equipment due to its excellent corrosion resistance. In addition to provide the titanium tubesheet which has not been machined, Baoji Lihua also produces the mechanically processed tubesheet according to customers' drawings. We use CNC drilling machine with a rocker drill to effectively ensure the position accuracy, aperture of tolerance and aperture finish, and greatly improve the quality of the tubesheet.
Grade: GR1, GR2, GR5, GR7, GR12 etc.
OD: 150-2500mm
Thickness: 30-250mm
Technology: Forging, Annealing, Machining.
Applications: shell and tube heat exchangers, boilers, pressure vessels, steam turbines, large central air conditioners, seawater desalination, etc.
Chemical compositions
Grade | Fe max | O max | N max | C max | H max | Pd | Al | V | Mo | Ni | Elong'n | Σb (Mpa) | σr0.2 (Mpa) |
No | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | wt% | % | MPa | MPa |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | 24 | 240 | 140 | |||||
Grade 2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 20 | 400 | 275 | |||||
Grade 7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0,12-0,25 | 20 | 400 | 275 | ||||
Grade 12 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.3 | 0.8 | 18 | 460 | 300 |
Mechanical Properties
| ASTM Grade | Tensile Strength | Yield Strength | Elongation % | ||
| ksi | Mpa | ksi | Mpa | ||
| Gr1 | 35 | 240 | 25 | 170 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr5 | 130 | 895 | 120 | 828 | 10E |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr12 | 70 | 485 | 50 | 345 | 18 |

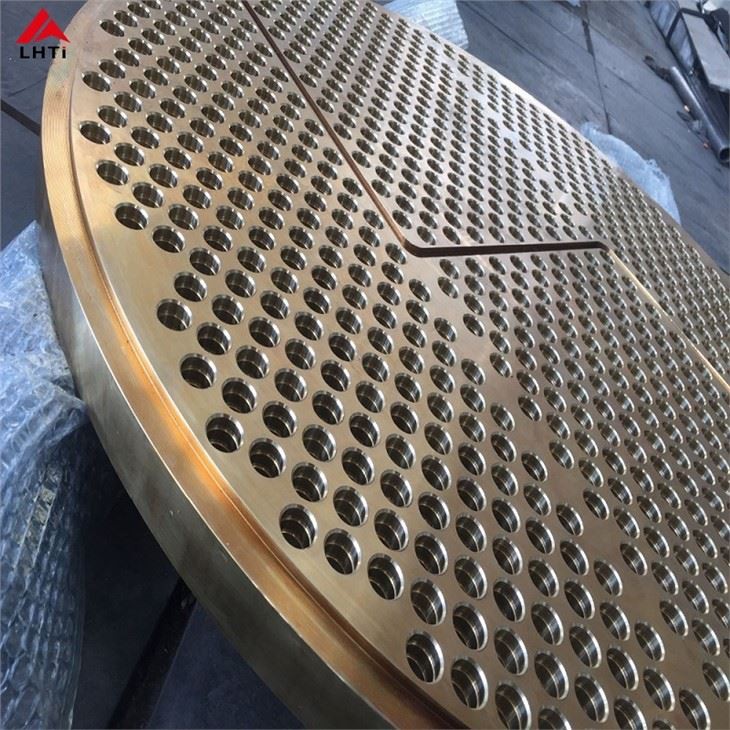

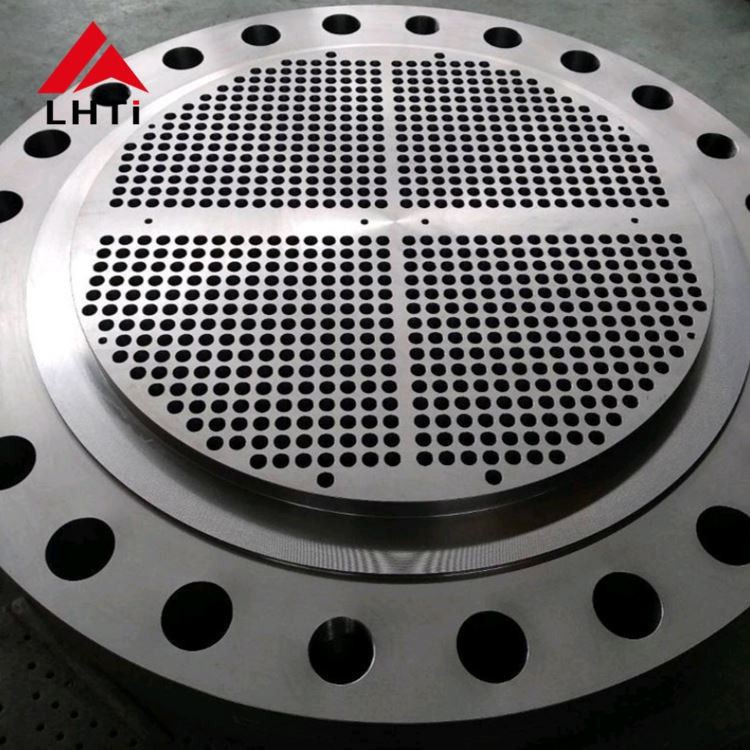

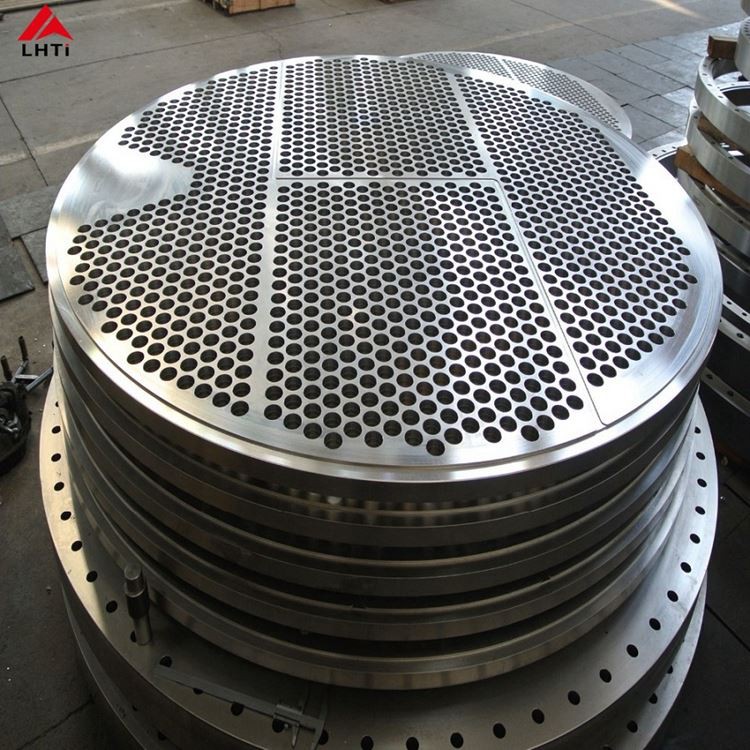

Detailed Images

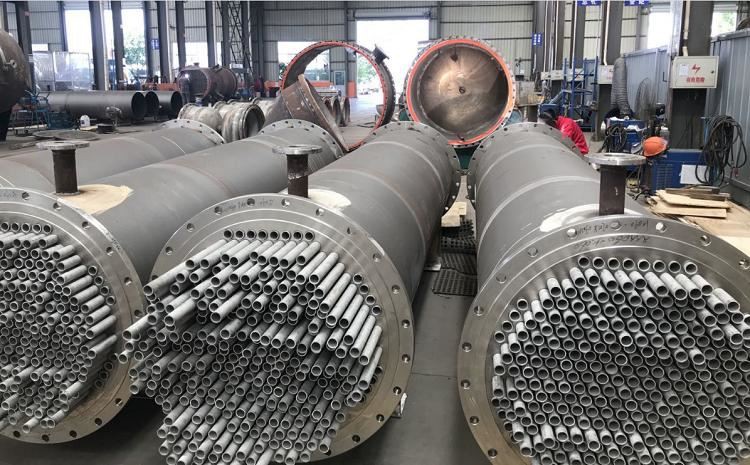

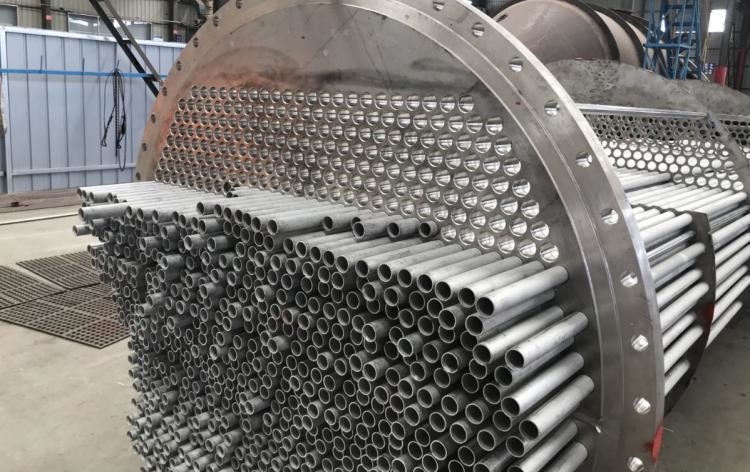

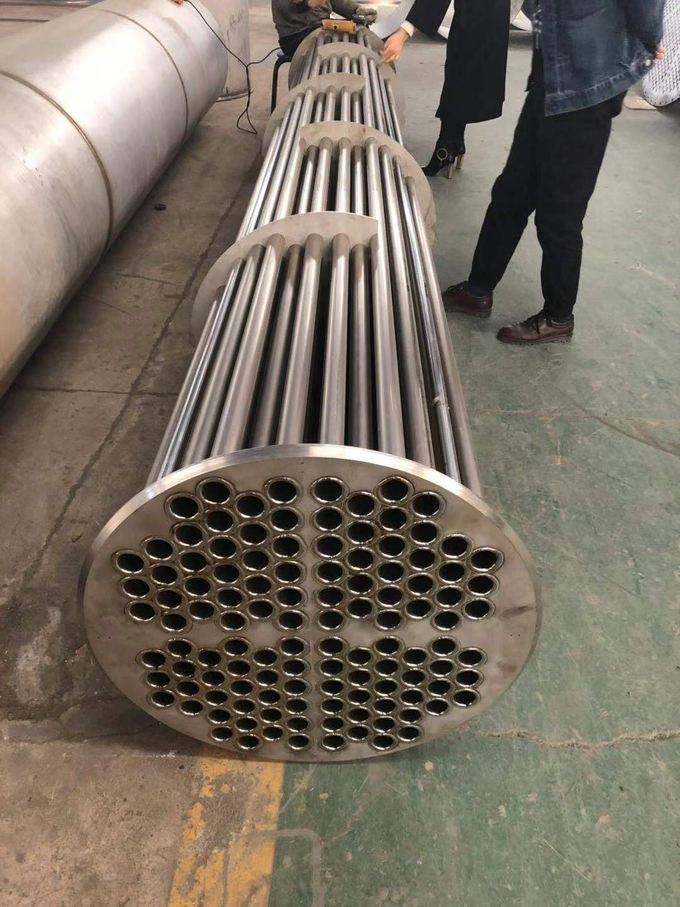

Application
Our Company
As a leading manufacturer & trader of titanium products, Baoji Lihua mainly focus on titanium tube, titanium flange, titanium dish head and titanium sheet etc., with a history of 16 years. The quality of our products is widely recognized.
