Titanium Coil Pipes
Grade: Gr1, Gr2,Gr7,Gr9,Gr12
Standard: ASTM B338/ASME B338
Dimention: OD 3-88.9mm*WT0.5-5mm*L

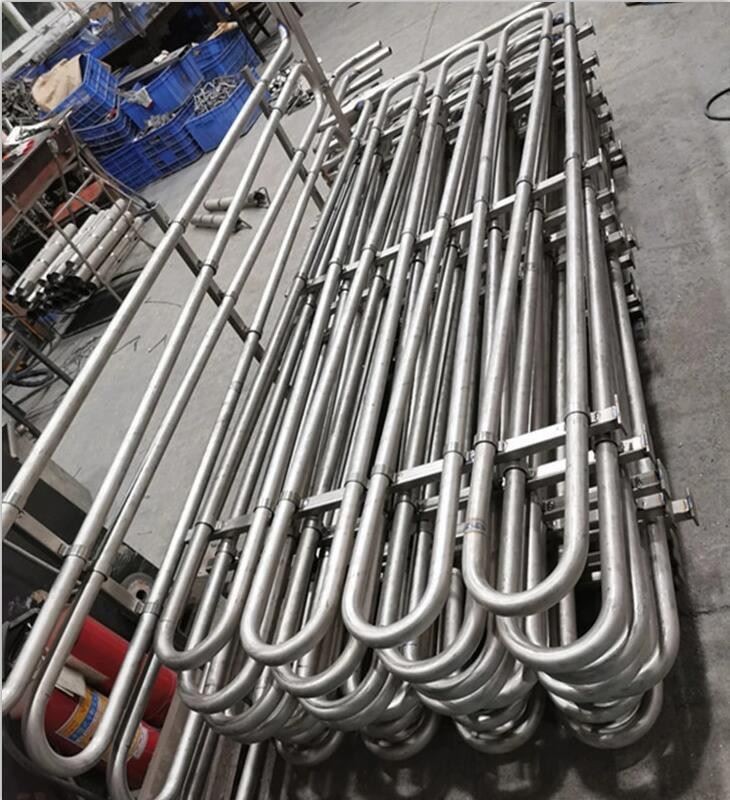

Shape: Coiled Tubes, "U" Shape,Or as customer’s drawing
Application: Pharmaceutical Equipment; Chemical Equipment,Sea Water Equipment etc.
Pure titanium immersion coil pipe 5HP seafood evaporator cold water heat exchanger can be customized
Baoji Lihua offers a wide size range of Titanium Tube/Pipe in Grade 1, Grade 2, Grade 7,Grade 9 and Grade 12.
Product name | Grade | Specification(mm) | Standard |
Titanium coil pipe/tube | Gr.1 Gr.2 Gr.7 Gr.9 Gr.12 | OD(3-88.9)×THK(0.5-5)xLength | ASTM B338 |
Element | N | C | H | O | Pa | Mo | Ni | Al | V |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.18 | --- | --- | --- | --- | --- |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.25 | --- | --- | --- | --- | --- |
Grade 7 | 0.03 | 0.08 | 0.015 | 0.25 | 0.12-0.25 | --- | --- | --- | --- |
Grade 9 | 0.05 | 0.08 | 0.015 | 0.12 | --- | --- | --- | 2.0-3.5 | 1.5-3.0 |
Grade 12 | 0.03 | 0.08 | 0.015 | 0.25 | --- | 0.2-0.4 | 0.6-0.9 | --- | --- |

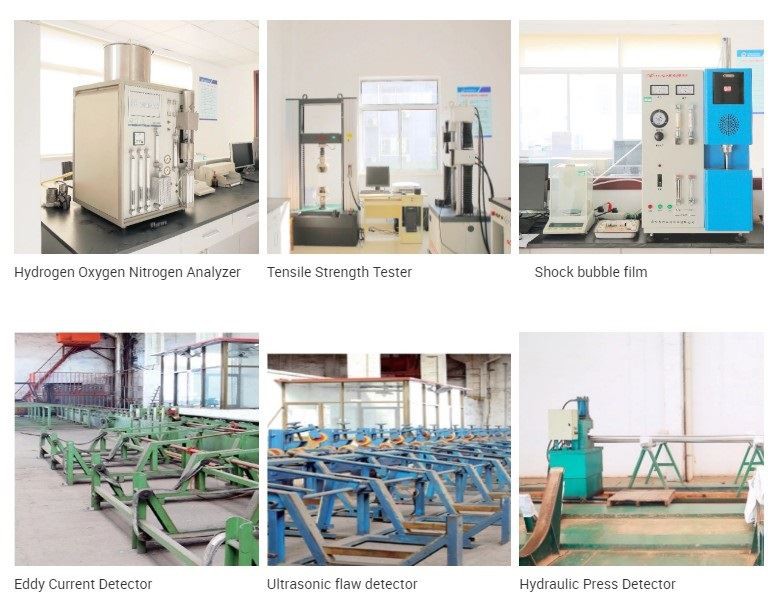

Quality control :
Seamless Tube: Ultrasonic or eddy current inspection.
Welding Pipe: 100% surface penetration inspection; 100% X-ray inspection.

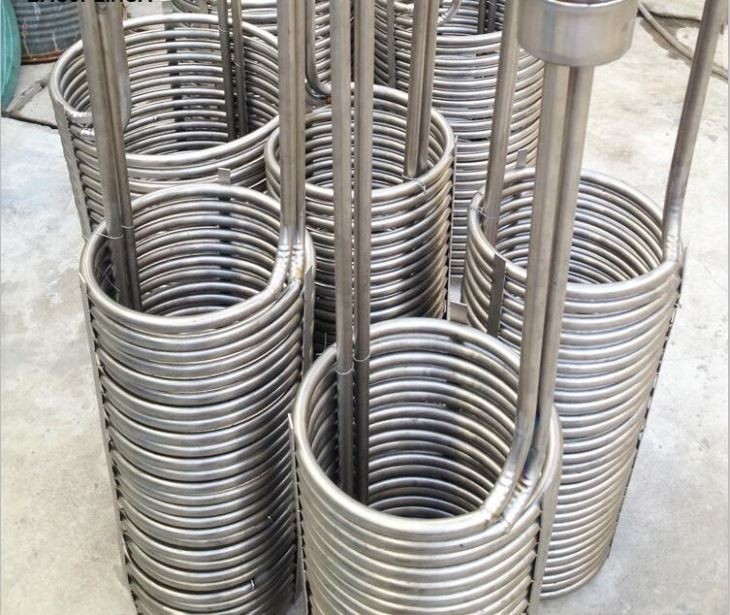

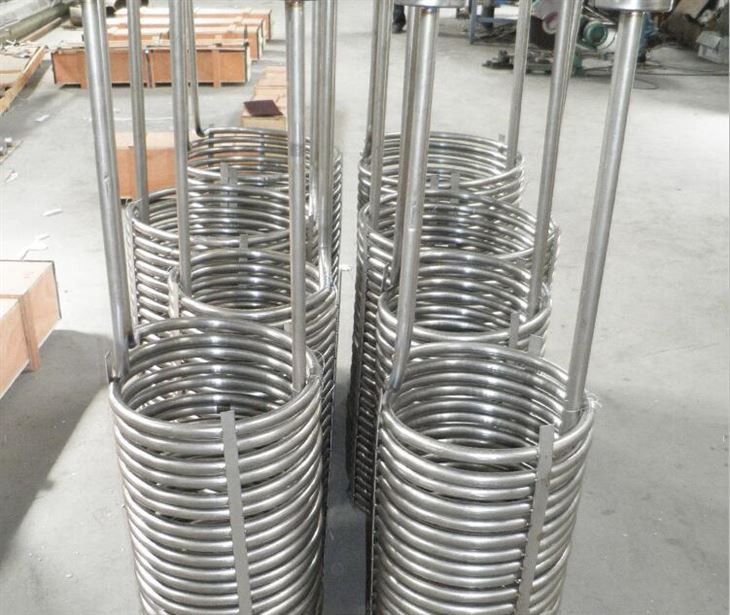

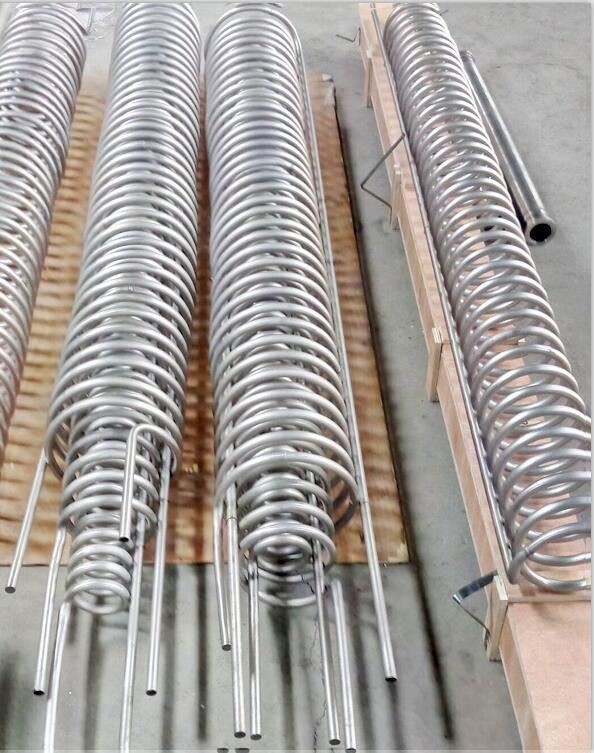

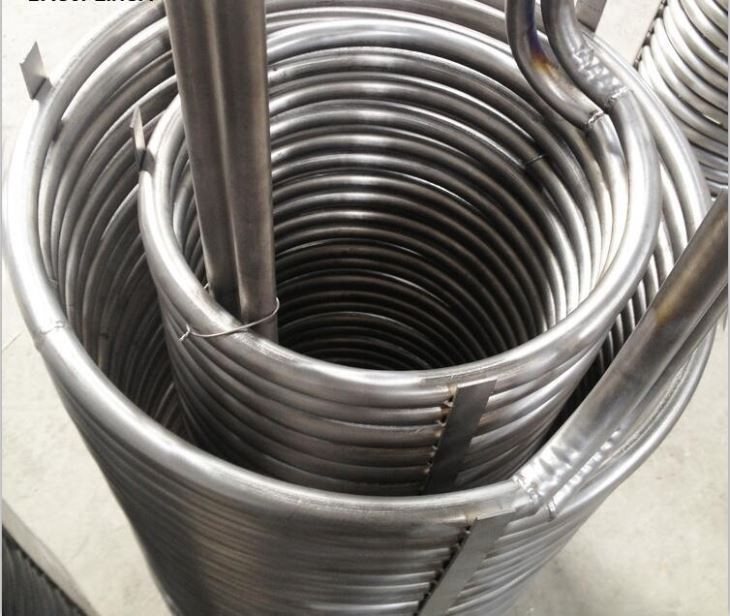

Detailed pictures:
Purpose:
Titanium tube heat exchangers can be widely used in temperature control of marine heating and cooling systems for swimming pools, aquariums, aquariums, sea baths, electroplating tanks, chemical equipment. It can also be used in anti-corrosion fields, such as seawater utilization and surface treatment industries. In addition, titanium tube heat exchangers are also used in food, distilled water, purified water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in environmental protection fields, such as exhaust gas condensation recovery, pollutant (solvent) recovery, etc.
Titanium coil pipe Titanium coil pipe Titanium coil pipe Titanium coil pipe Titanium coil pipe Titanium coil pipe Titanium coil pipe
