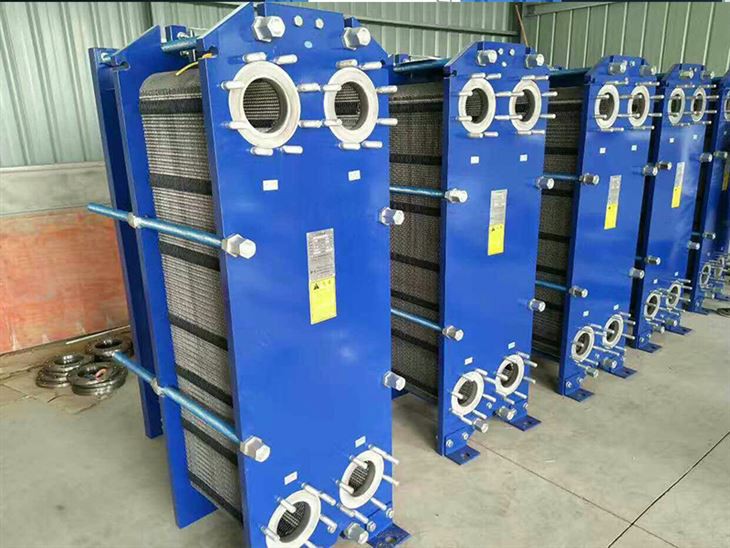

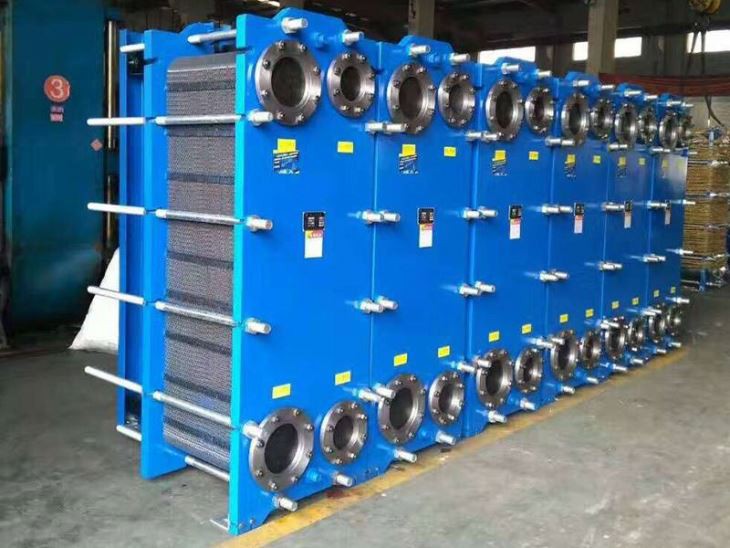

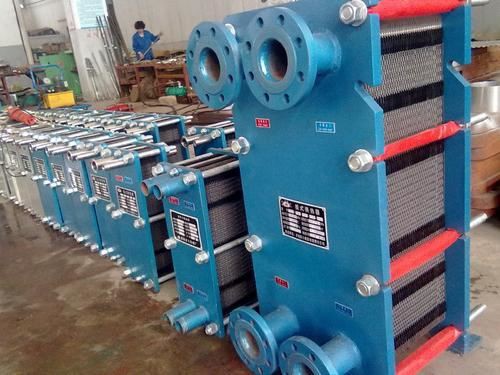

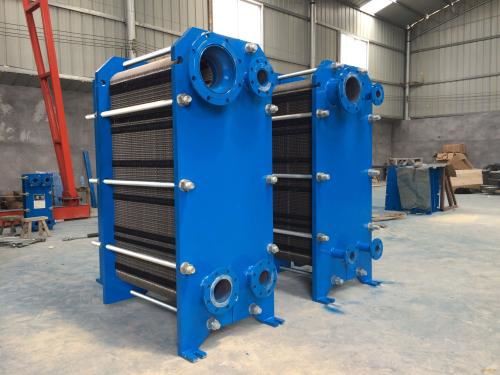

Titanium Plate Heat Exchanger

Working principle:

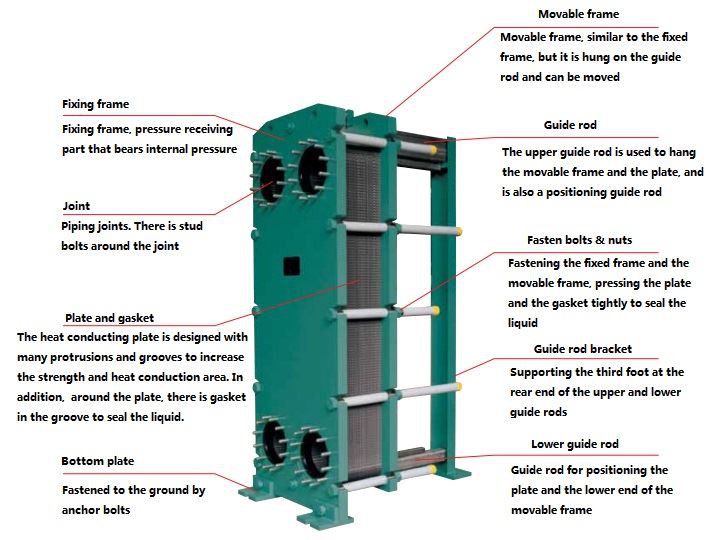

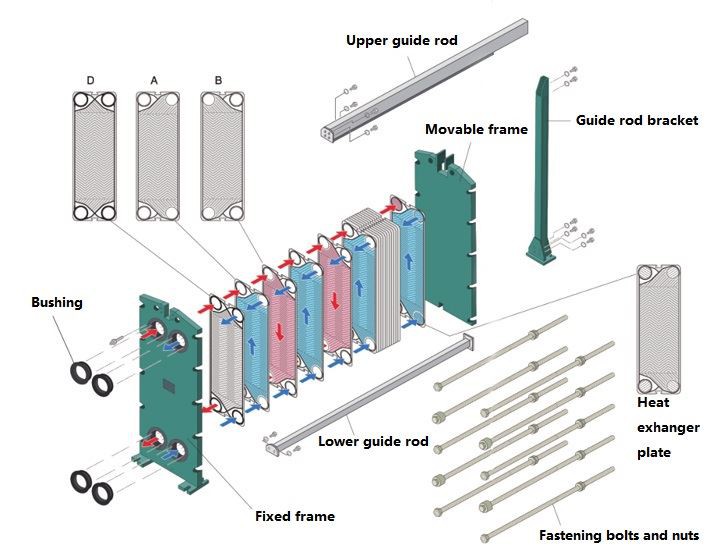

The plate heat exchanger is composed of a set of corrugated metal plates with four corner holes for the two liquids to pass through. The metal plates are installed in a frame with a fixed plate and a movable compression plate on the side, and are clamped by clamping bolts. The plate is equipped with a sealing gasket to seal the fluid channel and guide the fluid to alternately flow into the respective channels to form heat exchange. The fluid flow rate, physical properties, pressure drop and temperature difference determine the number and size of the plates. The corrugation of the plate not only increases the degree of turbulence and forms many supporting points, which are sufficient to withstand the pressure difference between the media. The metal plate and the movable compression plate are suspended on the upper guide rod and positioned by the lower guide rod, while the rod end is fixed on the support On the column, but if one of the liquids or two liquids passes through the heat exchanger more than once, the interface should be opened on the fixed plate and the movable pressing plate. In most cases, single-pass is used, and all pipes are connected to the fixed pressing plate. On top, check that the shoes are removed to open the heat exchanger, and there is no need to remove the pipeline.

Advanced panel structure:

Compared with other heat exchangers, the detachable gasket heat exchanger has a compact structure; it can conduct heat exchange at a temperature difference of 0.5-1℃, with a design up to 30Bar, and a processing capacity of 4500m3/h; improved plate guide Flow design can effectively prevent plate fouling and increase the heat transfer coefficient up to 8000w/m2.k.

Variety of working conditions:

Abundant plate types, various angles, various groove depths, and different combinations form a suitable heat exchanger that is more suitable for working conditions, plate positioning system and unilateral flow design, and special clamping size identification. Easy to install and take over, operation and maintenance. Heat exchangers of different materials are available, such as stainless steel. Plates made of titanium or other special alloys to meet different industrial needs. Thermal mixing form. By changing the flow mode or increasing the number of flow channels, countless combinations can be achieved, from a single counter-flow mode of two fluids to a multi-process flow mode of three or more fluids. It provides designers with reasonable choices to meet the needs of different working conditions.

Visible economic benefits:

The plates are uniformly formed, using high-precision molds. Reduce the physical stress of the plate and improve the balance of the plate, which greatly extends the service life of the plate; the plate is easy to approach and check, and is convenient for manual cleaning. In many occasions, it can be cleaned by countercurrent flushing. Daily cleaning does not take too much time and does not require special training personnel; all series adopt the form of sticking-free, reducing operation and maintenance costs and convenient maintenance. The heat transfer and pressure can be adjusted. The heat transfer coefficient and pressure drop can be adjusted through the combination of plates to obtain a good heat transfer coefficient, thereby reducing equipment investment; economical, due to its high heat transfer coefficient, easy installation and maintenance, making the initial stage Investment and operation and maintenance costs are greatly reduced.

Compliant standards:

American ASME Standard

Italian Racolta M specification

Swedish Pressure Vessel

Australian Pressure Vessel

Japan JIS and other standards

China Pressure Vessel Standard Specification, etc.

API American Petroleum Institute

BV French Register of Shipping

CCS China Classification Society certification

About us:

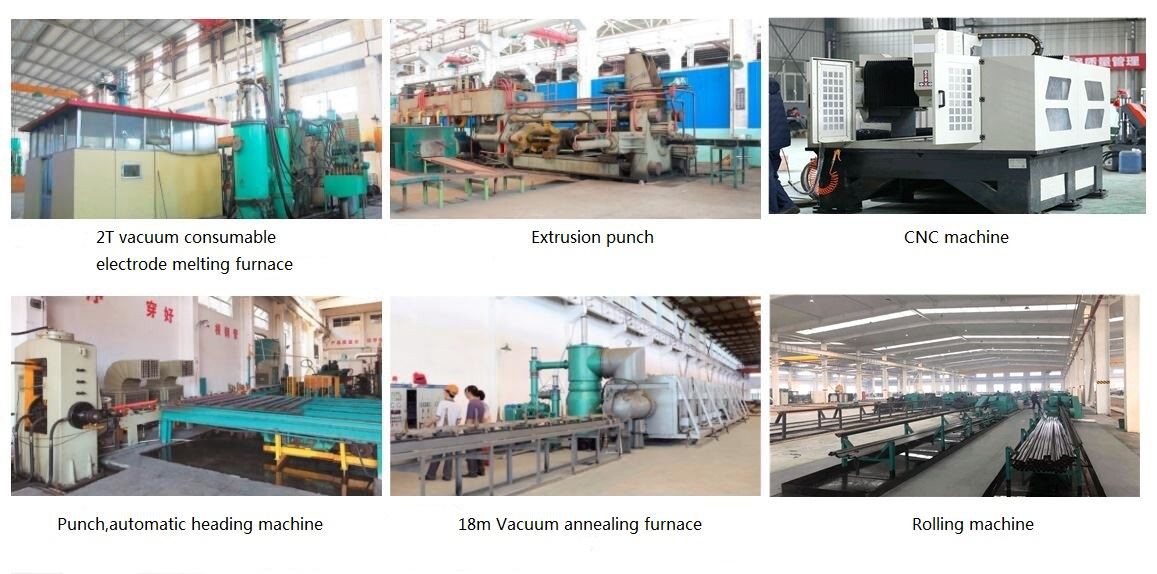

Baoji Lihua Non-ferrous Metals Co., Ltd is specialize in producing and selling titanium products. We hold advanced technology and equipment. We adopt good raw materials and establish integrated system of quality control to ensure the high quality of our products.

Our main items are as below: Titanium plate/sheet, titanium bar/rod ,titanium wire, titanium tube/pipe, titanium forging products,titanium heat exchanger, titanium baskets and so on, according to DIN,ANSI,BSW, and ISO standard. The products are widely used in various industries, such as aerospace, motorcycles, farming machines,construction,t ransportation, electric power,electronics,machinery,chemical,household electrical appliance,military,etc.

Baoji Lihua Non-ferrous Metals Co., Ltd was certificated by ISO 9001:2015 certificate .And many of our titanium products passed the third party inspections, such as SGS,TUV,BV etc.With its high qualty andscientific mangement and high effciency term the spirit of continuous innovation, Hamil metals Co.,Ltd willing to be your best partener.
