Titanium Gr 5 Flanges

Product name: Titanium flange,titanium wn flange,titanium blind flange, titanium so flange, titanium alloy flange, titanium flange in stock,ANSI B16.5 titanium flange

Material: Gr5

Standard:  ANSI B16.5, ASME B16.5, EN1092-1, JIS B2220, DIN2627-2628

Size: 1/2"~ 30"NB, NPS 1/2 - NPS 24 (DN 10 - 2000) .

Pressure Clase: PN0.25~32Mpa/ (DIN) PN6,PN10,PN16,PN25 though PN250/ 150LB, 250LB ,300LB, 400 LB,500LB, 600 LB,900LB, 1500LB,2500LB.

Sealing Surface: RF, FF, TG, RJ etc.

Technique: Forged and CNC Machined

Inspection: UT% , PT%

Certificate: ISO9001, TUV etc.

Chemical composition (Wt%)

Physical Properties  (Min)

Titanium flanges have several advantages over other materials. Firstly, titanium is a strong and lightweight metal, which makes it ideal for use in high-stress environments. Secondly, titanium is highly corrosion-resistant, and is able to withstand exposure to harsh chemicals and corrosive substances. This makes it suitable for use in offshore and marine applications, where saltwater and other corrosive elements are present. Additionally, titanium has a high melting point, which makes it suitable for use in high-temperature environments. Finally, titanium is non-magnetic, which makes it ideal for use in applications where magnetic interference must be avoided. Overall, the unique properties of titanium make it an excellent choice for flange applications, particularly in demanding industries such as oil and gas, aerospace, and maritime.

Titanium flanges are widely used in many industries for their excellent properties. Here are some of the key characteristics of titanium flanges:

1. Corrosion Resistance: Titanium flanges are highly resistant to corrosion from a wide range of chemicals and acids, including hydrochloric acid, sulfuric acid, and nitric acid. This makes them ideal for use in industries such as chemical processing, water treatment, and oil and gas.

2. High Strength-to-Weight Ratio: Titanium flanges are known for their high strength-to-weight ratio, making them lightweight and strong. This allows them to be used in applications where strength and durability are critical, such as aerospace and defense.

3. High Temperature Resistance: Titanium flanges can withstand high temperatures without deforming or losing their strength. This characteristic makes them ideal for use in high-temperature applications such as power generation and industrial heating systems.

4. Biocompatibility: Titanium flanges are biocompatible, which means they are not harmful to living tissues or organisms. This makes them suitable for use in medical implants and devices.

5. Low Thermal Expansion: Titanium flanges have a low coefficient of thermal expansion, meaning they do not expand or contract significantly with changes in temperature. This makes them ideal for use in applications where dimensional stability is important, such as semiconductor manufacturing.

In summary, titanium flanges are highly versatile and valued for their exceptional properties, including corrosion resistance, high strength-to-weight ratio, high temperature resistance, biocompatibility, and low thermal expansion.

Detailed pictures

Types of Titanium Flange

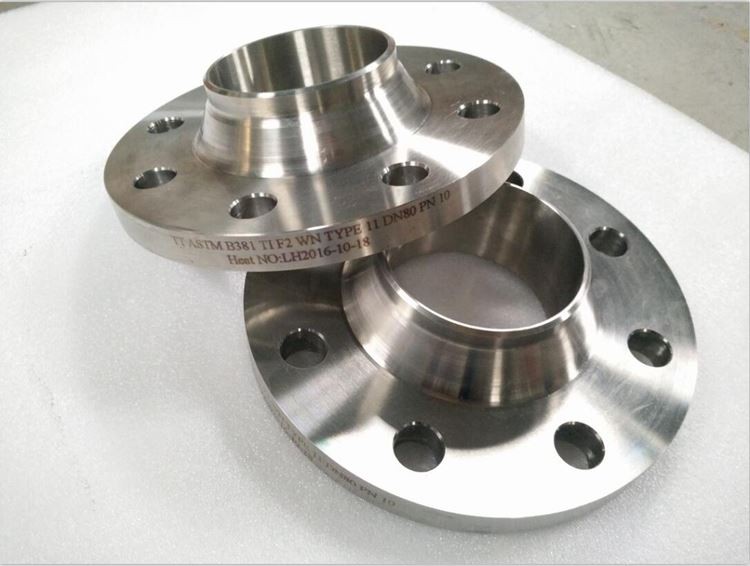

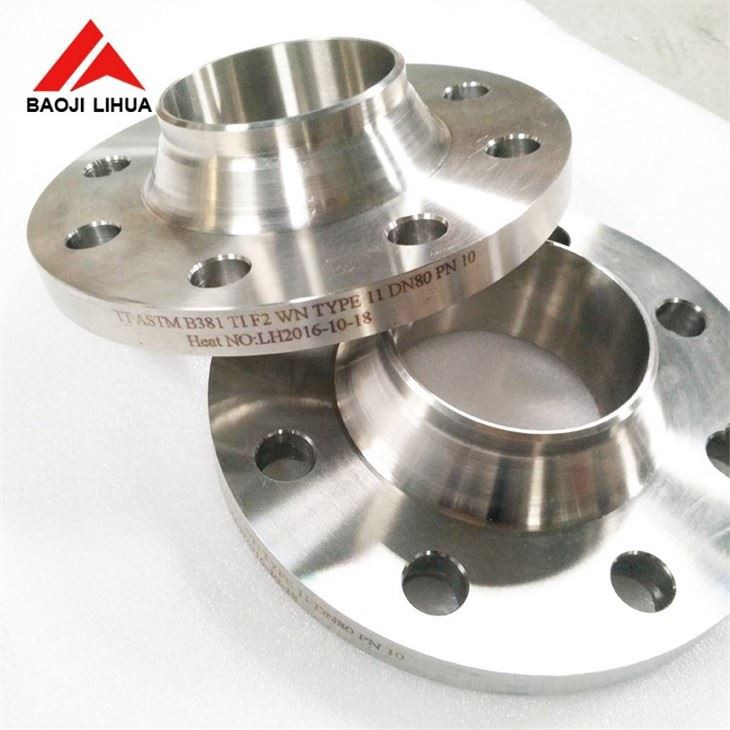

Titanium Weld Neck Flange

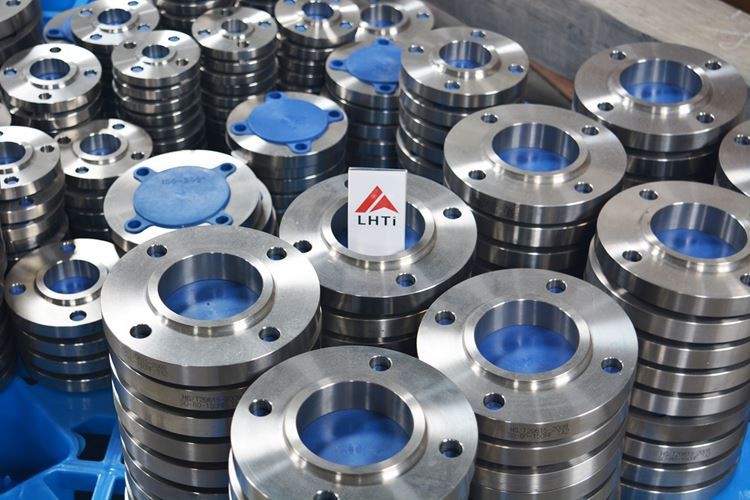

Titanium Slip On Flange

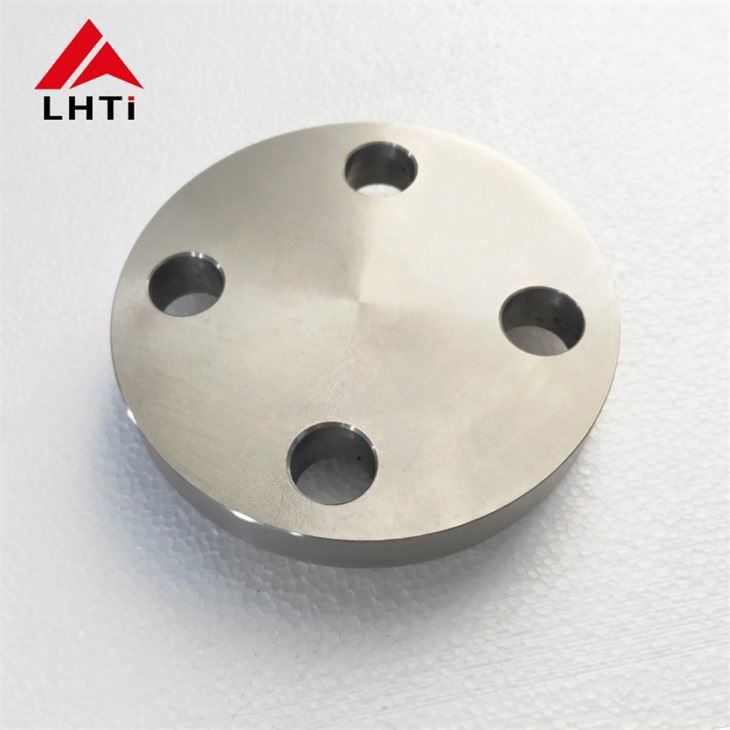

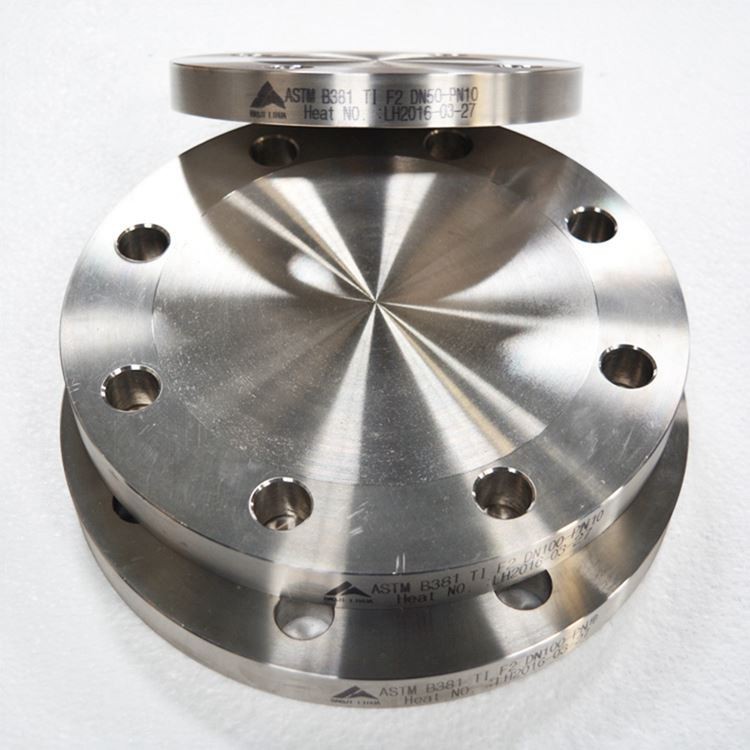

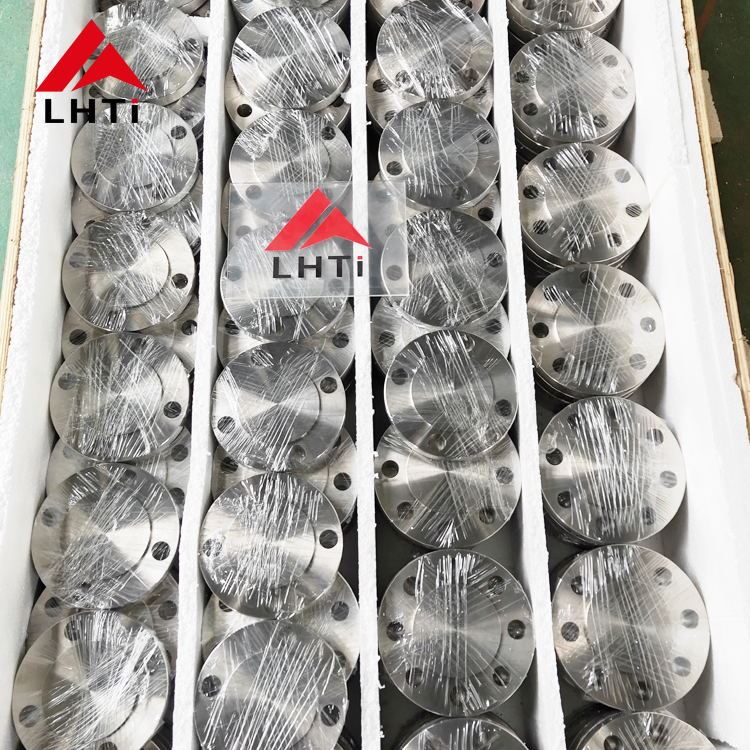

Titanium Blind Flange

Titanium Threaded Flange

Titanium Socket Weld Flange

Titanium Lap Joint Flange

Titanium Loose Flange

Titanium Plate Flange

Titanium Ring Type Joint Flange

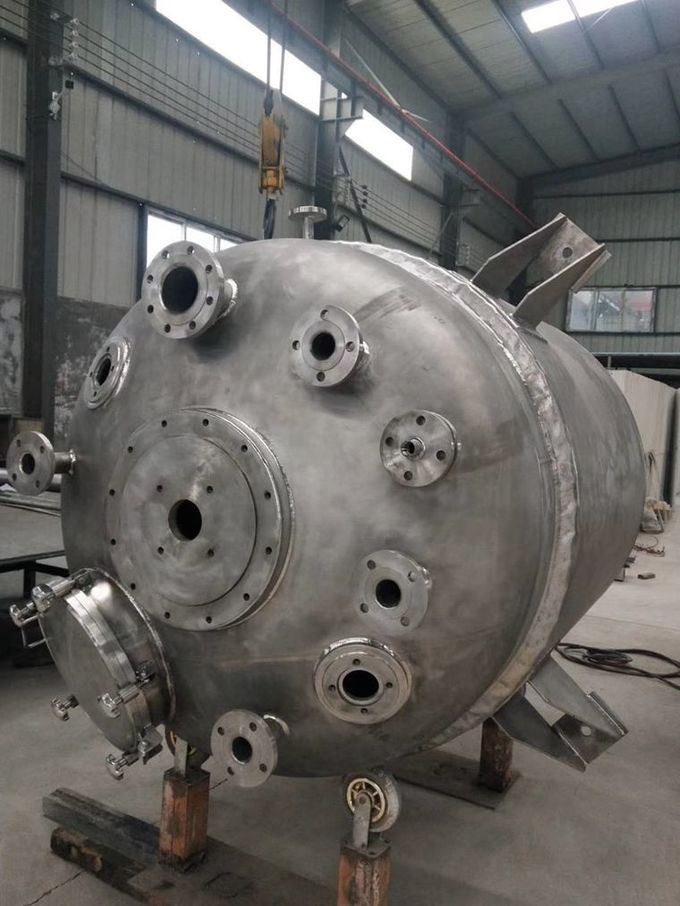

Application

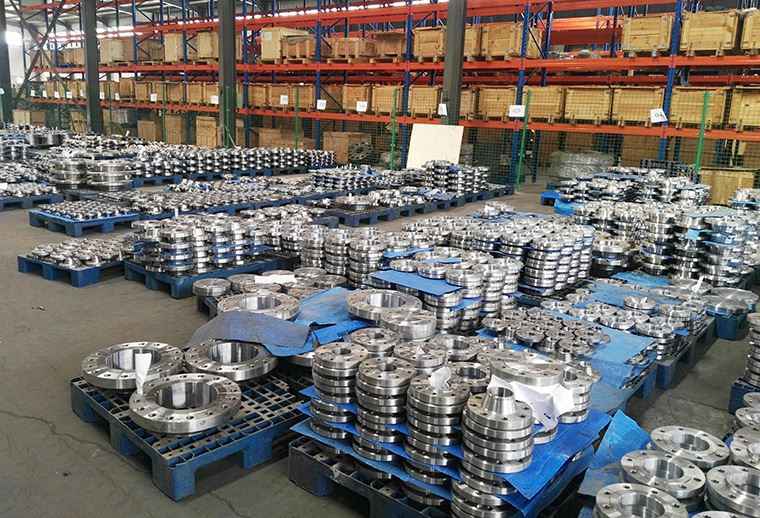

Stock

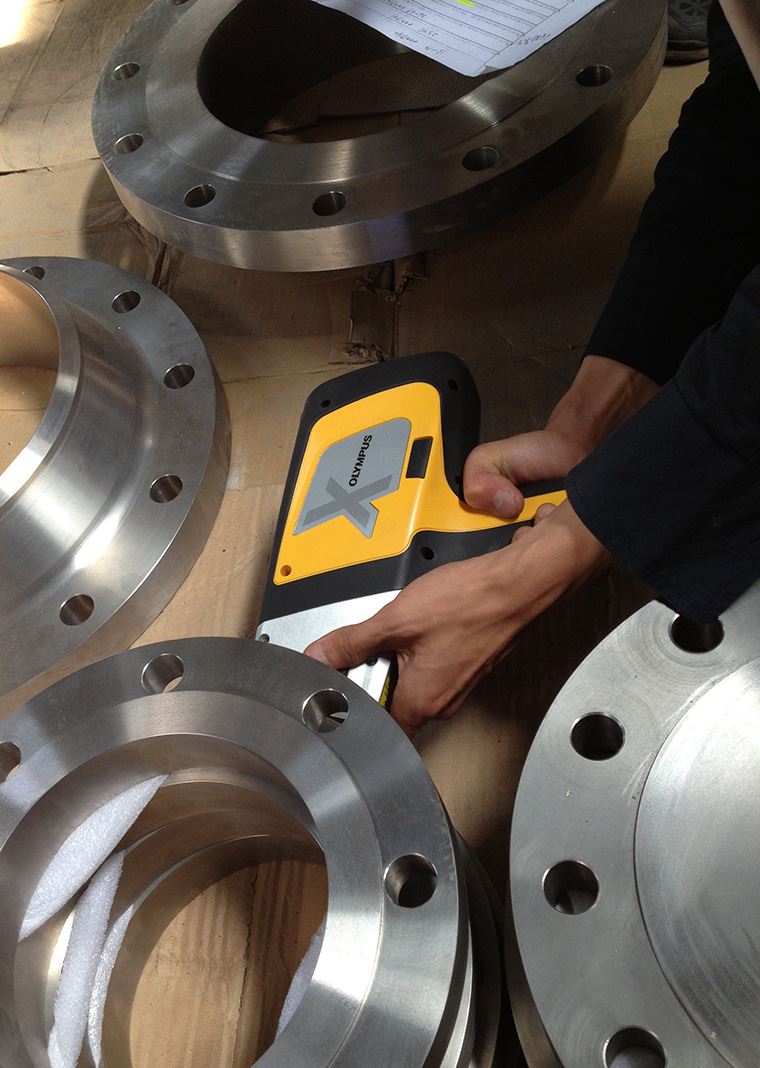

Quality Inspection

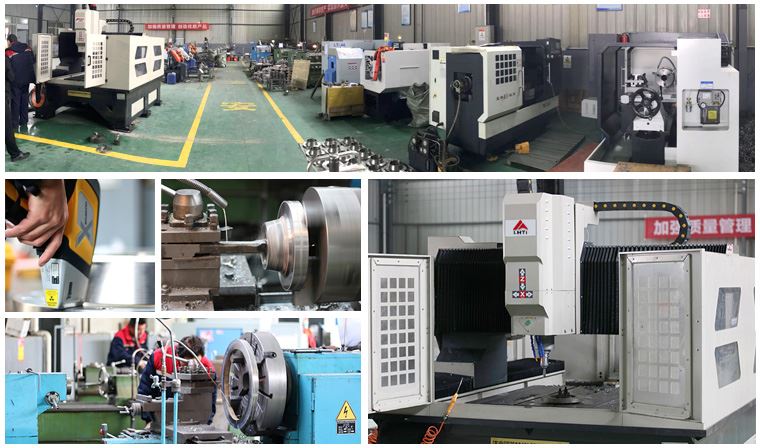

In the production process of titanium gr 5 flanges, we test and inspect the flanges at every stage. We follow all national and international standards and manufacture titanium gr 5 flanges under the strict supervision of experts. Through third-party inspection, we avoid flange defects and errors. We ensure to provide the highest quality products within the specified time.

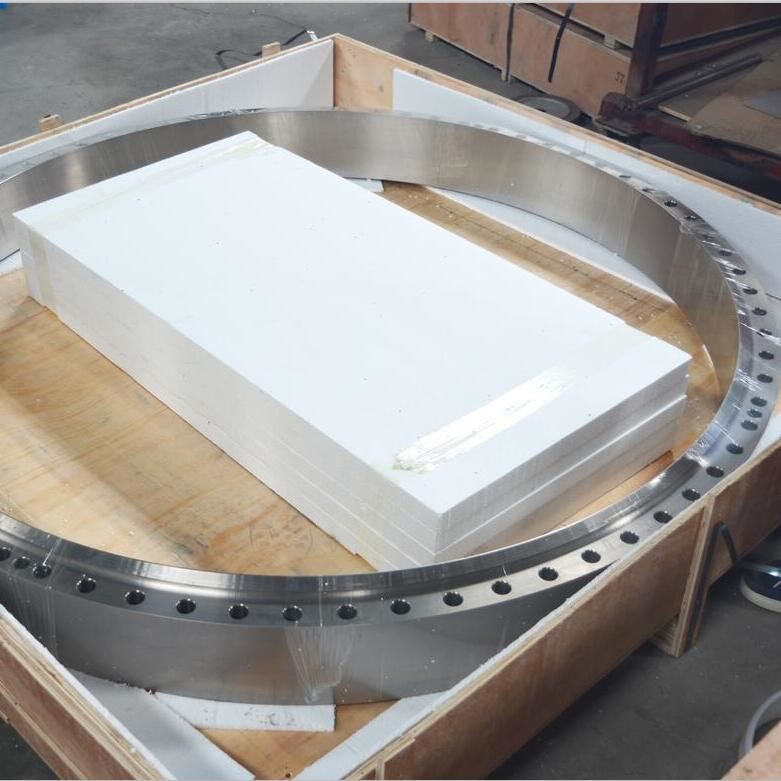

Packaging

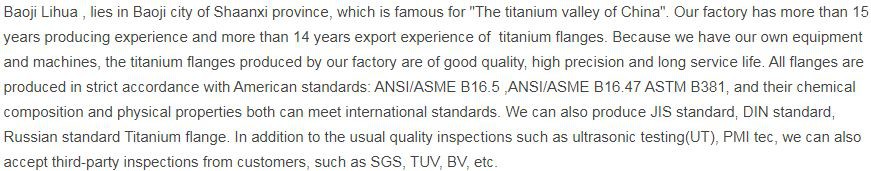

About us
