Titanium SO Flange Class 150

Titanium SO Flange Class 150

Product Name: Titanium SO Flange class 150
Standard: ANSI / ASME B16.5
Material: Gr1 Gr2 Gr5 Gr7 Gr12
Application: Chemical industry
Unit Price: $25usd/pc-$85usd/pc
Sealing Surface: RF, FF, TG, RJ etc.
Size: 1/2''~80''(DN10~3600)
Pressure: 150#-2500#
Surface: Polished
Technique: Forged and CNC Machined
Inspection: UT% PT%
Certificate: ISO9001, TUV etc.
MOQ: 1pc
Factory Area:3000 ㎡
Company staff:48
China's professional titanium flange manufacturer

Send Inquiry

Chat Now

Product Introduction

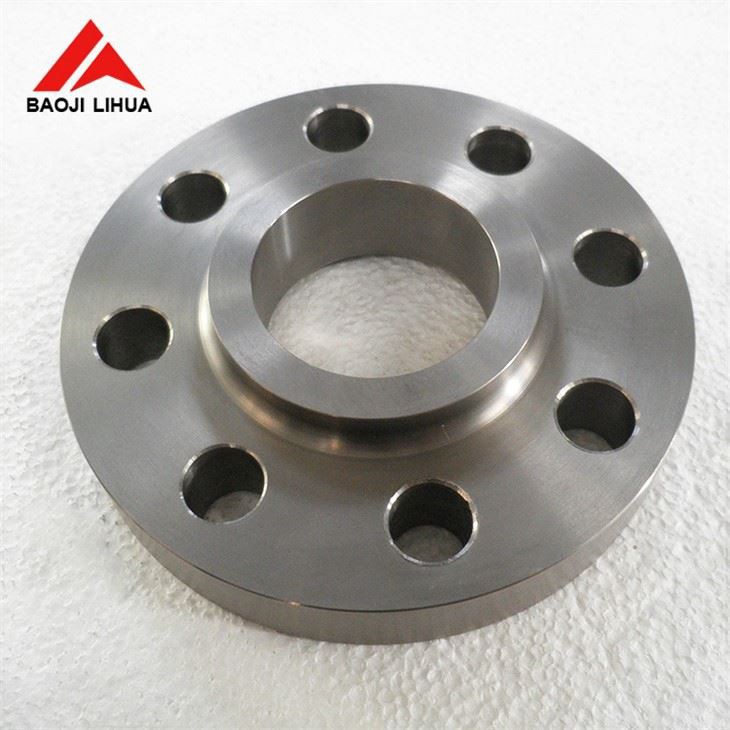

Titanium SO Flange Class 150

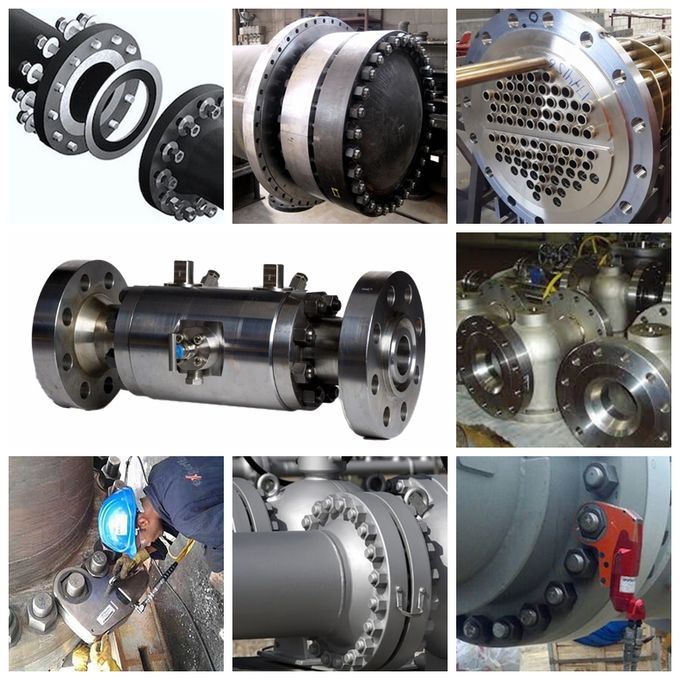

Titanium slip on flange (SO) is a disc-shaped part that connects pipes to each other. This disc-shaped part has a stepped neck compared to ordinary parts. Slip on flange is characterized by high rigidity and is suitable for occasions with high pressure and temperature. The slip on flange connection is easy to use and can withstand greater pressure. Titanium slip on flanges are widely used in boiler pressure vessels, machinery, food and other industries.

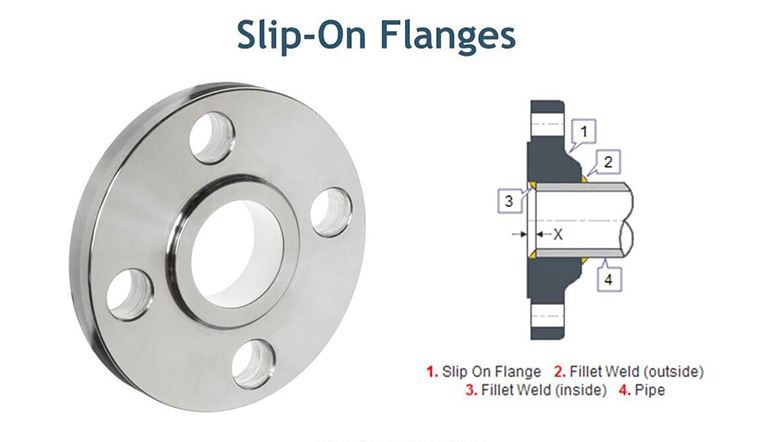

Slipon-Flange

Product Name: Titanium SO Flange

Standard: ANSI / ASME B16.5

Material: Gr1 Gr2 Gr5 Gr7 Gr12

Application: Chemical industry

Sealing Surface: RF, FF, TG, RJ etc.

Size: 1/2''~80''(DN10~3600)

Pressure: 150#-2500#

Surface: Polished

Technique: Forged and CNC Machined

Inspection: UT% PT%

Certificate: ISO9001, TUV etc.

Detailed images

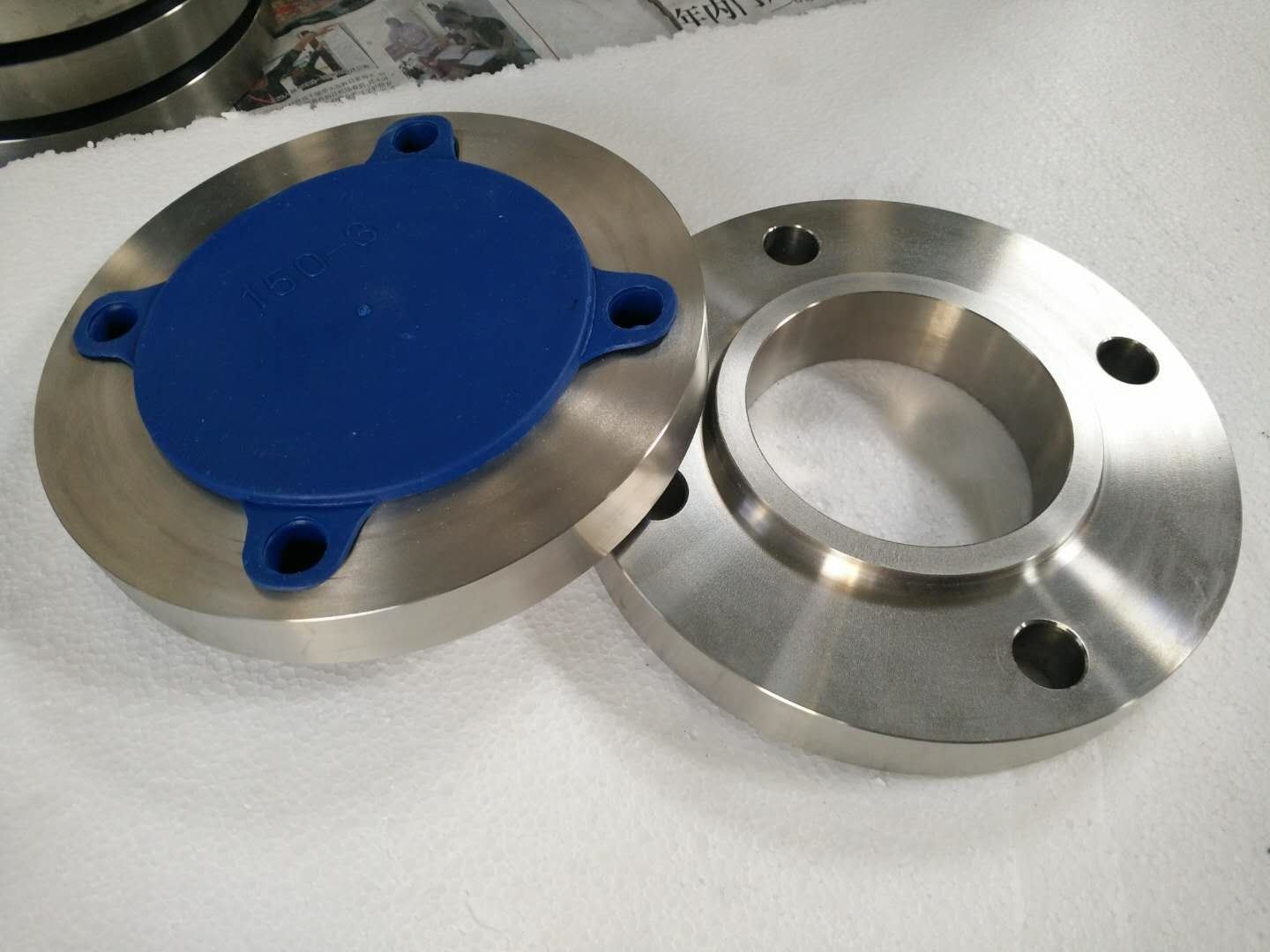

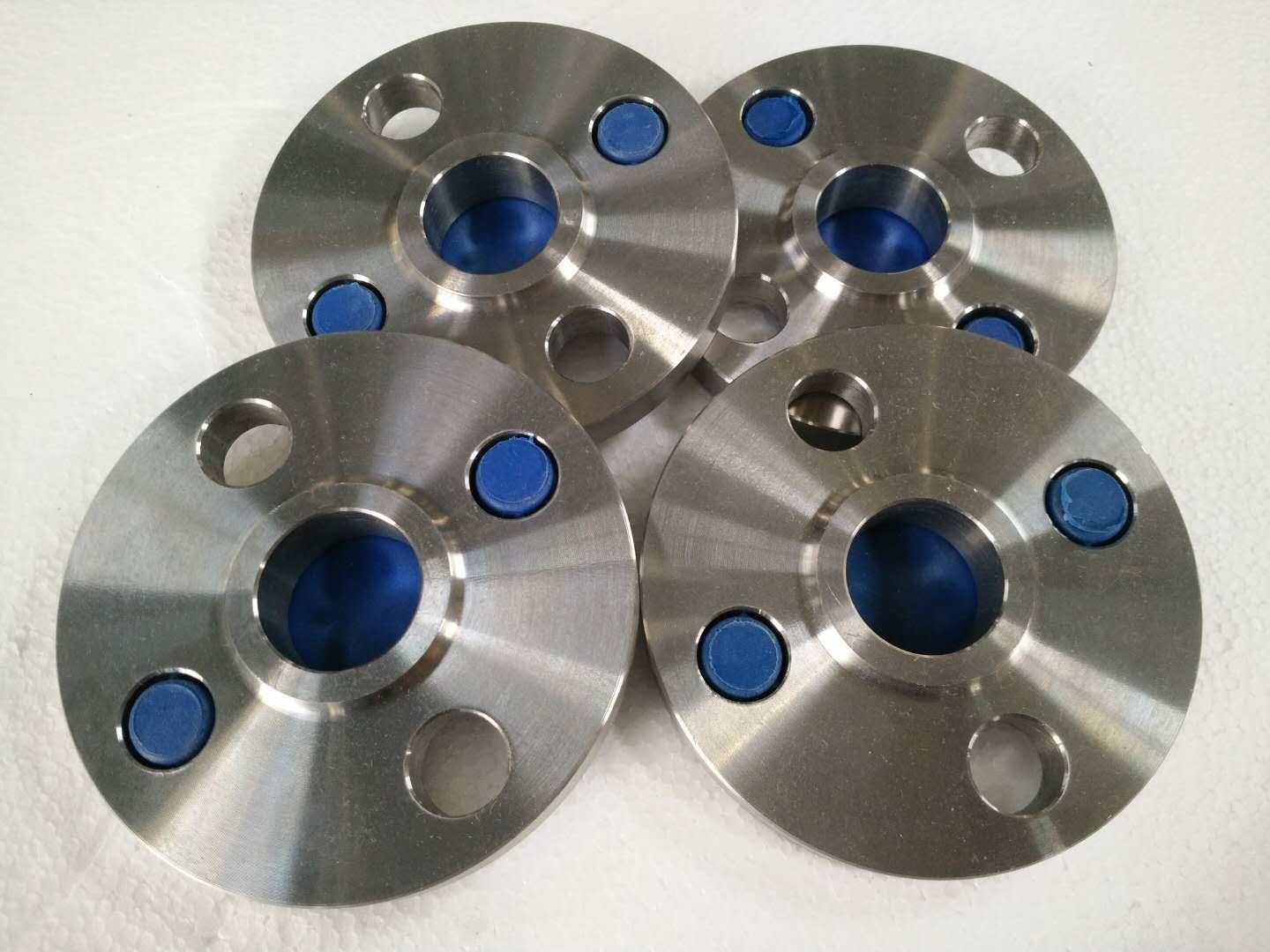

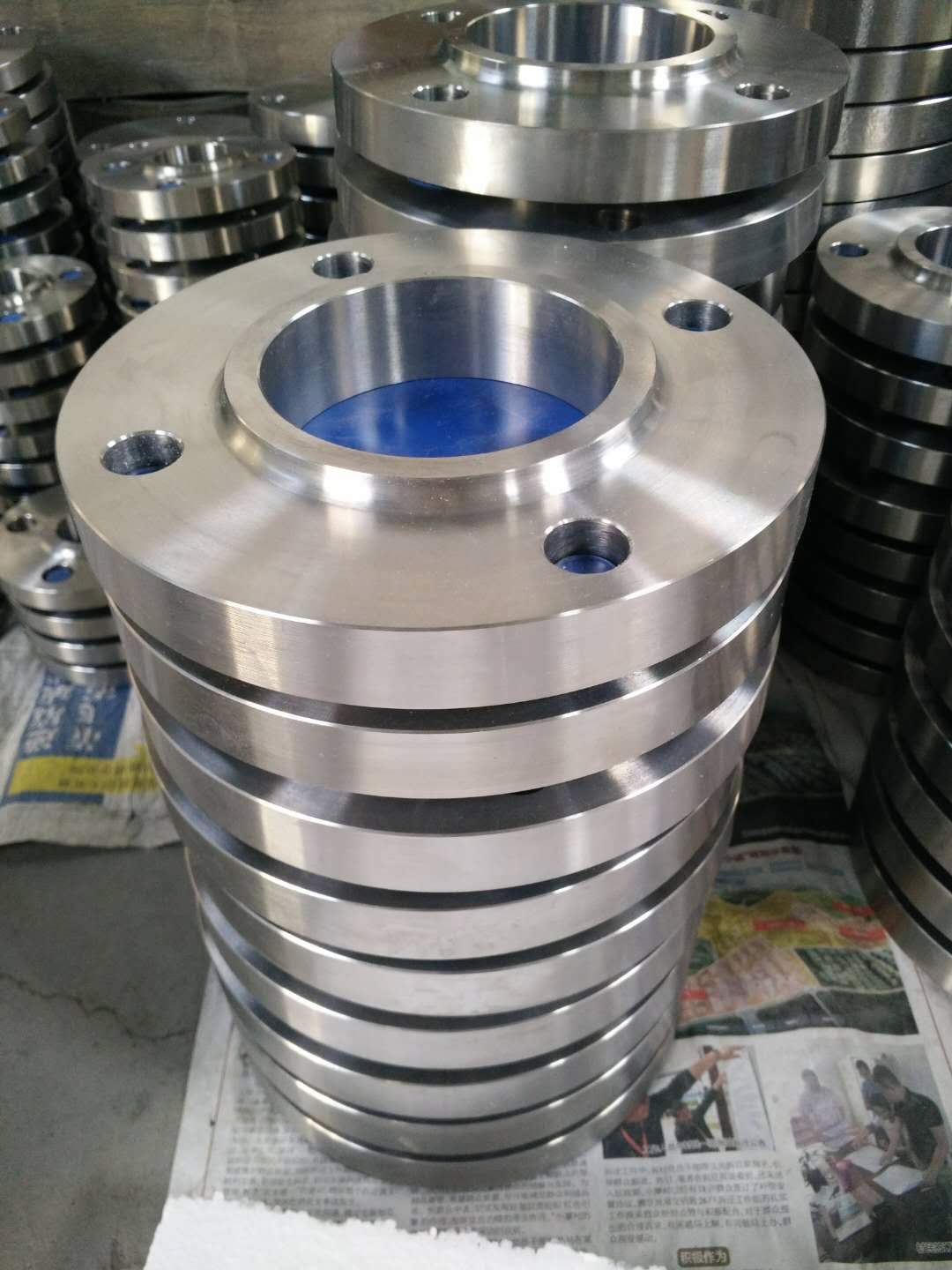

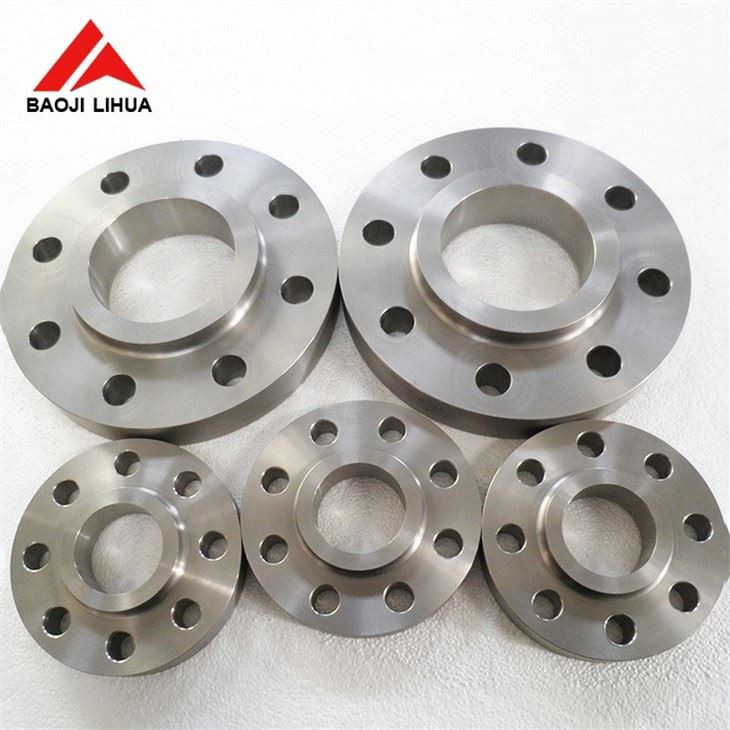

Titanium so flange Titanium so flange 13 Titanium so flange 12

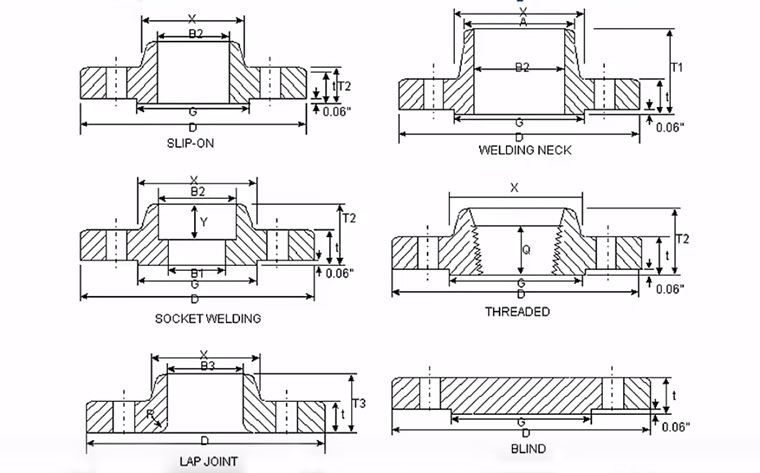

Other types of titanium flange:

Plate Flanges	PL
Weld Neck Flanges	WN
Socket Weld Flanges	SW
Blind Flange	BL
Threaded Screwed Flanges	TH
Integral type Flanges	IF
Butt welding ring loose flange	PJ/SE
Flat welding ring loose flange	PJ/PR
