Titanium Jig Rack For Anodizing

Titanium Jig Rack For Anodizing

Product Name:Titanium Finger Jigs Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished

Send Inquiry

Chat Now

Product Introduction

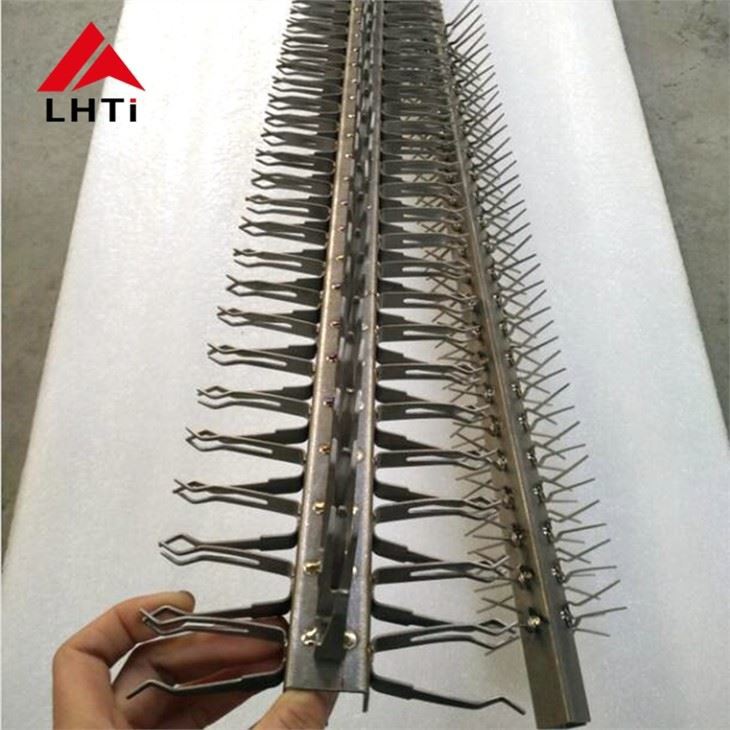

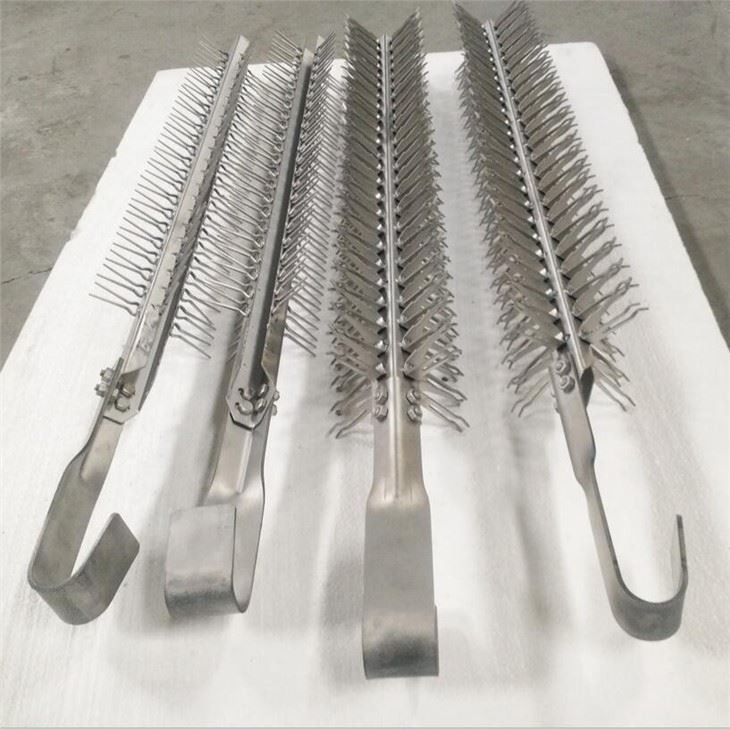

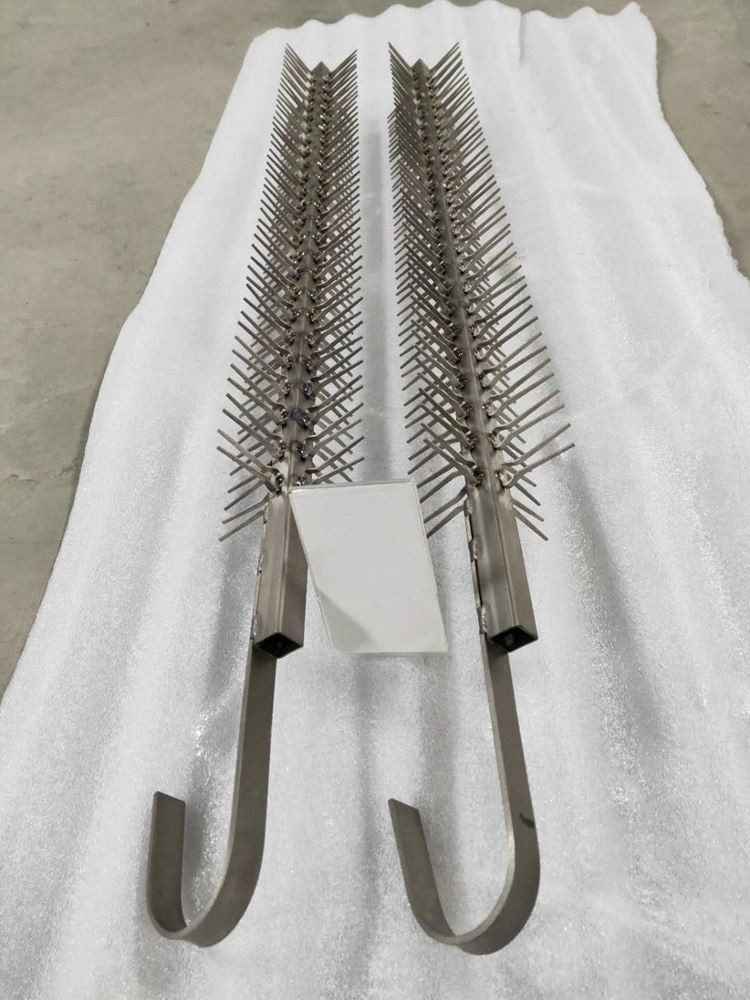

Titanium jig rack for Anodizing

We can provide various customized titanium hangers made of high-quality pure titanium (GR1, Gr2). The titanium jigs/racks produced by our factory has good elasticity and strong corrosion resistance. It adopts precision welding technology, and the welded junction is closely and firmly combined. We can recommend to customers according to the products we have made before, also can produce them according to customers' drawings!

Product Name:Titanium Jig Rack For Anodizing

Material: Pure titanium Gr1, Gr2

Size: Customized

Surface: Polished

Number of hanging teeth:customized

Application: Electroplating, anodizing etc.

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	Alloy Composition	ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25

Detailed images

Jig/rack is the loading equipment of parts in electroplating production. Its loading capacity is directly related to the final output of plated parts.

In the chromate passivation link of cadmium electroplating process, the plated parts need to be loaded on the hanger and placed in each tank successively for alkali cleaning, water washing, chromate passivation treatment, water washing, drying and other processes.

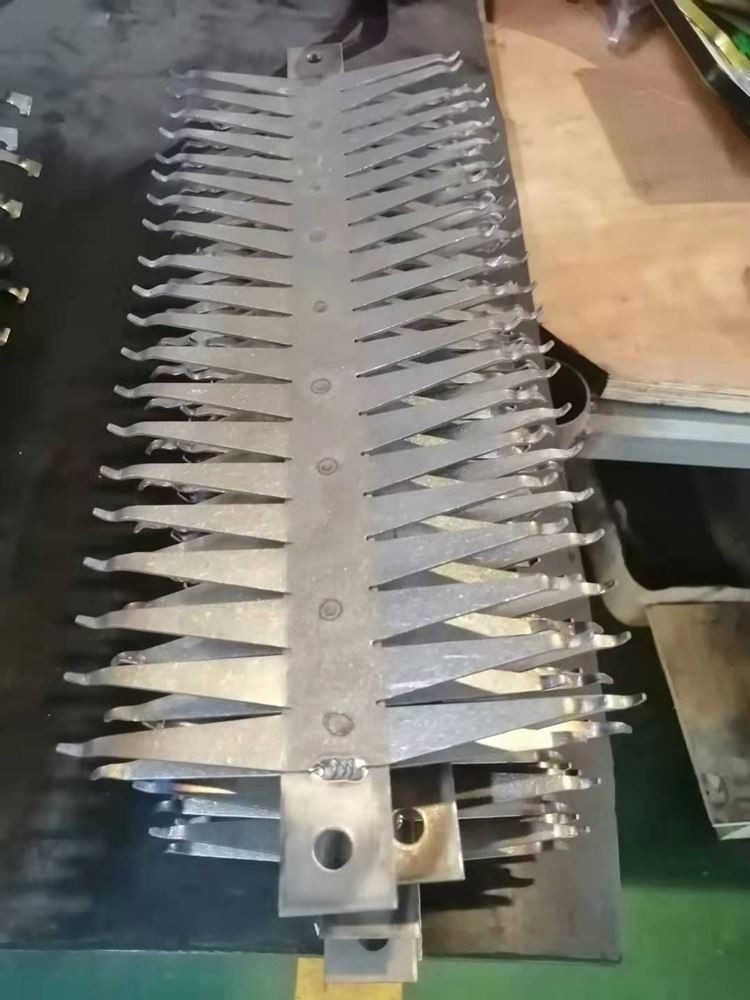

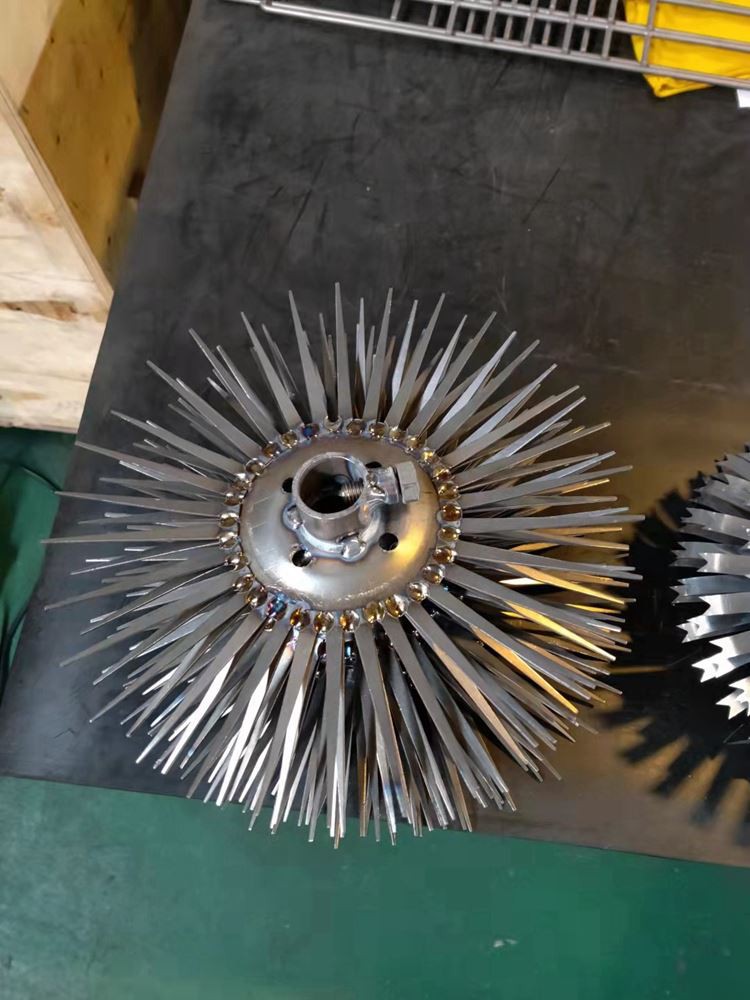

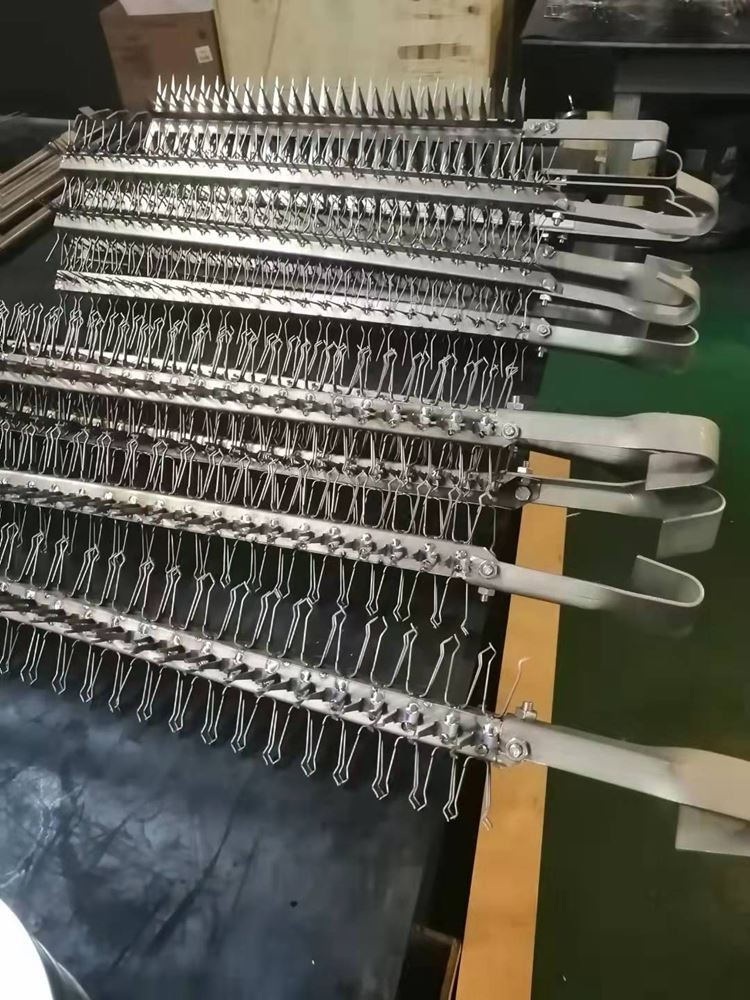

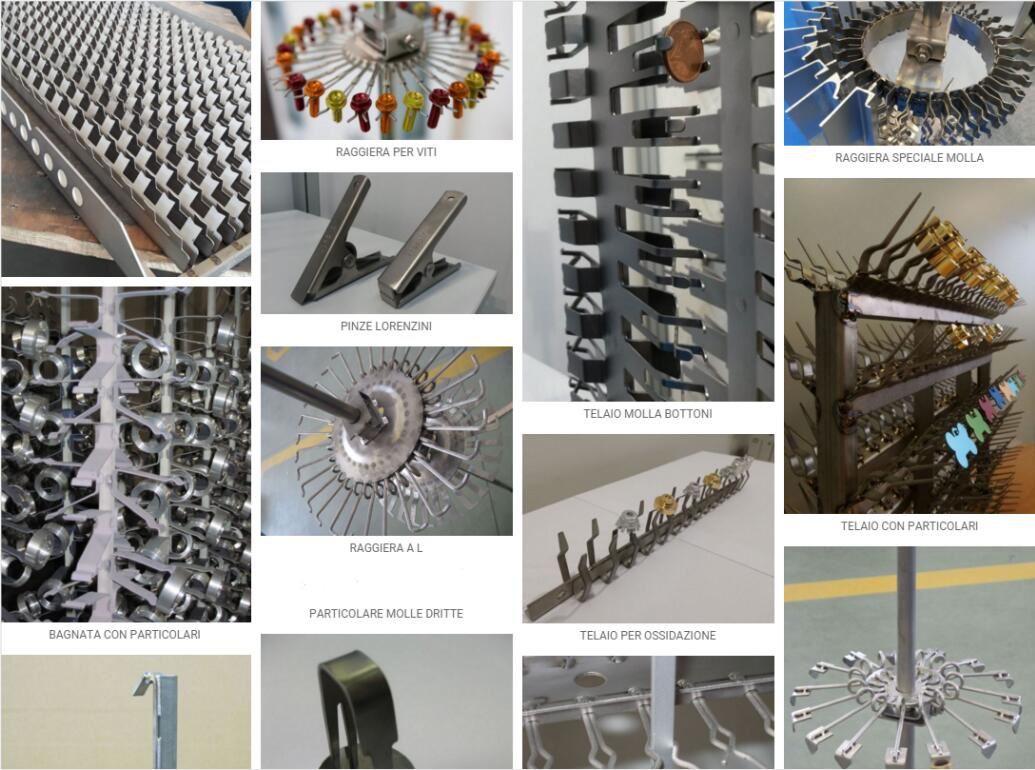

Different styles titanium jigs/racks:

titanium jigs
