Titanium Jigs And Racks

 Titanium jigs and racks

Universal jig and racks are suitable for a variety of parts and processes. The form and structure of general electroplating jigs shall be determined according to the geometry of plated parts, technical requirements of plating, process and size of equipment.

Product Name:Titanium jigs and racks

Material: Gr1, Gr2

Application: Electroplating, anodizing etc.

Size: Customized

Surface: Polished

Precautions for use of titanium jigs and racks:

1. The distance from the bottom of titanium hanger to the groove bottom is 150-200mm; The concentration of working immersed electric part liquid is about 40-60mm away from the liquid level of the part.

2. The distance between titanium hanger and hanger surface is 20-40mm; And groove wall shall be greater than 50mm

3. When the titanium tools that can be used are operated manually, the loading weight is generally about 1-3kg; The position of titanium hanging rod shall be more than 80mm away from the liquid level and shall bear the whole load

The features of our titanium jigs and racks:

▲ Accurate size

▲ High corrosion resistance

▲ Cost-effective

▲ Easy to load and unload

▲ Improve electrical conductivity

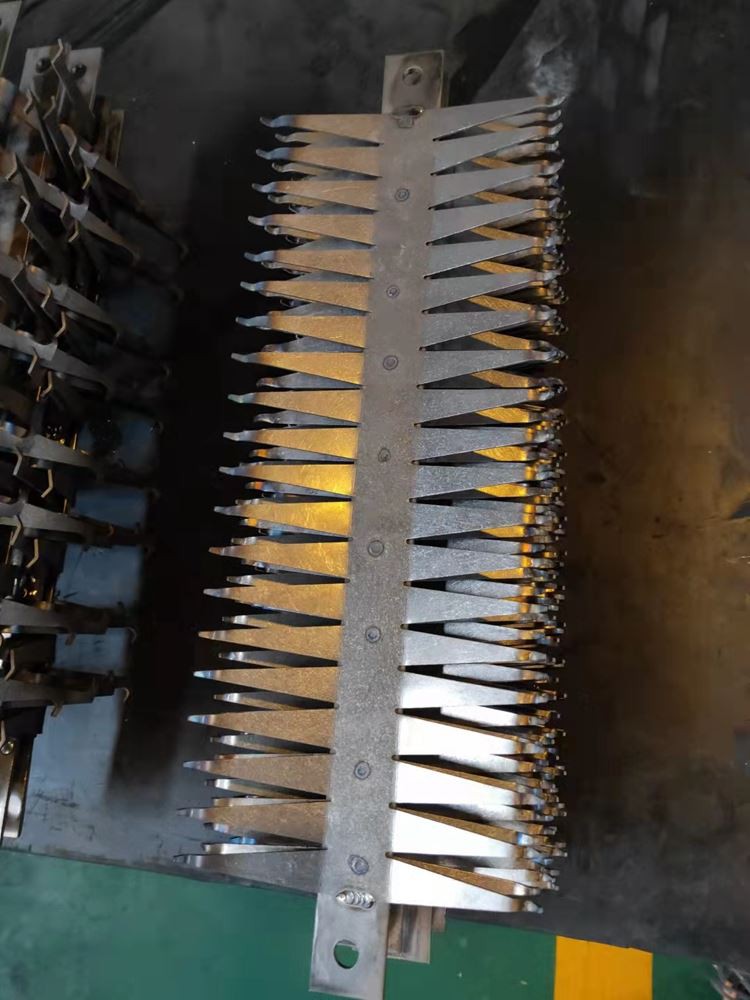

Detailed images:

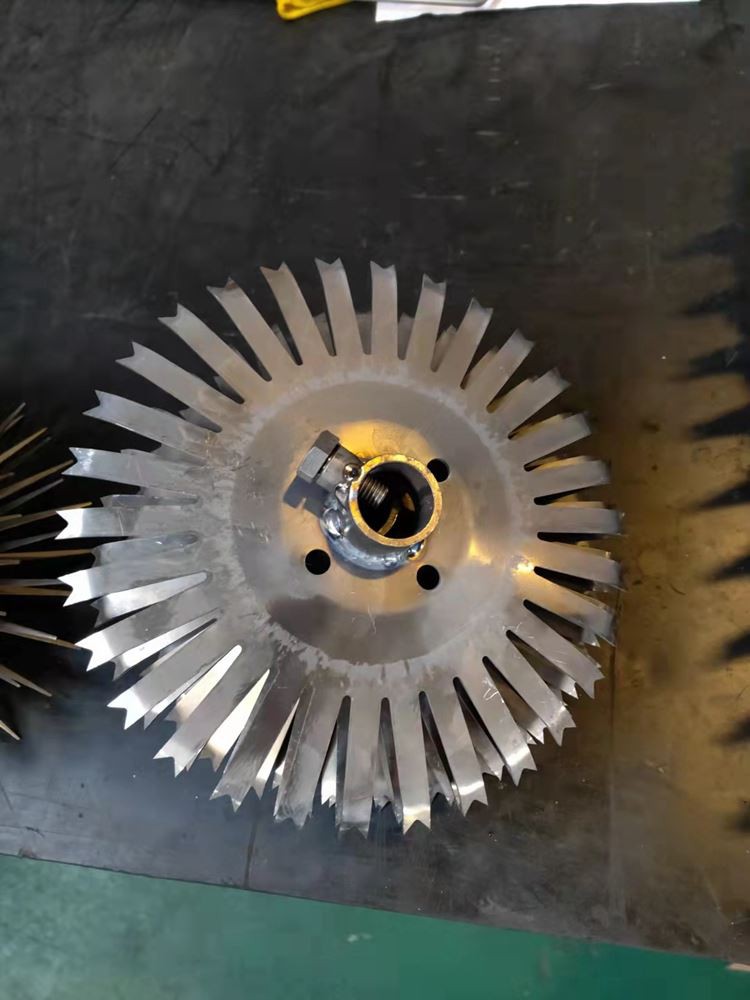

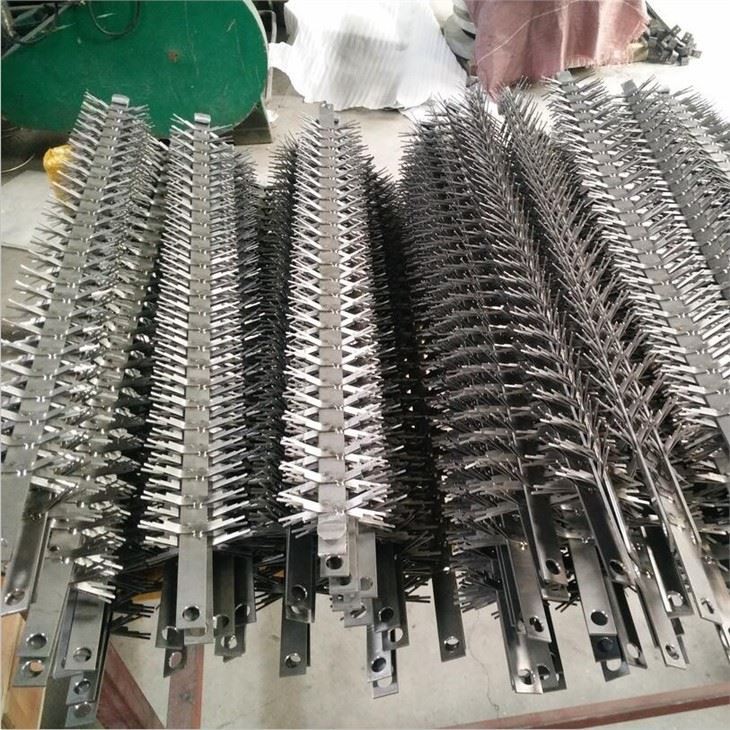

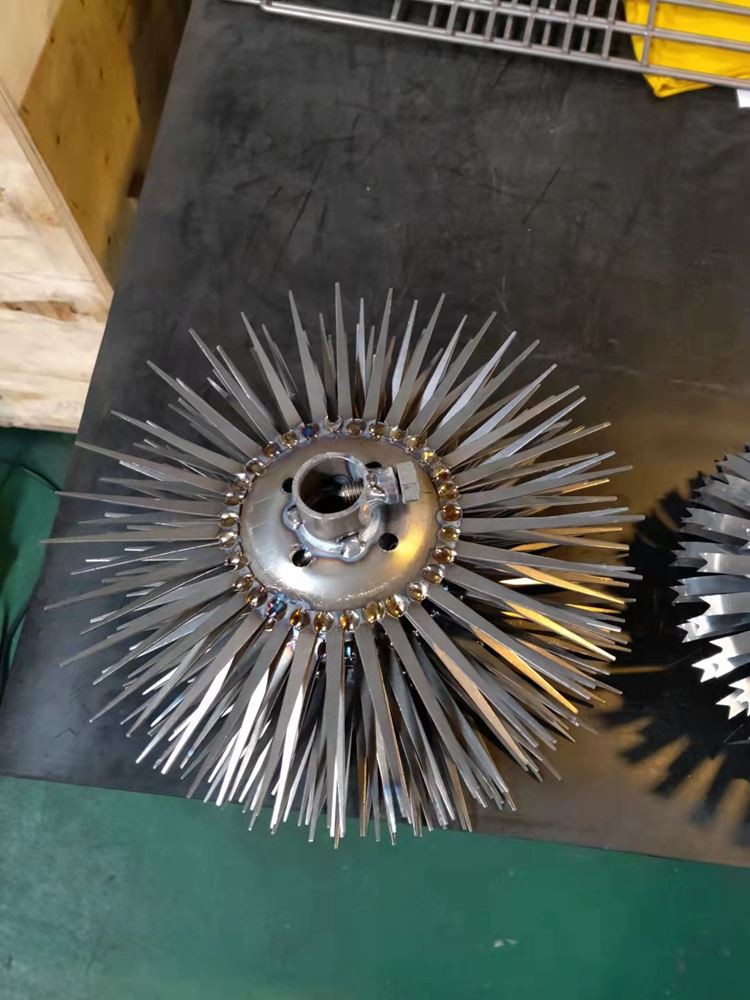

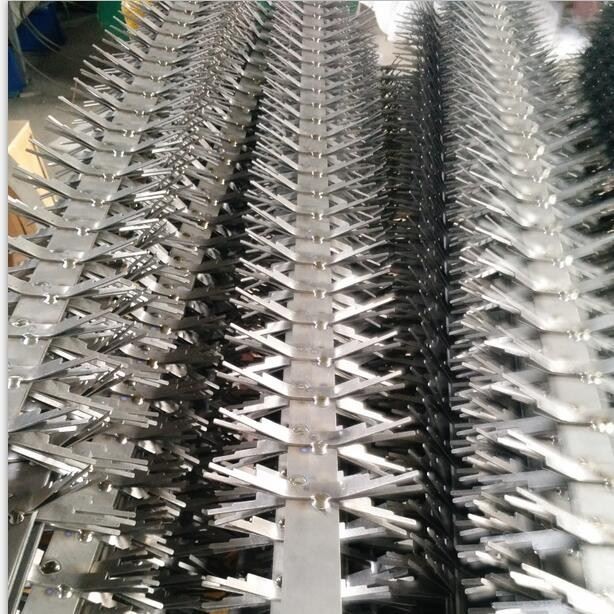

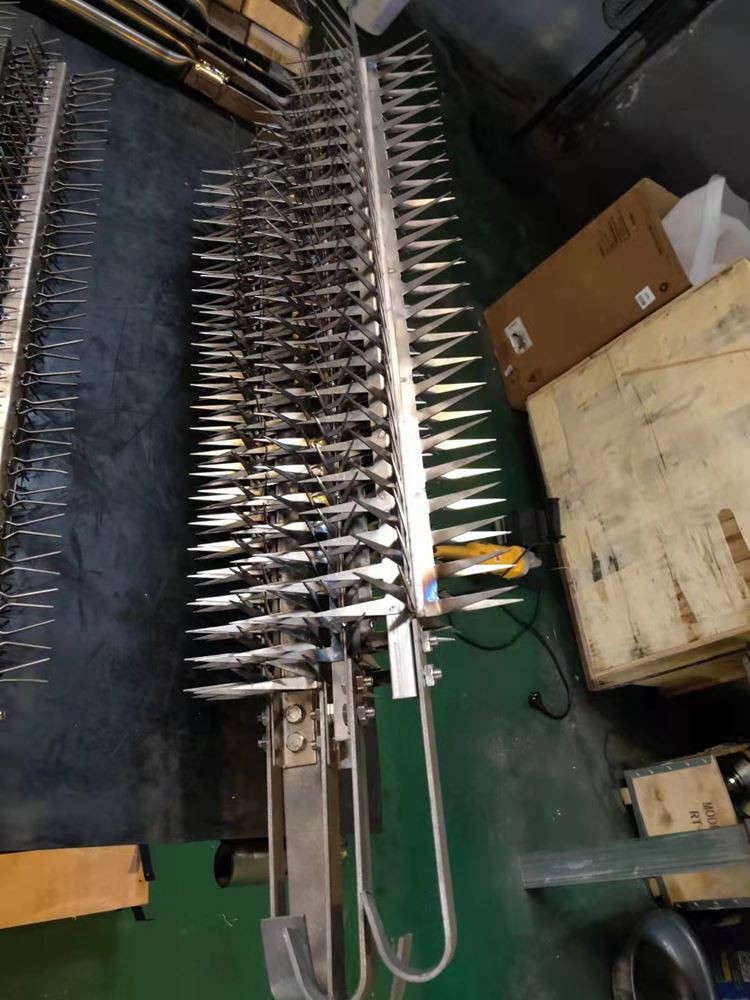

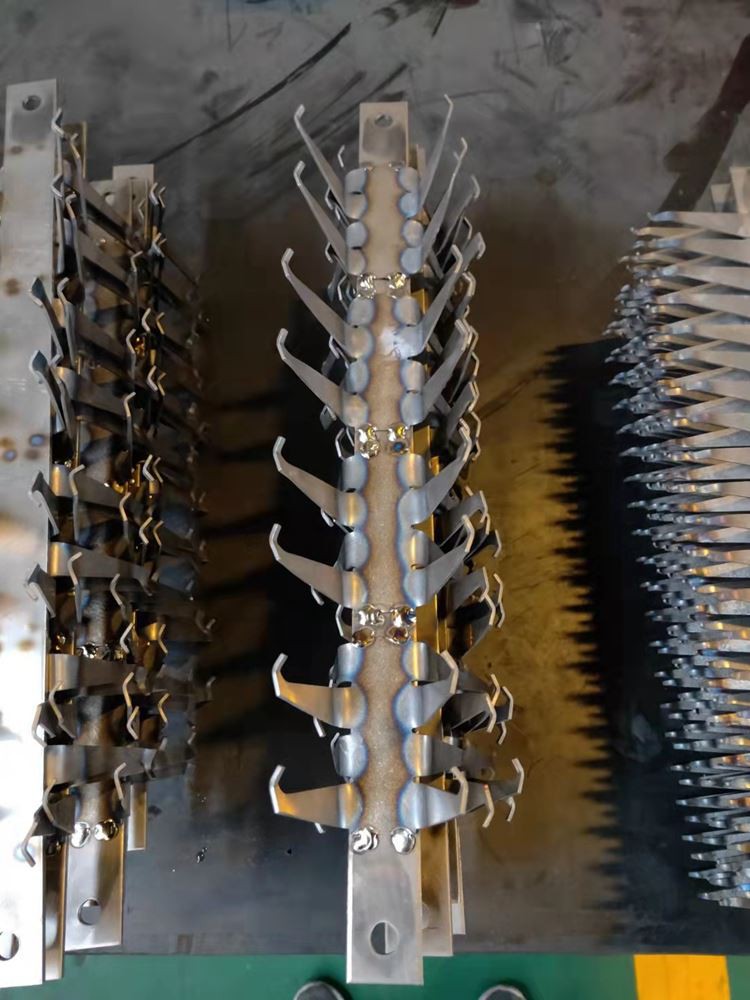

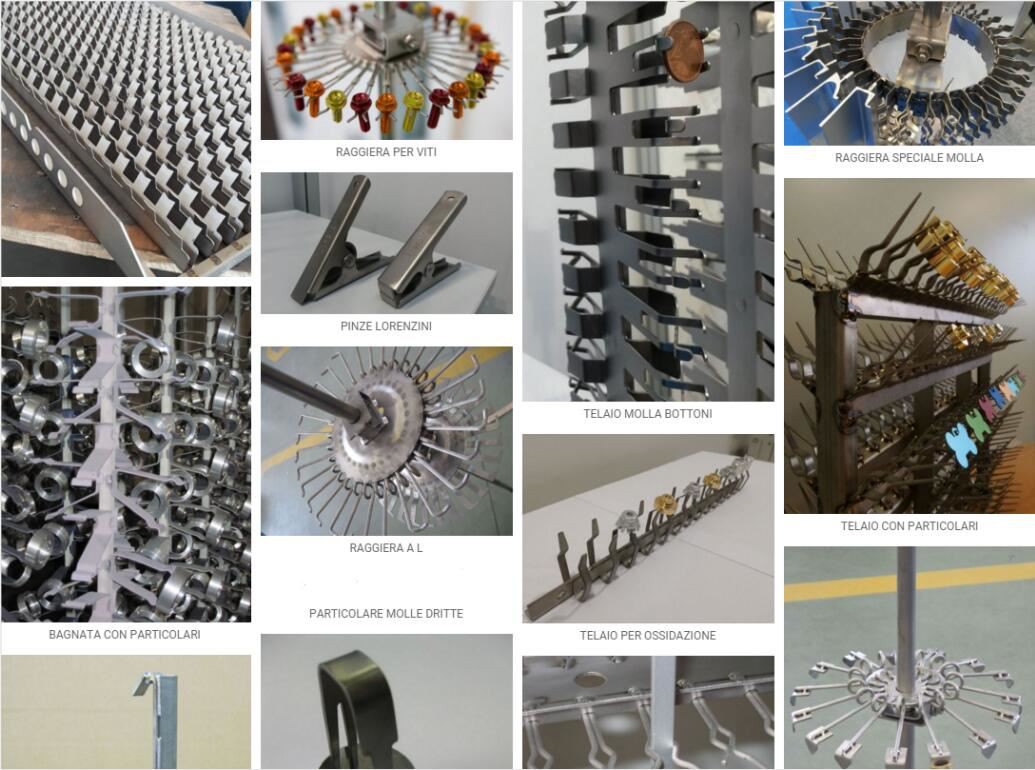

Different styles titanium jigs/racks for andizing/plating/coating:

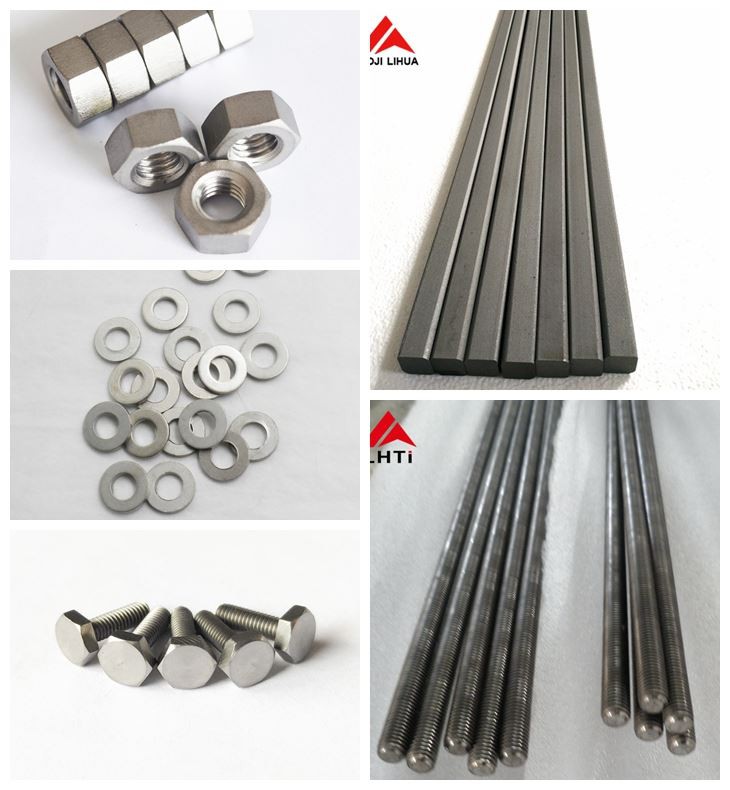

Retaled products:

Titanium bolts and nuts, titanium square bars

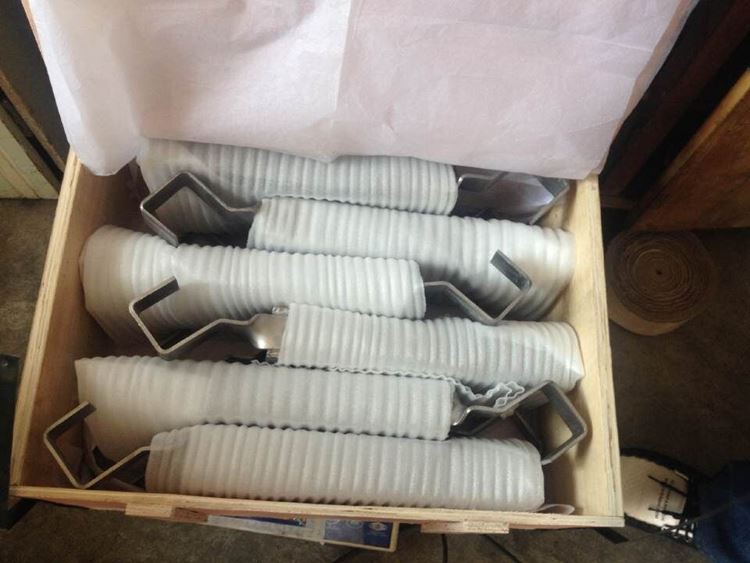

Packaging and Shipping:

Packaging:

1)Small batch: paper/plastic and carton.

2)Large batch: paper/foam inside, wooden pallet outside.

Shipping:(alway choose the best and cheapst one for customers)

1:Small batch: International Express(DHL,TNT,EMS,UPS).

2:Large batch: By air and by sea, railway

Delivery time:

1.In stock: sending within 3 days

2.Customized:according to the quantity.
