Pure Titanium Jigs For Electroplating

Pure Titanium Jigs For Electroplating

Product Name:Pure titanium jigs For Electroplating Material: Gr1, Gr2 Application: Electroplating, anodizing etc. Size: Customized Surface: Polished

Send Inquiry

Chat Now

Product Introduction

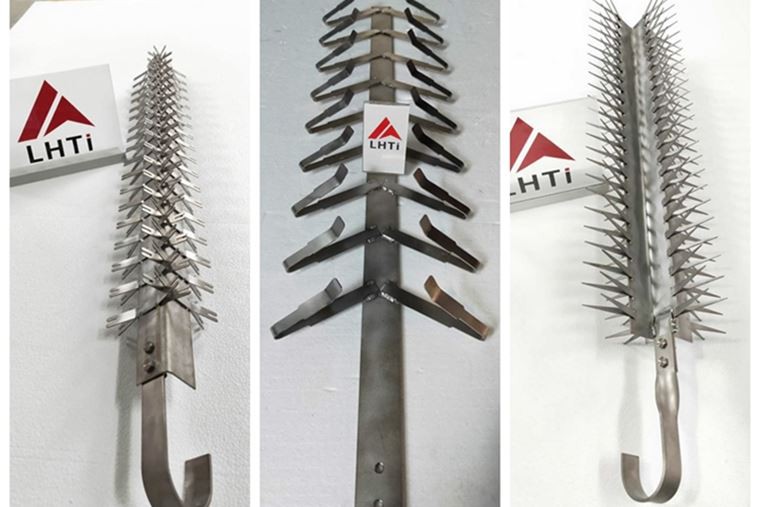

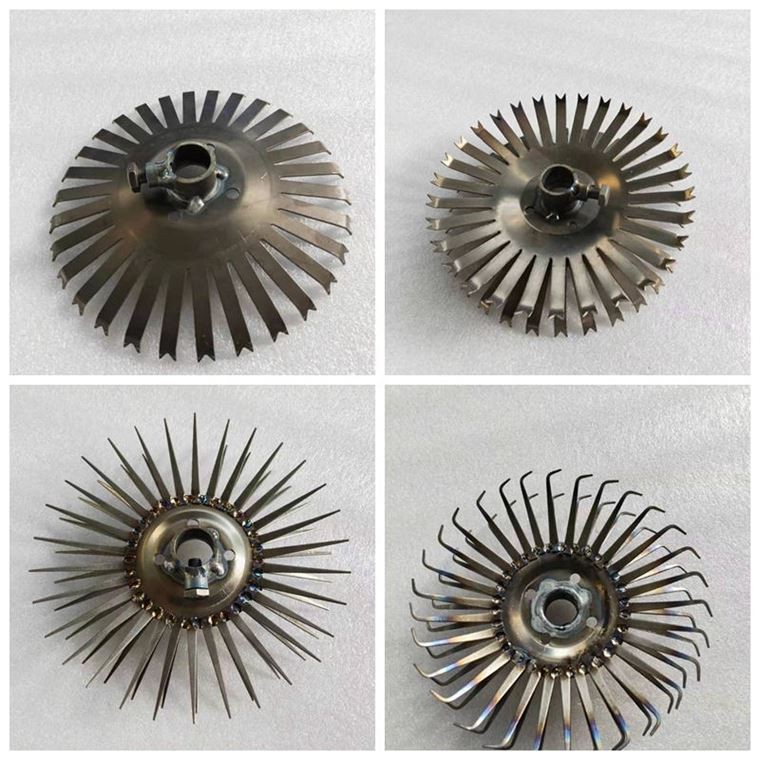

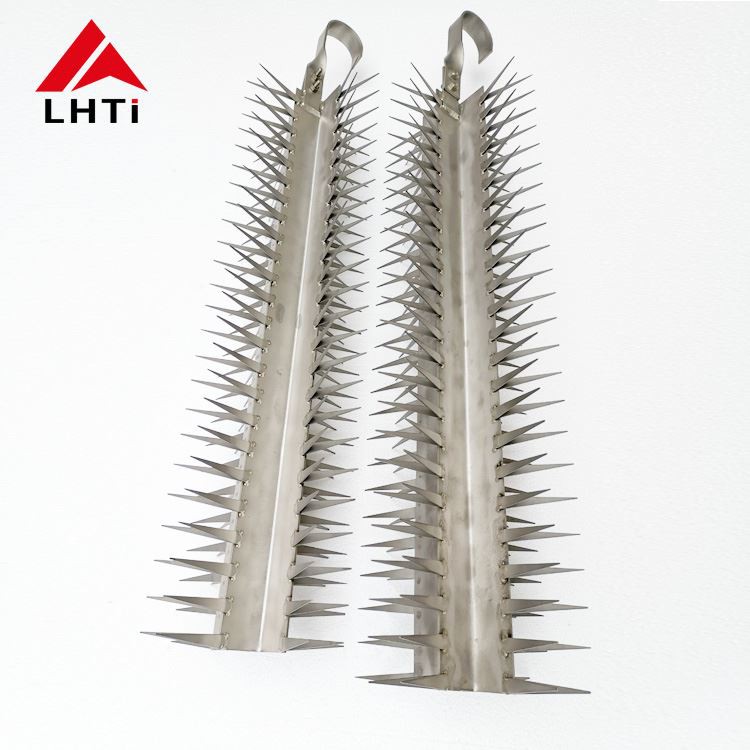

Pure titanium jigs For Electroplating

Titanium fixtures and racks are mainly used in electroplating, anodizing and other industries. Anodizing fixtures are usually made of aluminum or titanium. The aluminum fixture is anodized after being used for a period of time and must be chemically cleaned. Continuous anodizing and stripping lead to short service life. Therefore, the titanium that does not need to be stripped after anodizing is used. Titanium has been widely used in a large number of applications.

Advantages of titanium jigs :

● titanium jigs, consistent from operation to operation.

● titanium fixtures and racks are not anodized like aluminum racks. Therefore, you can use your rectifier anodized parts instead of the rack.

● the high initial cost of titanium jig is offset by the advantages of titanium process savings, better consistency and longer service life.

Product name	titanium anodizing rack/titanium jigs for anodizing
Material	Titanium Gr1 Gr2
Technology	Sand Blasting, Acid Washing
Dimension & Shape	Different dimension and shape is available,or according to customer's drawing
Parameter	Current density≤2000A/M2 Temperature<65°C PH 0.1~14 Max content of Fluoride ion is 200PPM
Features	Superior electric catalytic property Strong anti-corrosion property High current efficiency property Keep the operating voltage stably Decrease the wastage of additive Keep the plating solution stable Long lifetime Different complex geometry design
Applications	Ø Precious metal plating(Ag, Au, Rh, Pd) Ø Hard chrome plating(Cr6+) Ø Base metal plating(Cu, Zn, Ni) Ø Precious metal recovery, etc.
Remarks	Titanium anode also called MMO anode,DSA & Insoluble anode Cathode also be provided

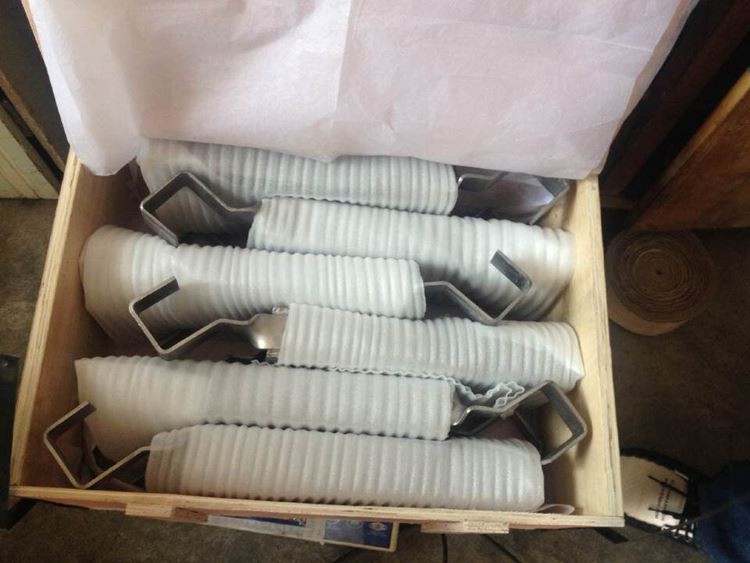

Packing	Plywood case or carton, or according to customer’s demand
