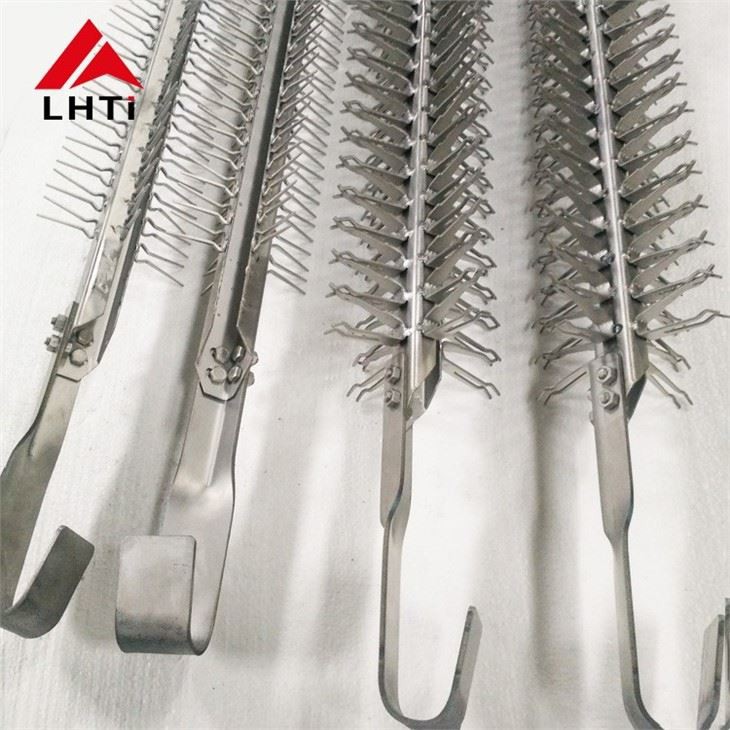

Titanium Jigs Anodizing

Titanium Jigs Anodizing

Product Information

Material: Gr1 Gr2

Dimension: Customized, as customer's requests

Applications: Electroplating, Anodizing

MOQ: 10pcs

Several Principles of Titanium Jigs Design

1. Titanium jigs should have sufficient mechanical strength and rigidity, bear the weight of all parts, be strong and durable. And the titanium jigs material should be stable and insoluble in the plating solution used.

2. Titanium jigs should have enough conductive cross-section to ensure good electrical contact and no overheating.

3. In order to obtain the uniformity of the coating thickness, the distance between the main surface of each part and the anode should be as equal as possible. And the parts should be located between the two anodes during double-sided electroplating.

4. The position where the parts are mounted on the titanium jigs should be the easiest place for free gas discharge.

5. Reliable contact between titanium jigs and parts.

6. Prevent parts from obscuring each other.

7. Titanium jigs should be as light, simple, and universal as possible, easy to operate for loading and unloading parts, and high production efficiency.

8. The structural form of titanium jigs should be determined according to the shape, size and complexity of the parts. Generally, titanium jigs components should be generalized and standardized for easy repair, replacement and utilization.

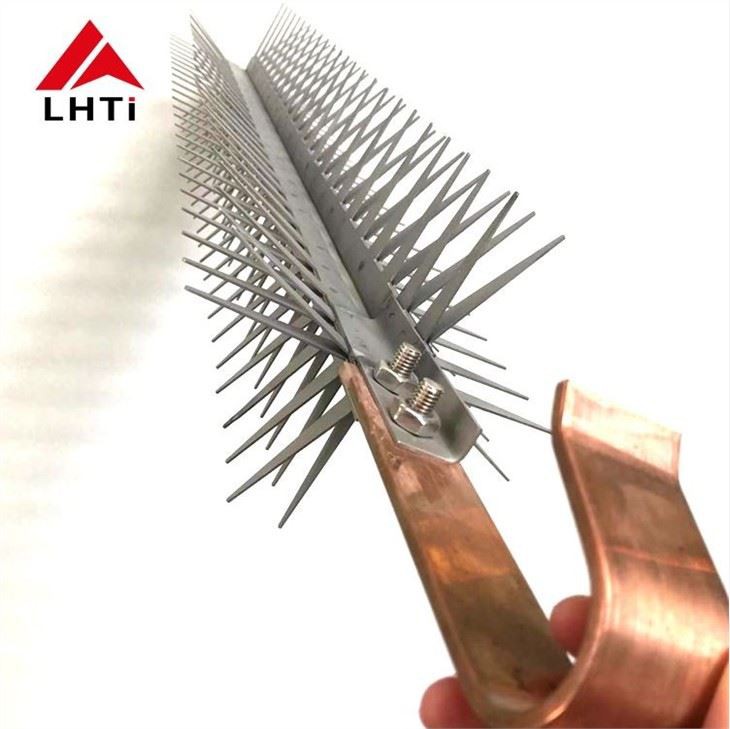

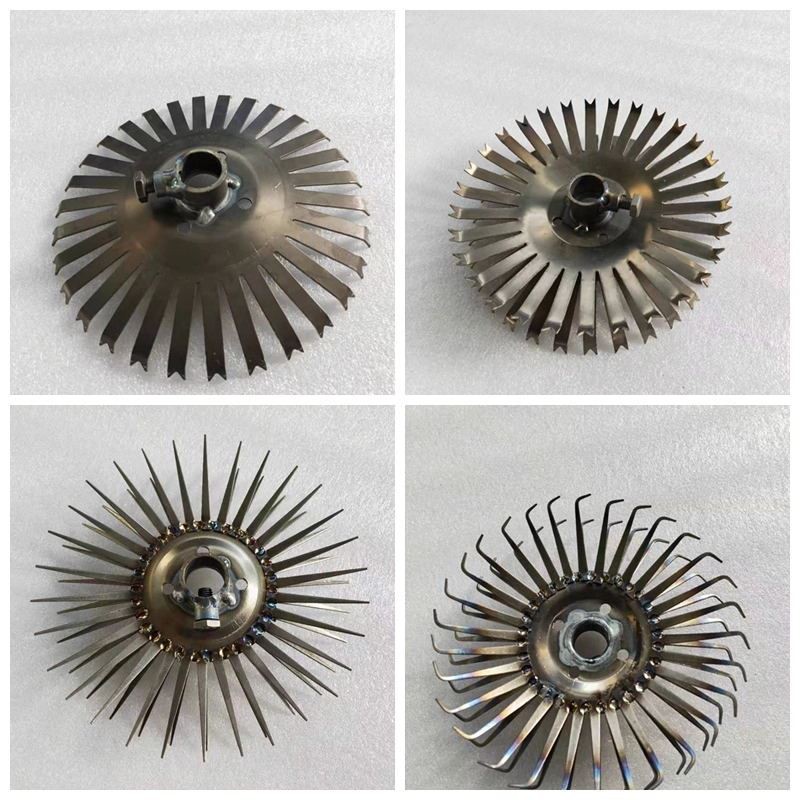

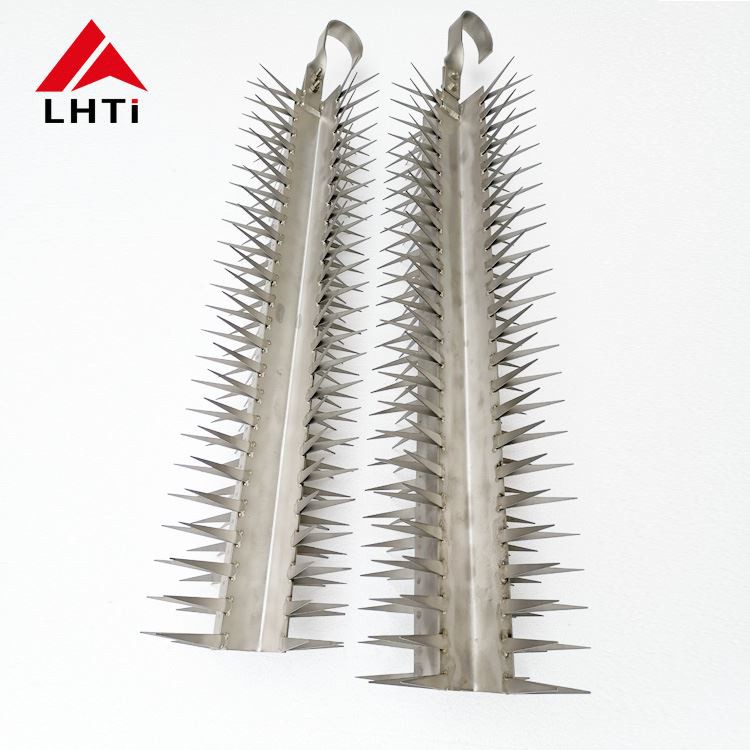

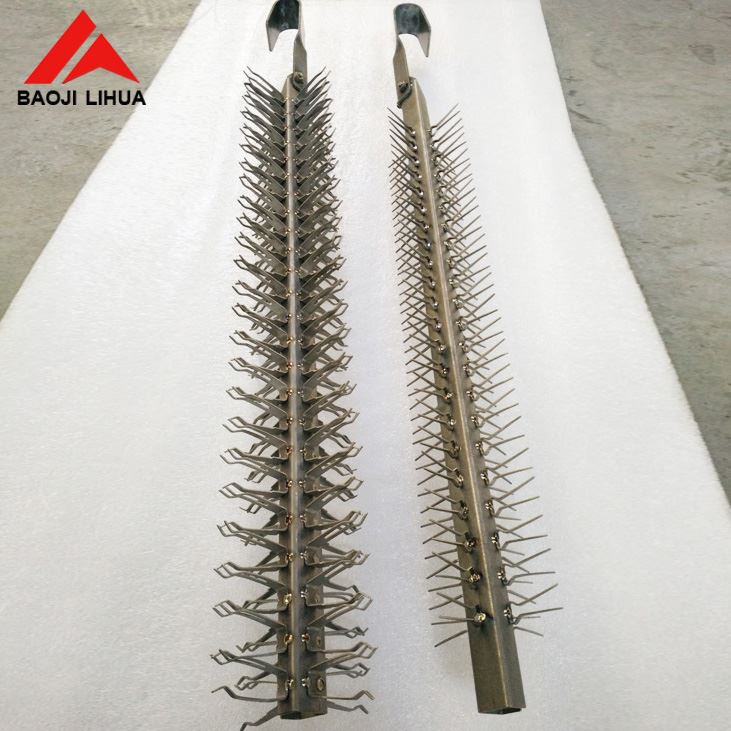

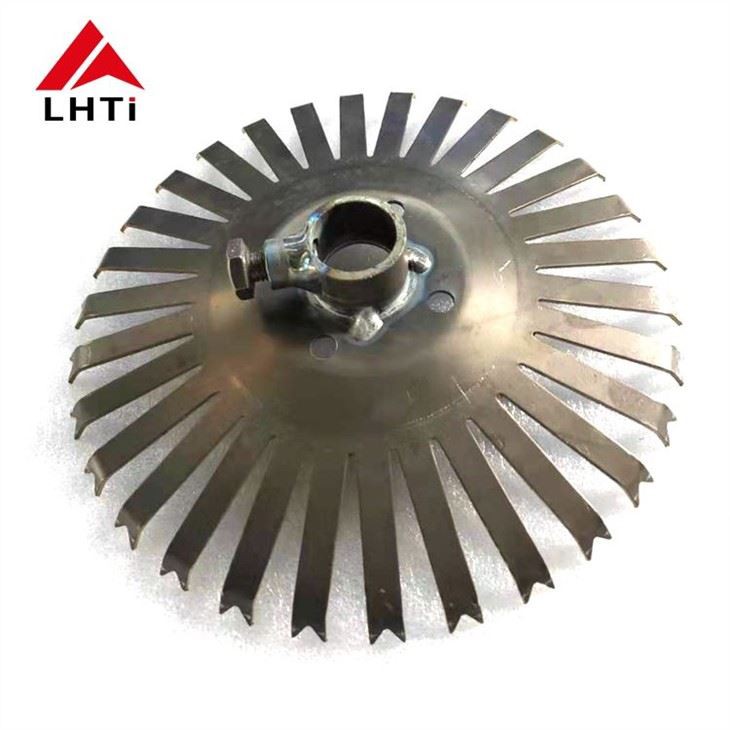

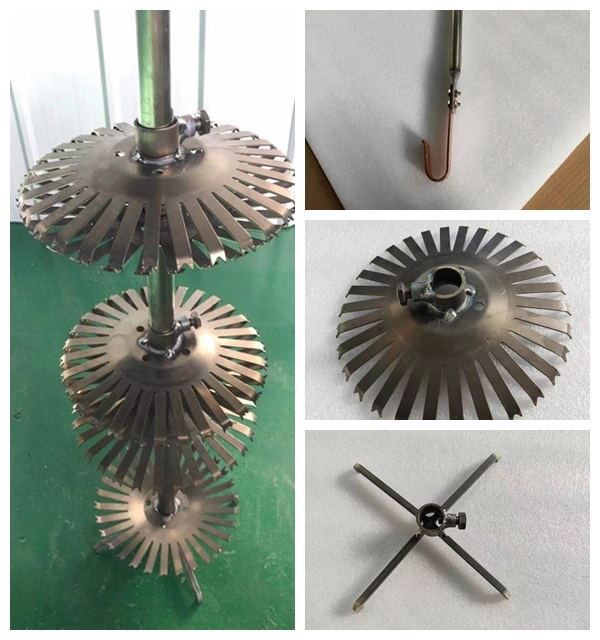

Detailed Images

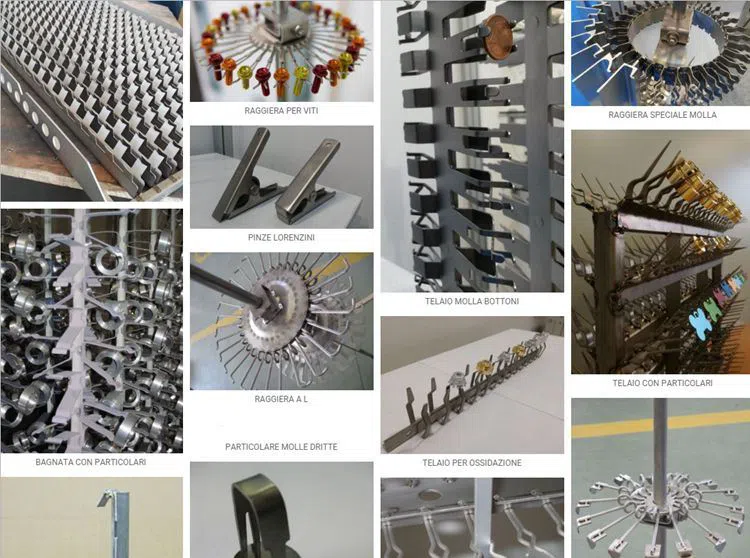

Application

Related Products

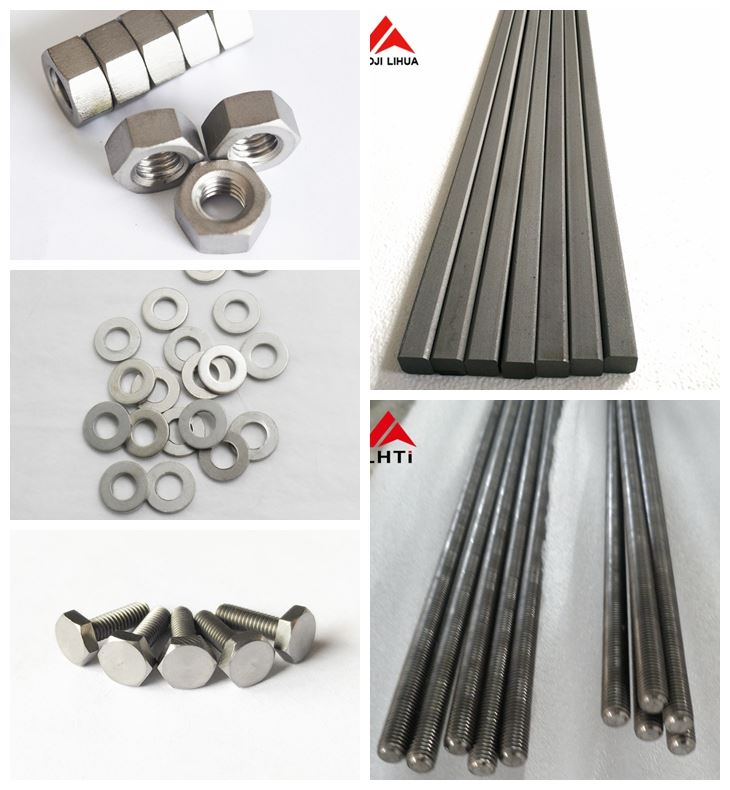

Titanium bolts, Titanium nuts, Titanium washer, Titanium threaded rod, Titanium welding wire

Our Services

(1) Strict control from raw materials till products finished, so the quality is guaranteed.

(2) Customized sizes are offered as well as specified sizes and multiple sizes.

(3) Competitive prices will be provided for sure.
