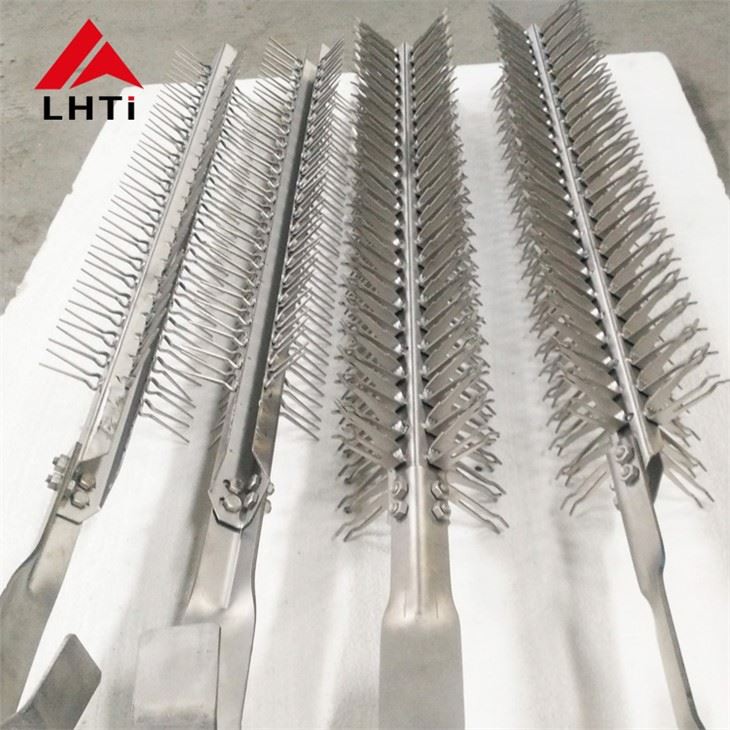

Titanium Rack Jig

Titanium Rack Jig

Product Name: Titanium Rack
Material: Gr1, Gr2
Application: Anodizing
Size: Customized
Surface: Bright
MOQ:10pcs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Rack Manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium Rack Jig

Product Information

Material: Gr1, Gr2

Size: Customized

Application: Electroplating, anodizing, water treatment etc.

Surface: Sand Blasting, Acid Washing

Parameter: Current density≤2000A/M2

Temperature<65°C

PH 0.1~14

Max content of Fluoride ion is 200PPM

MOQ: 10pcs

Chemical Composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Tensile Strength		Yield Strength		Elongation min %
ASTM Grade	ksi	Mpa	ksi	Mpa
Grade 1	35	240	25	170	30
Grade 2	58	400	40	275	25

Several Principles of Titanium Jigs Design

1. There must be good contact between titanium jig and workpiece.

2. Full consideration should be given to the hanging direction of the workpiece.

3. Ensure the current intensity when titanium jig is working

4. All titanium jigs must be easy to load and unload.

5. The teeth of titanium jigs must be firm.

6. Prevent parts from obscuring each other.

Detailed Images

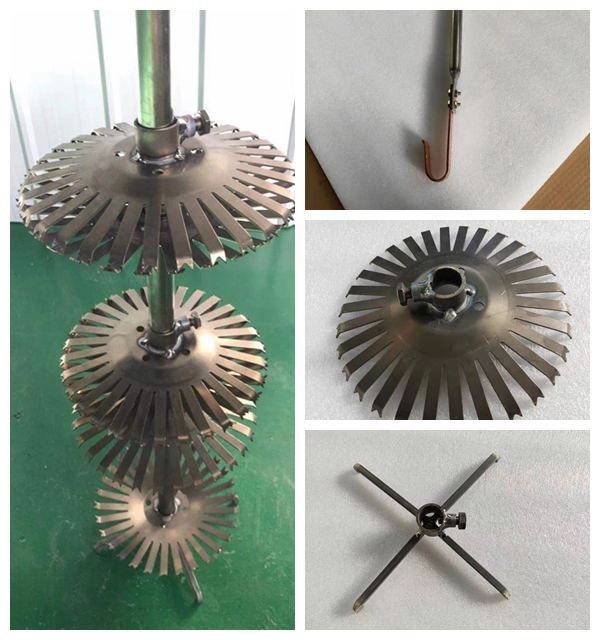

titanium rack

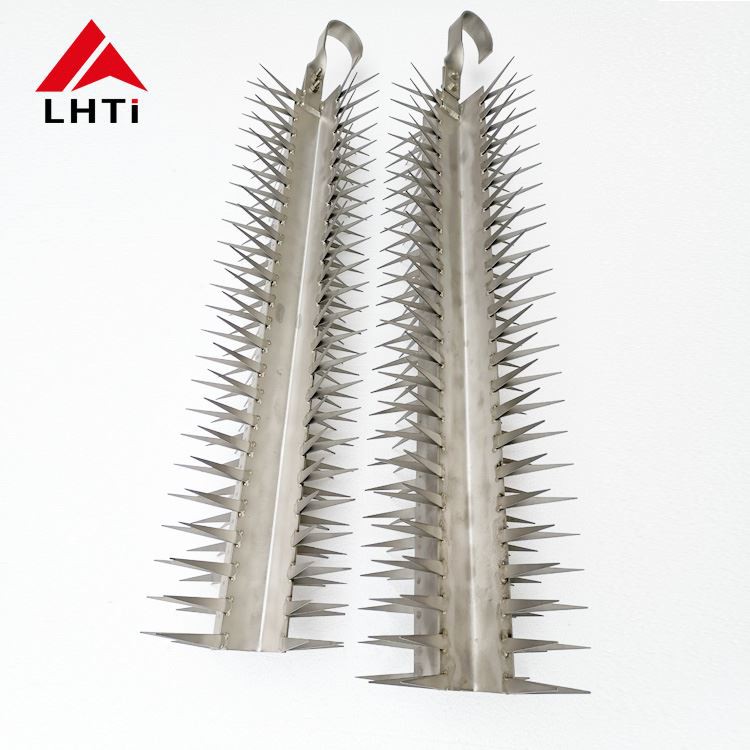

titanium rack titanium rack (2)

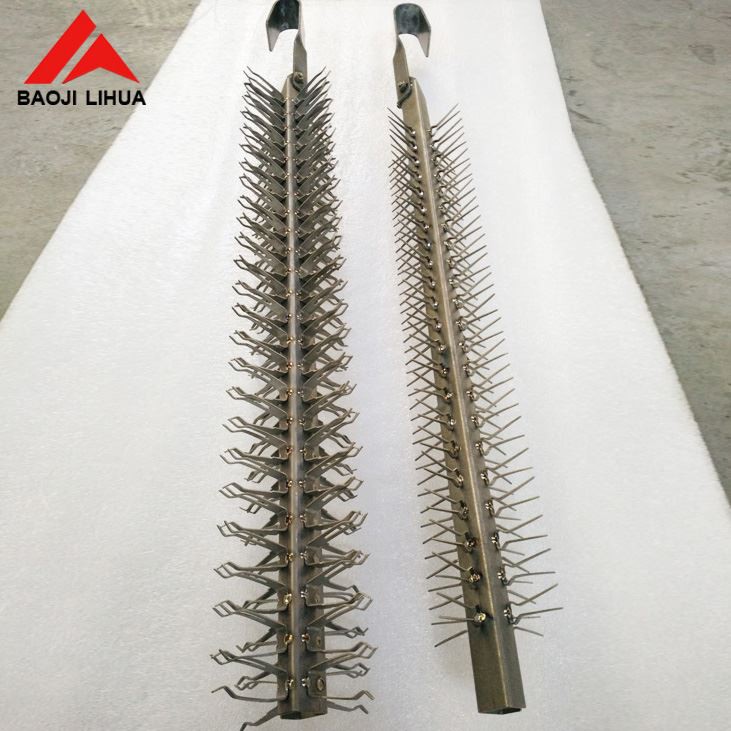

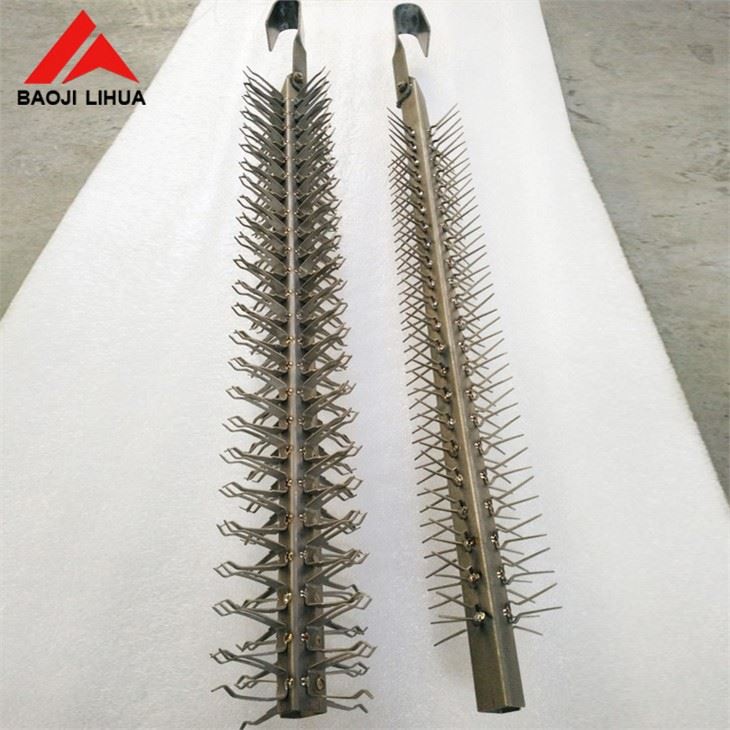

titanium rack

Application

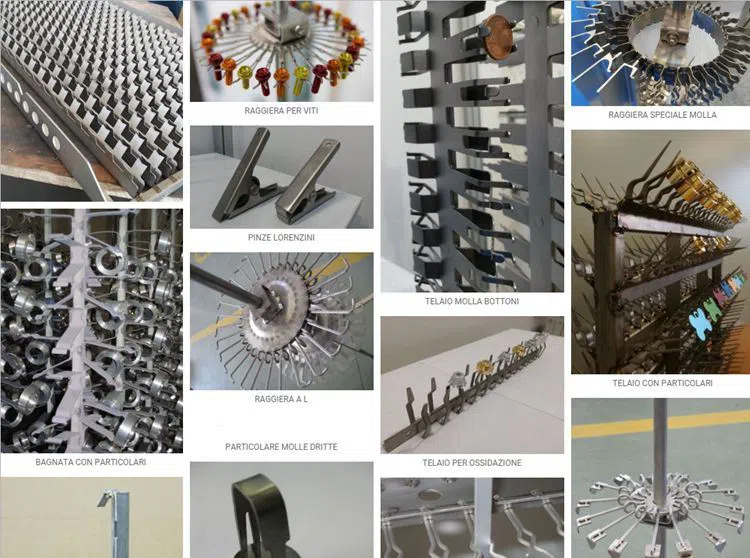

titanium rack

Related Products

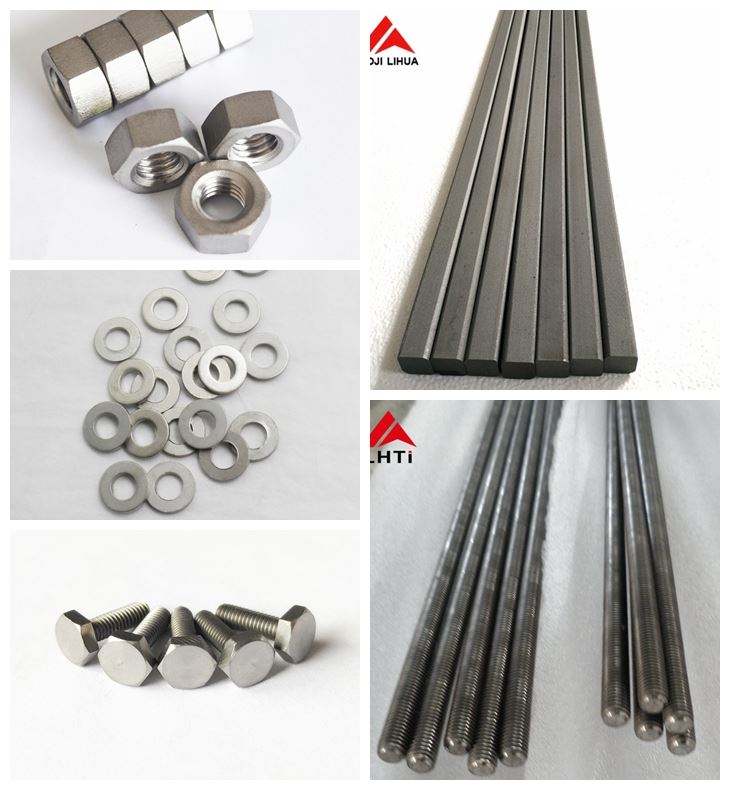

Titanium bolts, Titanium nuts, Titanium washer, Titanium threaded rod, Titanium welding wire
