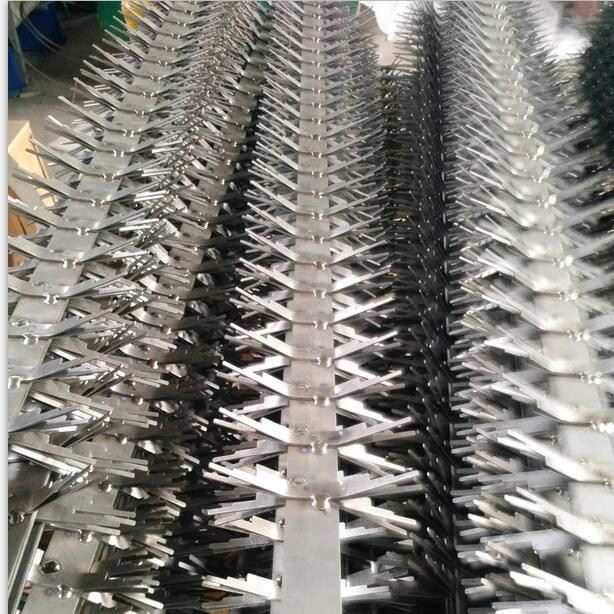

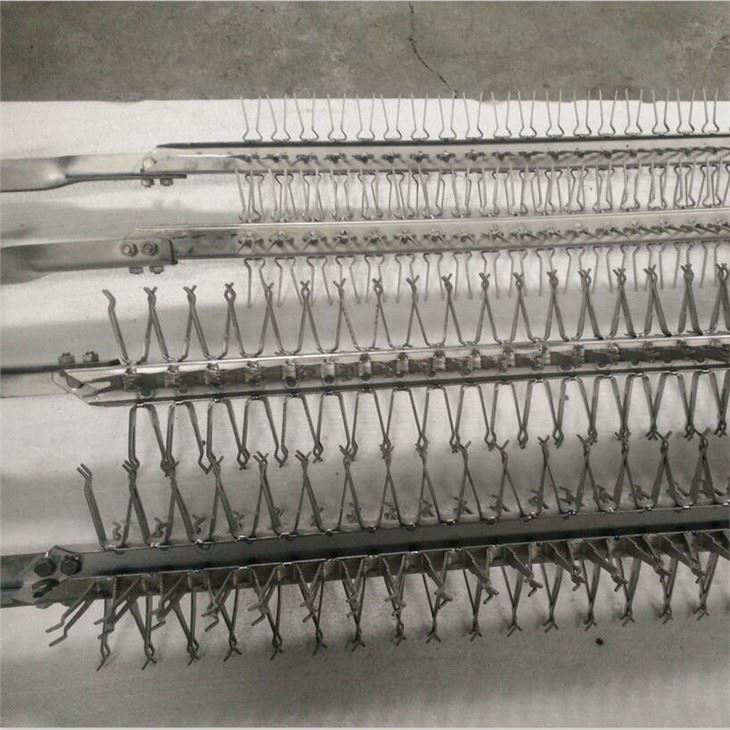

Titanium Racks For Anodizing

Titanium Racks For Anodizing

Product name: Titanium racks for anodizing
Material: Gr1 Gr2 titanium
Dimension: As customer's request
Surface:Pickled
Technique:Welding, Cutting,Bending

Send Inquiry

Chat Now

Product Introduction

Material	Titanium Gr1 Gr2
Technology	Sand Blasting, Acid Washing
Dimension & Shape	Different dimension and shape is available,or according to customer's drawing
Parameter	Current density≤2000A/M2 Temperature<65°C PH 0.1~14 Max content of Fluoride ion is 200PPM
Features	Superior electric catalytic property Strong anti-corrosion property High current efficiency property Keep the operating voltage stably Decrease the wastage of additive Keep the plating solution stable Long lifetime Different complex geometry design
Applications	Ø Precious metal plating(Ag, Au, Rh, Pd) Ø Hard chrome plating(Cr6+) Ø Base metal plating(Cu, Zn, Ni) Ø Precious metal recovery, etc.
Remarks	Titanium anode also called MMO anode,DSA & Insoluble anode Cathode also be provided
Packing	Plywood case or carton, or according to customer’s demand

Chemical composition (Wt%)

ASTM No.	Fe max	O max	N max	C max	H max	Pd	Al	Bal
Grade 1	0.2	0.18	0.03	0.1	0.015	-	-	Ti
Grade 2	0.3	0.25	0.03	0.1	0.015	-	-	Ti

Physical Properties (Min)

ASTM Grade	Alloy Composition	Tensile Strength	Yield Strength	Elongation min %
ksi	Mpa	ksi	Mpa
Grade 1	Unalloyed Ti ("Pure") 35A -CP1	35	240	25	170	30
Grade 2	Unalloyed Ti ("Pure") 50A -CP2	58	400	40	275	25

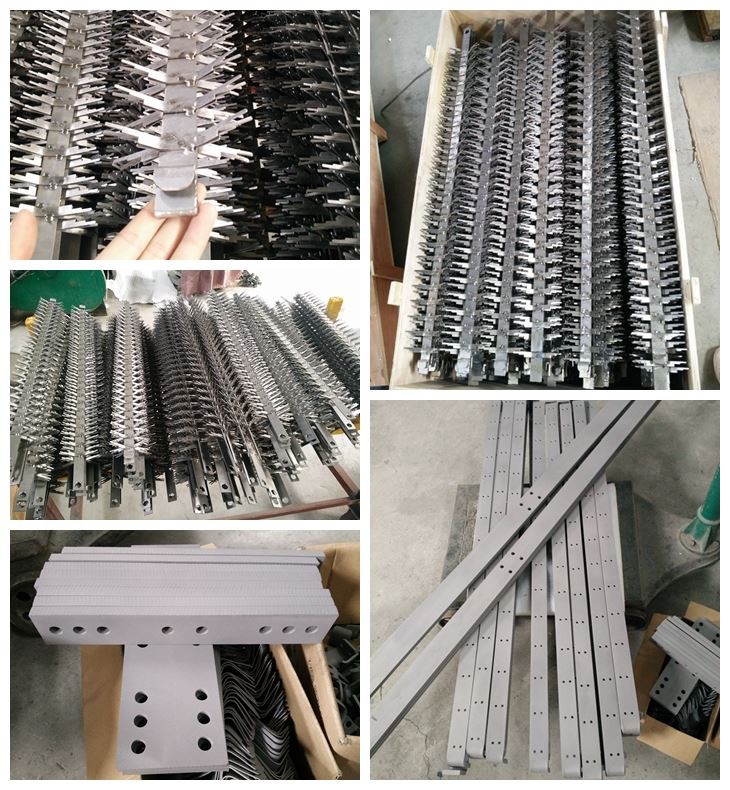

Titanium rack (2)
