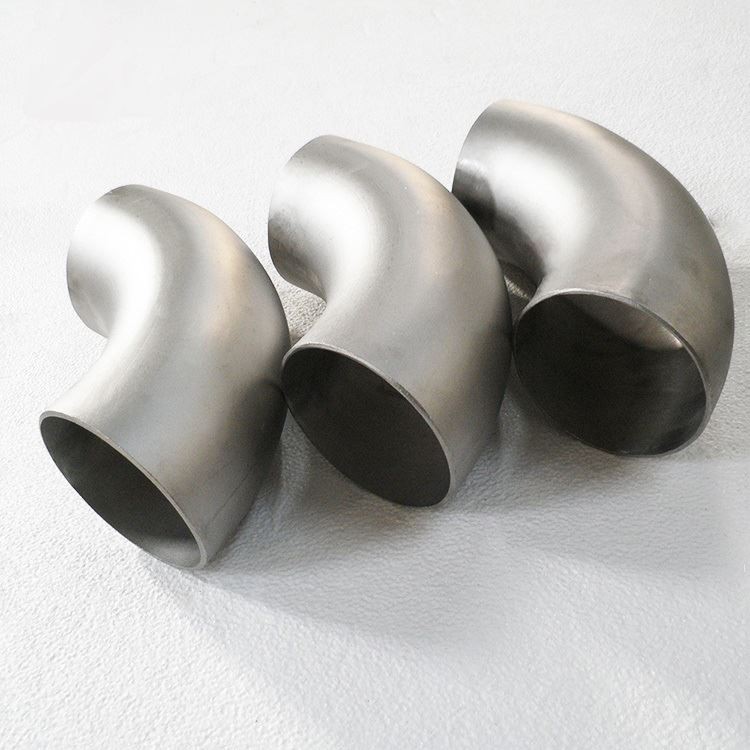

Titanium Grade 1 Elbows
Standard: ASME B16.9
Material: Titanium Gr1
Unit Price: $10usd/pc-$200usd/pc
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded
MOQ:10pcs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer

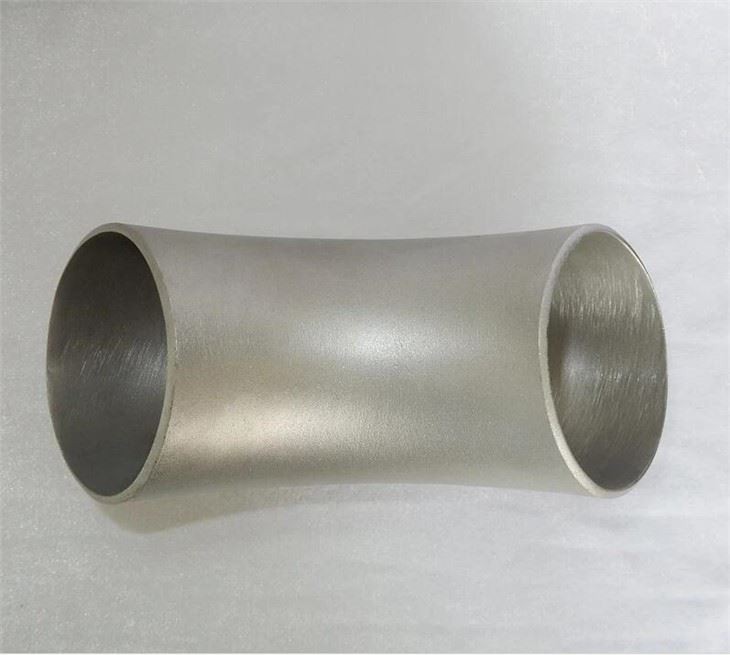

Titanium grade 1 elbows
Material | GR1 Ti |
Standard | ASTM B363, EN 10253, DIN 2065 |
Bend Degrees | 30, 45, 60, 90, 120, 180 degrees bend |
Type | R=1.0D, R=1.5D, R=3D |
Surface Treatment | Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing |
Application | Chemical industry, petroleum industry, construction industry, power industry, gas industry, shipbuilding ,domestic installation and other |

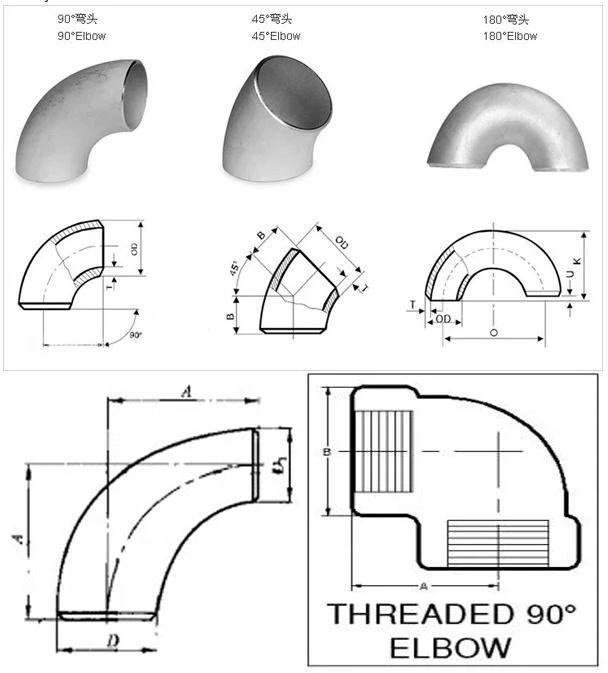

Classification of elbows:
1.Butt welding elbow can be divided into long radius butt welding elbow and short radius butt welding elbow according to its radius of curvature. The radius of curvature of long radius butt welding elbow is equal to 1.5 times the outer diameter of the pipe, i.e. r = 1.5D. The radius of curvature of short radius butt welding elbow is equal to the outer diameter of the pipe, i.e. r = 1D. Where D is the diameter of butt welding elbow and R is the radius of curvature. Unless otherwise specified, 1.5D elbow is generally selected.
2.According to the pressure level, there are: sch5s, sch10s, sch10, sch20, sch30, sch40s, STD, sch40, sch60, sch80s and XS; Sch80、Sch100、Sch120、Sch140、Sch160、XXS
3.According to the angle of elbow, there are 45 degree butt welding elbow, 90 degree butt welding elbow, 180 degree butt welding elbow and other elbows with different angles.
Chemical composition (Wt%)
ASTM No. | Fe max | O max | N max | C max | H max | Pd | Al | Bal |
Grade 1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | - | - | Ti |
Physical Properties (Min)
ASTM Grade | Alloy Composition | Tensile Strength | Yield Strength | Elongation min % | ||
ksi | Mpa | ksi | Mpa | |||
Grade 1 | Unalloyed Ti ("Pure") 35A -CP1 | 35 | 240 | 25 | 170 | 30 |

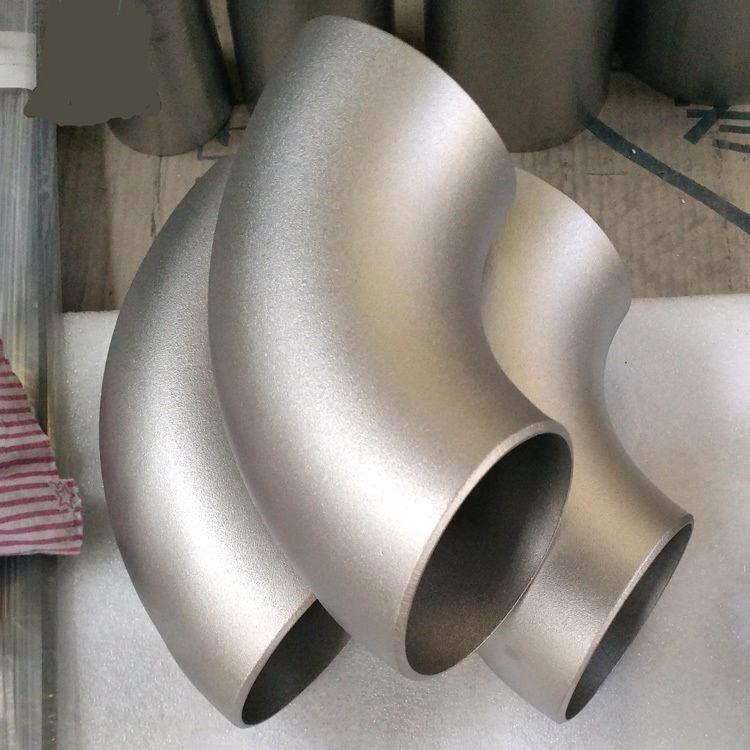

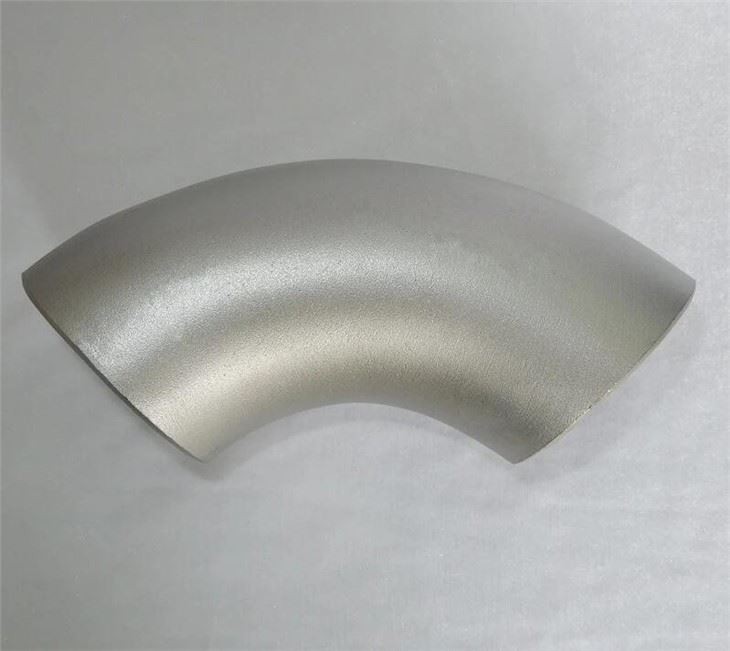

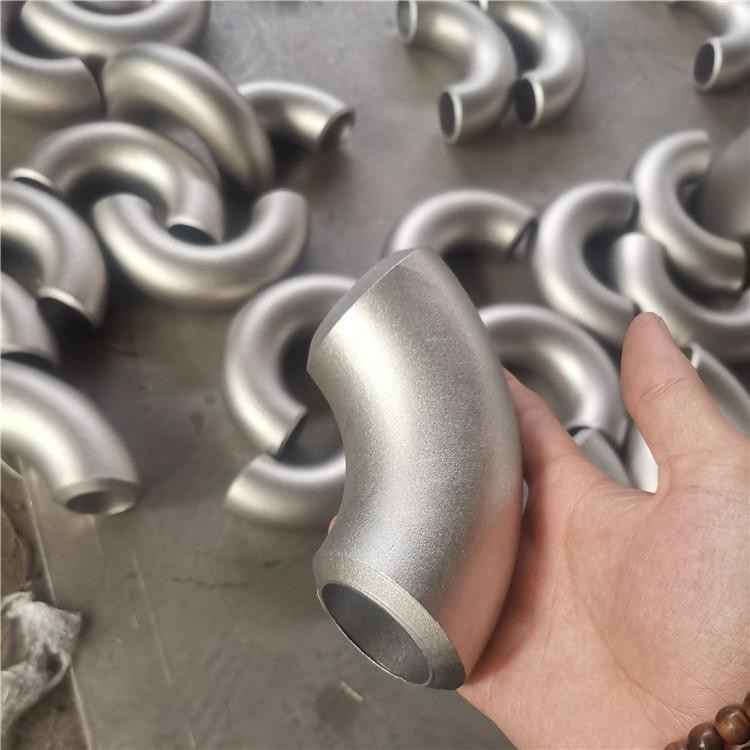

Detailed Images:

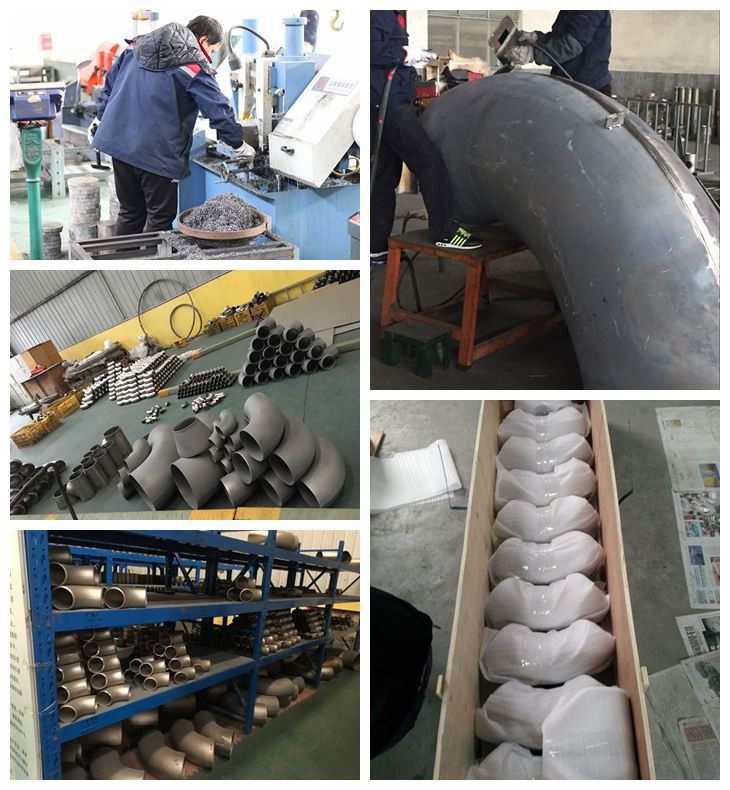

About our company:
