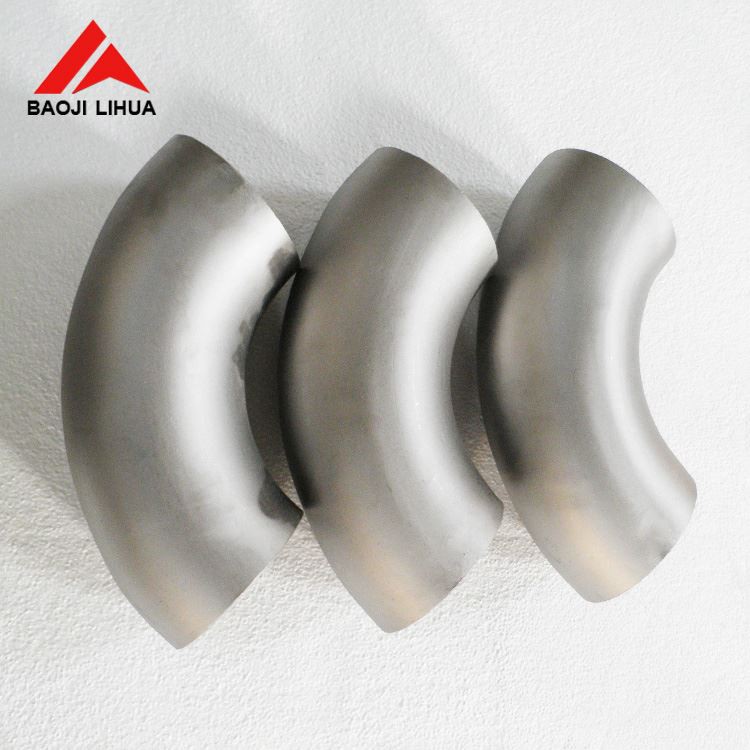

Titanium 90 Degree Elbow Bend
Standard: ASME B16.9
Material: Gr1, Gr2, Gr7, Gr12
Unit Price: $10usd/pc-$200usd/pc
Outer Diameter: 1/2"-48"
Wall Thickness: Sch5s-Sch160s
Technique: Seamless/Welded
MOQ:10pcs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium bar manufacturer
Titanium elbows above DN100 are mainly produced through the extrusion and welding technology of titanium plates, while titanium elbows below DN100 are through the seamless pipe extrusion process.
Product Information
Grade: GR1 GR2 GR7 GR12
Standard: ASTM B363, ASME SB363, ASME B16.9, ANSI B16.9, JIS, ISO, BS, DN etc.
Type: Long radius, Short radius
Technique: Seamless, Welded
Outer Diameter: 1/2"-48"(DN15-DN1200)
Wall Thickness: Sch5s-Sch160s
Applications:
When you need to bend the pipe system to avoid clogging, pipe elbows can provide a curved connection with a firm and fixed seal, and the special metals used to produce these pipe fitings will play a big role. Titanium elbows have strong corrosion resistance and can withstand corrosive chemicals, especially organic and mineral acids like acetic acid, sulfuric acid and chlorine.
Common elbow applications:
Petrochemical industry
Boiler
Power generation
Pulp and paper plant
Ventilation system
Metallurgy
Water desalination
Medical equipment
Chemical composition | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | ||||||
Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
Grade 12 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |

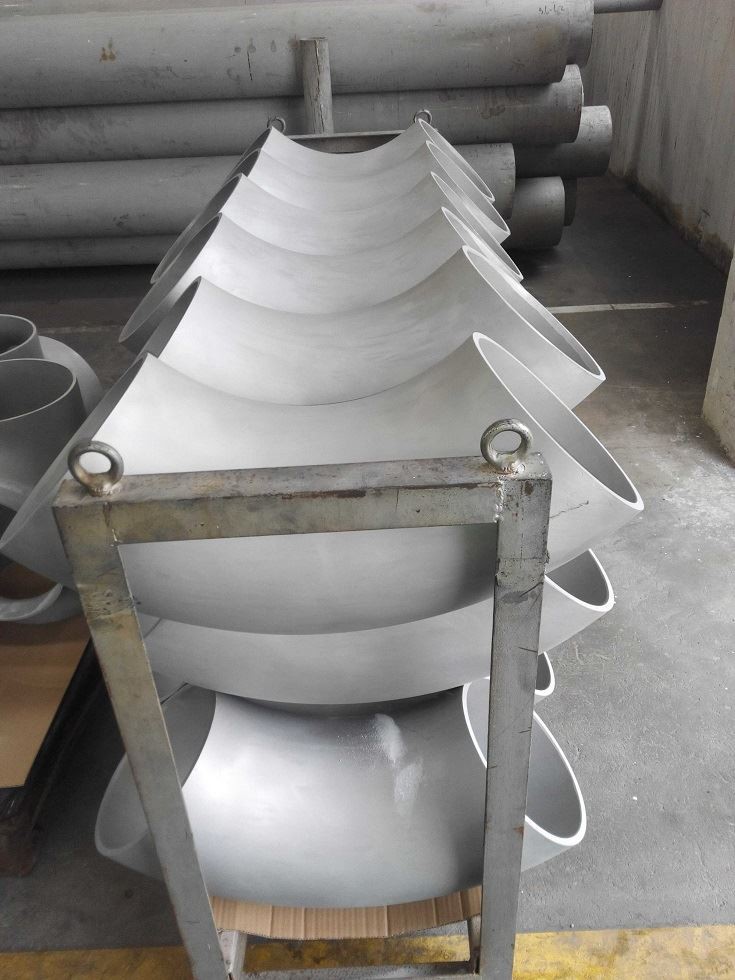

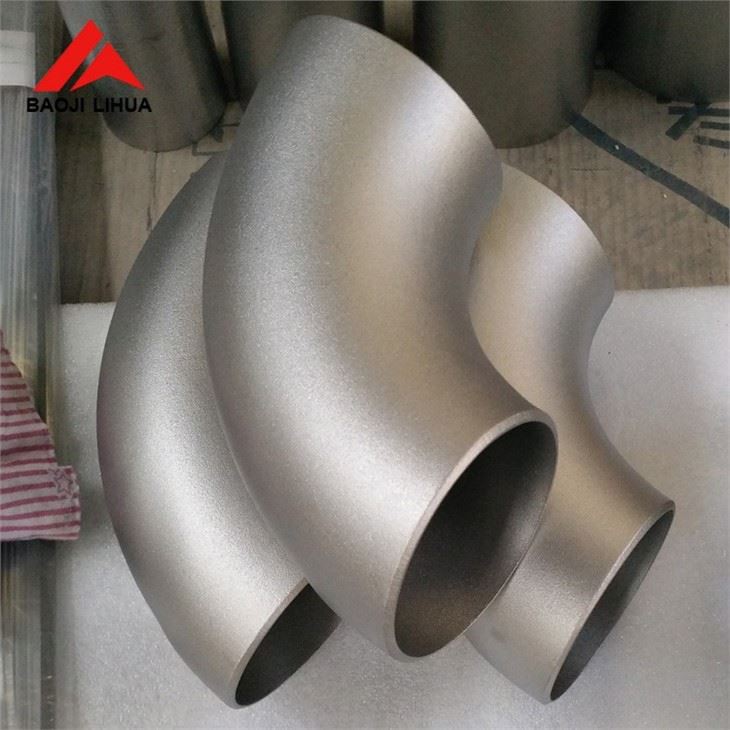

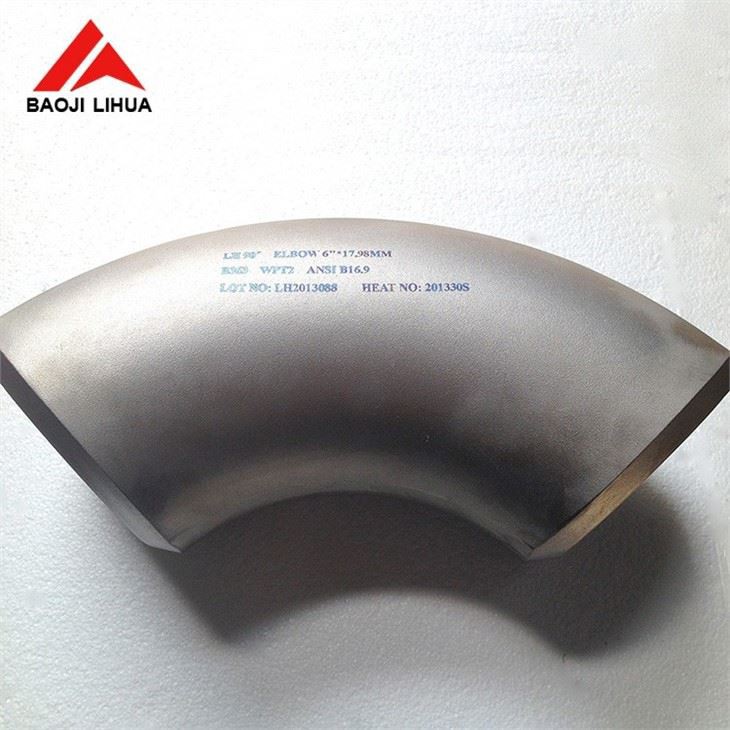

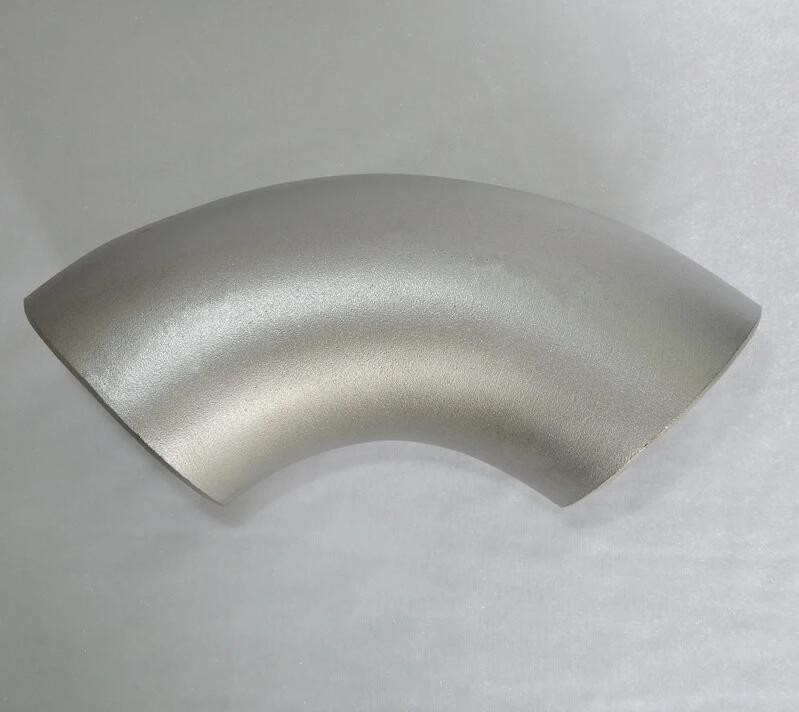

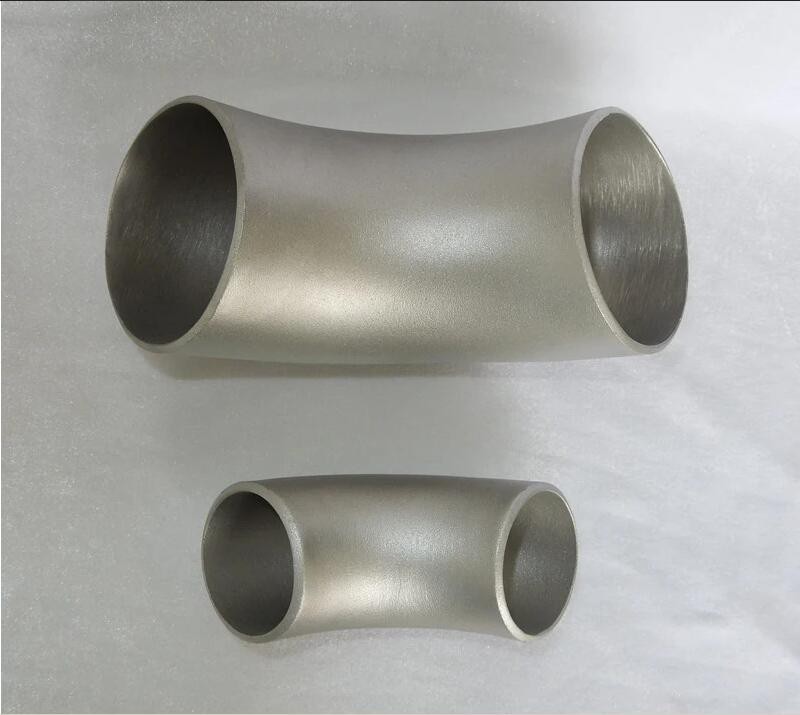

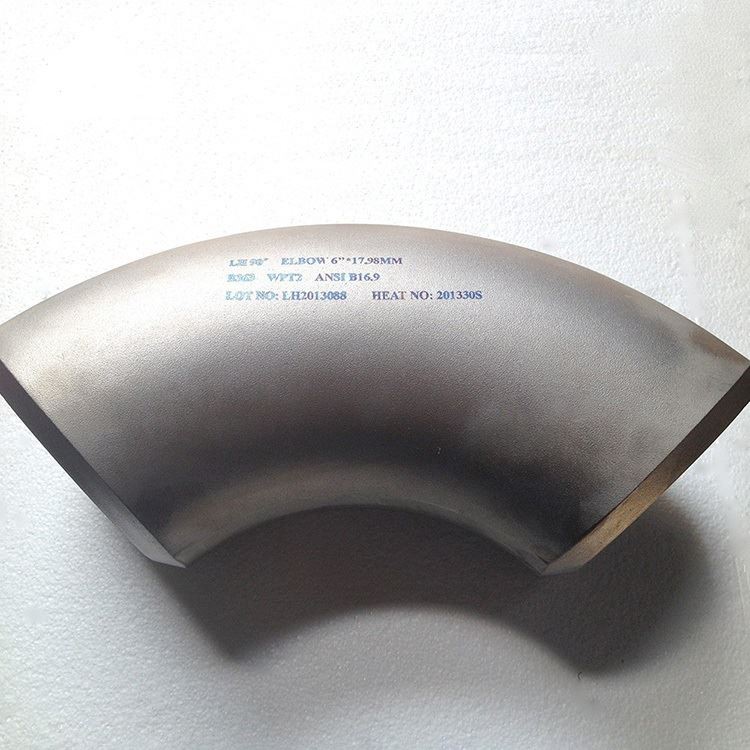

Detailed Images:
About our company:
