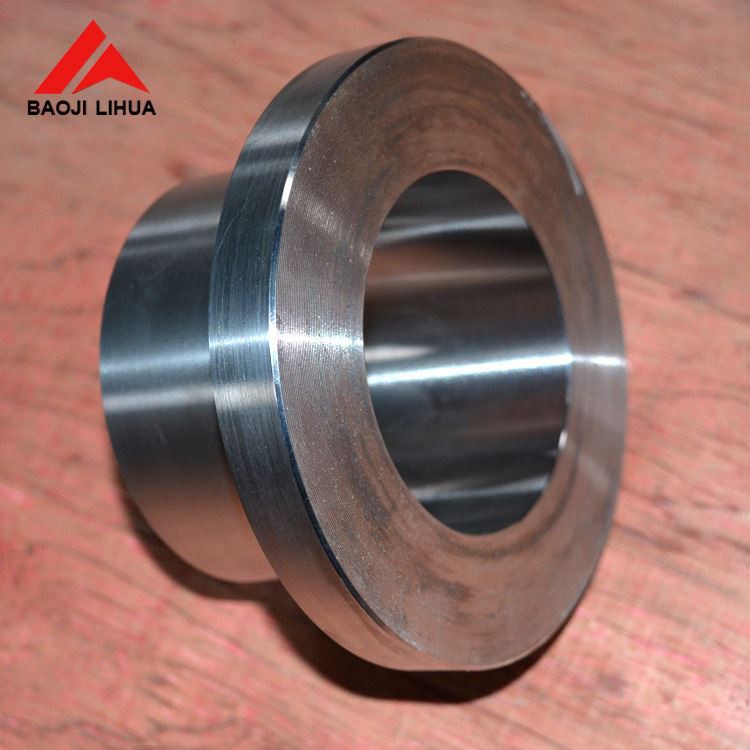

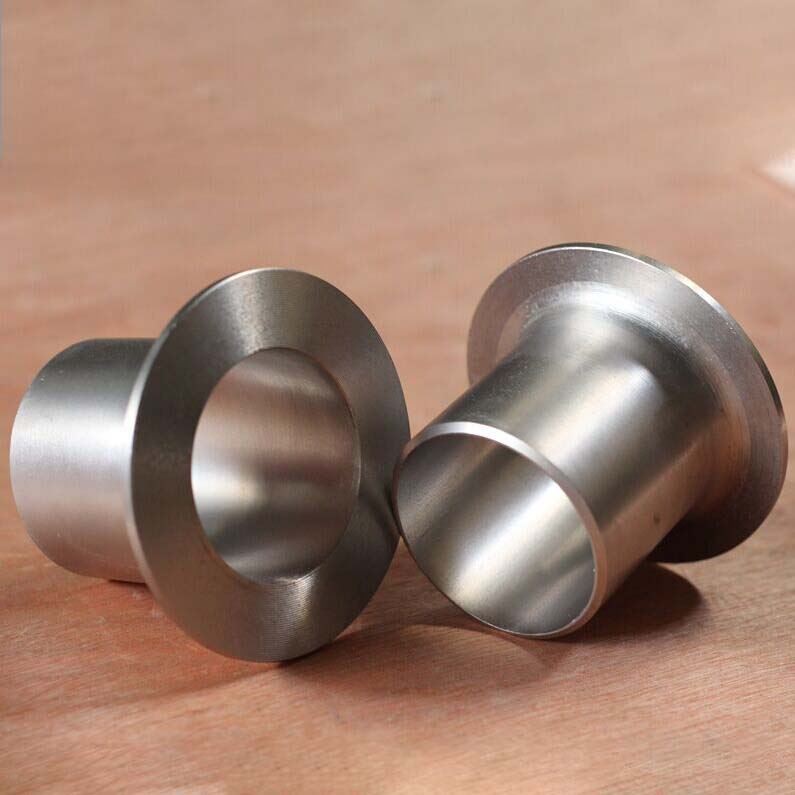

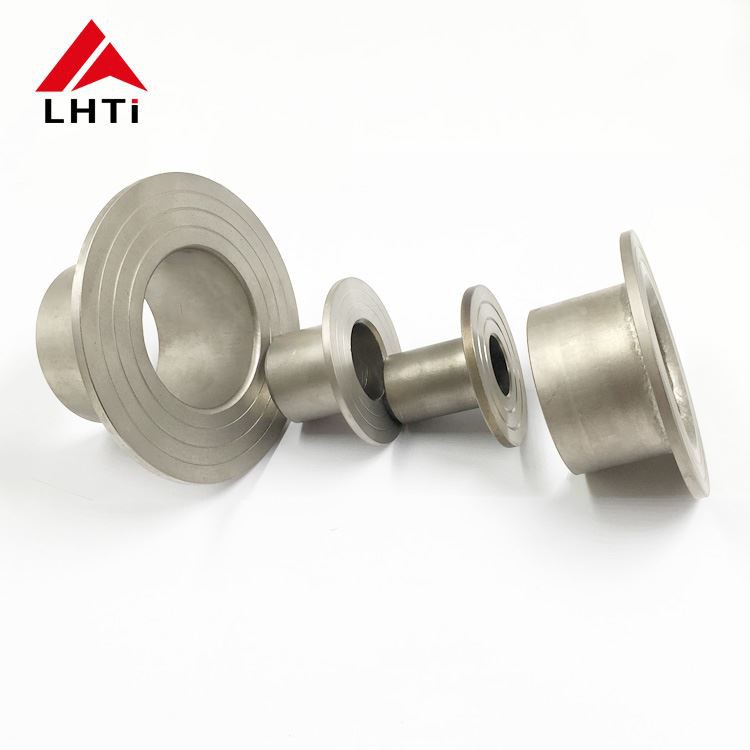

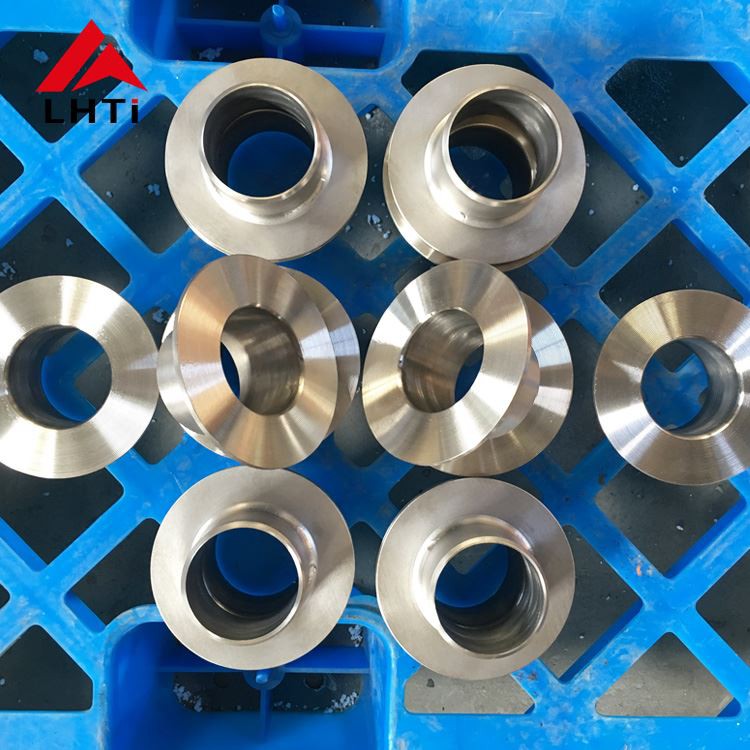

ANSI B16.9 Titanium Stub Ends

ANSI B16.9 Titanium Stub Ends

Standard: ANSI B16.9
Material: Gr1, Gr2, Gr7, Gr9, Gr12
Size: NPS1/2″-48″ (DN15-1200)
Wall Thickness: Sch10s—Sch80s or bigger to Sch160s
Technique: Seamless/Welded
Type: Short pattern, Long pattern
MOQ:3PC
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium pipe fittings manufacturer

Send Inquiry

Chat Now

Product Introduction

Stub end refers to the molding method of forming a straight wall or flange with a certain angle along the closed or unclosed curved edge by using the function of the mold on the flat or curved part of the blank. Stub end is a kind of stamping process.

Product Information of ANSI B16.9 Titanium Stub Ends:

NPS	Grade	Pattern	Thickness	Type	Standard	Available Tests
1/2"~ 4" (DN 15-100)	Gr1,Gr2, Gr7, Gr9,Gr12	SP, LP	sch 5s-sch 80	SMLS	ANSI/ASME B16.9 MSS SP-43, GB/T-27684 EN 10253,EN1092, DIN 2616	PMI, Tensile test, Hydrostatic test, DPI/RT/X-ray, Hardness
5"~ 8" (DN 125-200)			sch 10s-sch 80	WELDED
10"~ 48" (DN 250-1200)			sch 10s-28mm	WELDED

Chemical composition
	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Ti
Grade 1	0.03	0.08	0.015	0.20	0.18	/	/	/	/	/	Bal
Grade 2	0.03	0.08	0.015	0.30	0.25
Grade 7	0.03	0.08	0.015	0.30	0.25	/	/	0.12-0.25	/	/	Bal
Grade 9	0.05	0.08	0.015	0.25	0.12	2.0-3.5	1.5-3.0
Grade 12	0.03	0.08	0.015	0.25	0.15	/	/	/	0.2-0.4	0.6-0.9	Bal
