Cold Rolled Titanium Plate
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer

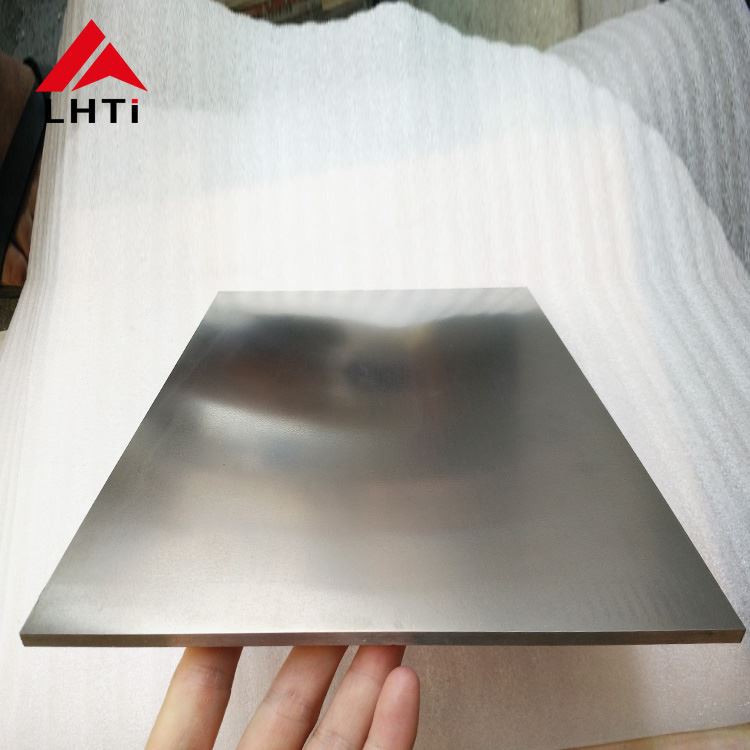

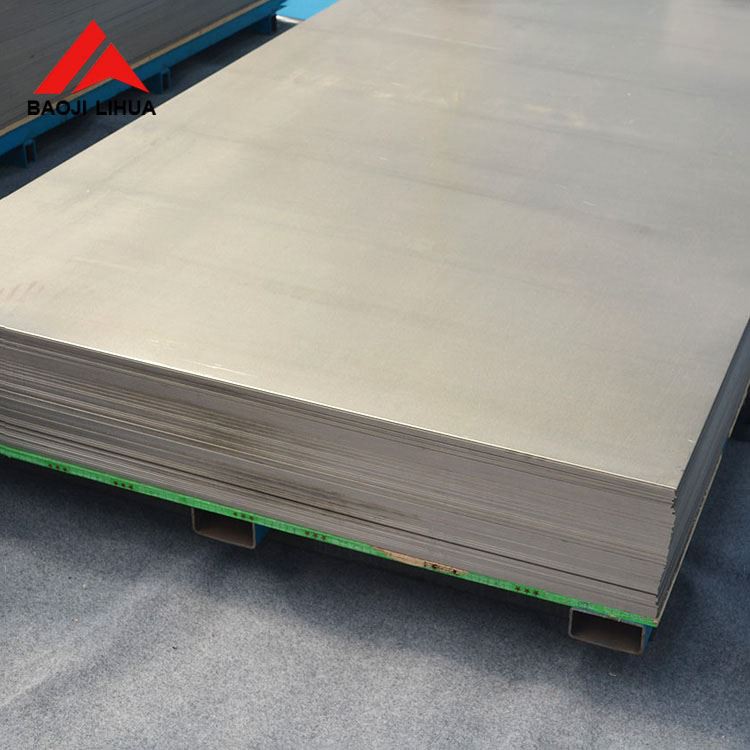

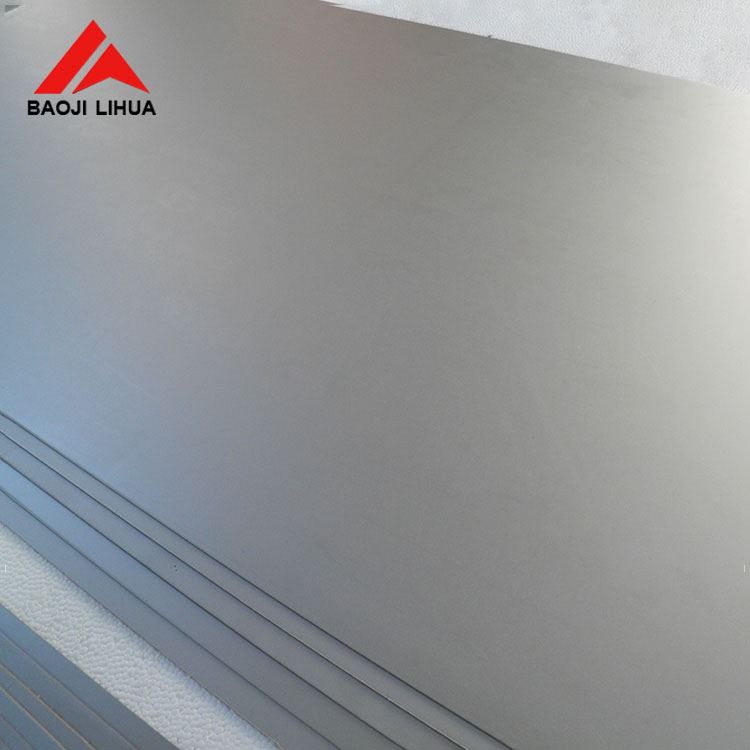

Cold Rolled Titanium Plate
Product Information
Material: GR1, GR2, GR4, GR5, GR7, GR12
Russia Grade: BT1-100,BT1-0,BT6 etc.
Standard: ASTM B265
Thickness: 0.5-100mm
The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require.
Surface: Pickling, Polishing, Sand blasting etc.
Type: Sheet, plate, foil; Straight & roll
State: R/Y/M
Permissible Variations in Thickness of Cold Rolled Titanium Plate
| Thickness(mm) | Permissible thickness tolerance(mm) |
| (3.71 to 4.76), excl | 0.36 |
| 3.33 to 3.68 | 0.31 |
| 2.92 to 3.30 | 0.25 |
| 2.51 to 2.90 | 0.23 |
| 2.13 to 2.49 | 0.2 |
| 1.85 to 2.11 | 0.18 |
| 1.50 to 1.83 | 0.15 |
| 1.04 to 1.47 | 0.13 |
| 0.69 to 1.02 | 0.1 |
| 0.43 to 0.66 | 0.08 |
| 0.20 to 0.41 | 0.05 |
| 0.15 to 0.18 | 0.04 |
| 0.13 | 0.03 |
Permissible Variations in Width and Length of Cold Rolled Titanium Plate
| Specified width.in.(mm) for Thickness under3/16 in | Permissible Variations in width,in.(mm) | ||||||||
| 24 to 48（610 to 1220）excl 48(1220) and over | 1/16(+1.60),-0 1/8(+3.20),-0 | ||||||||
| Specified length ft(m) | Permissible Variations in length,in.(mm) | ||||||||
| Up to 10(3) Over 10 to 20(3 to 6) | 1/4(+6.35),-0 1/2(+12.7),-0 | ||||||||
Detailed Images
Marking

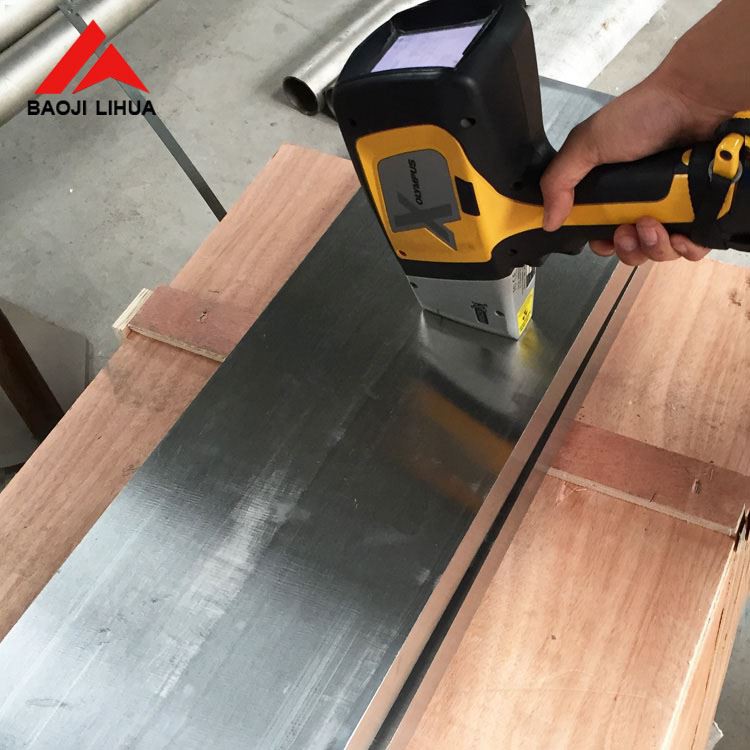

Quality Inspection
Packaging
Our Company
As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium sheet to many countries. The quality of our products is widely recognized.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
