Gr12 Titanium Sheet

Product Name: Titanium Plate
Standard: ASTM B265
Material: GR1, GR2, GR5, GR7, GR12
Unit Price: $15usd/kg-$48usd/kg
Thickness: 0.5-100mm
Length: 500-6000mm Or As You Require
Width: 500-1000mm Or As You Require
Surface: Pickling, Polishing, Sand Blasting
MOQ:50kgs
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Plate Manufacturer
Send Inquiry
Chat Now
Product Introduction

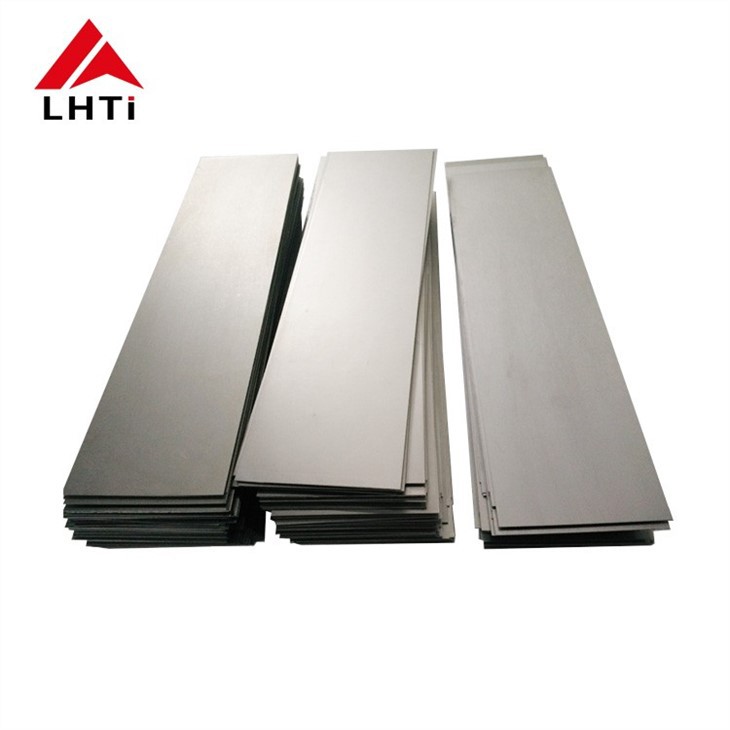

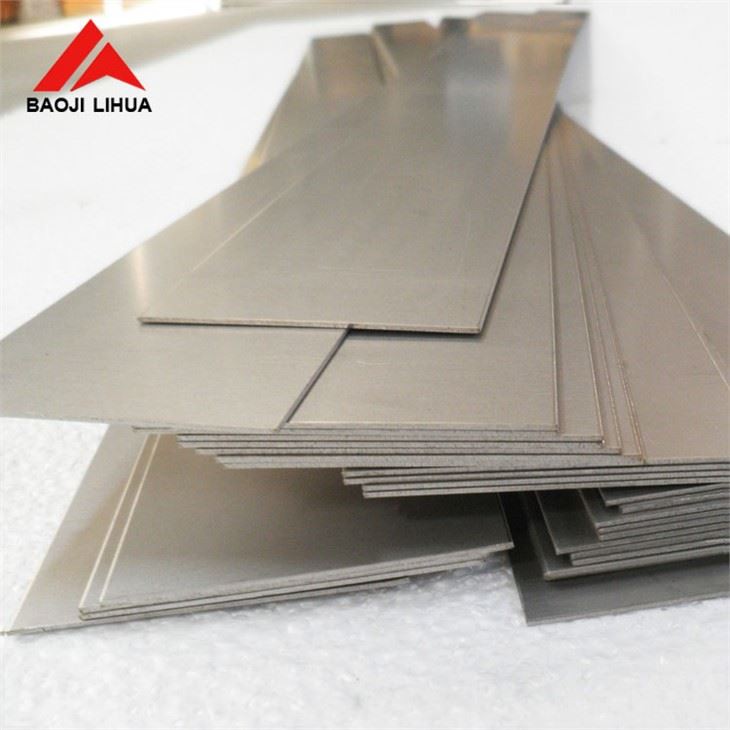

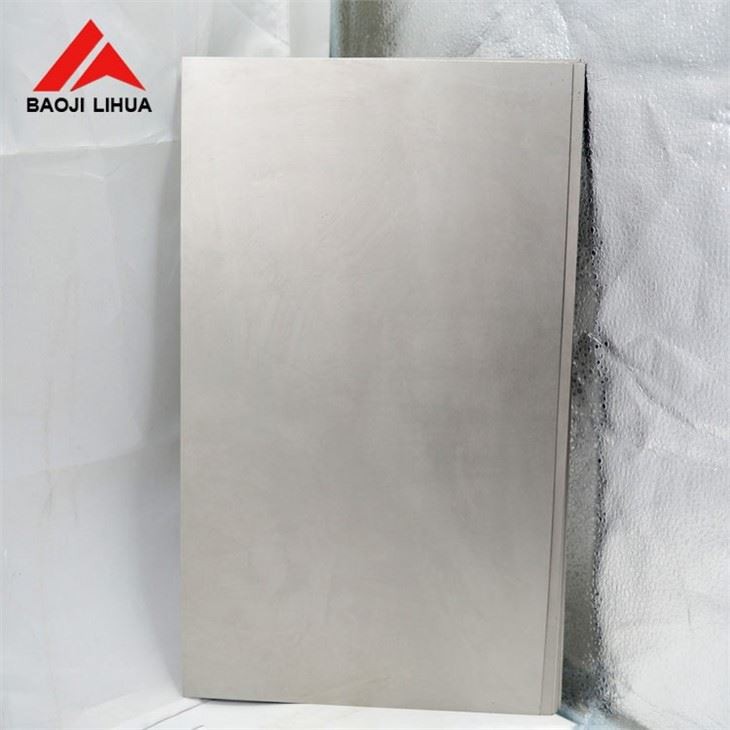

Gr12 Titanium Sheet


Gr12 Ti-0.3Mo-0.8Ni titanium-molybdenum-nickel alloy sheet is a kind of corrosion-resistant titanium alloy. The alloy contains 0.3%Mo and 0.8%Ni, which not only strengthens the alloy, but also resists high temperature. Its corrosion resistance is significantly better than pure titanium sheet. It also has good process plasticity and welding performance, and has been widely used in the chemical industry.


Product Information


Material: GR1, GR2, GR4, GR5, GR7, GR12

Russia Grade: BT1-100,BT1-0,BT6 etc.

Standard: ASTM B265

Thickness: 0.5-100mm

The size of standard sheet is 5/10mm × 1000mm × 2000mm. We can also cut it as you require.

Surface: Pickling, Polishing, Sand blasting etc.

Type: Sheet, plate, foil; Straight & roll

State: R/Y/M


Chemical Composition


Chemical compositions(weight%,<=)

Mo

Ni

Fe

C

N

0.2-0.4

0.6-0.9

0.30

0.08

0.03

H

O

Ti

Others

Total

0.015

0.25

Remainder

0.10

0.40


Physical Properties


Physical properties(>=)

Σb

Tensile Strength

(Mpa)

σr0.2

Yield Strength

(Mpa)

δL0+50mm

Elongation

(%)

ψ

Reduction of area

(%)

485

345

18

25

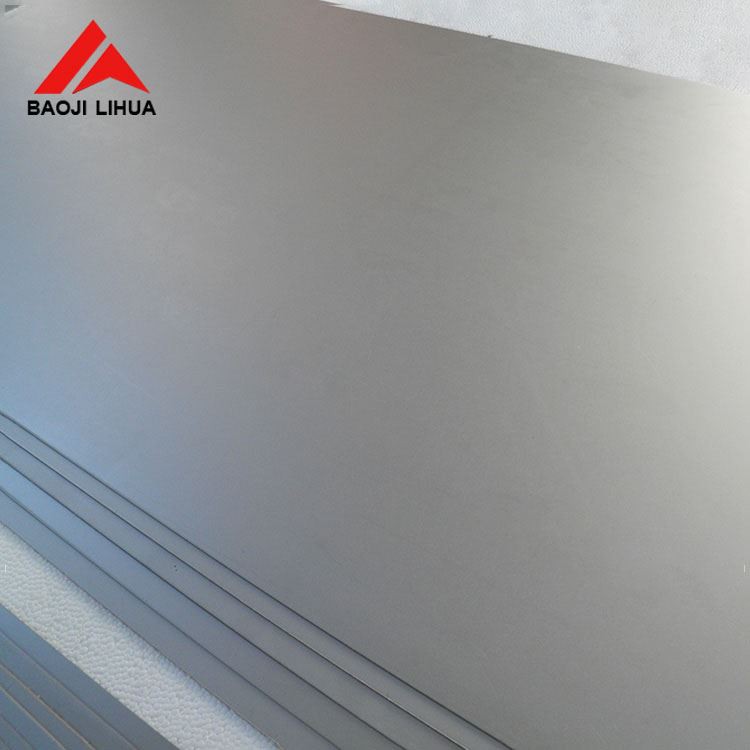

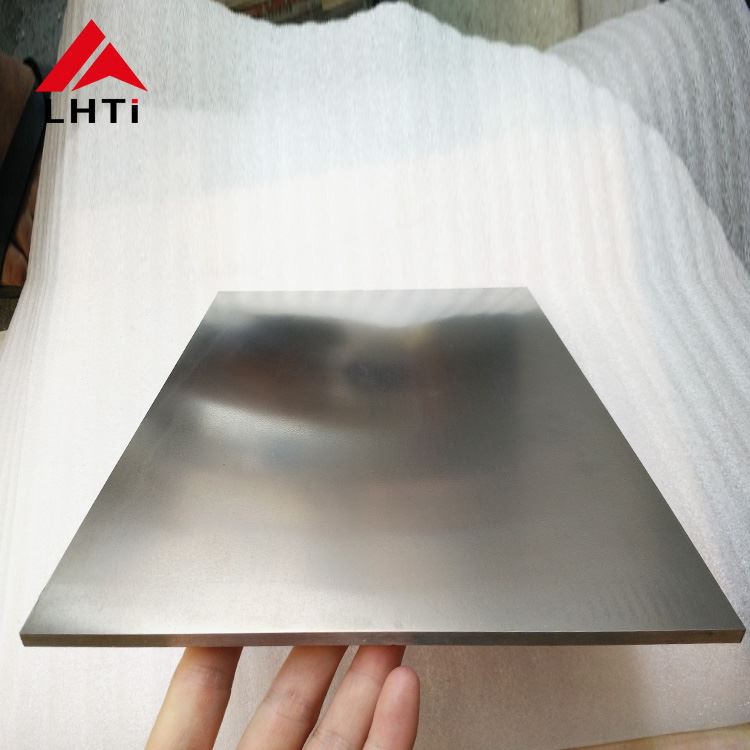

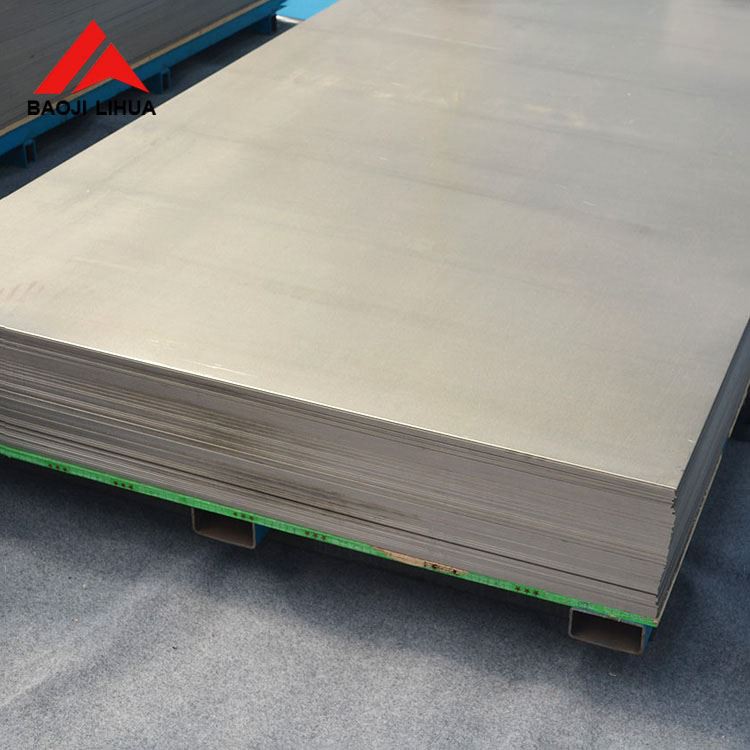

Detailed Images


titanium plate

titanium plate

titanium plate

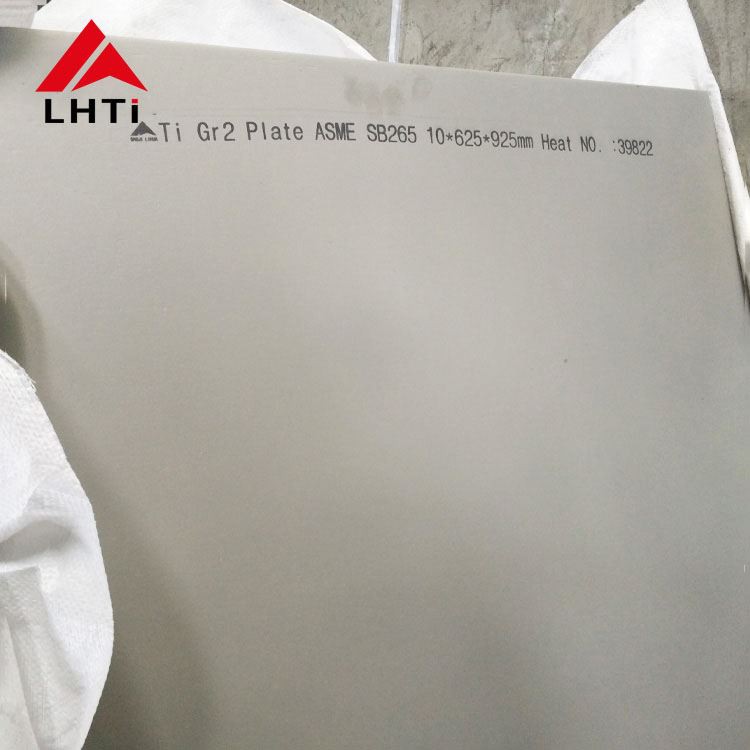

Marking


titanium plate

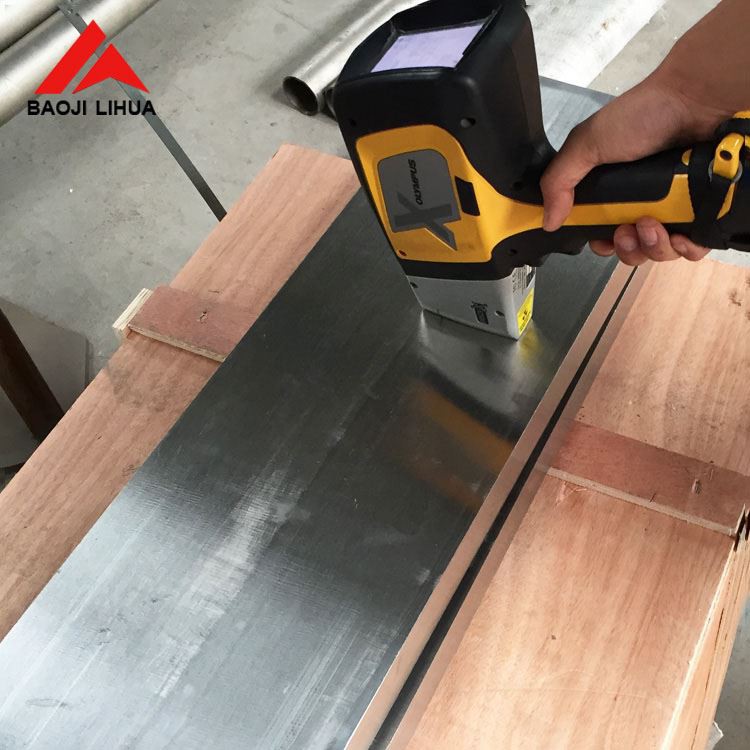

Quality Inspection


titanium plate

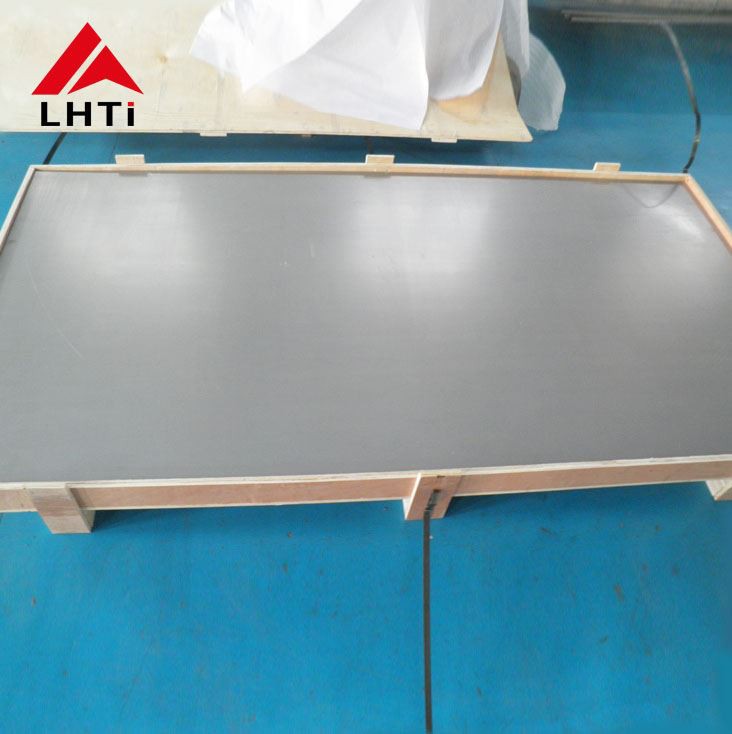

Packaging


titanium-sheet


Our Company


As a leading manufacturer & trader of titanium products for over 15 years, Baoji Lihua has exported titanium sheet to many countries. The quality of our products is widely recognized.

Customized products are always welcomed.

We know the market very well so our price will make you more competitive.

We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
