19mm Titanium Pipe For Heat Exchanger

 19mm Titanium pipe for heat exchanger

Commonly used heat exchange tube size (outer diameter x wall thickness) is mainly φ 19mmx2mm, φ 25mmx2mm.5mm and φ 38mmX2mm.5mm seamless tube and φ 25mmx2mm and φ 38mmx2mm.5mm seamless tube. Standard tube length includes 1.5, 2.0, 3.0, 4.5, 6.0, 9.0m, etc. The use of small diameter can increase the heat transfer area per unit volume, compact structure, reduce metal consumption, improve the heat transfer coefficient. It is expected that the heat exchange tube of the same diameter heat exchanger is changed from φ 25mm to φ 19mm, the heat exchange area can be increased by about 40%, saving more than 20% of metal.

Standard: ASTM B338

Product Name: Titanium seamless pipe for heat exchanger

Material: Gr2

Type: Seamless

Shape: Round

Outer Diameter: 10mm 12mm 14mm 16mm 19mm 20mm 25mm 32mm 38mm 40mm 45mm 50mm 57mm etc

Customized OD is available

Wall Thickness: 1.24-30mm

Length: Max 16000mm

Surface: Bright

Chemical composition (Wt%)

Physical Properties (Min)

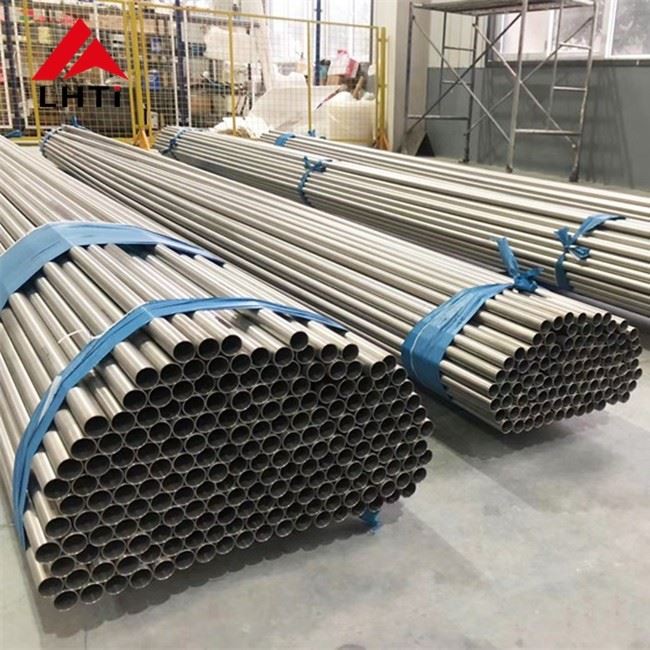

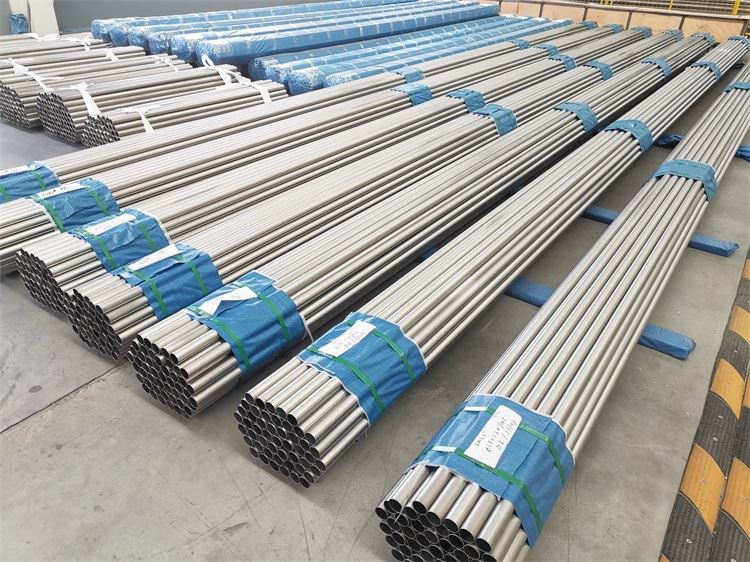

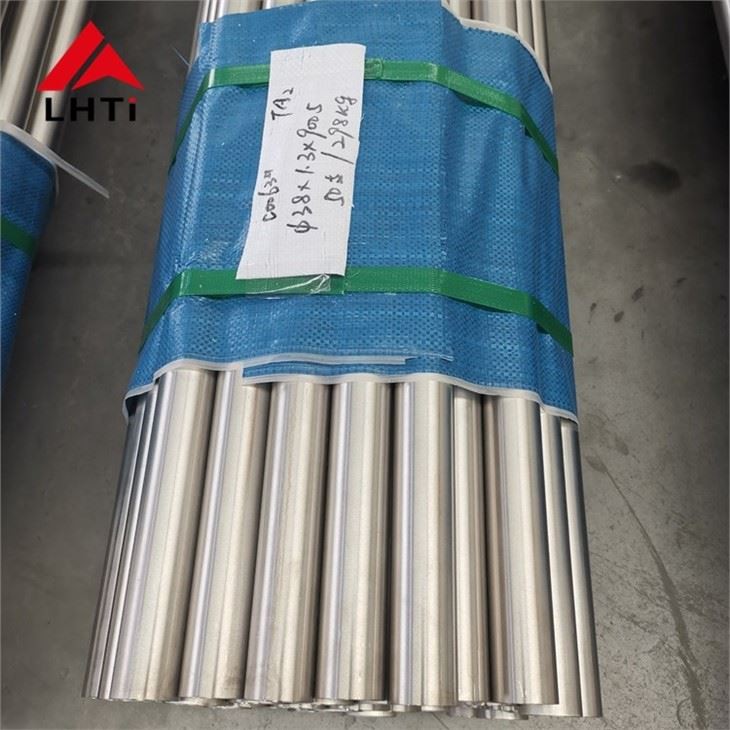

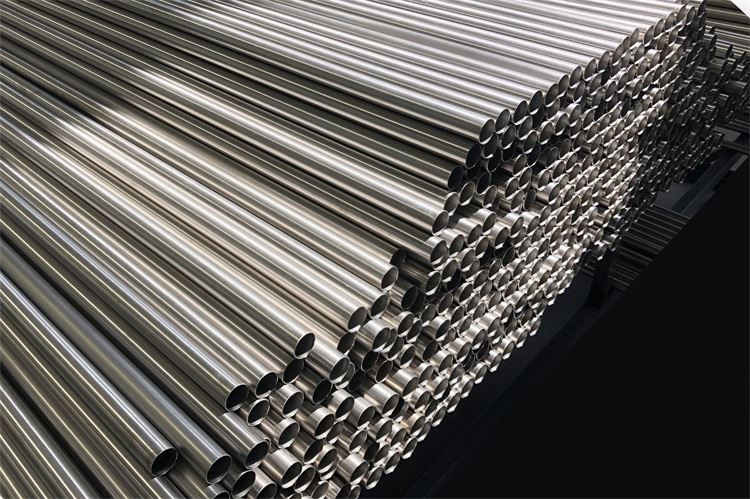

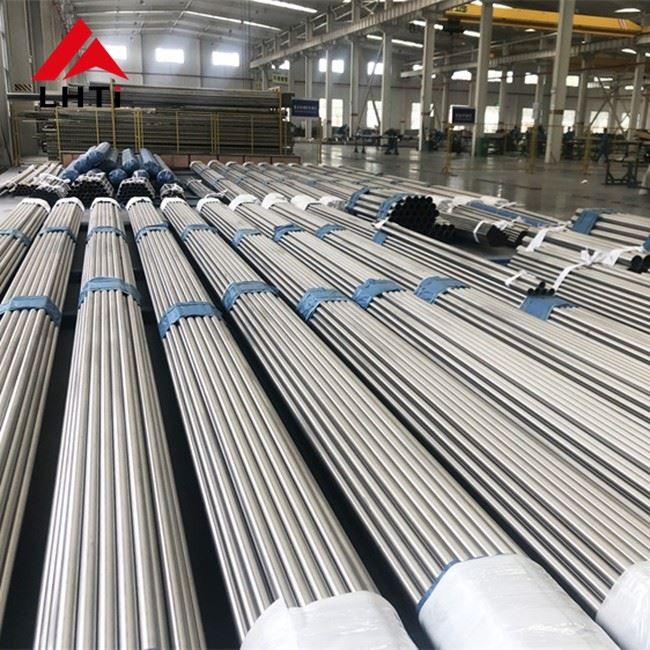

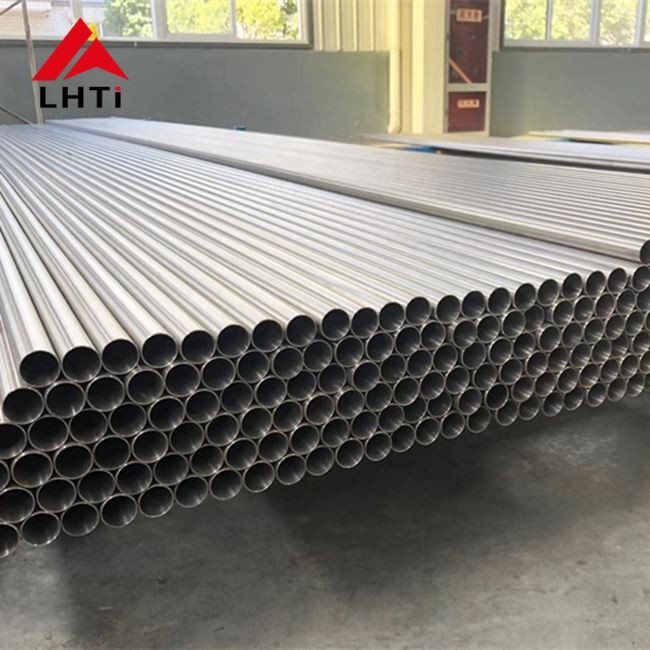

Detailed images:

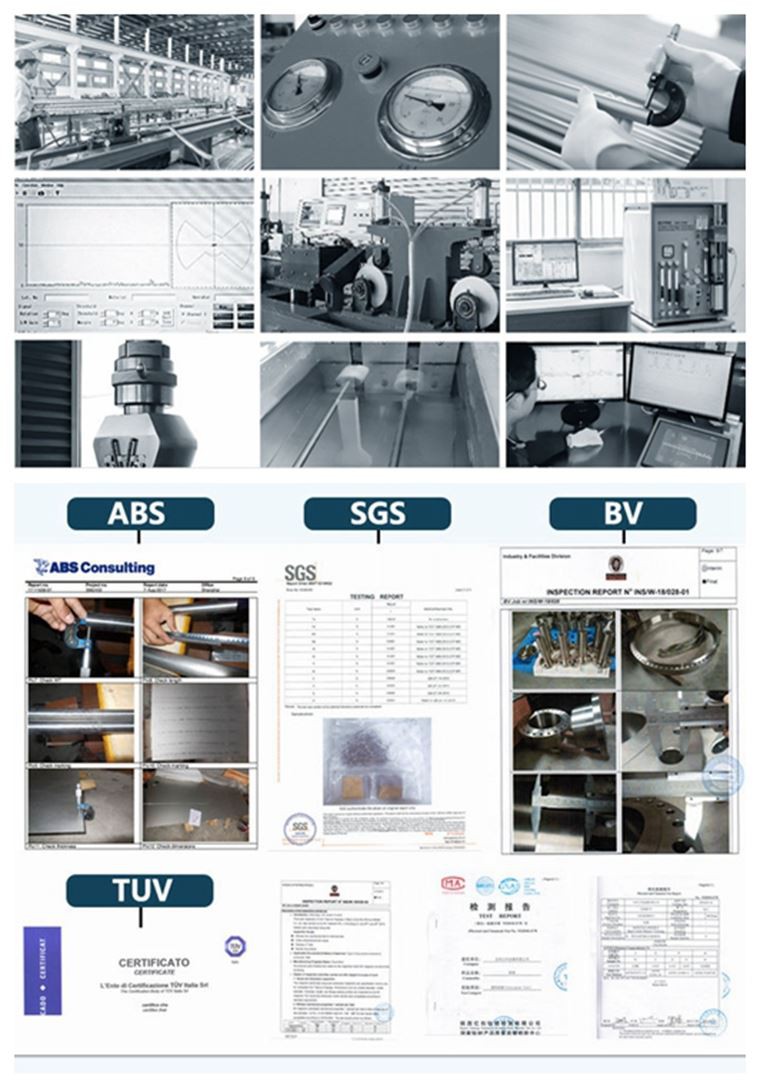

Titanium tubes Quality testings:

Dimention inspection, Tensile testing, UT ,PT ,Chemical composition inspection,

Hydrodtatic test, Eddy current inspection,Radiographic inspection,Thickness inspection,PMI inspection

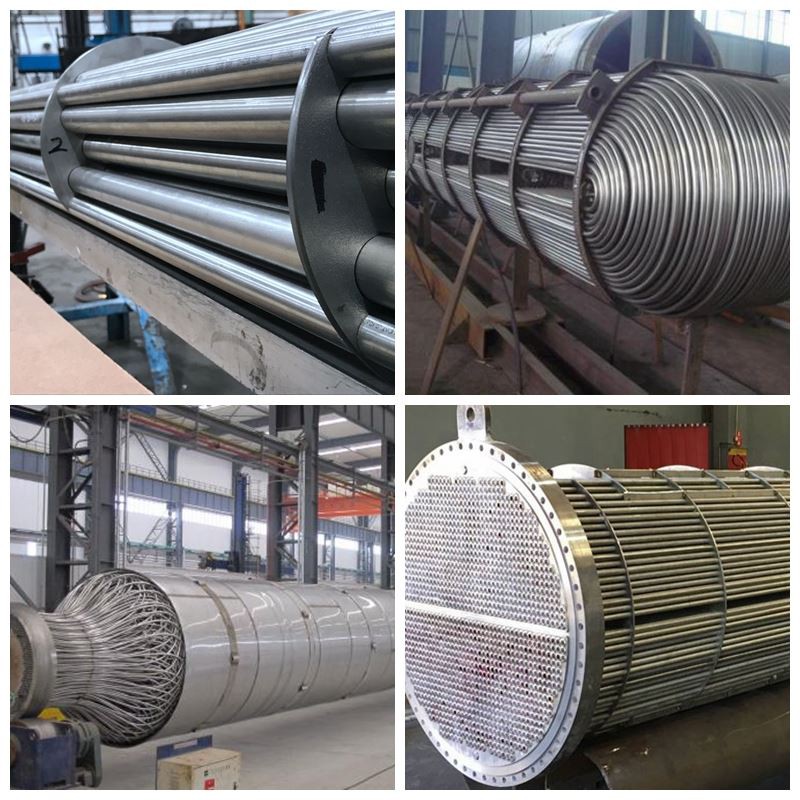

Titanium pipes / titanium tubes used in heat exchanger:

About us

Baoji Lihua Non-ferrous Metals Co.,Ltd, founded in 2006, lies in Tai Cheng road Baoji city---It is famous for manufacturing titanium, called “China Titanium Valley”.Our company certificated by ISO 9001:2015. As customers's request ,many of our titanium products tested by internation inspection agencies and met the standard,suc asTUV, SGS, BV, etc.

If you have any question or requirements, please don't hesitate to contact us.
