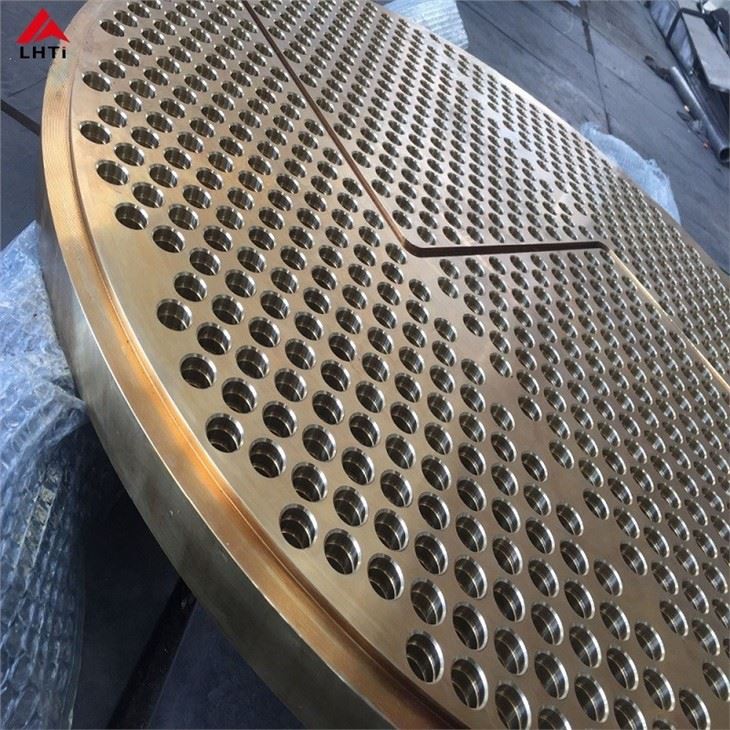

Titanium Tube Sheet

Titanium Tube Sheet

Porduct name : Titanium Tube sheet
Material: Titanium +steel,Titanium+stainless steel etc.
Size &Standard: As per client drawing

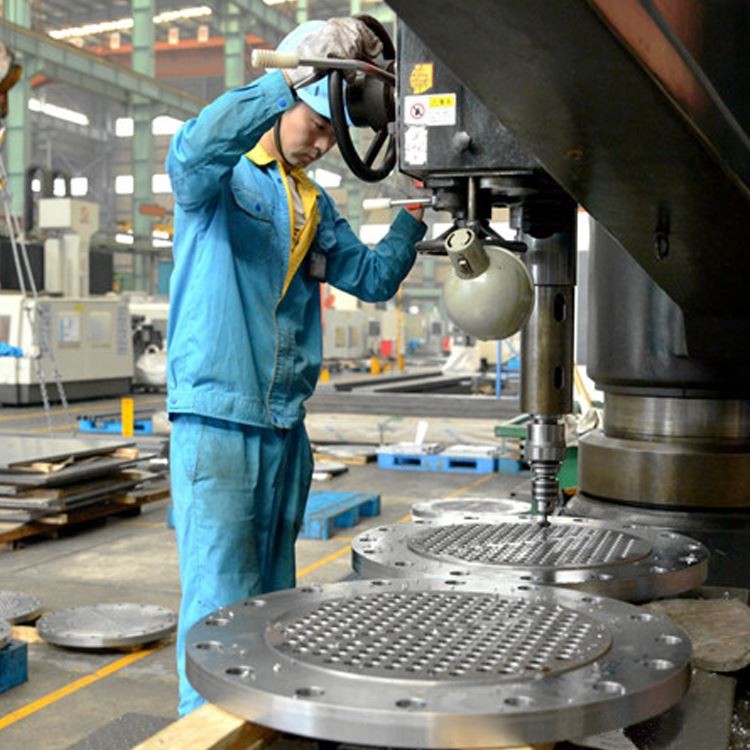

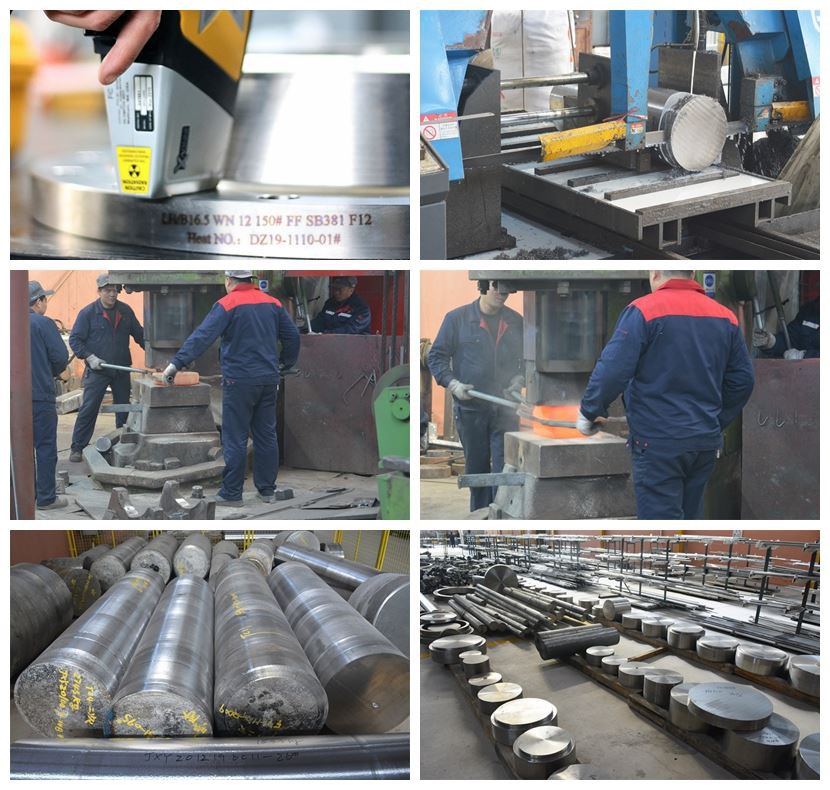

Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.
MOQ:1PC
Factory Area:3000 ㎡
Company Staff:48
Foreign Trade Team Service Staff:20
China's Professional Titanium Tubesheet Manufacturer

Send Inquiry

Chat Now

Product Introduction

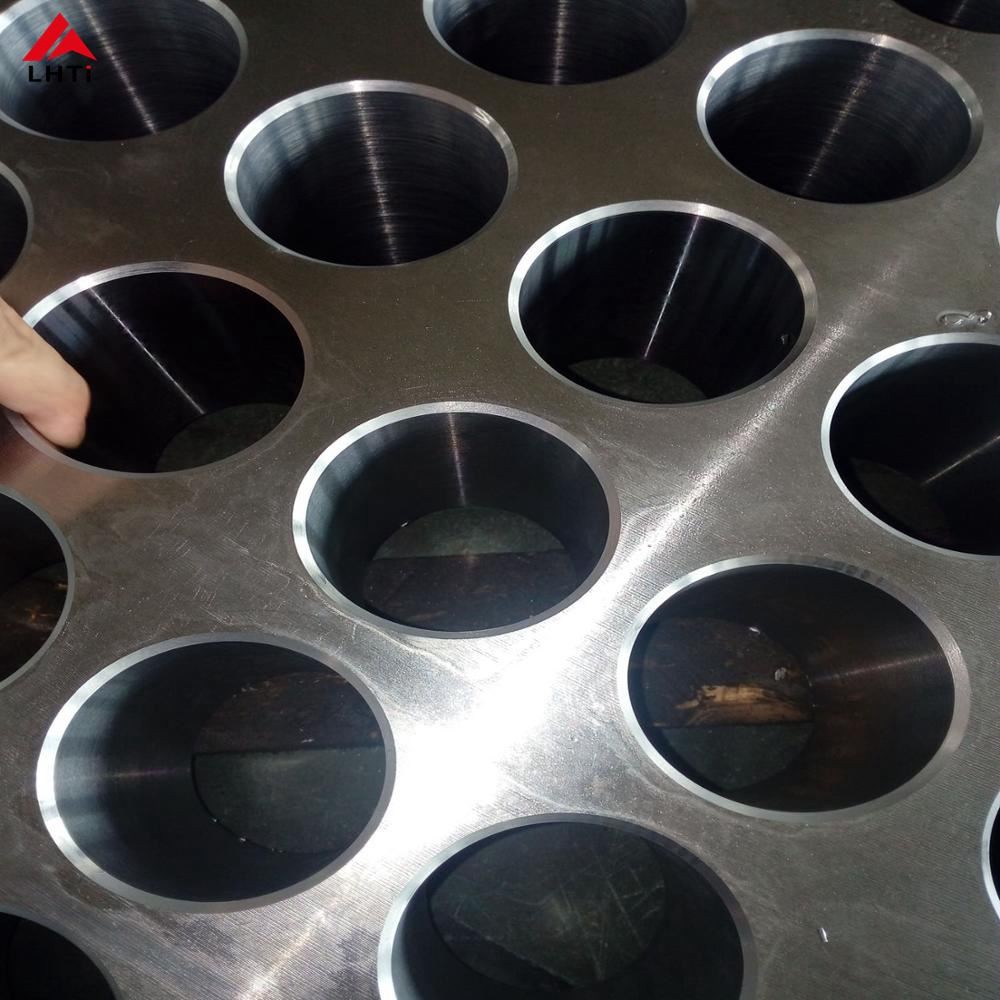

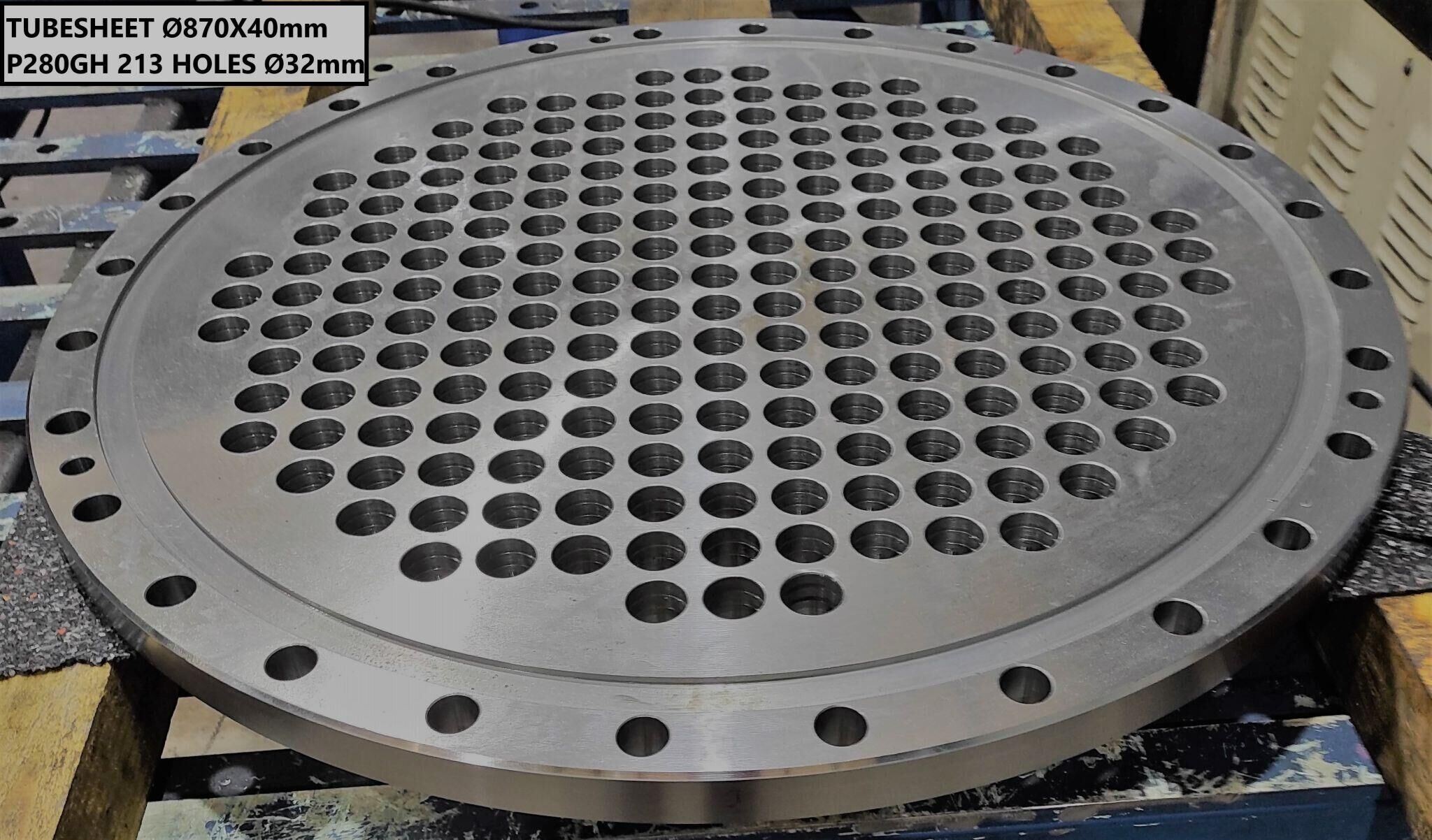

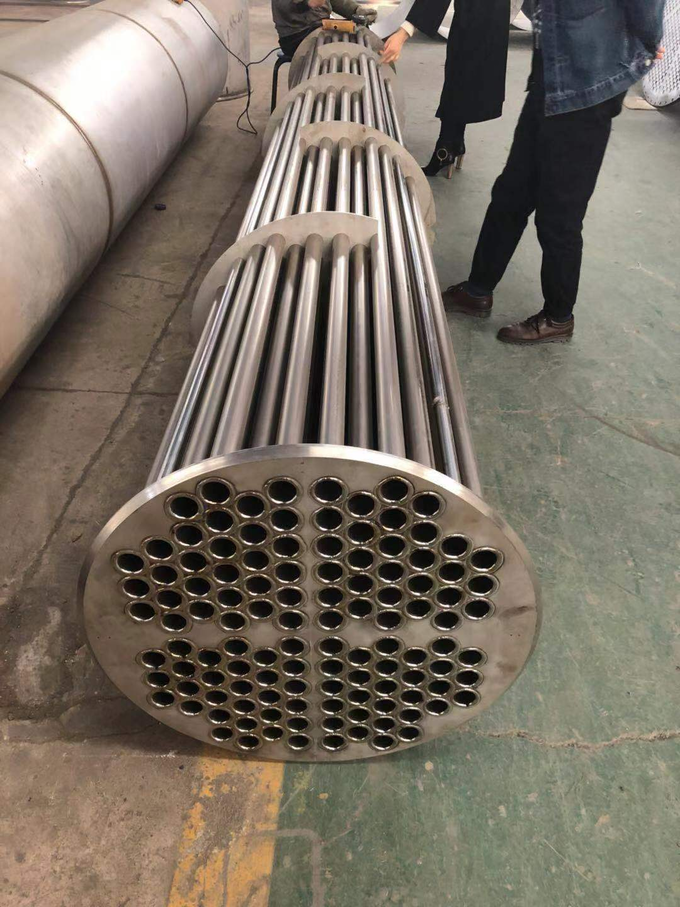

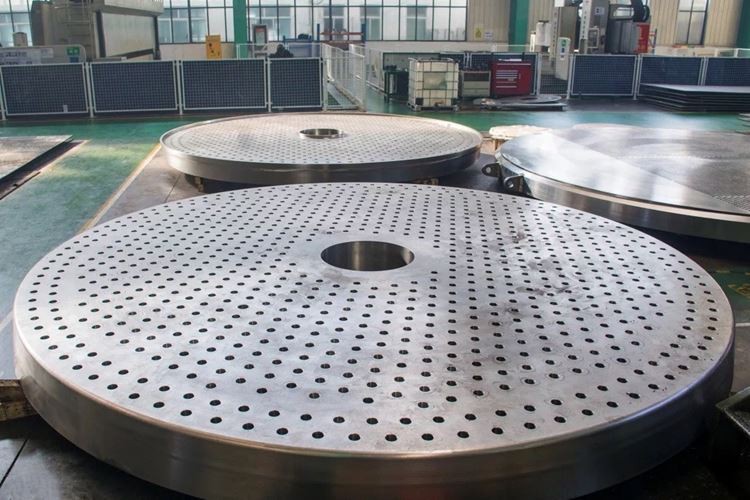

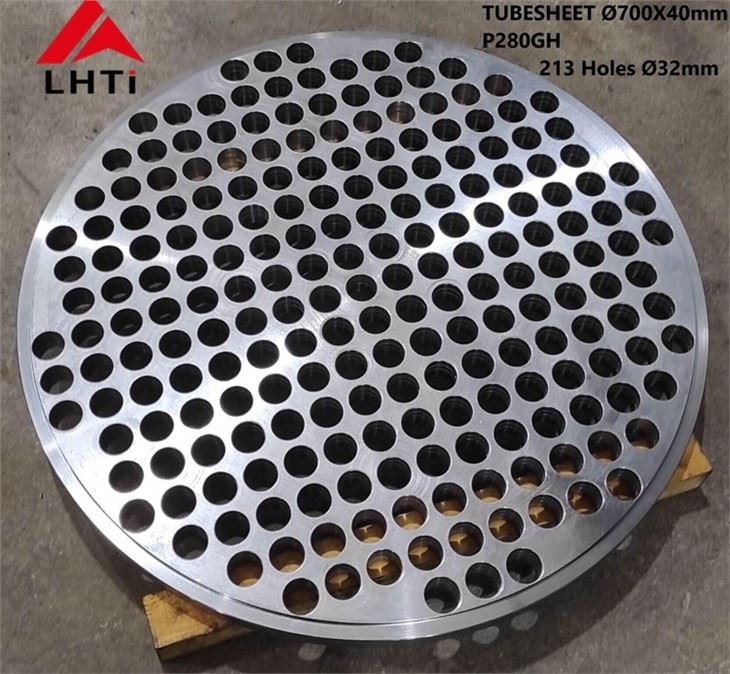

Tube plate/ tube sheet is a kind of fittings that drill a hole slightly larger than the outer diameter of the pipe on the circular steel plate and weld the pipe into it. Tube-sheet is generally used for tubular heat exchanger, boiler, pressure vessel, steam turbine, large central air conditioning and other occupations. The material of tube plate will be selected according to different conditions. Tubeplate detection includes hole location, aperture tolerance, hole brightness, burr and so on

Product Name	Titanium clad tubesheet
Base Metal	All types of steel and stainless steel ,sopper etc.
Clad Metal	Titanium GR2 Gr7 Gr9 Gr12 etc.
Dimension	Customized
Standard	ASTM
Shape	Round
Certificates	ISO9001, Mill Test Report, Certificate 3.1, EN, Ultrasonic Certificate
Applied Equipment	Pressure Vessels, Boilers, Containers
Application	Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical
Exported Countries	USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia etc.

Chemical Composition

Grade	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Σb (Mpa)	σr0.2 (Mpa)
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	240	140
Grade 2	0.3	0.25	0.03	0.1	0.015						20	400	275
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	400	275
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	18	460	300

Mechanical Properties

ASTM Grade	Tensile Strength		Yield Strength		Elongation %
ASTM Grade	ksi	Mpa	ksi	Mpa	Elongation %
Gr1	35	240	25	170	24
Gr2	50	345	40	275	20
Gr5	130	895	120	828	10E
Gr7	50	345	40	275	20
Gr12	70	485	50	345	18
