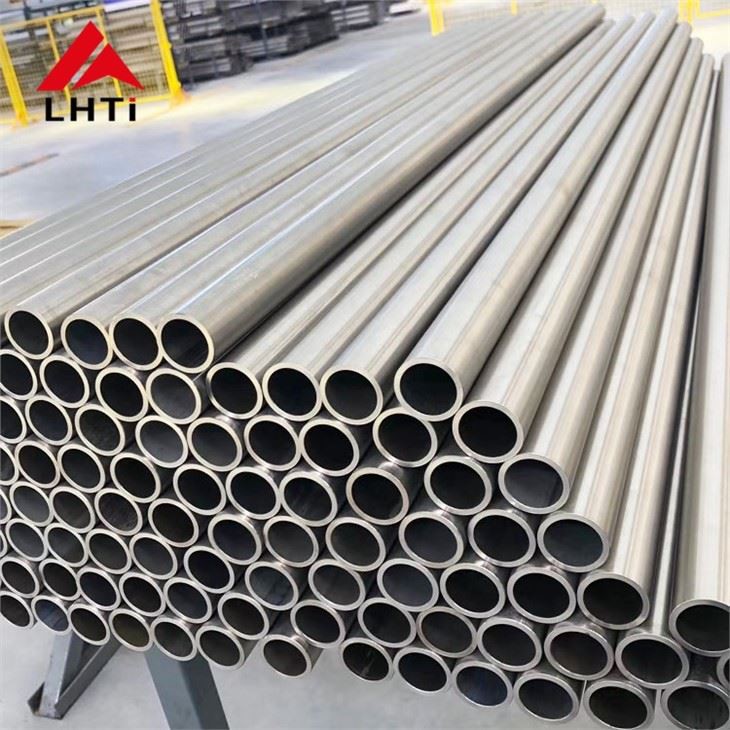

30mm Titanium Pipe

30mm Titanium Pipe

Product Name: 30mm Titanium pipe
Standard: ASTM B338 ASTM B861 ASTM B862
Material: Gr1, Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.
Wall Thickness: 0.5-3.0mm
Length: Max 12000mm
Surface: Bright,pickled

Send Inquiry

Chat Now

Product Introduction

Titanium tubes are light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube heat exchanger, coil heat exchanger, coiled tube heat exchanger, condenser, evaporator and conveying pipe, etc. Many nuclear power industries regard titanium tubes as the standard tubes for their units.

Product Name: 30mm Titanium pipe

Standard: ASTM B338 ASTM B861 ASTM B862

Material: Gr1, Gr2

Type: Welded/Seamless

Shape: Round

Outer Diameter: 9.52mm/12.7mm/15.9mm/19mm/21.7mm/25.4mm/32mm/33.4mm/38mm/45mm etc.

Wall Thickness: 0.5-3.0mm

Length: Max 12000mm

Surface: Bright,pickled

Material Grade	Status	Processing	OD（mm）	Wall thickness（mm）
Material Grade	Status	Processing	OD（mm）	0.5	0.6	0.8	1.0	1.25	1.5	2.0	2.5	3.0	3.5	4.0	4.5
Gr1 Gr2 Gr7 Gr12	Annealed （M）	Cold rolled	10-15	○	○	○	○	○	○	○	—	—	—	—	—
			﹥15-20	—	○	○	○	○	○	○	○	—	—	—	—
			﹥20-30	—	○	○	○	○	○	○	○	—	—	—	—
			﹥30-40	—	—	—	—	○	○	○	○	—	—	—	—
			﹥40-50	—	—		—	—	○	○	○	○	—	—	—
			﹥50-60	—	—	—	—	—	○	○	○	○	○	—	—
			﹥60-80	—	—	—	—	—	—	○	○	○	○	○	○
		Welded	16	○	○	○	○	—	—	—	—	—	—	—	—
			19	○	○	○	○	○	—	—	—	—	—	—	—
			25、27	○	○	○	○	○	○	—	—	—	—	—	—
			31、32、33	—	—	○	○	○	○	○	—	—	—	—	—
			38	—	—	—	—	—	○	○	○	—	—	—	—
			50	—	—	—	—	—	—	○	○	—	—	—	—
			63	—	—	—	—	—	—	○	○	—	—	—	—
		Welded-rolled	6-10	○	○	○	○	○	—	—	—	—	—	—	—
			﹥10-15	○	○	○	○	○	○	—	—	—	—	—	—
			﹥15-20	○	○	○	○	○	○	○	—	—	—	—	—
			﹥20-25	○	○	○	○	○	○	○	—	—	—	—	—
			﹥25-30	○	○	○	○	○	○	○	—	—	—	—	—
Note: "○" indicates the specifications that can be produced

1. Origin: Baoji city -- Shaanxi Province, China

2. Specifications: According to national standards or customer requirements and drawings processing and production.

3. Surface quality: the surface is clean and smooth without peeling, folding, pores, cracks and other defects.

4. Packing: plastic film, foam, cartons, wooden cases and other packing conforming to international transportation standards are used according to the specifications and sizes of the goods.

Detailed images:

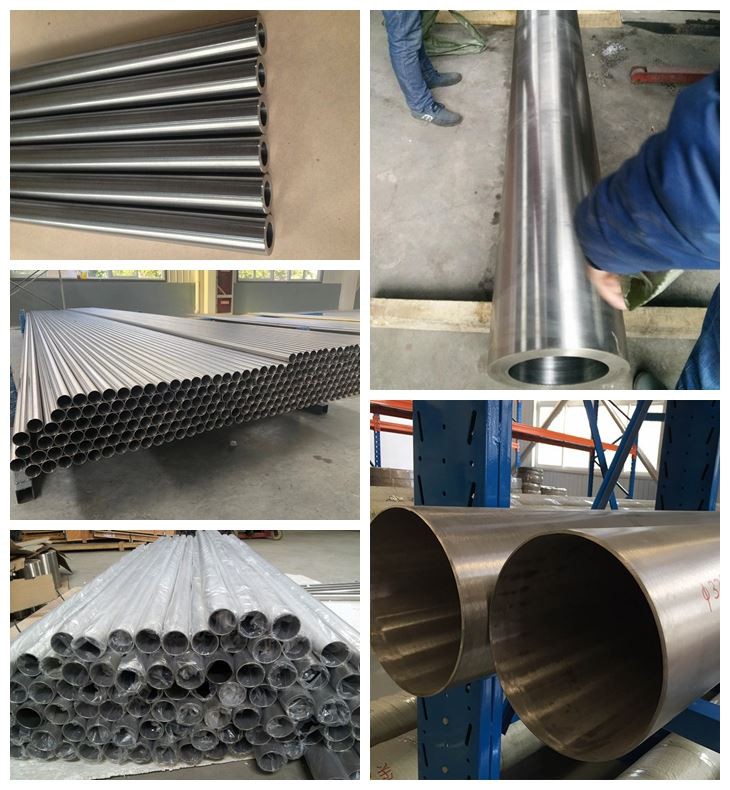

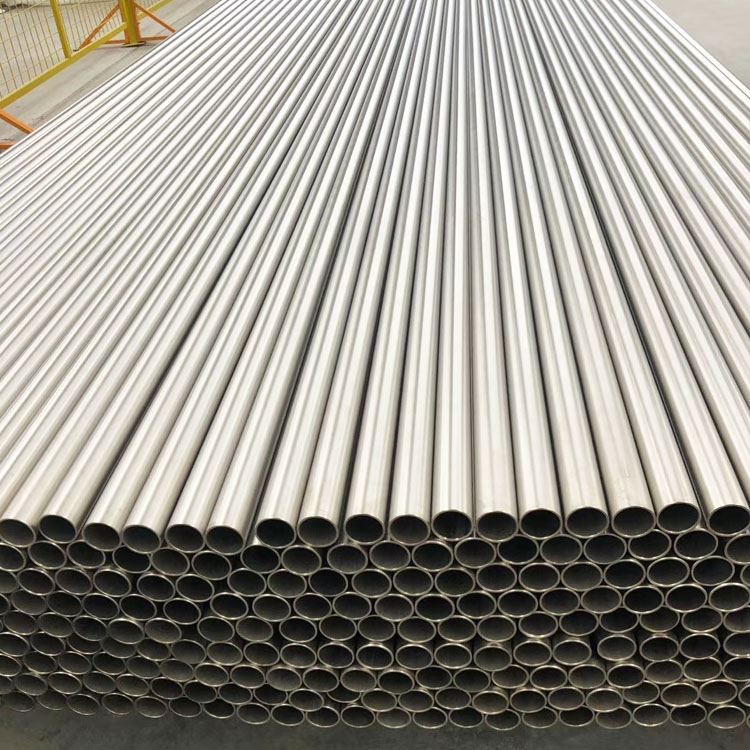

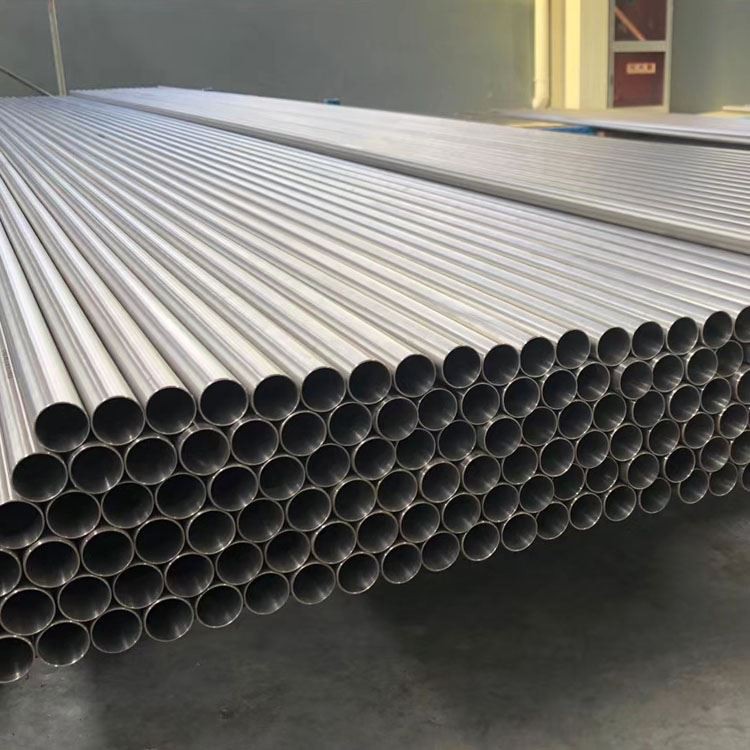

g10 g11 titanium pipe 4

Packaging and shipping:

Titanium tube pacakging

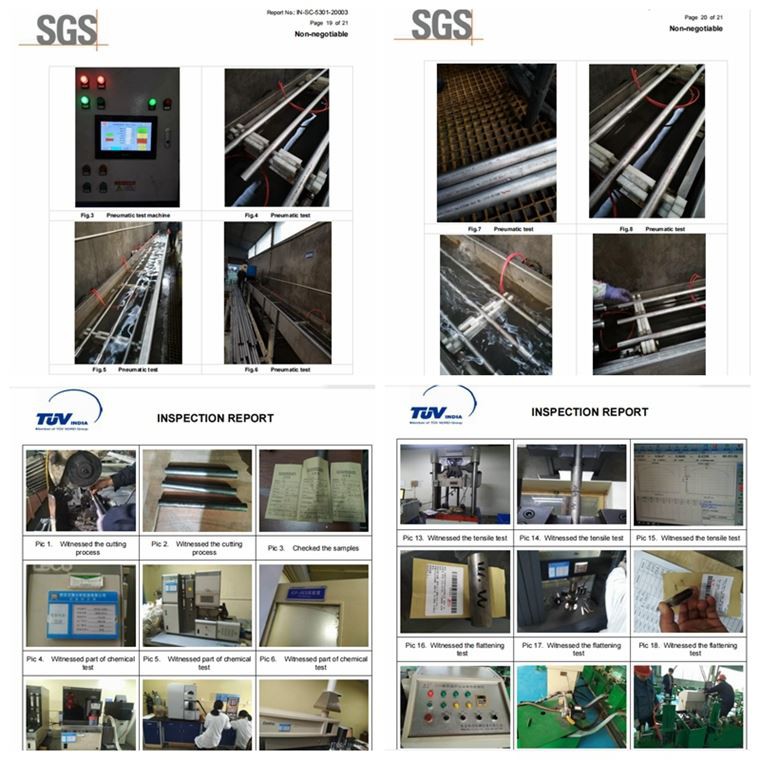

The third party inspections:

We can supply a variety of standard titanium tubes, such as ASTM B337 ASTM B338,ASTM B861,ASTM B862 etc. For large amount of orders, many customers like to do third-party testing before delivery,such as TUV,SGS, BV. We can fully accept and customer satisfaction is our biggest goal.

titanium tube 1

About our company:

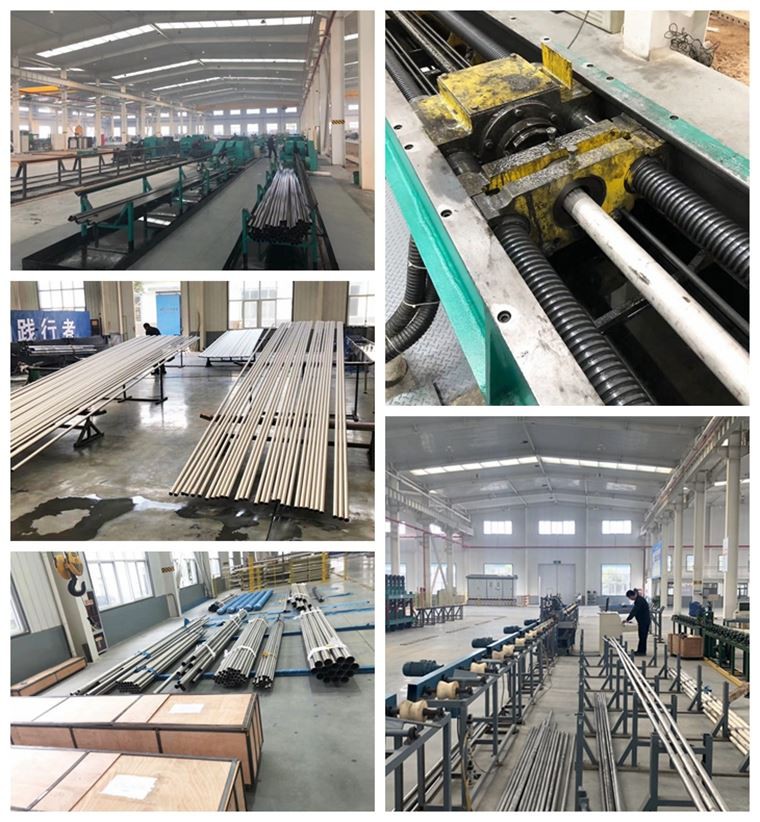

our company titanium tube 14

our advantagement lihua titanium rod (1)
