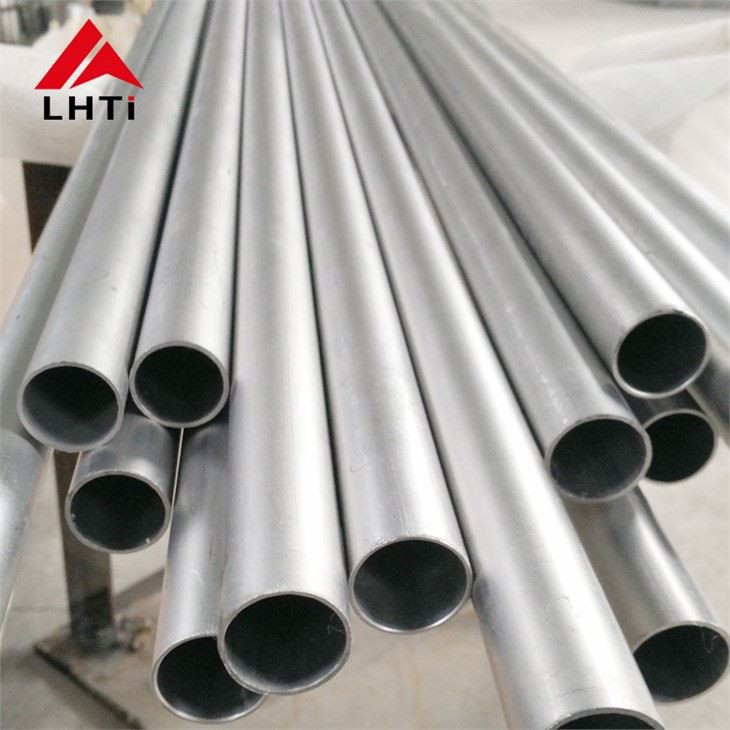

Gr2 Titanium Tube
Material: Titanium Gr2
Standard :ASTM B338 ASTM B861 ASTM B862 etc.
Size: OD5.0-114.0mmxWT0.5-7.0mmxL1000-16000mm
Or according customer’s requirement.
Technique: Rolled
Status: Annealed(M)
Type:Seamless
Certification: ISO9001:2015, EN10204.3.1
Application :
1)Power and chemical plant
2)Automotive components
3)sports
4)marine corrosion
Surface: Acid pickling, CNC lathe surface
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tube/pipe manufacturer
Product name: Gr2 titanium tube
Material: Titanium Gr2
Standard :ASTM B338 ASTM B861 ASTM B862 etc.
Or according to customer's requirement.
Status: Annealed(M)
Type:Seamless,welded
Certification: ISO9001:2015, EN10204.3.1
Titanium tube diametere tolerance（mm）
| ||||||
OD | 3-10 | >10-30 | >30-50 | >50-80 | >80-100 | >100 |
Tolerance | ±0.15 | ±0.30 | ±0.50 | ±0.65 | ±0.75 | ± |
Length of titanium tube（mm）
| ||||
Titanium seamless tube | OD | ≤15 | Random length | 500~400 |
15 | 500~900 | |||
Titanium welded tube | WT | 0.5~1.25 | 500~1500 | |
1.25~2.0 | 500~6000 | |||
Titanium welded tube(rolled) | WT | 2.0~2.5 | 500~4000 | |
0.5~0.8 | 500~8000 | |||
>0.8~2.0 | 500~5000 | |||

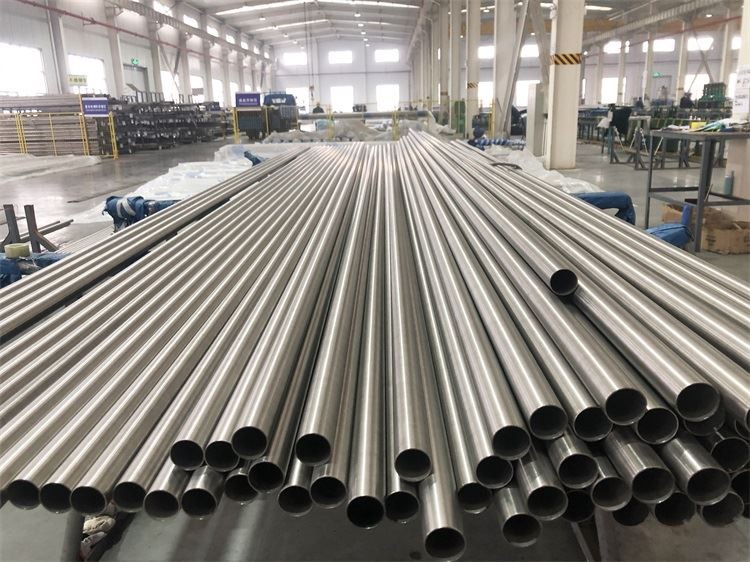

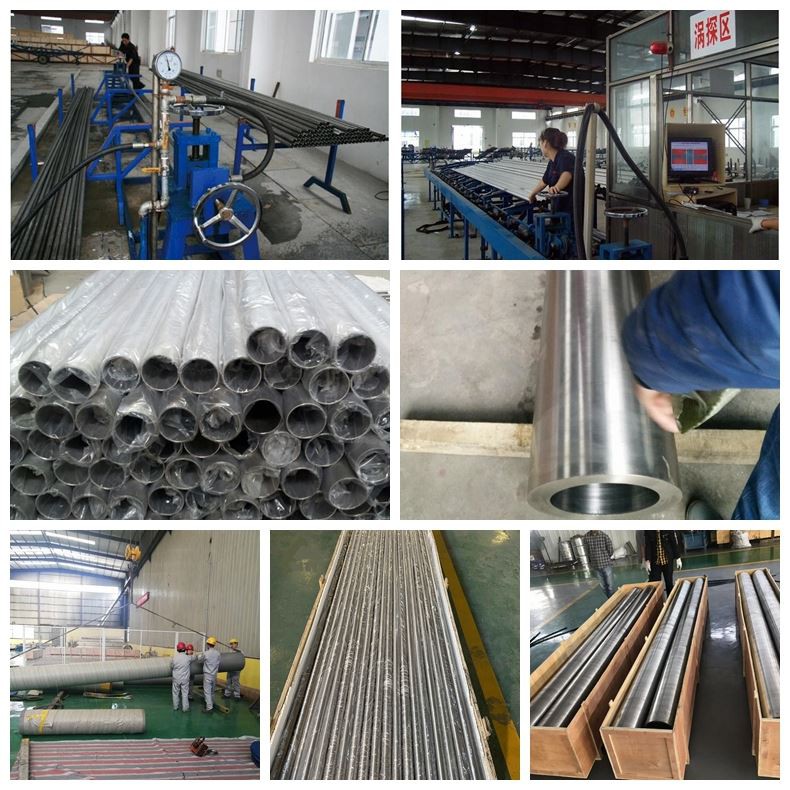

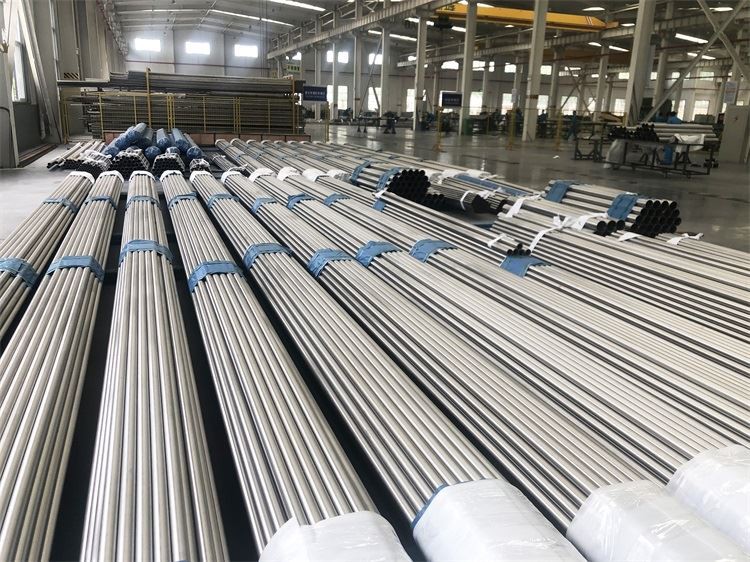

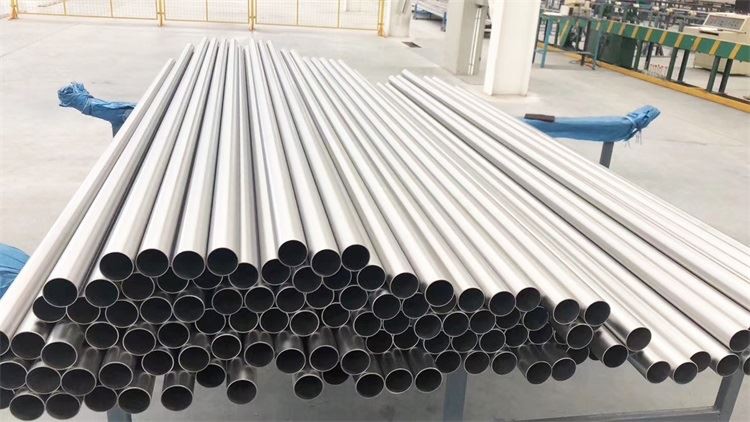

Detailed images:

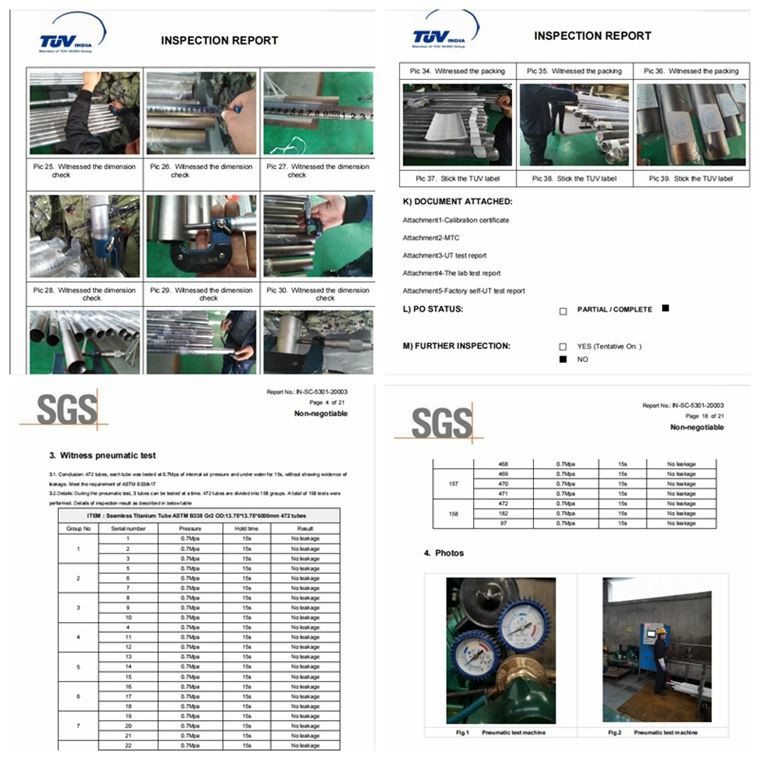

The third party inspections:
According to customers' different requirements, we produce titanium tubes to different standards, such as ASTM B861 ASTM B862 ASTM B337 ASTM B338 tec. We welcome customers to do any third party testing before delivery (SGS,TUV,BV etc).
Technical requirements of titanium tubes production:
1. The chemical composition of titanium and titanium alloy pipe shall meet the standard (ASTM B338, ASTM b861, ASTM b862)
2. The allowable deviation of pipe outer diameter shall meet the standard.
3. The allowable deviation of pipe wall thickness shall not exceed ± 12.5% of its nominal wall thickness, and the allowable deviation of pipe wall thickness is not applicable to the weld of titanium welded pipe.
4. The length of pipe material shall meet the requirements in Table 2.
5. The fixed length or multiple length of the pipe should be within the range of its indefinite length. The allowable deviation of the length of the fixed length is + 10 mm. The length of multiple length should also be included in the cutting amount of the pipe, and the amount of each cut should be 5mm.
About our company:
Our Services
(1) Strict control from raw materials till products finished, so the quality is guaranteed.
(2) Customized sizes are offered as well as specified sizes and multiple sizes.
(3) Competitive prices will be provided for sure.
