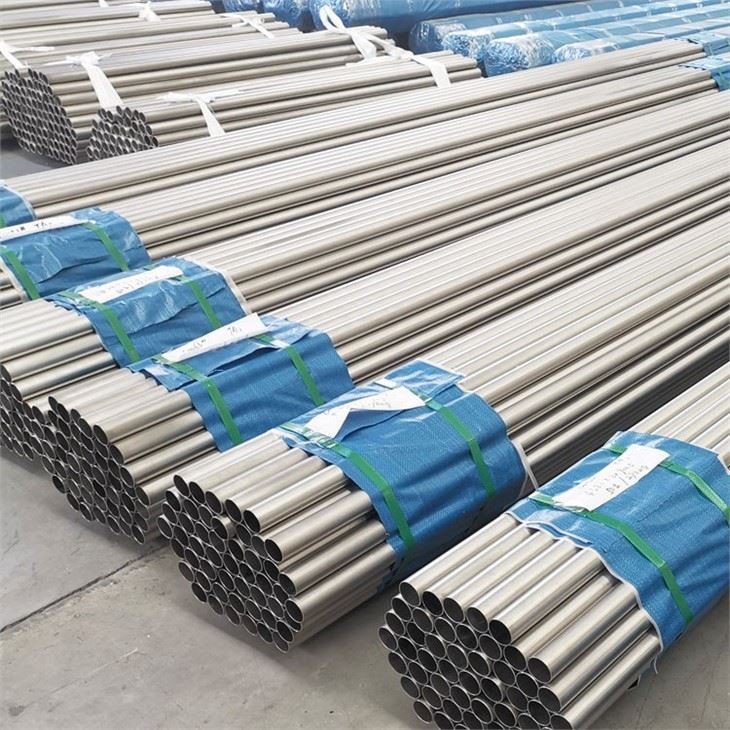

ANSI B36.10 Titanium PIPE
Standard: ANSI B36.10
Material: Gr1, Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 21.3mm-609.6mm etc.
Wall Thickness: 1.24-30mm
Length: Max 9000mm
Surface: Bright

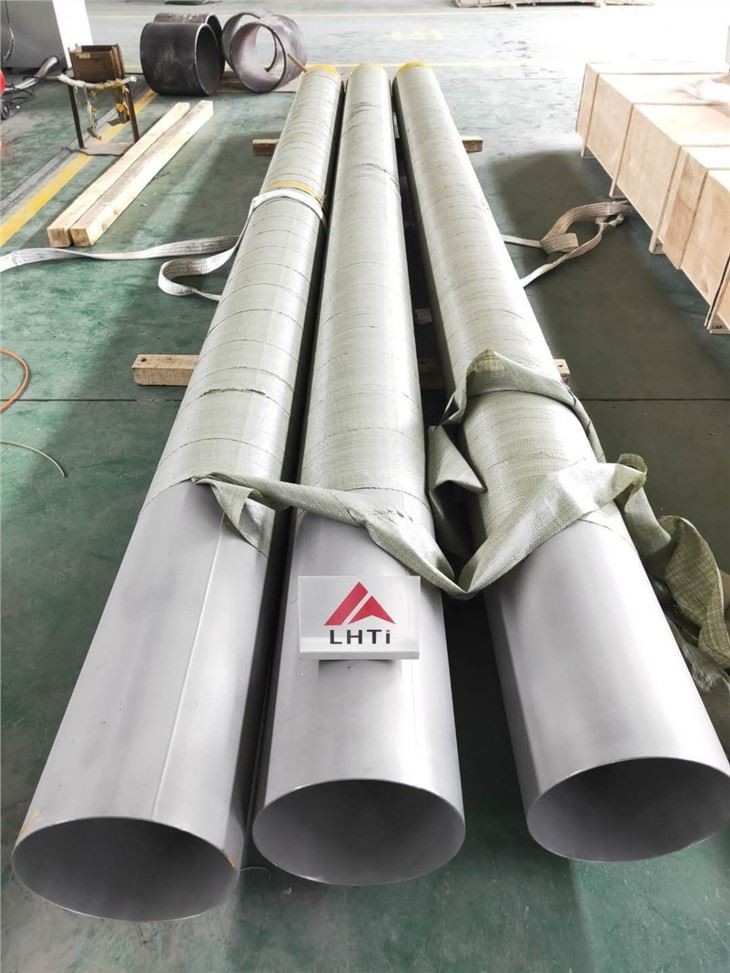

ANSI B36.10 Titanium PIPE
Advantages:
Light in weight
Excellent corrosion resistance
High Strength
Good temperature resistance
1.titanium tube information
| Name | Ansi b36.10 |
| Tube Shape | Round |
| Material | Gr1/GR2 |
| Standard | ASTM B861,ASME SB 861 |
| SMLS Or Welded | Seamless(SMLS) |
| OD | 1/2", 1",1.5", 2",2.5",3",3.5",4" ... 24" |
| Wall Thickness | Sch10s, sch40, sch80 etc |
| Length | 6m long |
| End | Plain End, Beveled End, Threaded |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application | Chemical Equipment |

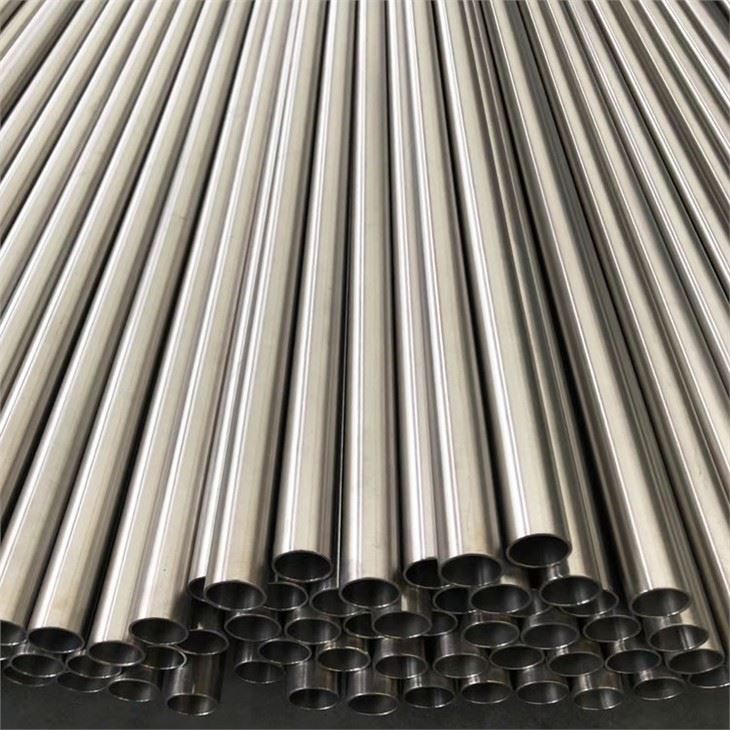

ANSI B36.10 titanium tube
Used:chemical industry
Wall thickness:1.24mm to 30.0mm
Length:3000mm /6000mm
Outside Diameters:21.3mm to 609.6mm
Wall thickness tolerance: +/- 12.5%
Length tolerance: +5mm
Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Our Company
As a leading manufacturer & trader of titanium tube for over 16 years, Baoji Lihua has exported our titanium tube to many countries, including the US, India and Korea etc. The quality of our products is widely recognized.
We provide titanium tube with full set of ASTM B338 test or according to your requirements.
Third-party test is also accepted, such as BV, SGS, TUV etc.
Customized products are always welcomed.
We know the market very well so our price will make you more competitive.
We have a professional technical team. Our company offers a complete service to you from A to Z, with our dedicated team.
