ASTM B861 Titanium Seamless Tube
Product Name: ASTM B861 titanium seamless tube
Standard: ASTM B861
Material: Gr1, Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 21.3mm-609.6mm etc.
Wall Thickness: 1.24-30mm
Length: Max 9000mm
Surface: Bright
Standard: ASTM B861
Material: Gr1, Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 21.3mm-609.6mm etc.
Wall Thickness: 1.24-30mm
Length: Max 9000mm
Surface: Bright
Send Inquiry
Chat Now
Product Introduction

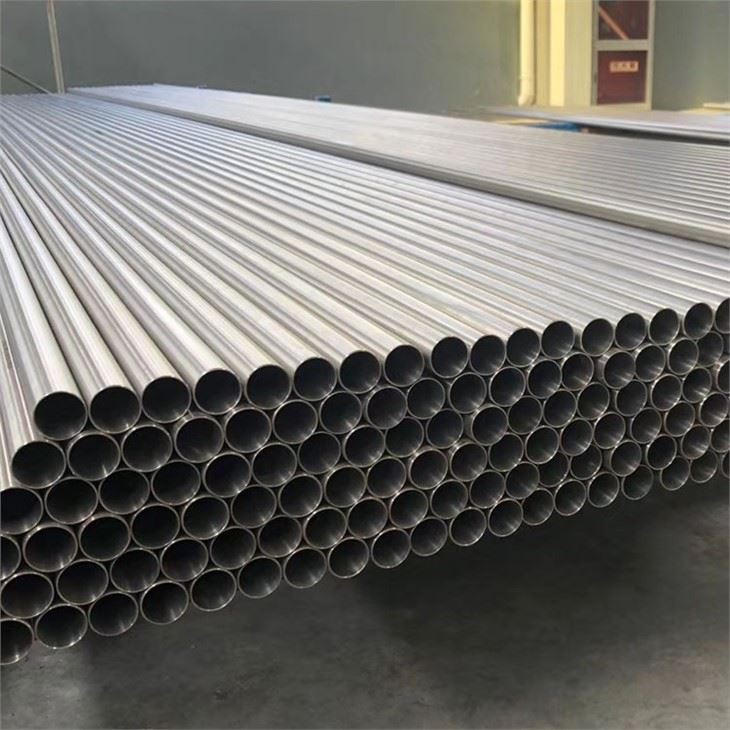

ASTM B861 Titanium seamless tube
Advantages:
Light in weight
Excellent corrosion resistance
High Strength
Good temperature resistance
1.titanium tube information
| Name | Astm b861 titanium pipe |
| Tube Shape | Round |
| Material | GR1 GR2 TA1 TA2 |
| Standard | ASTM B861, |
| SMLS Or Welded | Seamless |
| OD | 1/2"-4" |
| Wall Thickness | Sch10s, sch40, sch80 ... |
| Length | 6000mm long |
| End | Plain End, Beveled End |
| Certificate | EN 10204/3.1B, Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report---TUV,BV,SGS etc |
| Application | Chemical Equipment |
ASTM B861 titanium tPipe
Used:
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry
Wall thickness: sch
Length:6000mm
Outside Diameters:21.3mm to 114mm
Wall thickness tolerance: +/- 12.5%
Length tolerance: +3.2mm
Chemical requirements
| N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Tensile requirements
| Grade | Tensile strength(min) | Yield strength(min) | Elongation(%) | ||
| ksi | M Pa | ksi | M Pa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
