Titanium Tube Grade 2
Product Name: Titanium Pipe
Standard: ASTM B861, ASTM B862, ASTM B338
Material: Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 3-114mm or as customized
Wall Thickness: 0.5-7mm or as customized
Length: Max 12000mm
Surface: Bright
Standard: ASTM B861, ASTM B862, ASTM B338
Material: Gr2
Unit Price: $25usd/kg-$40usd/kg
Type: Welded/Seamless
Shape: Round
Outer Diameter: 3-114mm or as customized
Wall Thickness: 0.5-7mm or as customized
Length: Max 12000mm
Surface: Bright
Send Inquiry
Chat Now
Product Introduction
Product Information of Titanium Tube Grade 2
Material: GR2
Standard: ASTM B861, ASTM B862, ASTM B338
OD: 3-114mm or as customized
WT: 0.5-7mm or as customized
Length: Max 12m
Type: Welded/Seamless
Surface: Polishing, Pickling
Advantages of Titanium Tube Grade 2
Precision Manufacturing
Light in weight
Excellent corrosion resistance
High Strength
Excellent strength to weight ratio
High temperature resistance
Low temperature resistance
Good thermal conductivity
Long service life
Chemical Information
| Titanium Gr 2 | C | Ti | N | Fe | H | O | V | Al |
| 0.1 max | 99.2 min | 0.03 max | 0.3 max | 0.015 max | 0.25 max | – | – |
Mechanical Properties of Titanium Tube Grade 2
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |

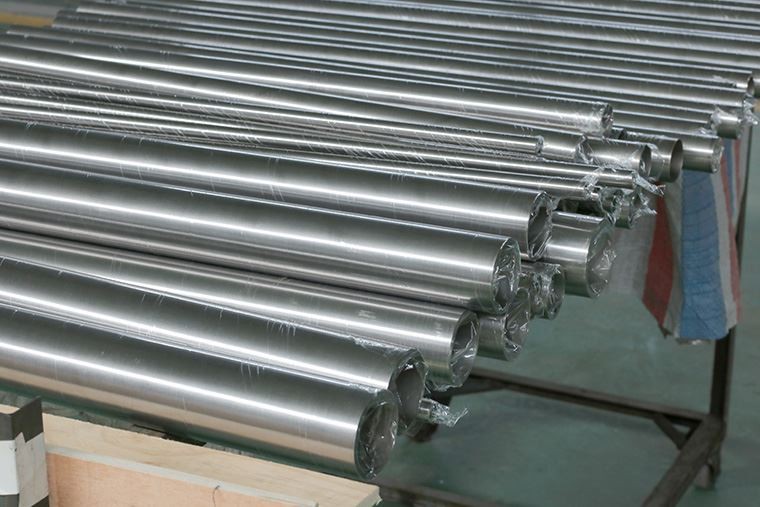

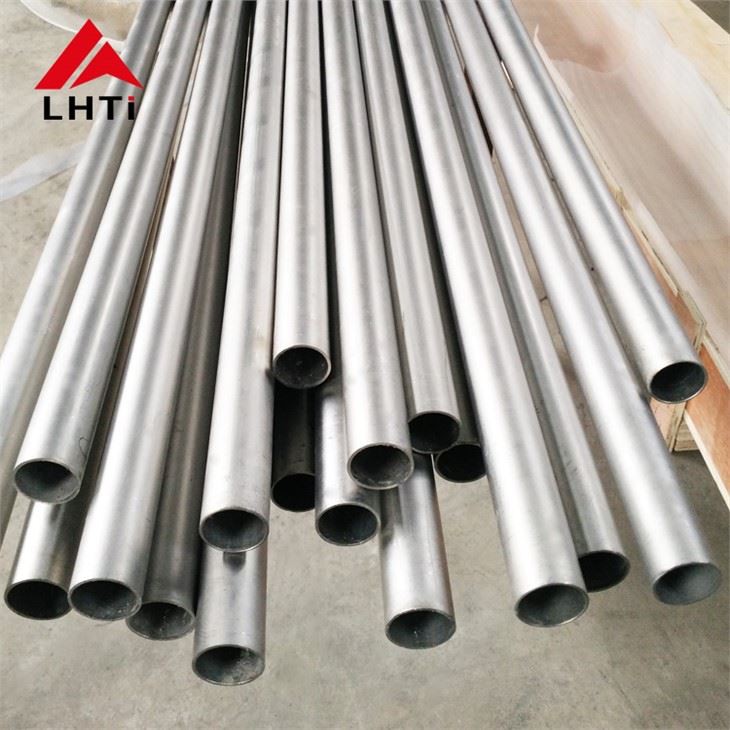

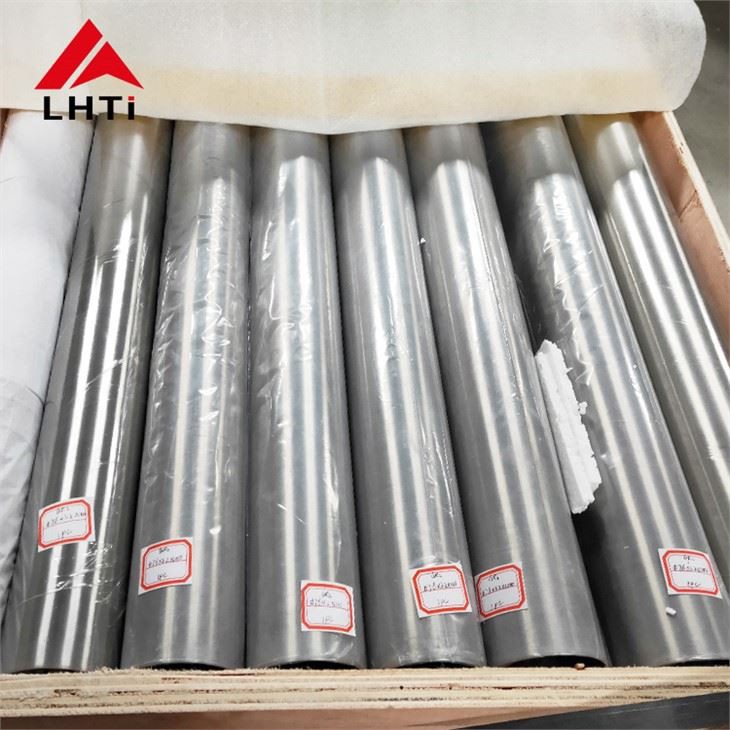

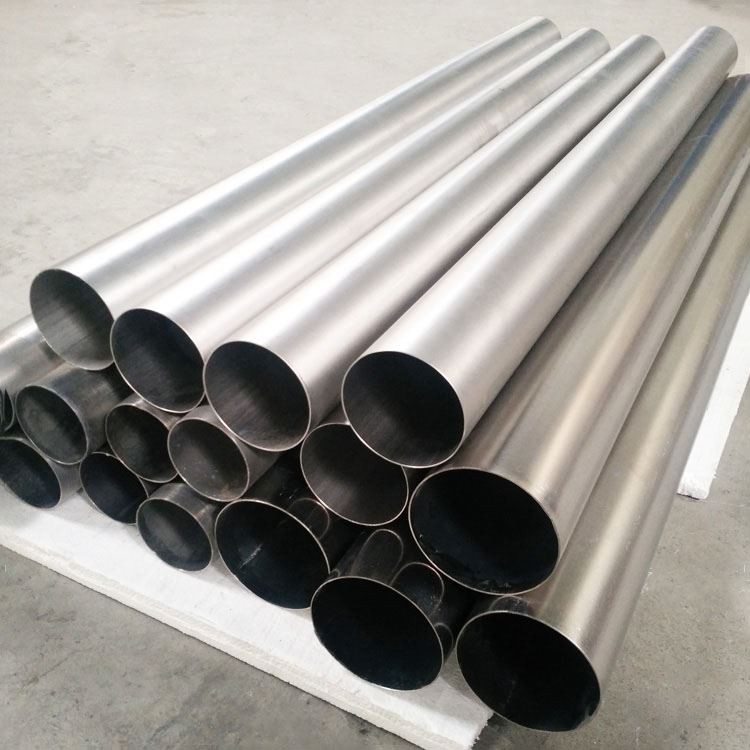

Detailed Images
