Titanium Grade 12 Pipe

Titanium Grade 12 Pipe

Product name: Titanium grade 12 pipe
Material: Titanium GR12
Standard :ASTM B338 ASTM B861 ASTM B862
Certification: ISO9001:2015, EN10204.3.1
Size:
OD5.0-114.0mmxWT0.5-7.0mmx1000-12000mm
OD55mm-914mmxWT1.0-10.0mmx1000-6000mm
Or according customer’s requirements
Surface: Acid pickling, Polished
Unit price:$15.5-$32.3/kg
MOQ:10kgs
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium tube/pipe manufacturer

Send Inquiry

Chat Now

Product Introduction

Titanium Grade 12 Pipe

Grade 12 titanium alloy is a corrosion-resistant titanium alloy, which is a near-alpha alloy developed to improve the crevice corrosion performance of pure titanium. The alloy contains 0.3% Mo and 0.8% Ni, which not only strengthens the alloy, but also resists high temperature and low pH chlorine. Compounds or weak reducing acids have good crevice corrosion resistance, and their corrosion resistance is significantly better than pure titanium. Titanium grade 12 pipe has good process plasticity and welding performance, and has been widely used in the chemical industry. Titanium grade 12 pipe has good performance advantages such as corrosion resistance, high temperature resistance, wear resistance, creep resistance, etc. It is suitable for long-term work in the environment of 350~500 °C, and has a good match with the strength and stiffness of composite materials. High specific strength and high temperature performance, have good application prospects. This alloy improves the corrosion resistance in reducing medium, and maintains the corrosion resistance of industrial pure titanium in oxidizing medium such as nitric acid and chromic acid.

Titanium grade 12 pipe, the surface is smooth, clean, free of oil, cracks and burrs, no continuous pits and scratches.It is usually used in chemical, medical, eyewear, electric power, electroplating, electronics, aerospace, military, and petroleum.

Product name: Titanium grade 12 pipe

Material: Titanium GR12

Standard: ASTM B338 ASTM B861 ASTM B862

Certification: ISO9001:2015, EN10204.3.1

Size:

OD5.0-114.0mmxWT0.5-7.0mmx1000-12000mm

OD55mm-914mmxWT1.0-10.0mmx1000-6000mm

Or according customer’s requirement.

Technique: Rolled

Status: Annealed(M)

Type: Seamless

Surface:Acid pickling, Polished

Quality inspection: Chemical compositions test, physical properties test, Flattening test, Flaring Test, Nondestructive Tests etc.

Titanium grade 12 pipe (Ti-0.3Mo-0.8Ni)
Chemical compositions(weight%,<=)
Mo	Ni	Fe	C	N
0.2-0.4	0.6-0.9	0.30	0.08	0.03
H	O	Ti	Others	Total
0.015	0.25	Remainder	0.10	0.40
Physical properties(>=)
Σb Tensile Strength (Mpa)	σr0.2 Yield Strength (Mpa)	δL0+50mm Elongation (%)	ψ Reduction of area (%)
440	345	18	-------

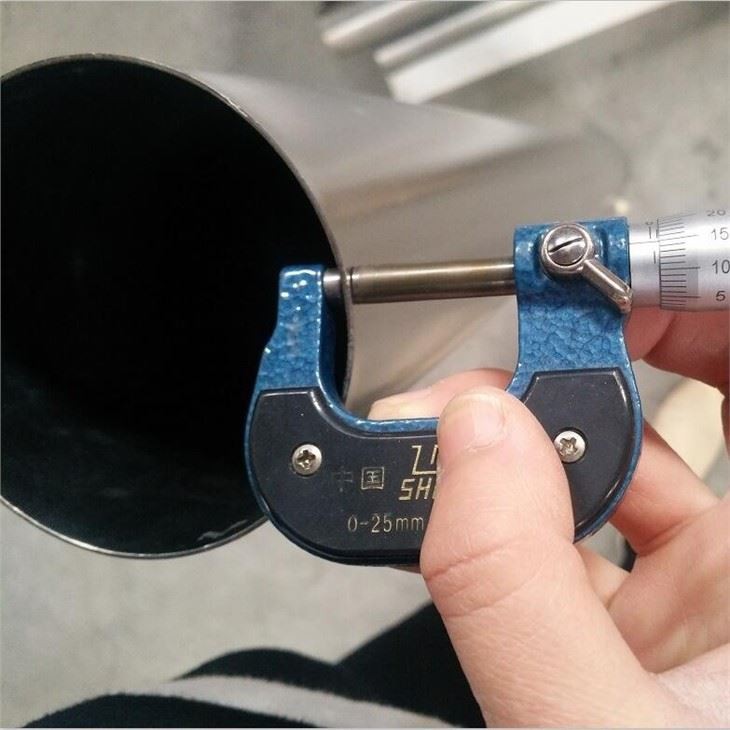

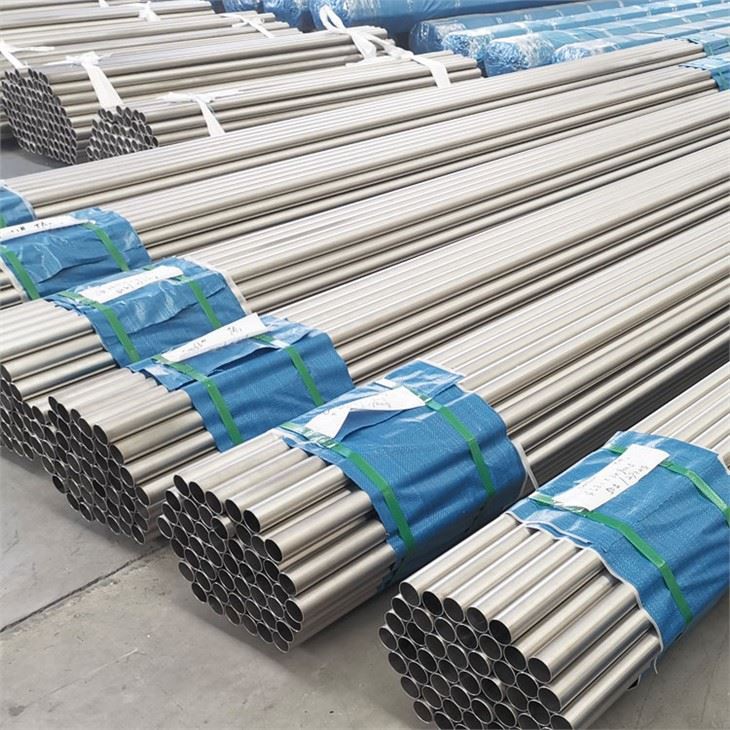

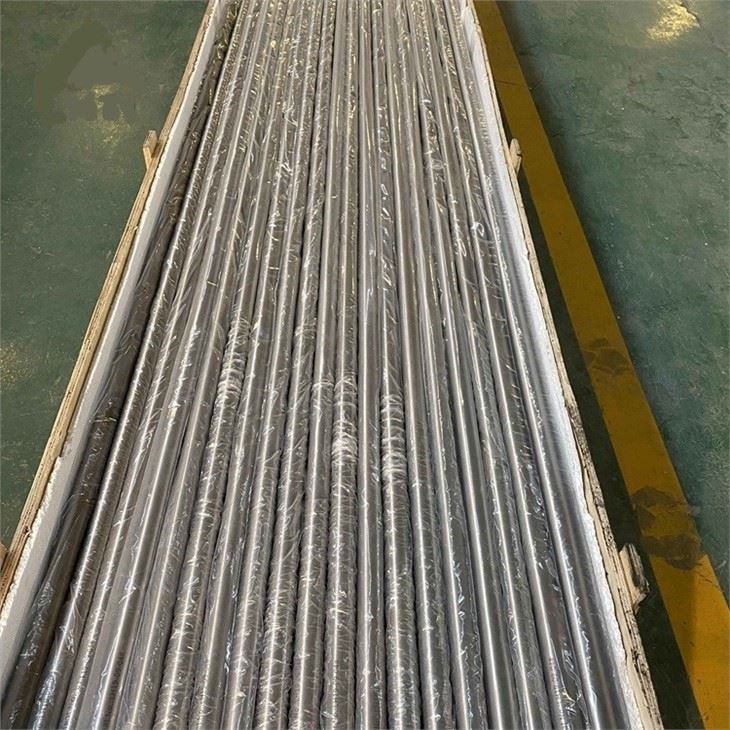

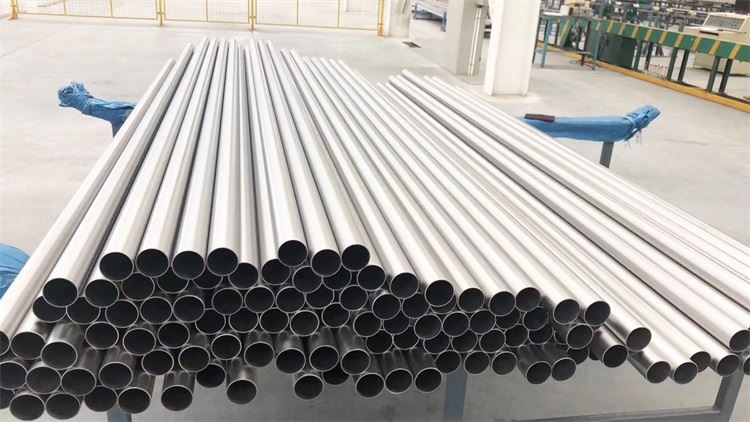

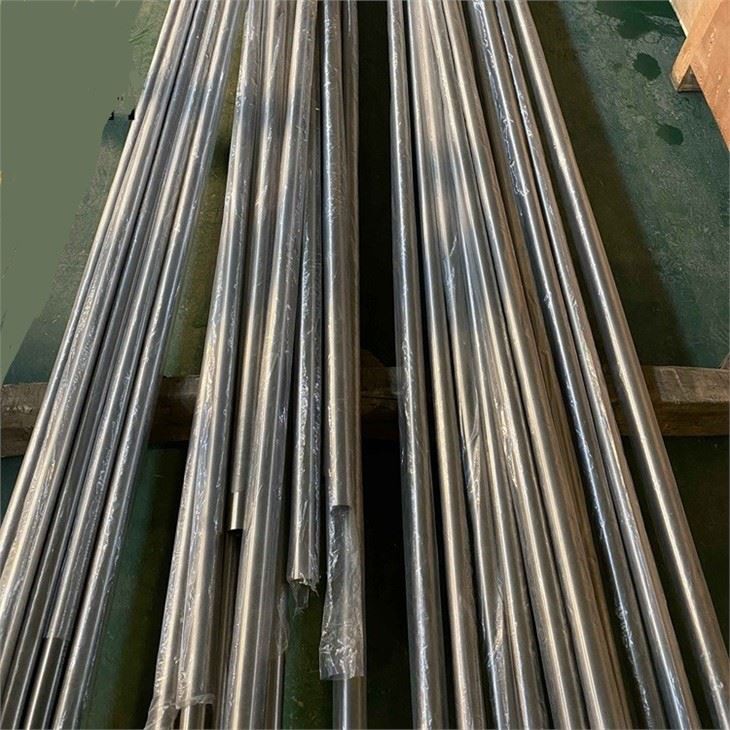

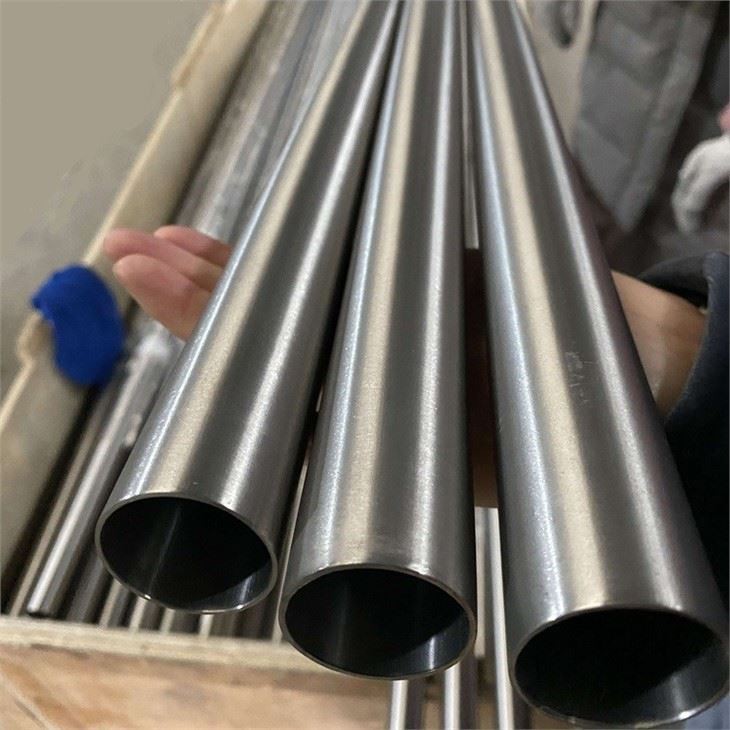

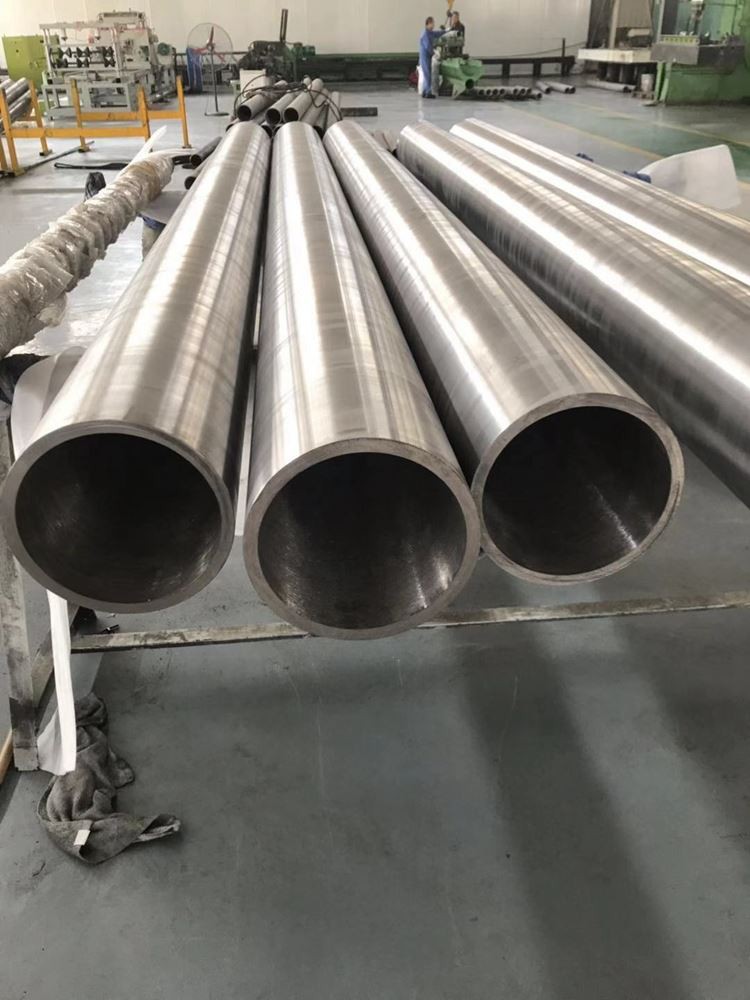

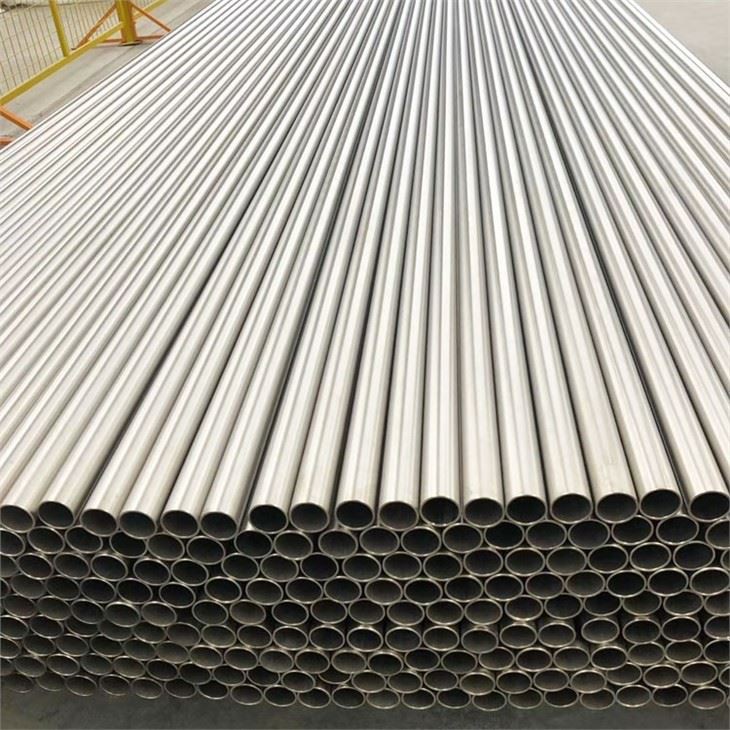

Detailed images:

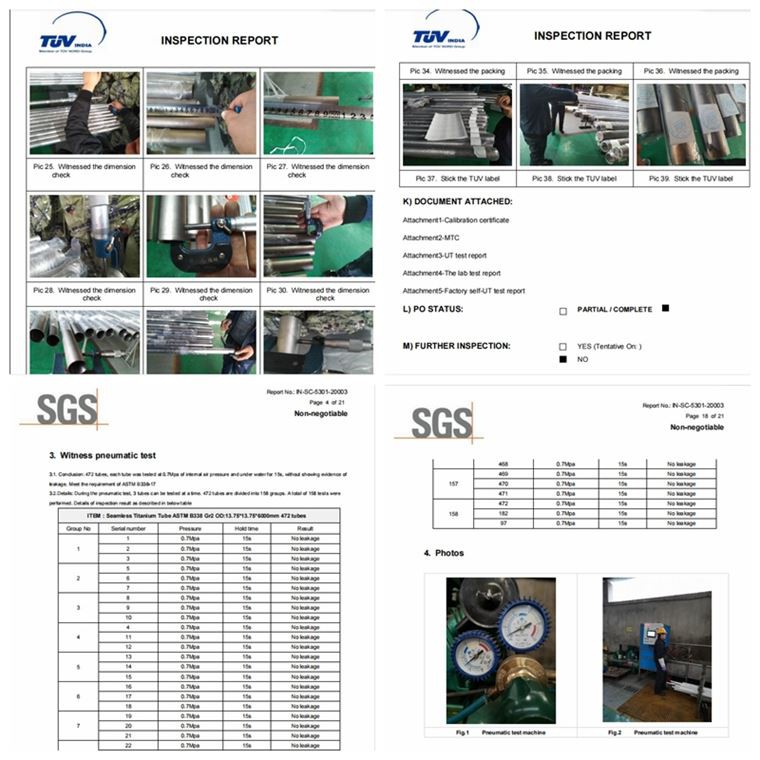

The third party test report(some of pages):

titanium tube 2

About our company:

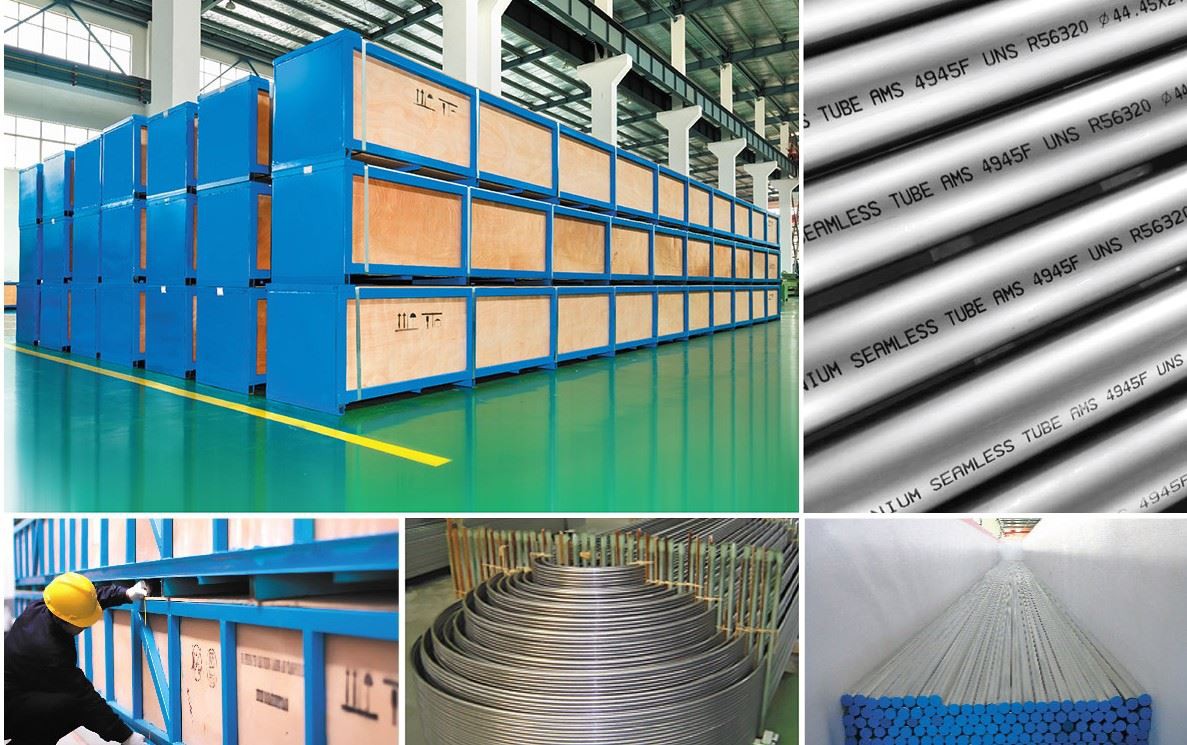

As a company with more than 15 years production and export experience, we take the best quality and best service as our main aim. If any problem happen of sales goods, we have dedicated staff to solve problems for the customers, until the customer satisfied. For titanium tubes, it is easily to be deformed and bent during long-distance transportation. Our factory has professional people to package the products:each titanium tube is covered with a separate plastic bag to avoid scratching the surface during transportation;the gap between the tube and around the tube will be filled with sponge, so that titanium tube keep gopd condition when our customer' receive it.

Ti tube package
