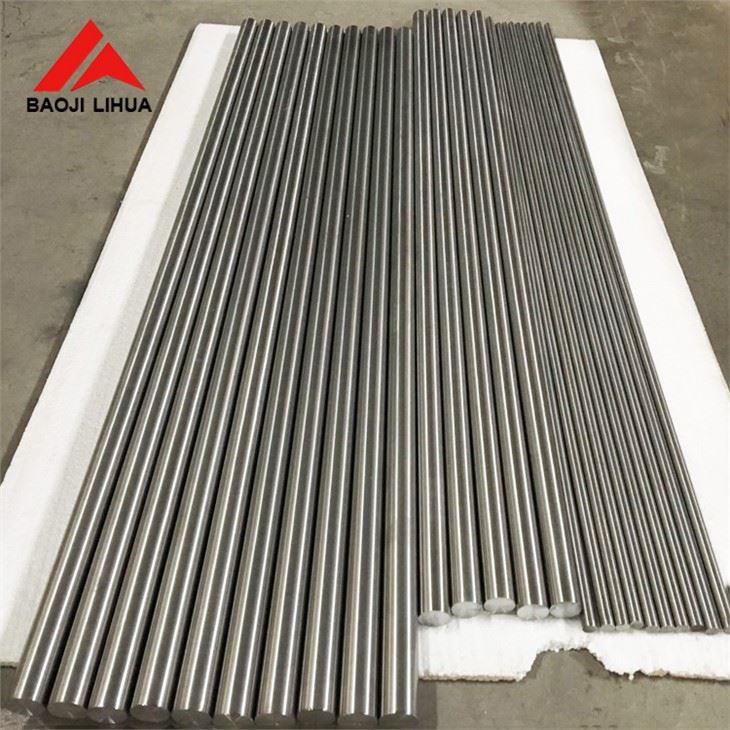

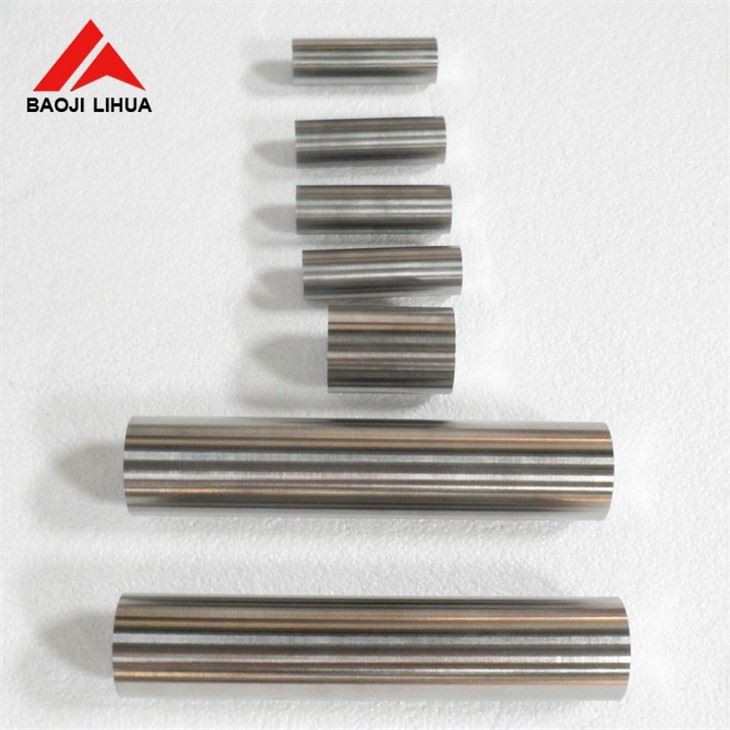

Titanium Gr. 7 Round Bars
Material grade: Grade 7 (Ti-0.2Pd)
Standard : ASTM B348
Size: Dia 5--200mm * Max L6000mm
Applications :Industrial
Supply status: Annealed
Package: Carton or plywood case.

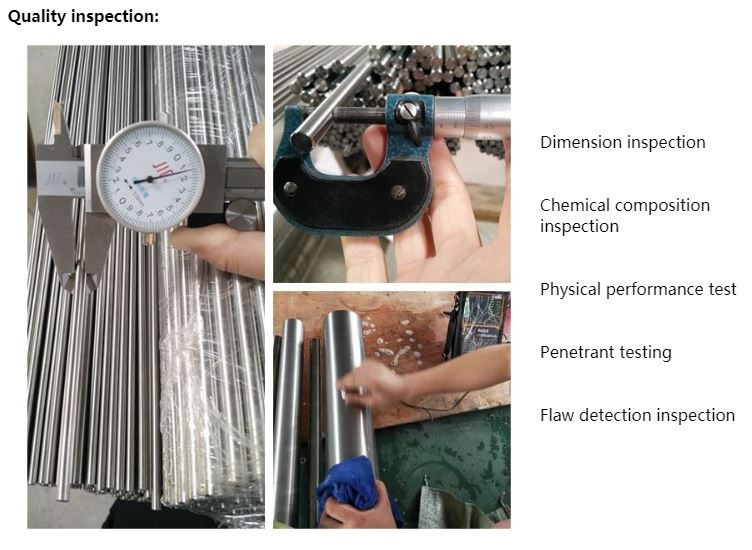

Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
MOQ : 10kgs
Unit price:$238.5-$349.2/kg
Feature : low density, special strong strength, excellent corrosive resistance
Factory Area:3000 ㎡
Company staff:48
Foreign trade team service staff:20
China's professional titanium rod manufacturer.
GR7 titanium is a kind of common titanium alloy. The palladium content is between 0.12% and 0.25%, which has strong corrosion resistance and weldability. Widely used in marine industry, petroleum, chemical equipment, offshore oil drilling company.
Product name: Titanium Gr. 7 Round Bars
Standard:ASTM B348,ASME B348
Material grade: Grade 7 (Ti-0.2Pd)
Size: Dia 5--200mm * Max L6000mm
Applications :Industrial
Supply status: Annealed

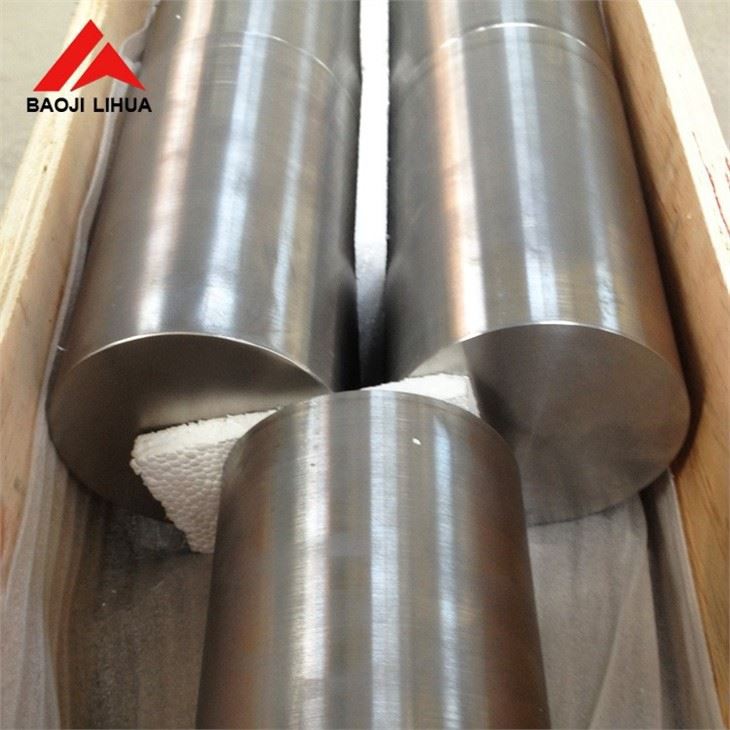

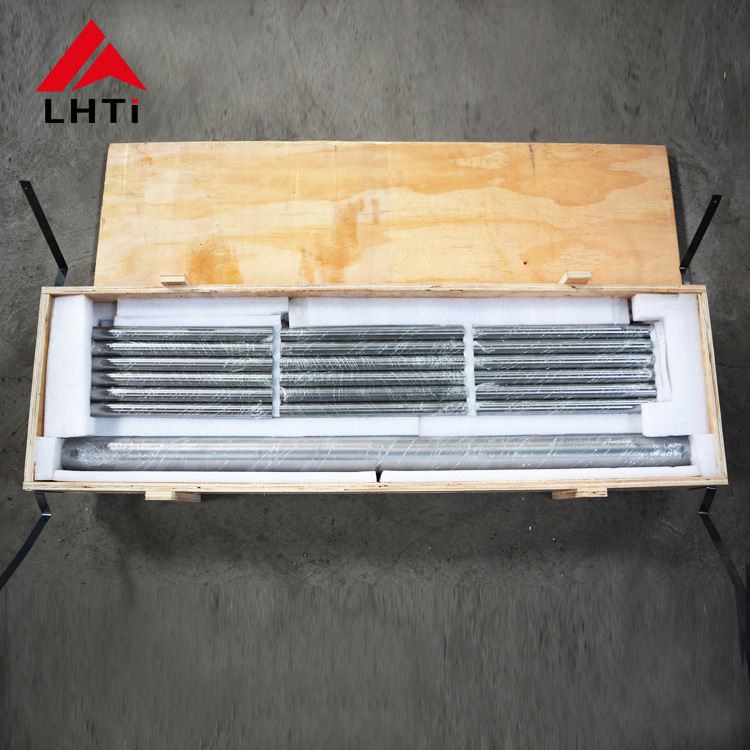

Package: Carton or plywood case.
Quality and Test : EN10204.3.1 certificate
Surface:CNC machined polished
STANDARD | WERKSTOFF No. | UNS |
Titanium Grade 7 | 3.7235 | R52400 |
Mechanical Properties (ASTM B348)
Tensile strength, Mpa (min) | Yield strength, MPa (min) | Elongation, % (min) | Reduction of Area, % (min) |
895 | 828 | 10 | 25 |
Chemical Component (WT%)
Pd | N | C | H | Fe | O | Residuals | |
max | max | max | max | max | Max each | Max total | |
0.12-0.25 | 0.05 | 0.08 | 0.015 | 0.3 | 0.25 | 0.1 | 0.4 |

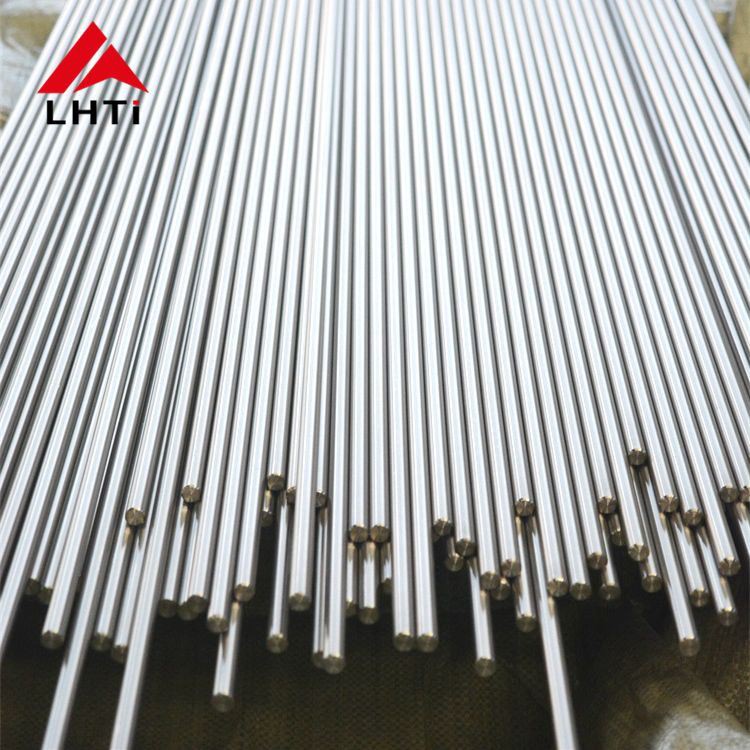

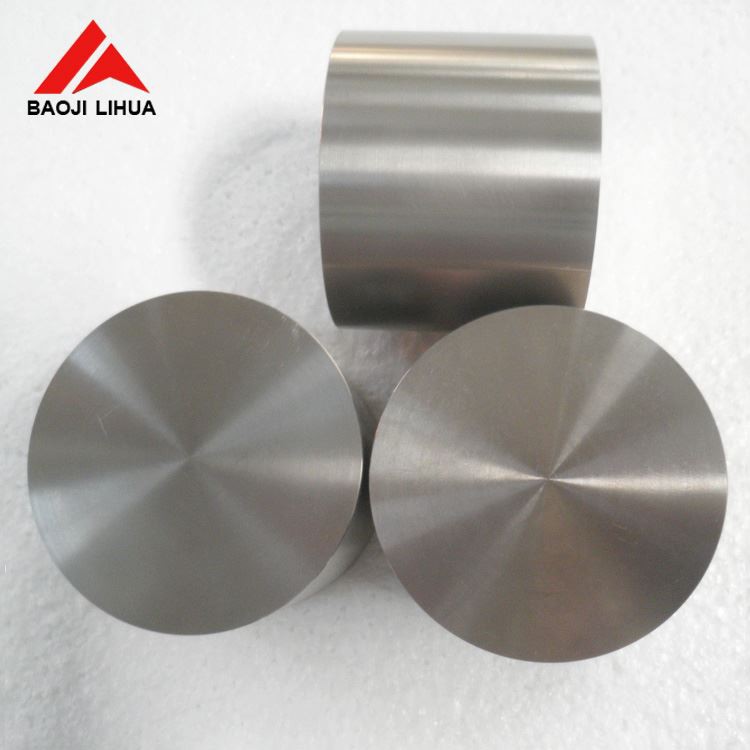

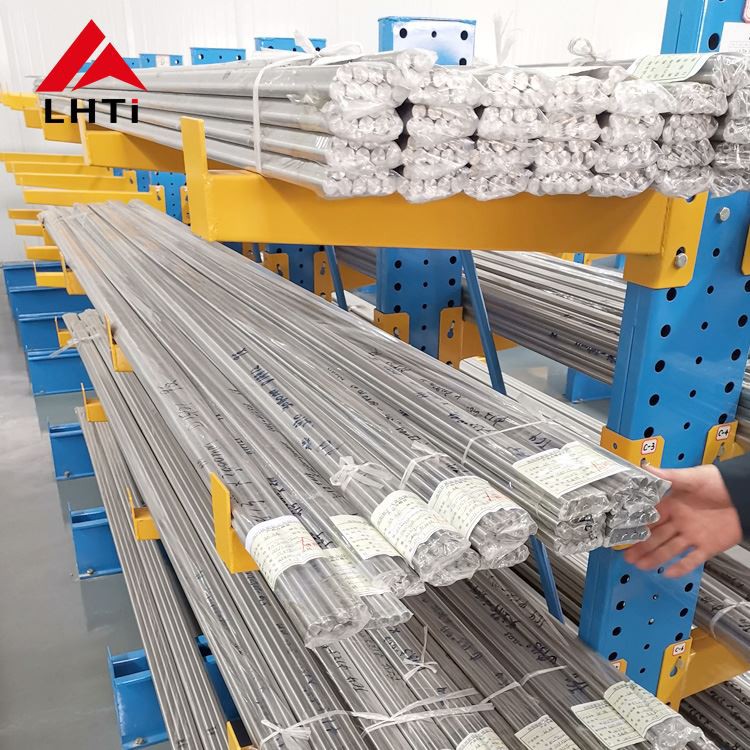

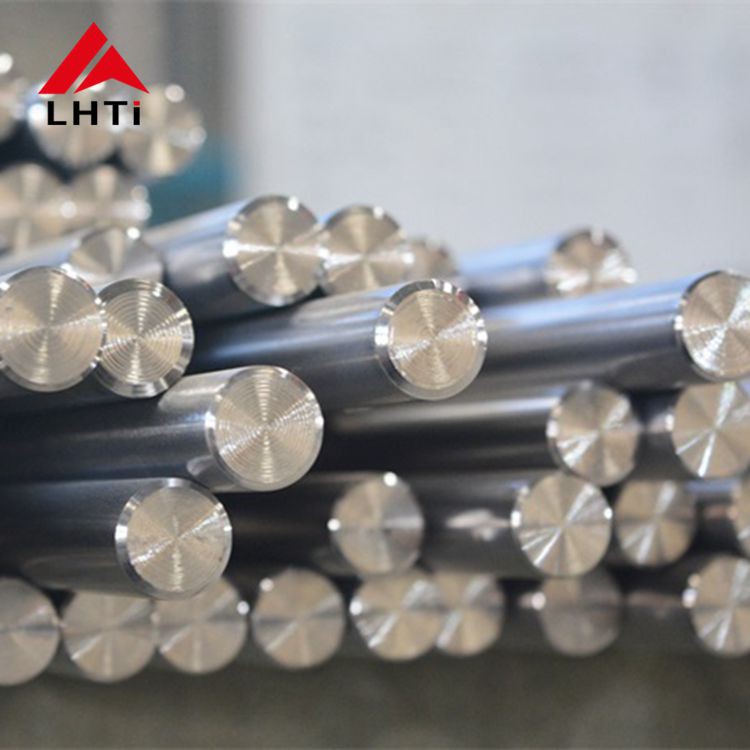

Detailed images :

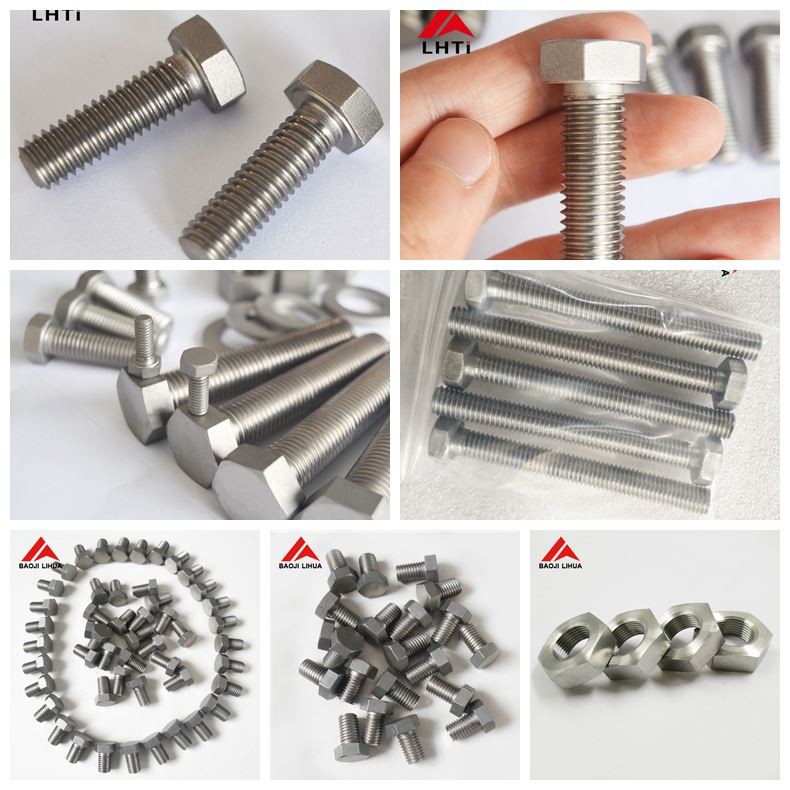

Retaled prodcuts:Gr7 titanium bolts and nuts

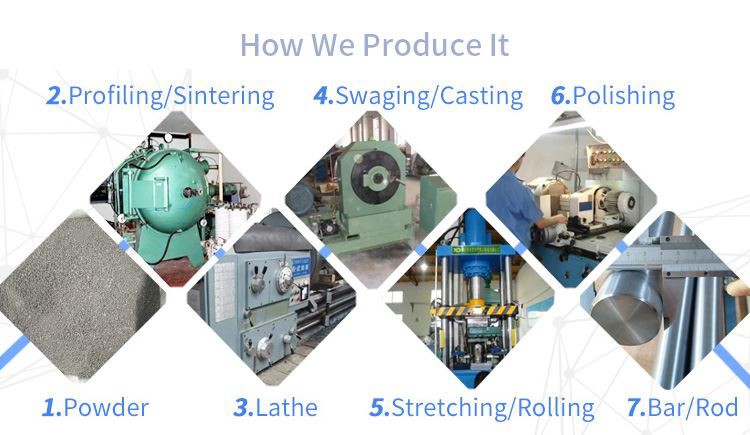

Titanium bar manufacturing process:

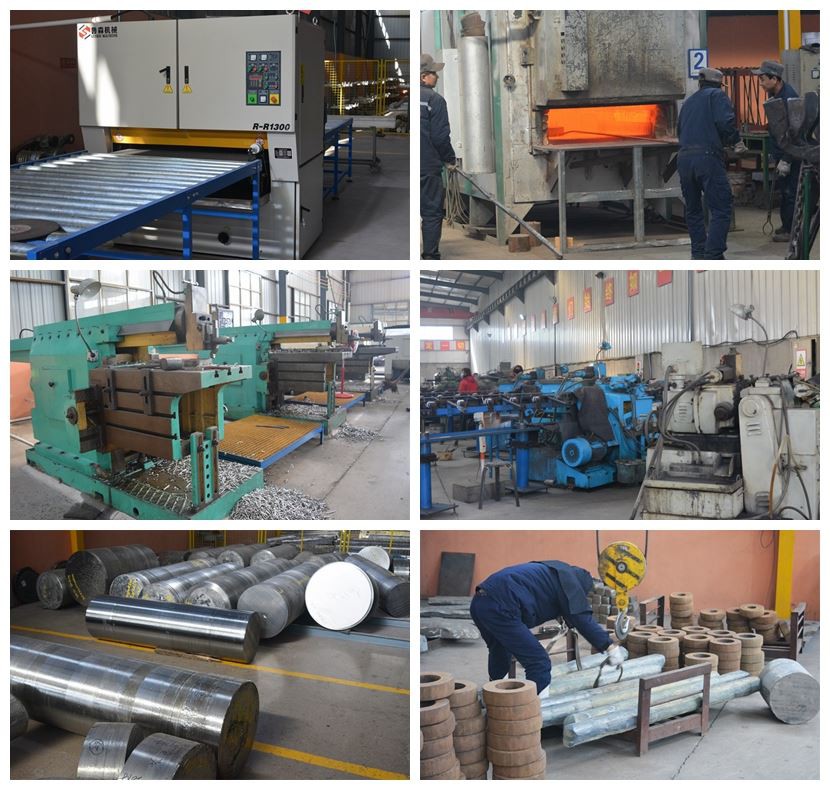

About our company:
