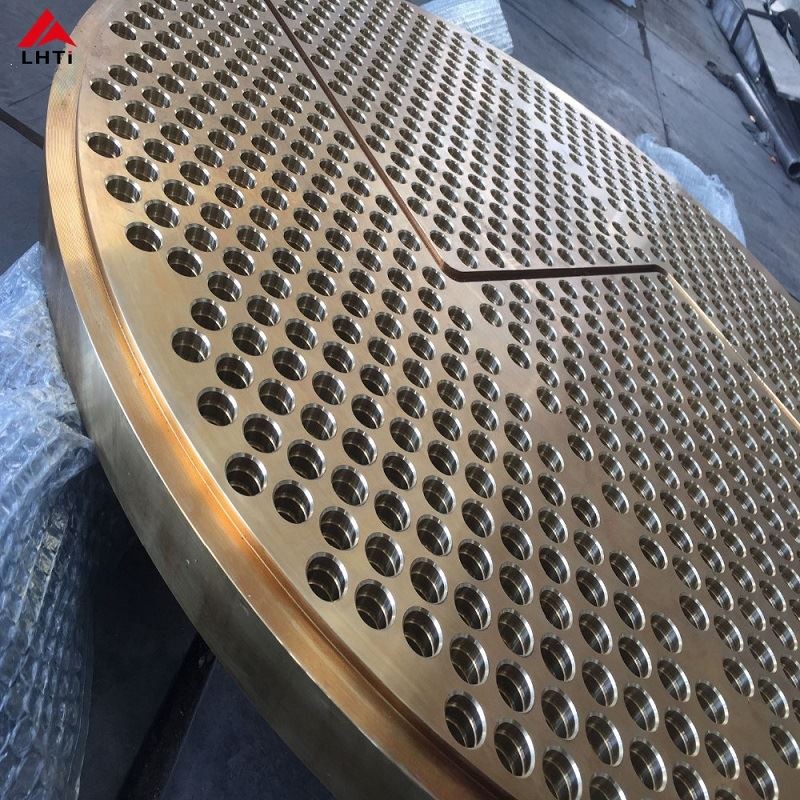

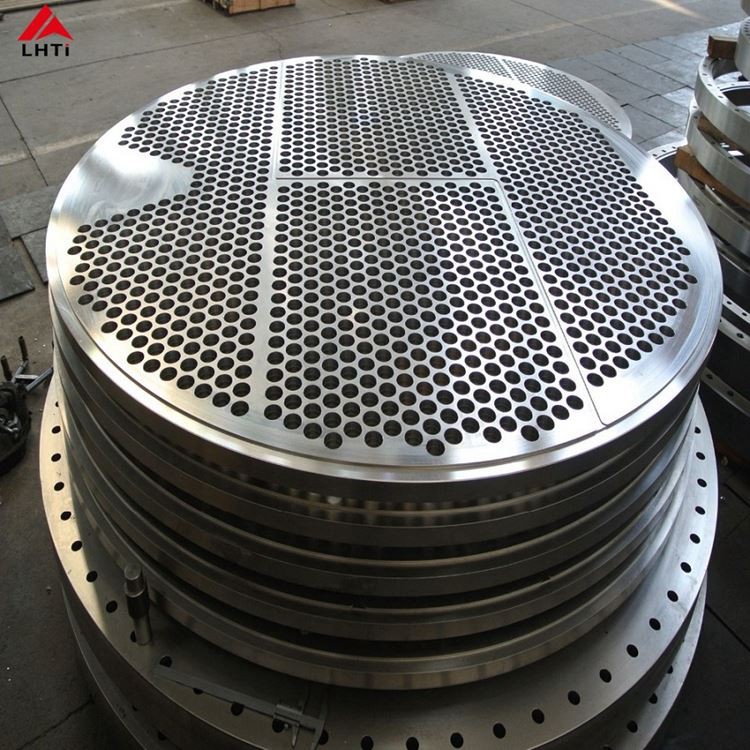

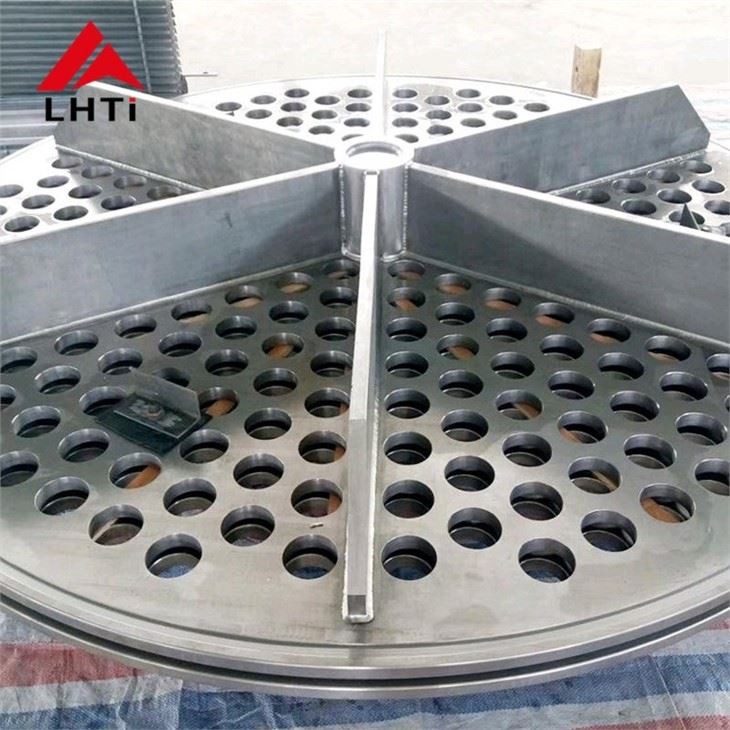

Titanium Clad Stainless Steel Tube Sheet
Material: Titanium +steel,Titanium+stainless steel etc.
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.
Titanium clad stainless steel tube sheet
Titanium composite steel plate tube-sheet is a single or double-sided composite plate made of ordinary grade TA1 or TA2 (composite metal) and carbon steel or alloy steel by explosion, explosion + rolling or hot rolling. Titanium metal has excellent corrosion resistance, widely used in flue gas desulfurization equipment, power plant chimneys, chemical reactors, heat exchangers, pressure vessels, etc. But its disadvantage is high cost, titanium composite steel plate tubesheet has the corrosion resistance of titanium metal and the structural strength of steel, can greatly reduce the project cost.
At present, the production method of titanium composite steel tubesheet is as follows:
1. Weld compound 2. Rolling compound 3. Explosive welding 4. Explosive welding + rolling
Baoji Lihua uses explosive welding and rolling and combines the two processes. This method can overcome the disadvantages of small area and complex rolling process of explosive composite plate, give full play to their respective advantages, and produce titanium steel composite plate with large area and small thickness. It is more efficient and cheaper.
| Technological parameters and shear strength of explosive welding of Titanium clad stainless steel plate tube sheet 1 | ||||||||||||
| Cladding materials | Base materials | h0/ mm | Wg/ (g.cm-2) | Bond strength/MPa | 1 | 2 | 3 | 4 | Average | Remark | ||
| Metal | δ1/ mm | Metal | δ2/ mm | |||||||||
| Titanium | 3 5 | Stainless steel | 18 | 5 6.5 | 1.4 1.6 | σt | 293 | 200 | 392 | 179 | 266 | The substrate is generally polished. |
| σf | 247 | 208 | 113 | 92 | 165 | |||||||
| σt | 447 | 530 | 460 | 441 | 444 | The substrate is polished. | ||||||
| σf | 403 | 200 | 363 | 322 | ||||||||
| σt | 139 | 105 | 203 | 205 | 163 | The substrate is generally polished. | ||||||
| σf | 231 | 345 | 286 | 287 | 285 | |||||||
| σt | 407 | 410 | 263 | 407 | 372 | The substrate is polished. | ||||||
| σf | 498 | 571 | 513 | 527 | ||||||||
| Losive welding of Titanium clad stainless steel plate tube sheet 2 | ||||||||||||
| Cladding materials | Base materials | h0/ mm | Wg/ (g.cm-2) | Bond strength/MPa | 1 | 2 | 3 | 4 | Average | Remark | ||
| Metal | δ1/ mm | Metal | δ2/ mm | |||||||||
| Titanium | 3 5 | Stainless steel | 18 | 5 6.5 | 1.4 1.6 | σt | 392 | 87 | 240 | 18 | The substrate is generally polished. | |
| σf | 345 | 92 | 157 | 12 | ||||||||
| σt | 530 | 279 | 402 | 5 | The substrate is polished. | |||||||
| σf | 403 | 200 | 321 | 3 | ||||||||
| σt | 339 | 60 | 230 | 18 | The substrate is generally polished. | |||||||
| σf | 287 | 149 | 233 | 11 | ||||||||
| σt | 571 | 513 | 541 | 2 | The substrate is polished. | |||||||

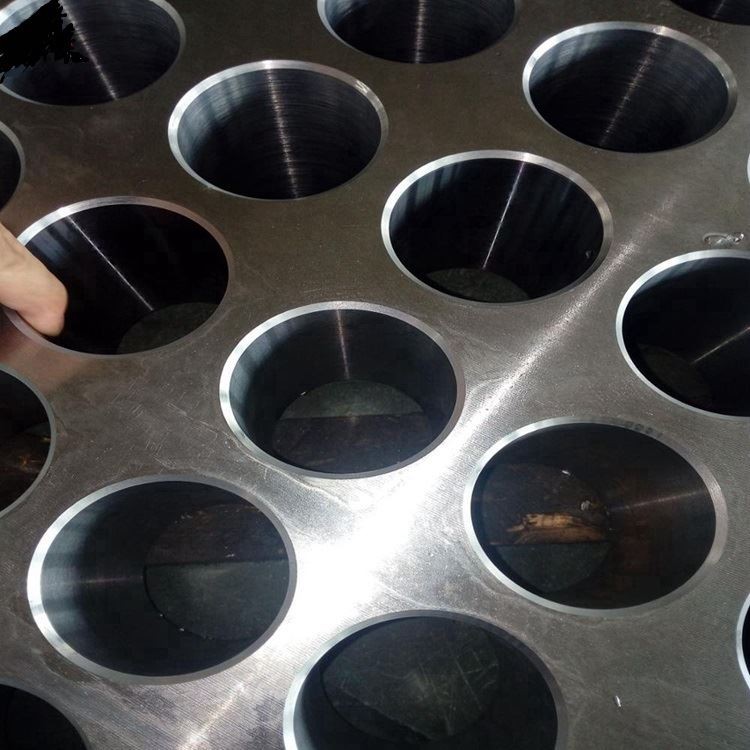

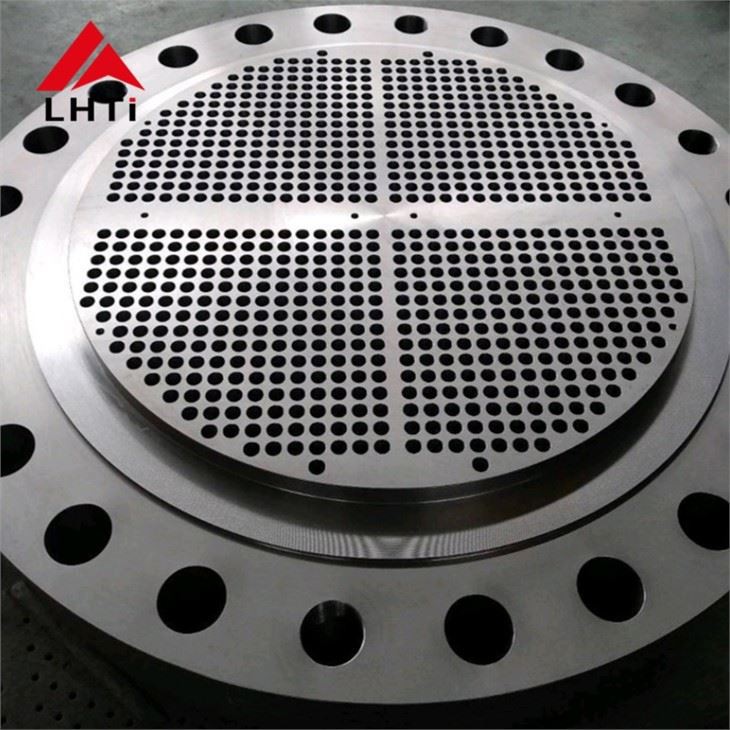

Detailed images:

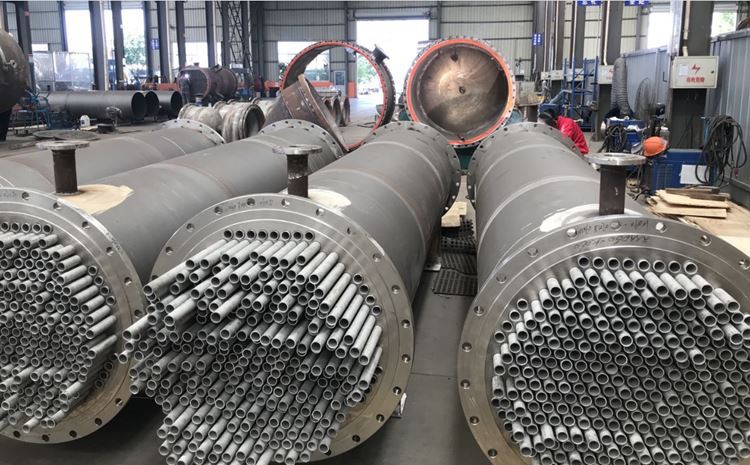

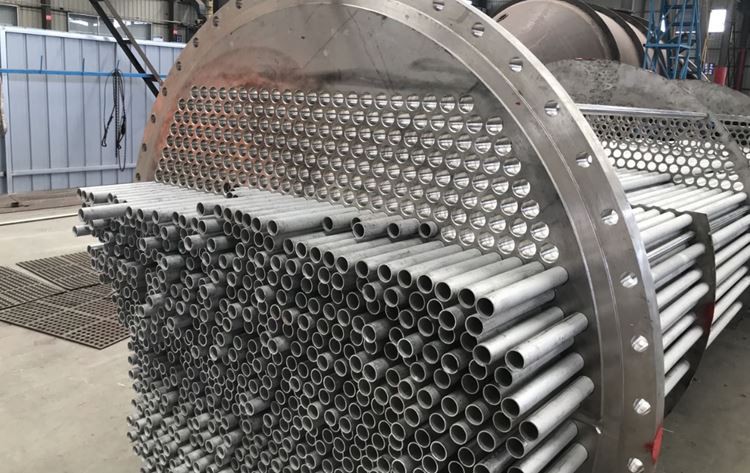

Titanium tubesheet used in heat exchanger:
About our company:
Packing and shipping:
About Us
Baoji Lihua, a leading manufacturer and trader of titanium products for over 15 years, has a strong track record in exporting titanium heat exchangers globally. Our products are renowned for their quality and reliability.
We welcome custom orders and are well-versed in market trends, ensuring that our pricing keeps you competitive. Our dedicated technical team provides comprehensive service from start to finish.
In addition to titanium heat exchangers, Baoji Lihua also specializes in the design and manufacturing of:
Titanium Pressure Vessels
Titanium Reactors
Titanium Piping Systems
Welcome to contact!
