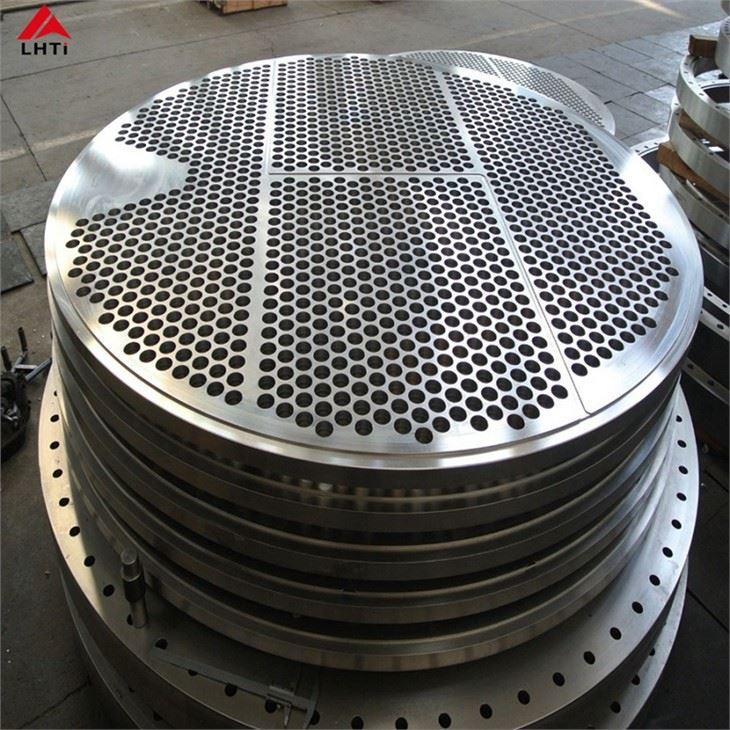

Titanium clad steel plate tube sheet

Titanium clad steel plate tube sheet

Porduct name : Titanium Forged Clad Tube Sheet
Material: Titanium +steel,Titanium+stainless steel etc.
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

Send Inquiry

Chat Now

Product Introduction

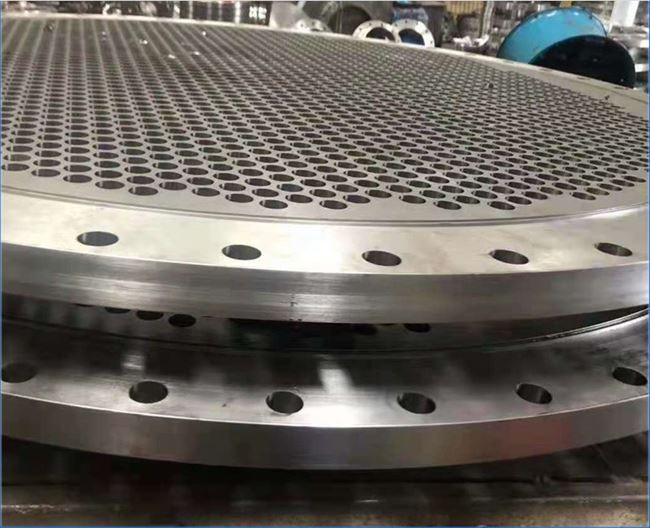

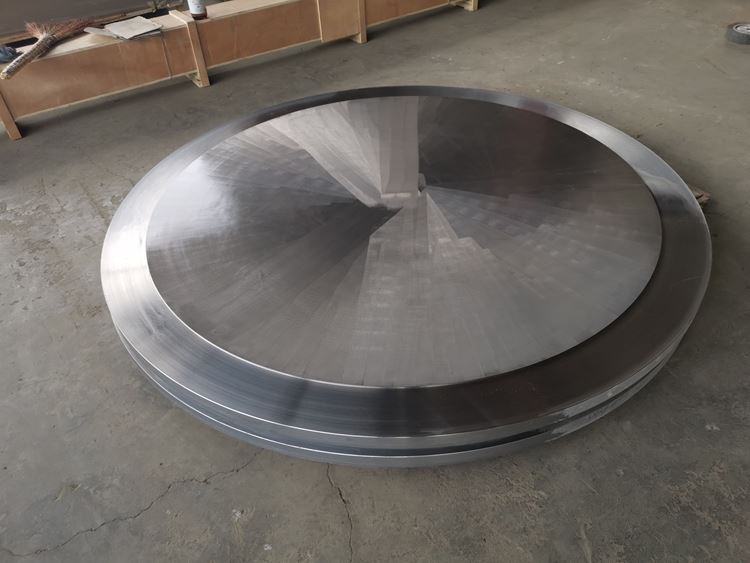

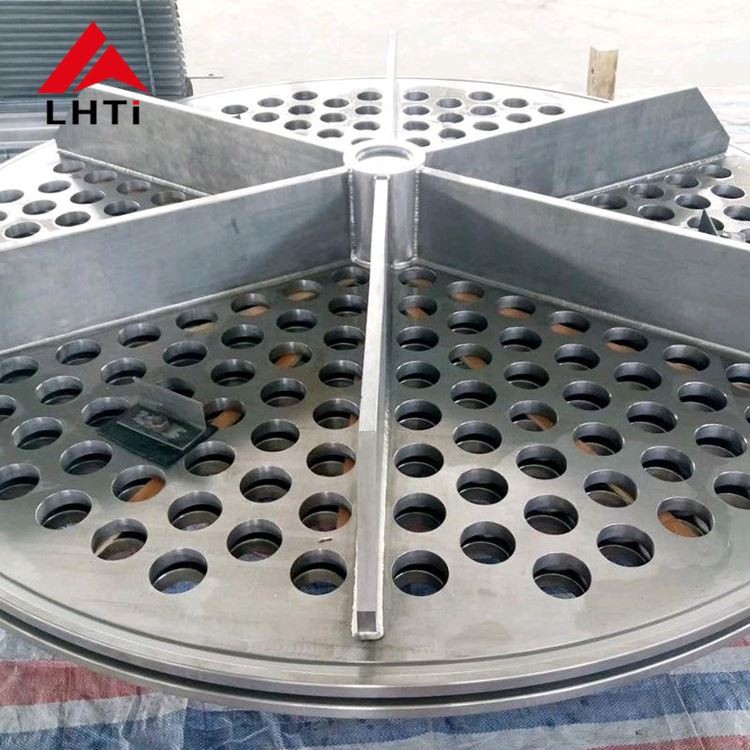

Titanium Forged Clad Tube Sheet

Titanium is a new kind of metal, with low density, corrosion resistance, high and low temperature. High strength and other excellent performance. It is an important structural material in aviation, aerospace, chemical, Marine, electric power, metallurgy and other fields.

In order to save titanium resources, reduce the cost and promote the application of this new metal material in civil industry, titanium steel composite plate came into being.

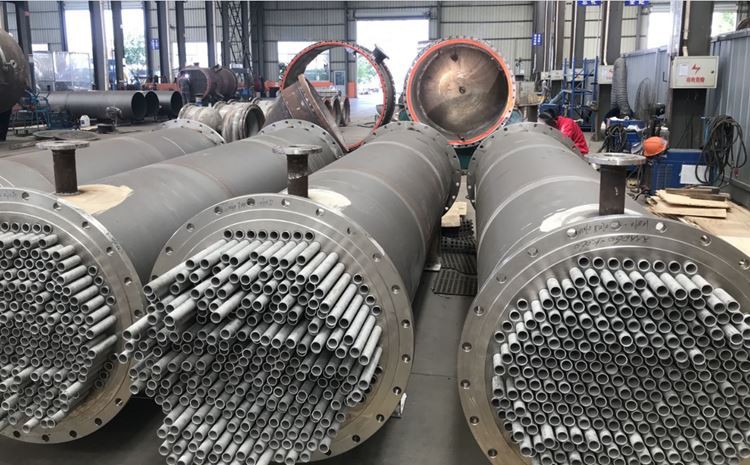

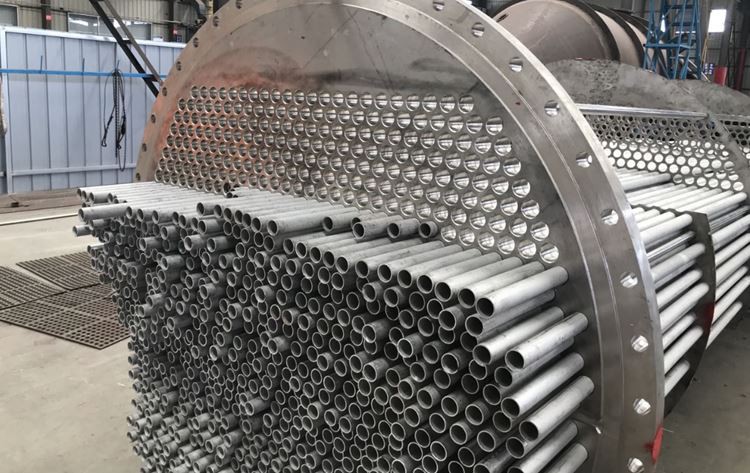

Titanium steel composite tube plate have the same effect as pure titanium tube plate, but also very good cost saving, widely used in pressure vessels, heat exchangers, urban sewage treatment containers, water storage containers and nuclear waste treatment containers, chemical distillation tanks and so on.

Shear strength of Titanium clad steel plate tube sheet
Combination	Gr1-Q235		Gr2-Q235	Gr1- 18MnMoNb		Gr2-18MnMoNb		Gr2-16MnCu
σt/MPa	342		341	448		390		421
Shear strength and separation strength of Titanium clad steel plate tube sheet
Type		σt/MPa					σf /MPa
Condition		Explosive state			Annealing state		Explosive state		Annealing state
Data		261			190		250		186

Base material	Gr1 Gr2 Gr3 Gr7 Gr 12
Cladding material	Q245R, Q345R, 16Mn, 20MnMo, 16MnDR,16MnD, S30408, 0Cr18Ni9
Standard	NB/T 47002-2009, ASTM B-898
Cladding plate thickness	≤100㎜
Base plate thickness	≤500㎜
Length	≤12000㎜
Width	≤4200㎜
