Titanium Clad Steel Tube Sheets

Titanium Clad Steel Tube Sheets

Porduct name : Titanium Clad Steel Tube Sheets
Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc.
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case
Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

Send Inquiry

Chat Now

Product Introduction

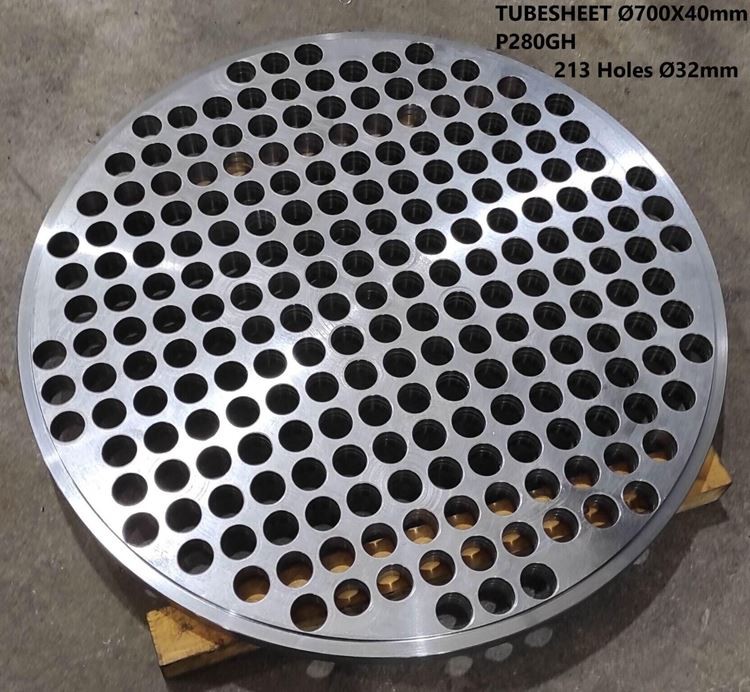

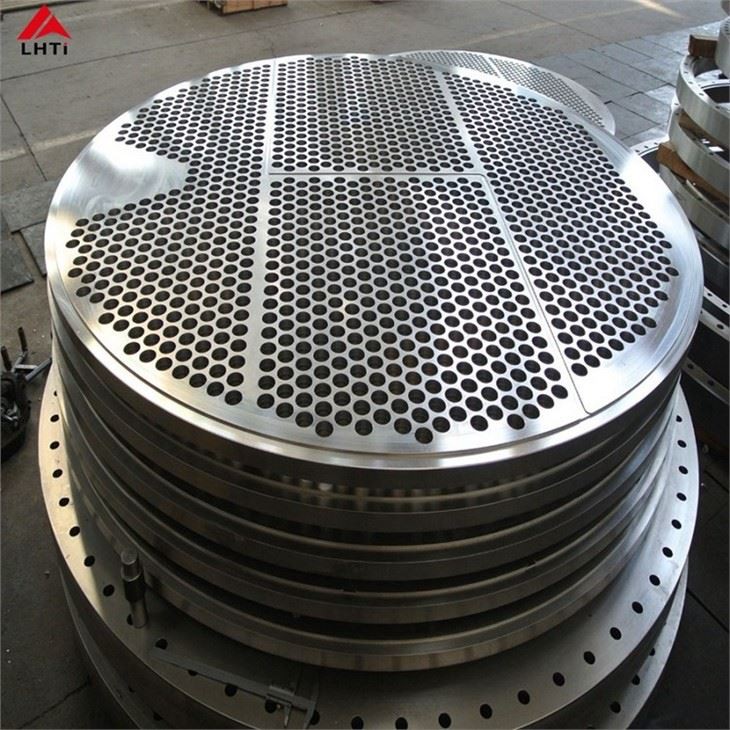

Titanium Clad Steel Tube Sheets

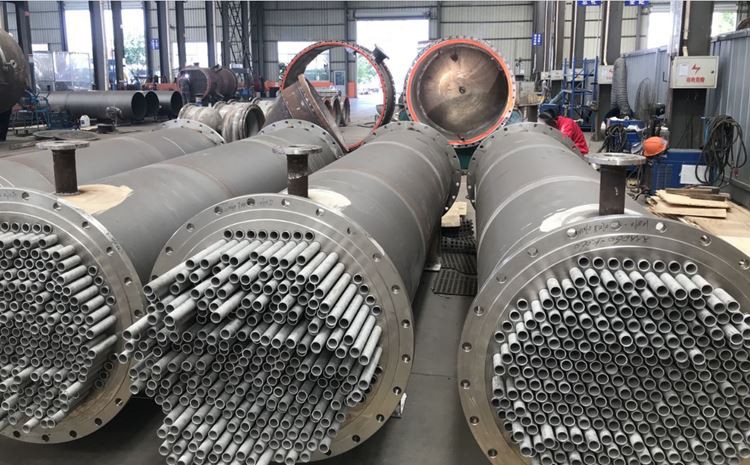

The Titanium tube plate is drilling the pipes holes on the circular. Titanium steel Clad plate to be slightly larger than the outer diameter of the tube. It is widely used in Heat Exchanger area,play the role of fix pipe and a sealing medium in the heat exchanger.

Standards:	ASTM B898, ASME SB898, etc.
Base materials:	Carbon steel: Q235, 516GR-70, A216, A210-C,
	Stainless steel: SUS304, SUS316, SUS410, etc.
	duplex stainless steel: 2507, S32750, F53, etc.
	Aluminum: L, Ly ,LF, etc.
	Nickel: N2, N4, N6, etc.
	Copper: T1, T2, T3, T4, etc.
	Zirconium: R60702
Clad materials :	Titanium GR1, GR2, GR7, GR12, GR16, GR17, etc.
Sizes(clad/base):	(0.5-20)/(0.5-200) x W(max W 6000) x L(max L 8000)
Applications:	power station chimney, vacuum salt making facility, pressure vessel, petrochemical, chemical, crystallizer, evaporator, heat exchanger, TDA tower, condenser, reactor, etc.
