Porduct name : Titanium Explosive Clad Steel Plate / Sheet
Material: Gr2 Titanium +steel,Gr2 Titanium+stainless steel etc.
Size &Standard: As per client drawing
Production Method: Forging,annealing and machining
Advantage: Excellent corrosion resistance ability
Packing: Plywood case

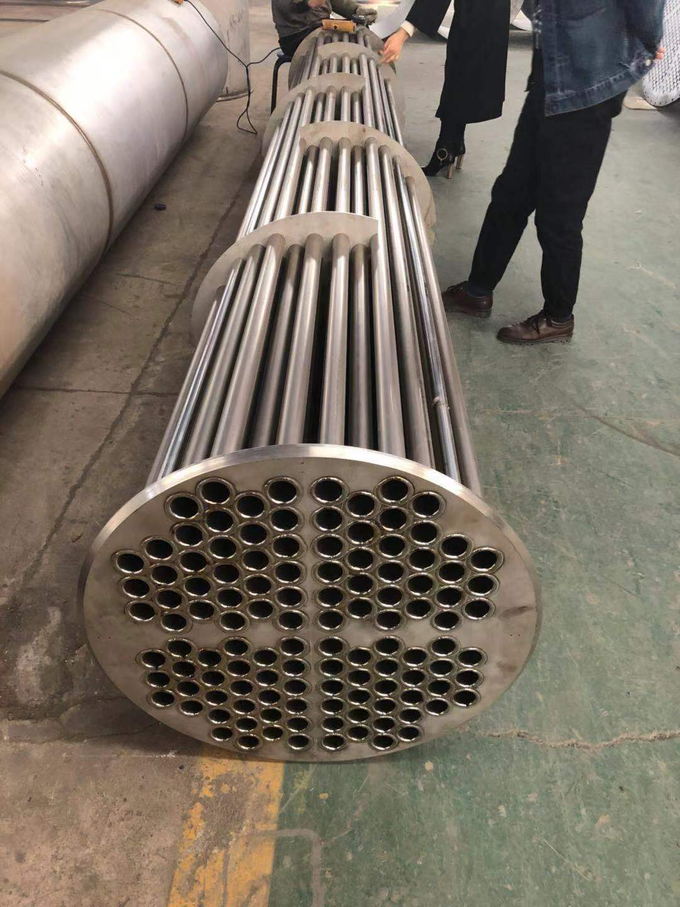

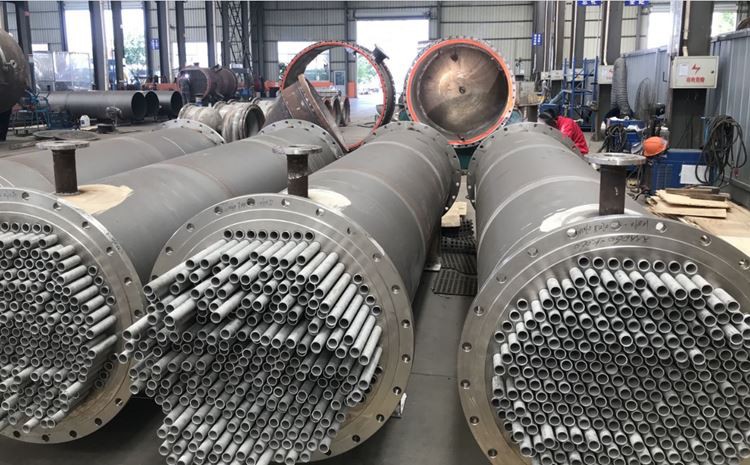

Application: Heat Exchanger, chemical equipment, Pressure Vessel, filter devices, etc.

Send Inquiry

Chat Now

Product Introduction

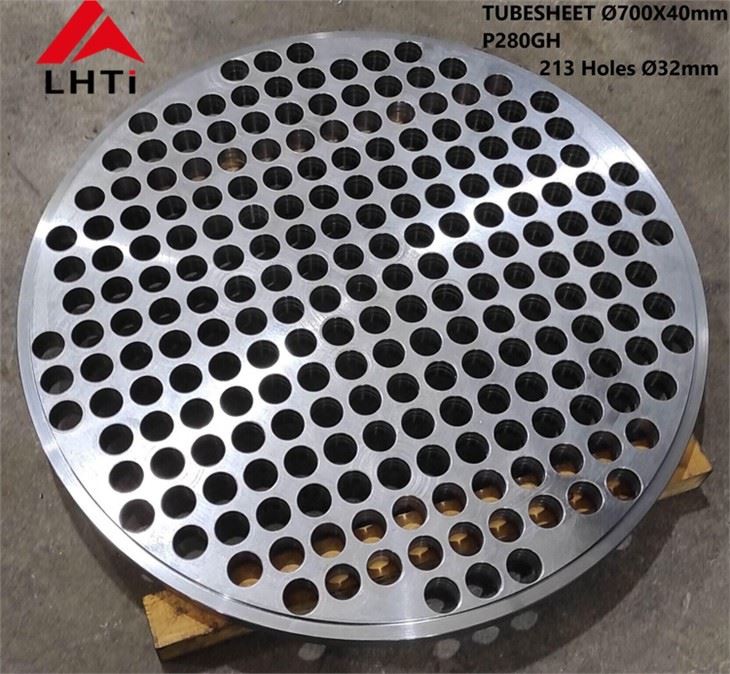

Titanium Explosive Clad Steel Plate / Sheet

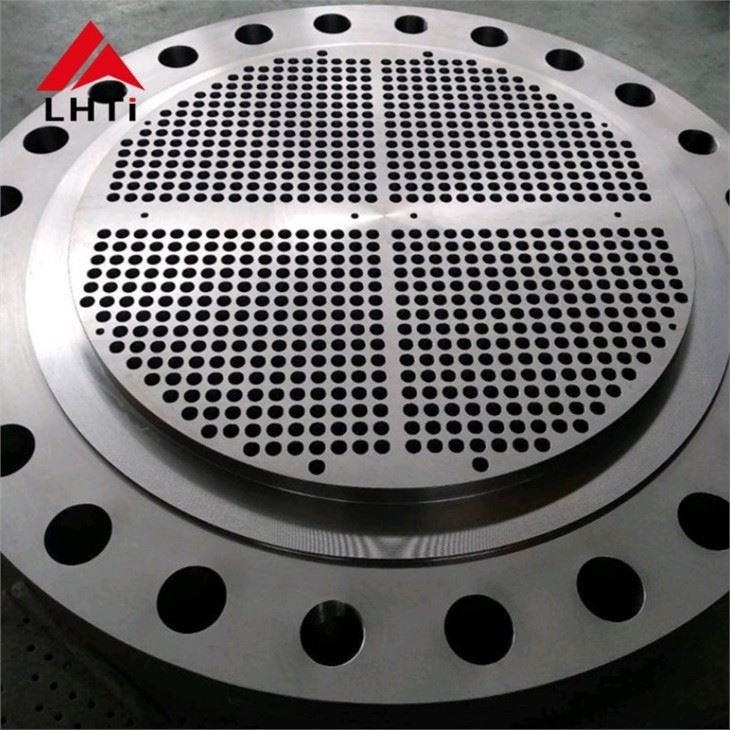

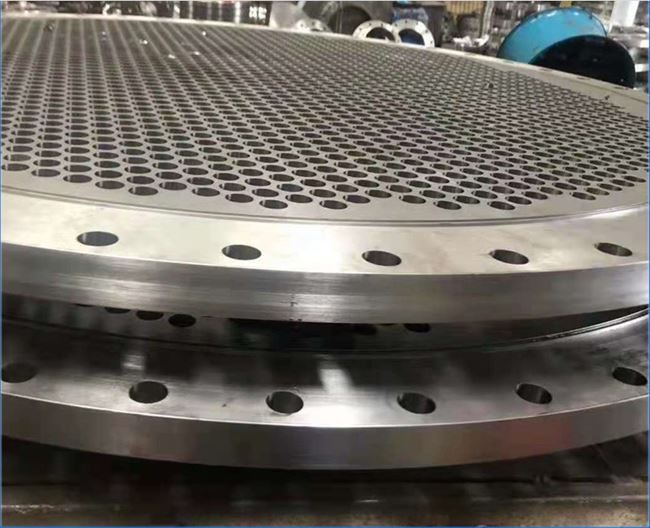

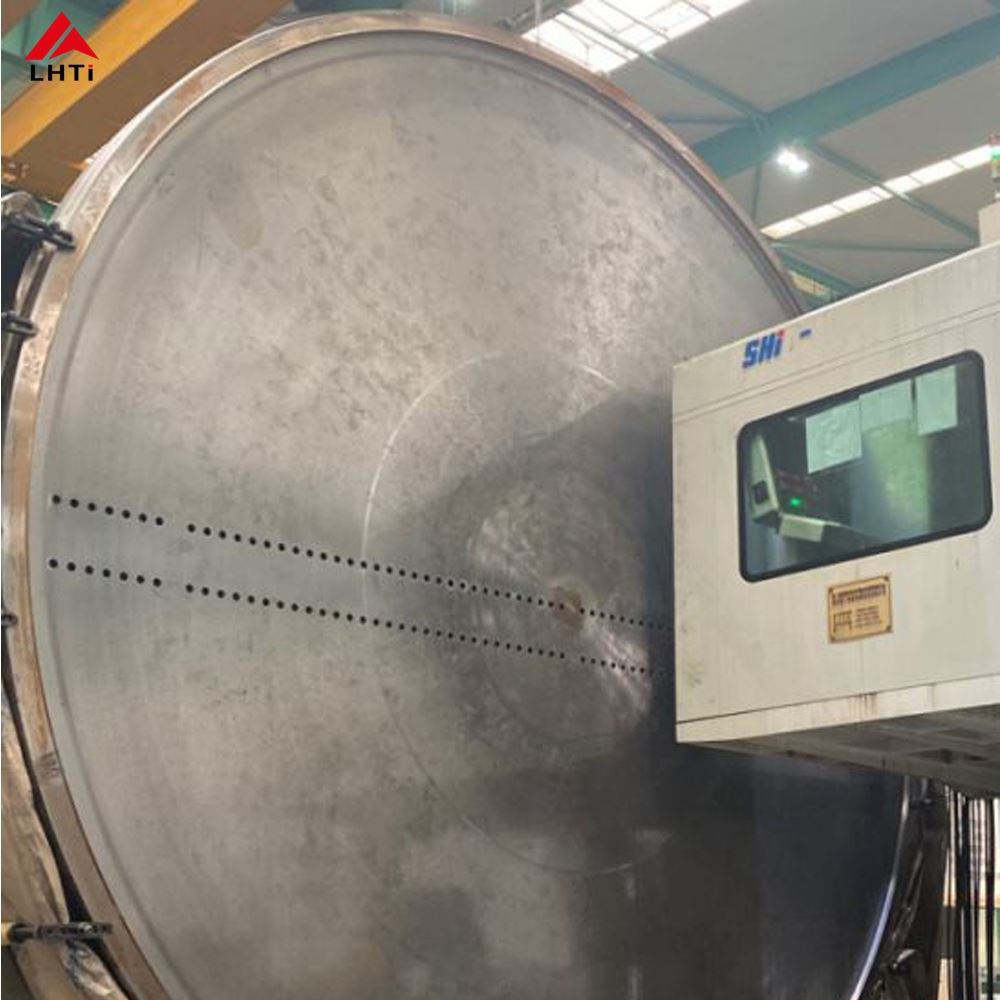

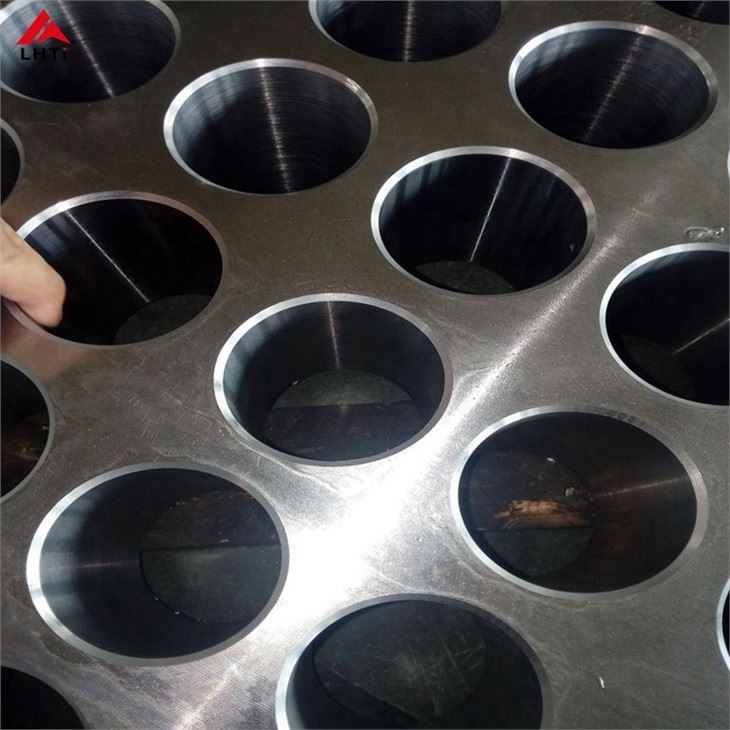

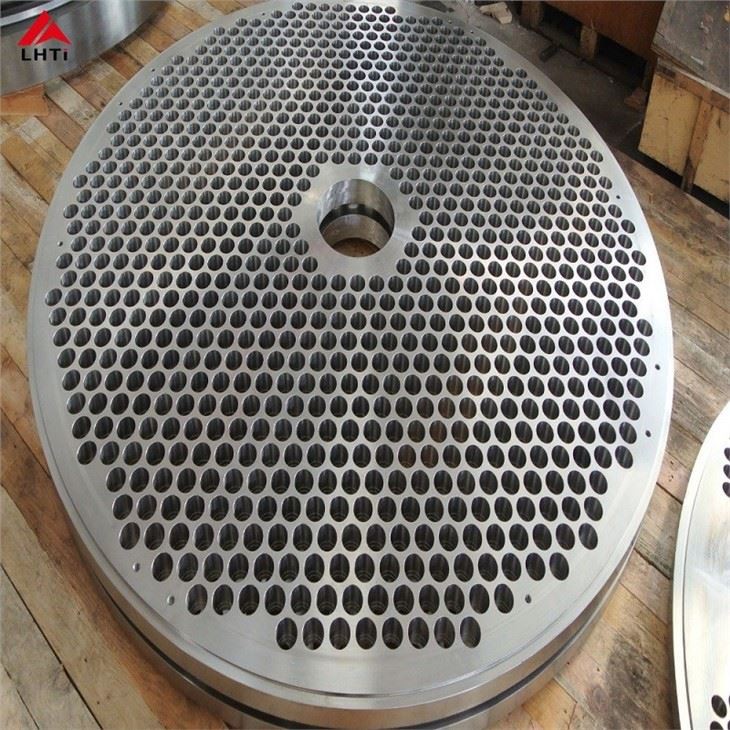

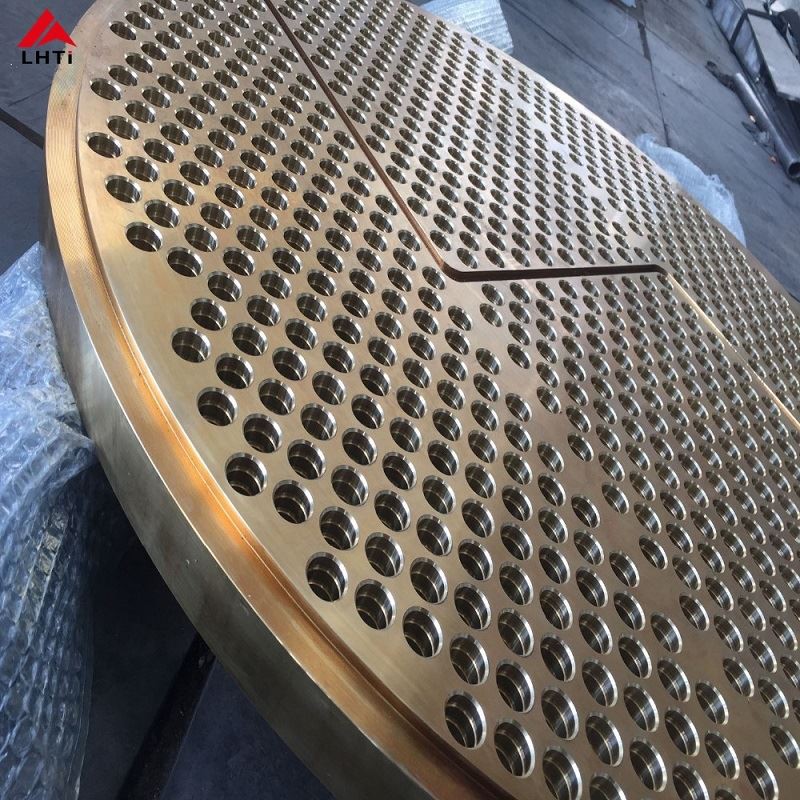

Tube plate in different working environment have different application material, general tube plate use Q345R container board, this is, of course, in the absence of corrosive medium under the condition of flow and pressure, and in some high pressure high temperature corrosion environment we will recommend that users use stainless steel when tubesheet machining, 16 mn or titanium alloy wear resistant material.

EXPLOSIVE CLAD PLATES :
Description	Clad material	Base Material	Size(mm)	Standard	Application
Titanium Steel clad plate	GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni)	516GR-70 A216 A210-C	(1-10/5-120)thk ×(≤2000)width ×(≤8000)length	ASTMB-898	Petrochemical, chemical, chloral-alkali, food, fertilizer, wet metallurgy, Electroplating, Vacuum Salting Making
Titanium Stainless steel clad plate	GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni)	SUS410 SUS304	(1-6/5120)thk ×(≤2000)width ×(≤8000)length	ASTMB-898	Petrochemical, chloral-alkali, aerospace, aviation, low temperature, food, light industry, medicine
Titanium Aluminum clad material	GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni)	L, Ly, LF	(1-10/5-50)thk ×(≤2000)width ×(≤8000)length	ASTMB-898	aerospace, cookware, chemical, industry, ship, special brazing filler
Titanium Copper clad plate	GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni)	T1, T2, T3, T4	(1-10/5-50)thk ×(≤2000)width ×(≤8000)length	ASTMB-432	Power plant, electrolysis, cook ware, wet metallurgy
Titanium Nickel clad material	GR1, GR2, GR3 (CP Ti) GR7, GR16 (Ti/Pd alloy) GR12 (Ti-0.3 Mo-0.8 Ni)	N2, N4, N6	(1-10/5-50)thk ×(≤2000)width ×(≤8000)length	Reference to ASTMB-898	Metallurgy

	Fe max	O max	N max	C max	H max	Pd	Al	V	Mo	Ni	Elong'n	Rp 0.2	Rm
No	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	wt%	%	MPa	MPa
Grade 1	0.2	0.18	0.03	0.1	0.015						24	170-310	240
Grade 2	0.3	0.25	0.03	0.1	0.015						20	275-450	345-480
Grade 3	0.25	0.3	0.05	0.1	0.015						18	360-480	480-700
Grade 4	0.5	0.4	0.05	0.1	0.015						15	500-530	600-680
Grade 5	0.4	0.2	0.05	0.1	0.015		5.5-6.7				10	800-1100	890-1400
Grade 6				0.1							16	780-820	820-860
Grade 7	0.3	0.25	0.03	0.1	0.015	0,12-0,25					20	275-450**	345
Grade 9	0.25	0.15	0.02	0.05	0.015		2,5-3,05				15	550	650
Grade 11	0.2	0.18	0.03	0.1	0.015	0.12-0.25					24	170-310**	240
Grade 12	0.3	0.25	0.03	0.1	0.015				0.3	0.8	25	414-460	499-600
